HCF40107BE datasheet, PDF - EEWORLD Datasheet

HCF40107BE: DescriptionHCF40107BE; Categorylogic logic; File Size781KB，13 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

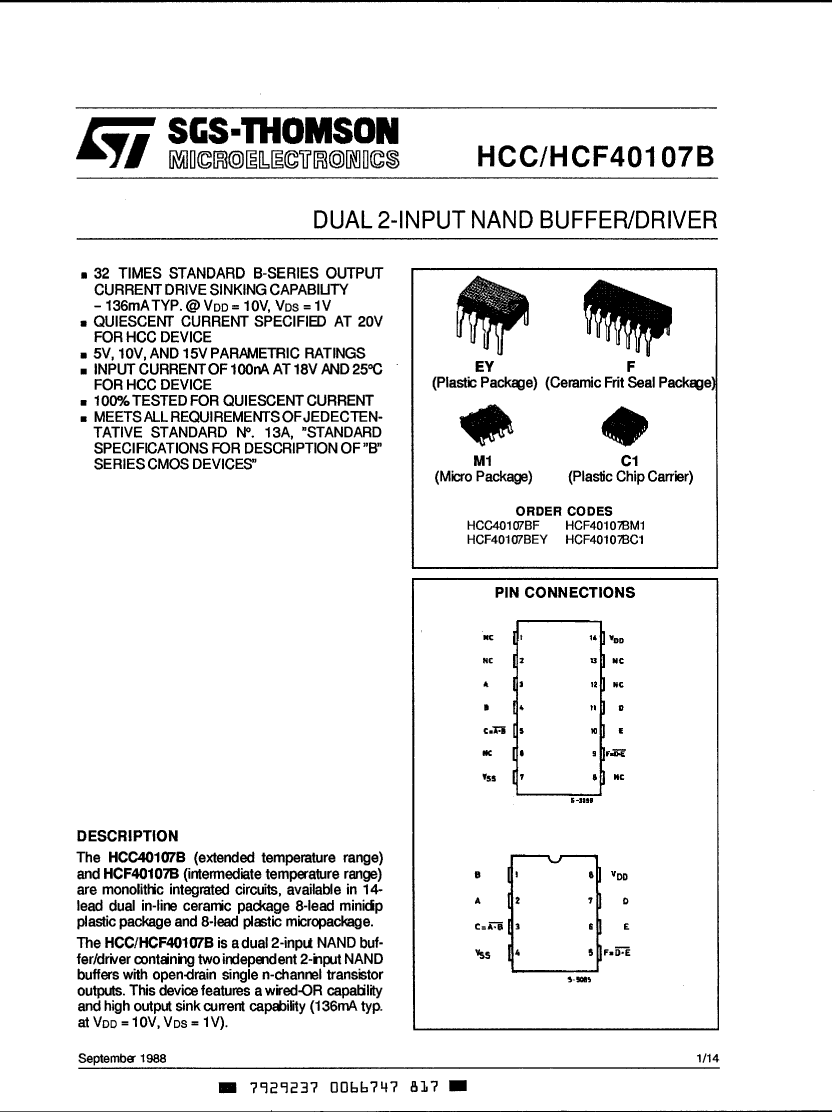

HCF40107BE Overview

HCF40107BE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Load capacitance (CL)	50 pF

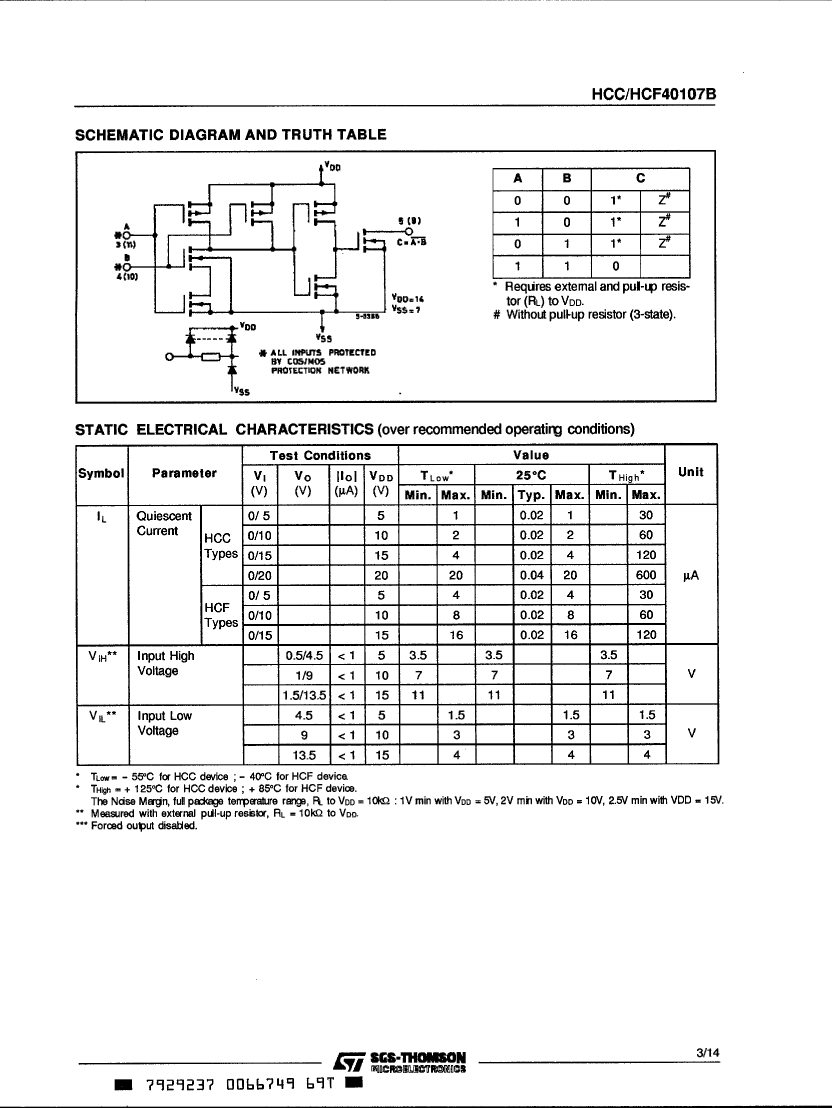

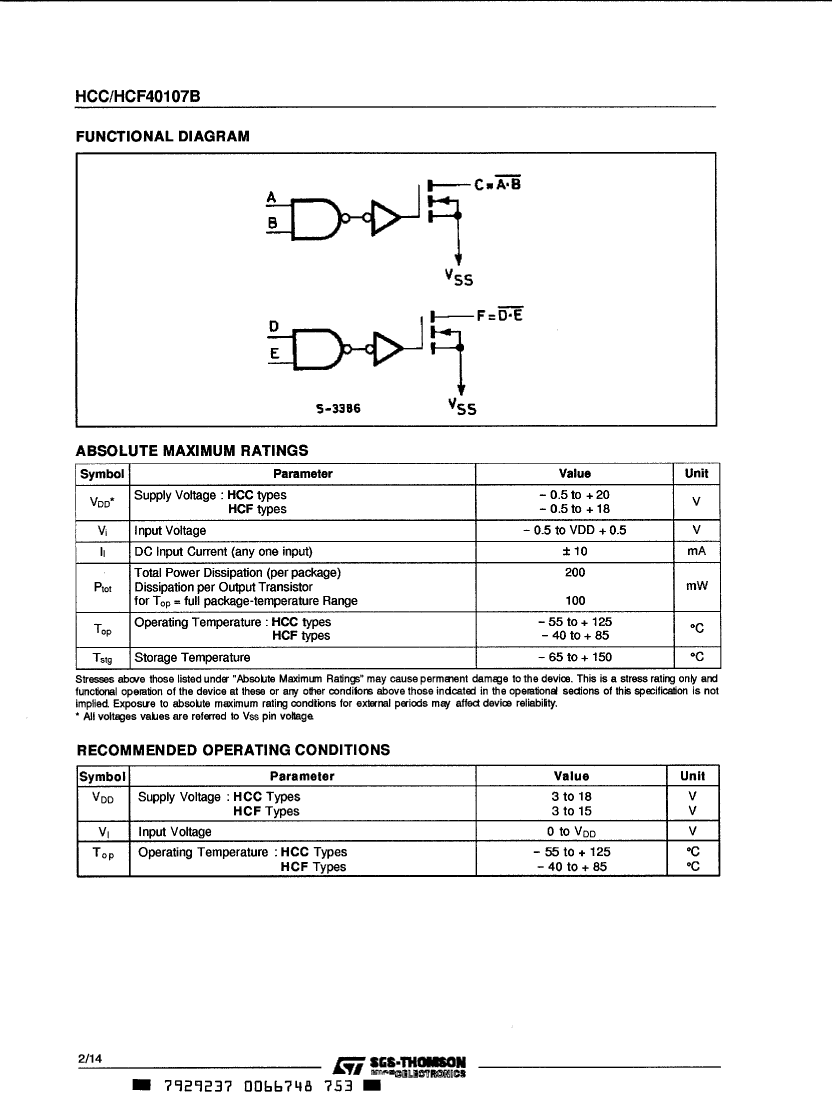

Logic integrated circuit type	NAND GATE
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

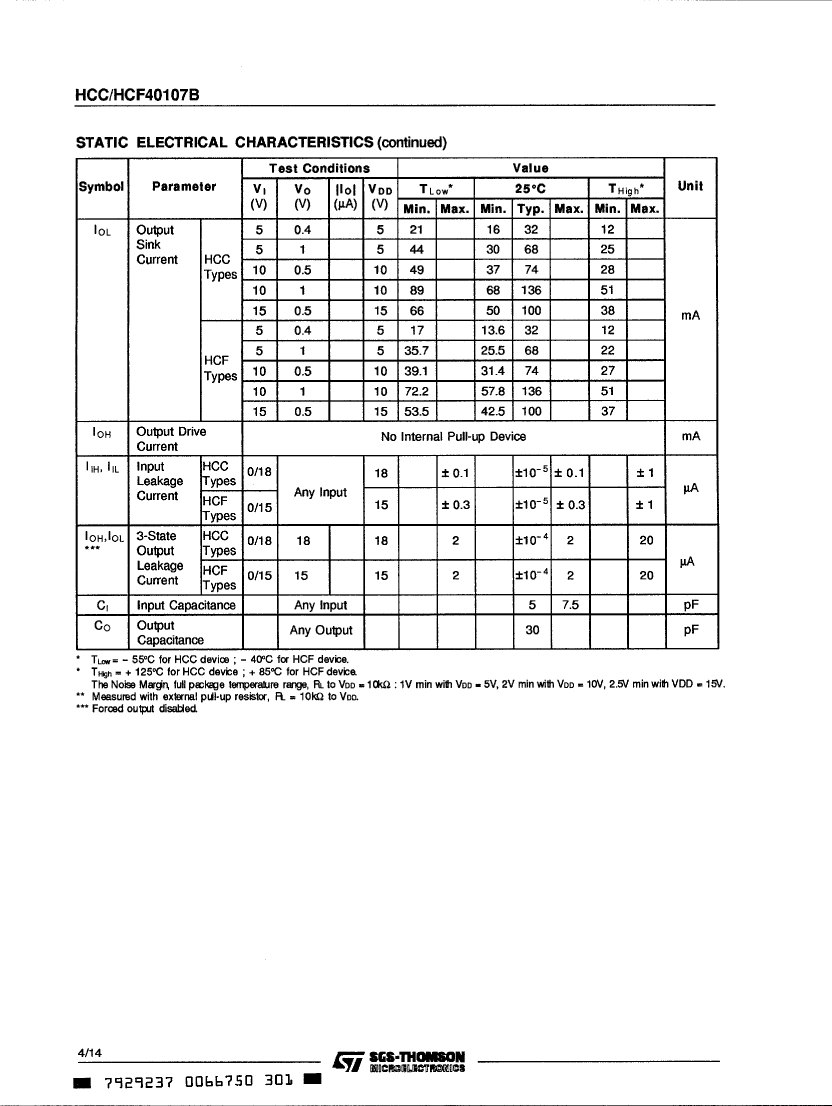

Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/15 V

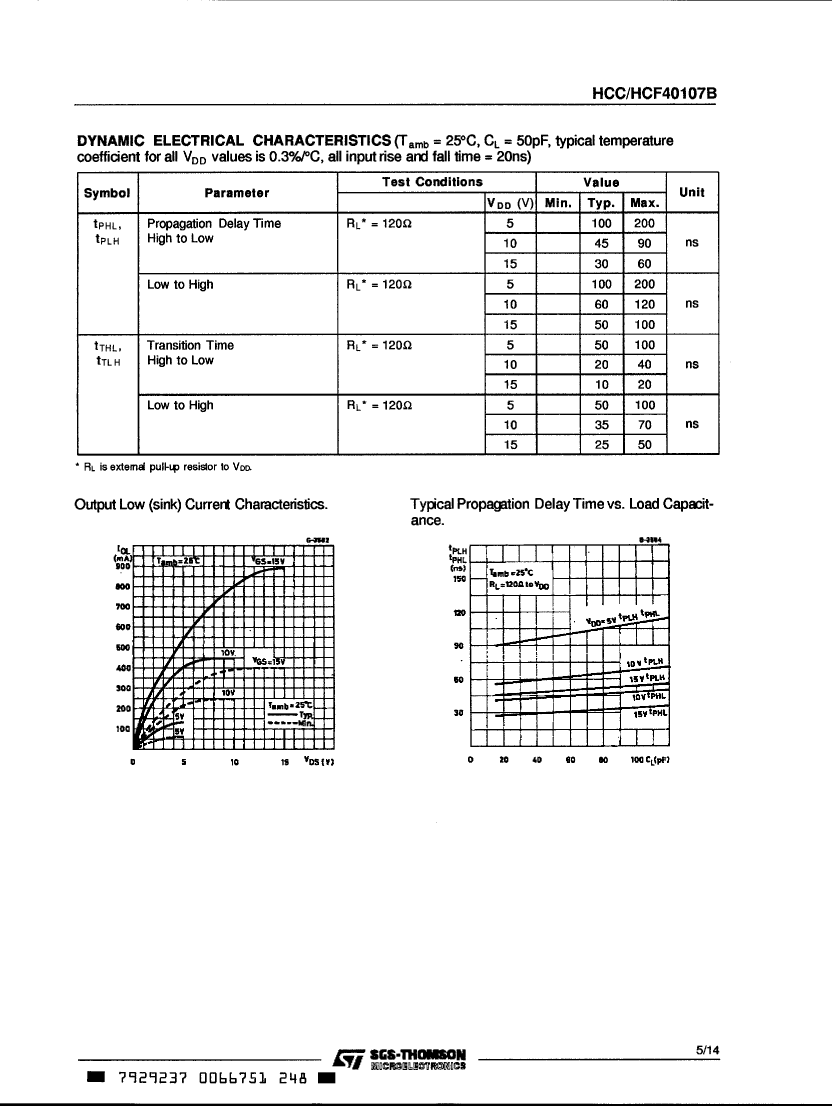

Prop。Delay @ Nom-Sup	200 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	HCF40107BE	HCF40107BM
Description	HCF40107BE	IC,LOGIC GATE,DUAL 2-INPUT NAND,CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics
Reach Compliance Code	not_compliant	not_compliant
JESD-30 code	R-PDIP-T8	R-PDSO-G14
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE
Number of terminals	8	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	3/15 V	3/15 V
Prop。Delay @ Nom-Sup	200 ns	200 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
