Datasheet> All Categories > semiconductor> Discrete semiconductor> UFR3280

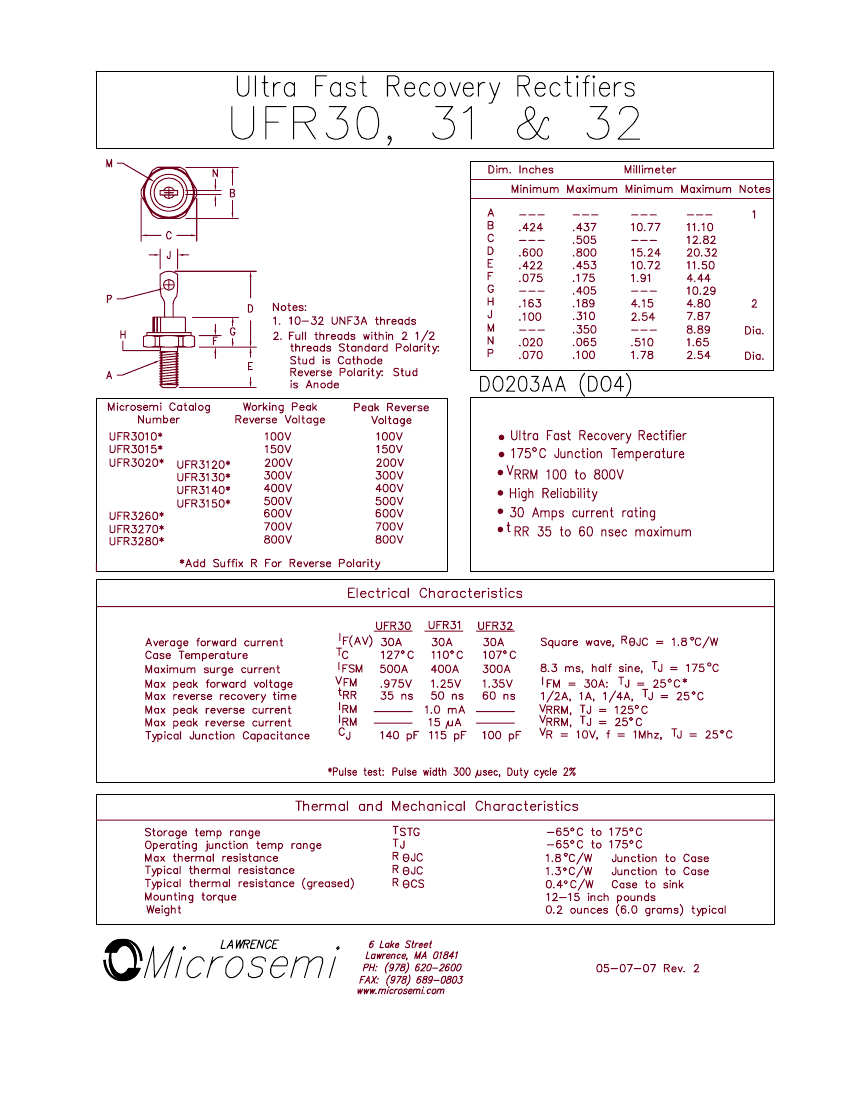

Preview

UFR3280: Description30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA; Categorysemiconductor Discrete semiconductor; File Size201KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFR3280 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UFR3280	-	-	View	Buy Now

UFR3280 Overview

30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA

UFR3280 Parametric

Parameter Name	Attribute value
Number of components	1
Number of terminals	1
Processing package description	DO-4, 1 PIN
state	Active
Diode type	RECTIFIER DIODE
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
structure	SINGLE
Diode component materials	SILICON
Maximum forward voltage	1.25 V
jedec_95_code	DO-203AA
jesd_30_code	O-MUPM-D1
jesd_609_code	e0
moisture_sensitivity_level	NOT SPECIFIED
Maximum non-repetitive peak forward current	400 A
Phase	1
Minimum operating temperature	-65 Cel
Maximum operating temperature	175 Cel
Maximum output current	30 A
Packaging Materials	METAL
packaging shape	ROUND
Package Size	POST/STUD MOUNT
eak_reflow_temperature__cel_	NOT SPECIFIED
qualification_status	COMMERCIAL
Maximum repetitive peak reverse voltage	500 V
everse_current_max	15 µA
Maximum reverse recovery time	0.0500 µs
surface mount	NO
terminal coating	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
ime_peak_reflow_temperature_max__s_	NOT SPECIFIED
dditional_feature	HIGH RELIABILITY

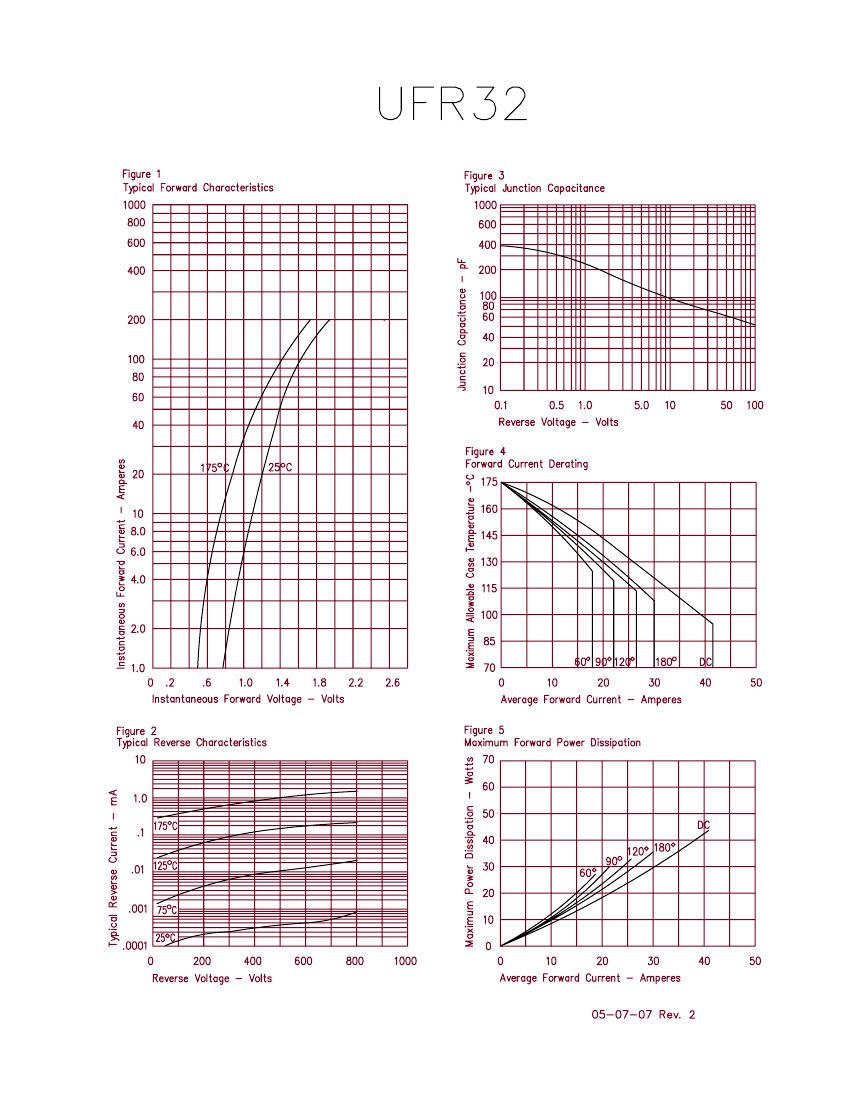

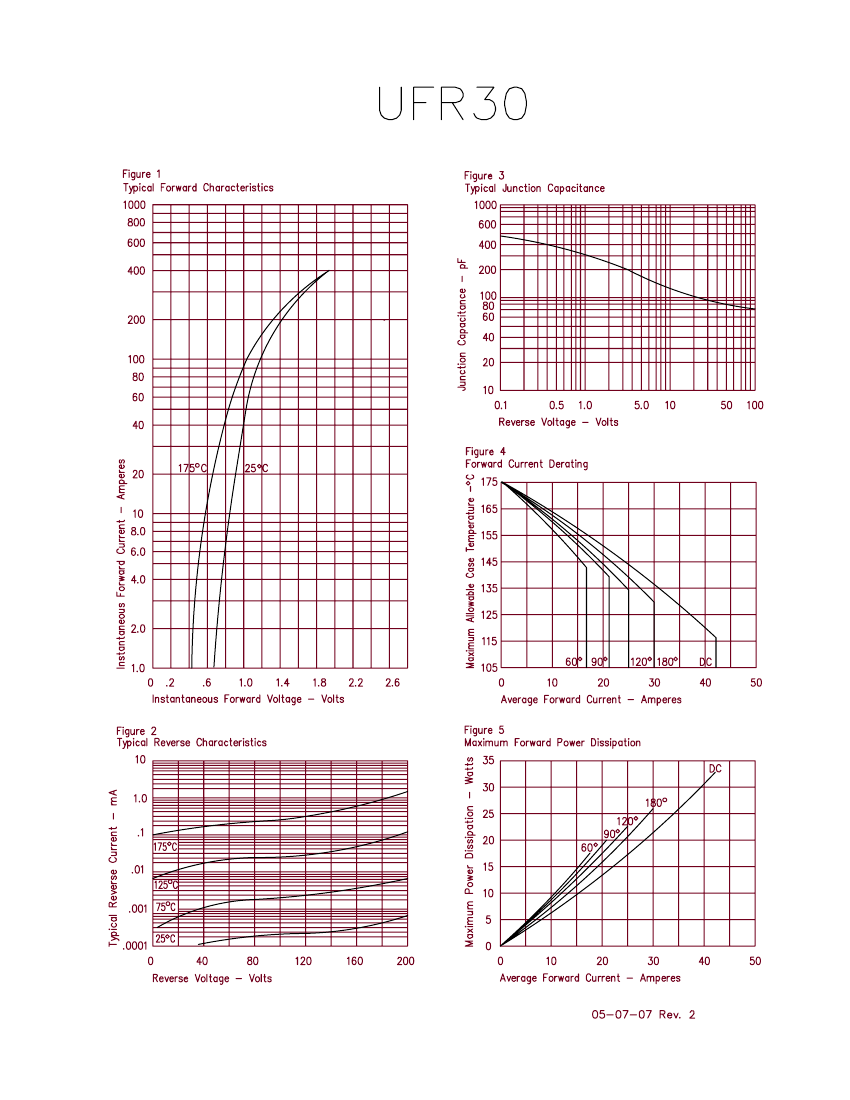

Preview

Download Datasheet

View All

UFR3280 Related Products

	UFR3280	UFR3270	UFR30	UFR3150	UFR3130	UFR3120	UFR3015
Description	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA	30 A, 500 V, SILICON, RECTIFIER DIODE, DO-203AA
Number of components	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	500 A
Phase	1	1	1	1	1	1	1
Minimum operating temperature	-65 Cel	-65 Cel	-65 Cel	-65 Cel	-65 Cel	-65 Cel	-65 °C
Maximum operating temperature	175 Cel	175 Cel	175 Cel	175 Cel	175 Cel	175 Cel	175 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Maximum repetitive peak reverse voltage	500 V	500 V	500 V	500 V	500 V	500 V	150 V
Maximum reverse recovery time	0.0500 µs	0.0500 µs	0.0500 µs	0.0500 µs	0.0500 µs	0.0500 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Processing package description	DO-4, 1 PIN	DO-4, 1 PIN	DO-4, 1 PIN	DO-4, 1 PIN	DO-4, 1 PIN	DO-4, 1 PIN	-
state	Active	Active	Active	Active	Active	Active	-
structure	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum forward voltage	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	-
jedec_95_code	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	DO-203AA	-
jesd_30_code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	-
jesd_609_code	e0	e0	e0	e0	e0	e0	-
moisture_sensitivity_level	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Packaging Materials	METAL	METAL	METAL	METAL	METAL	METAL	-
packaging shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	-
Package Size	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	-
eak_reflow_temperature__cel_	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
qualification_status	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
everse_current_max	15 µA	15 µA	15 µA	15 µA	15 µA	15 µA	-
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-
ime_peak_reflow_temperature_max__s_	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
dditional_feature	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-
