2SC4015TL2N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC4015TL2N

2SC4015TL2N: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size109KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SC4015TL2N Overview

Small Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,

2SC4015TL2N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	300 V
Configuration	SINGLE
Minimum DC current gain (hFE)	56
JESD-30 code	R-PSIP-T3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

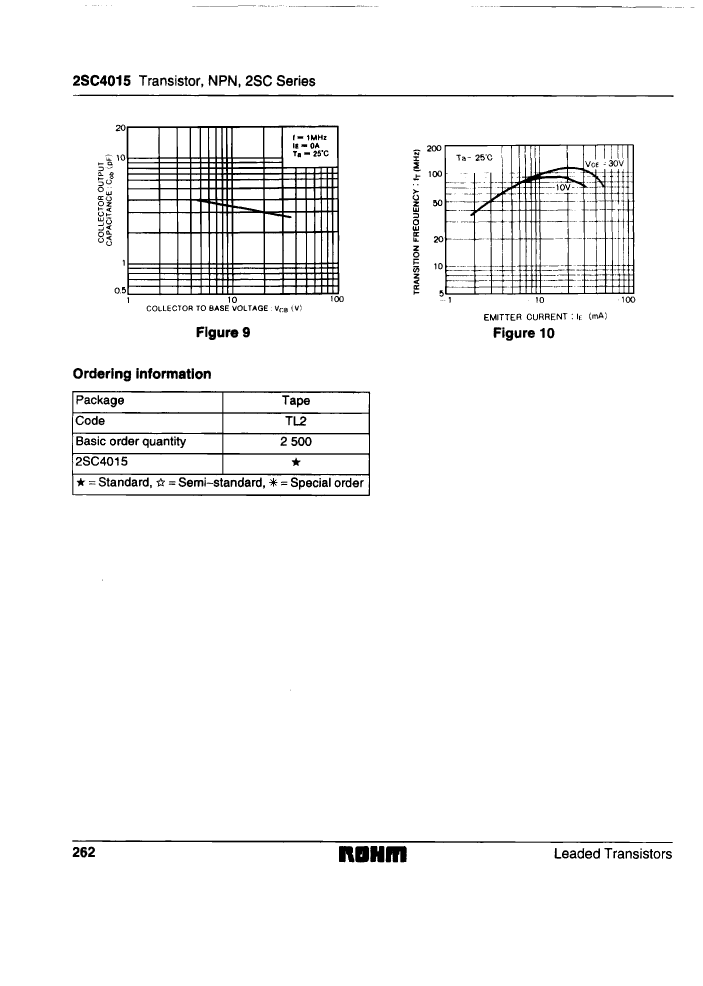

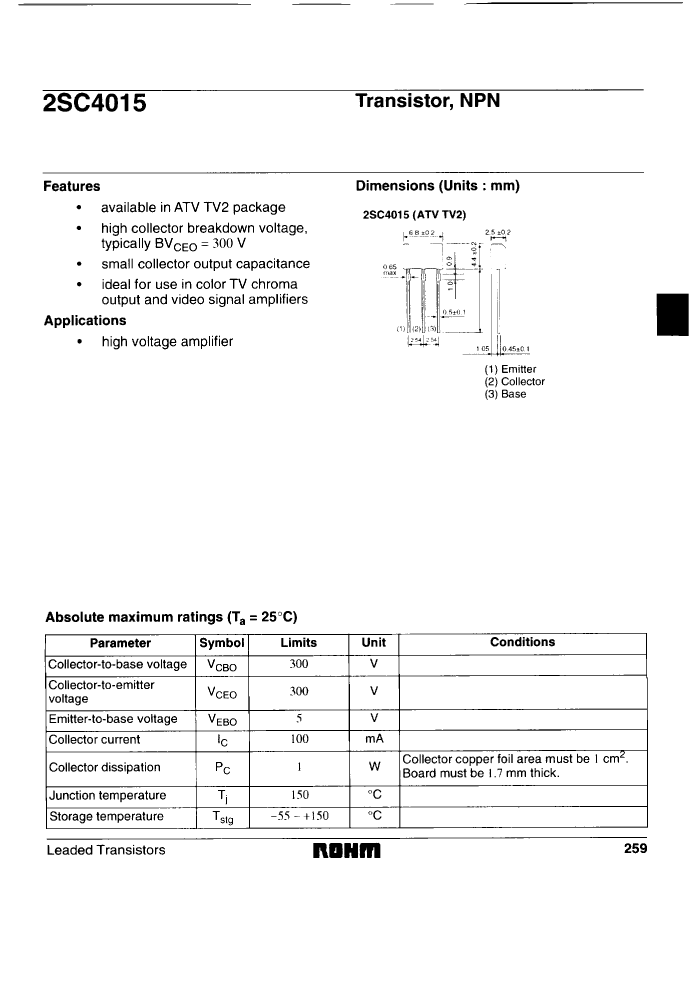

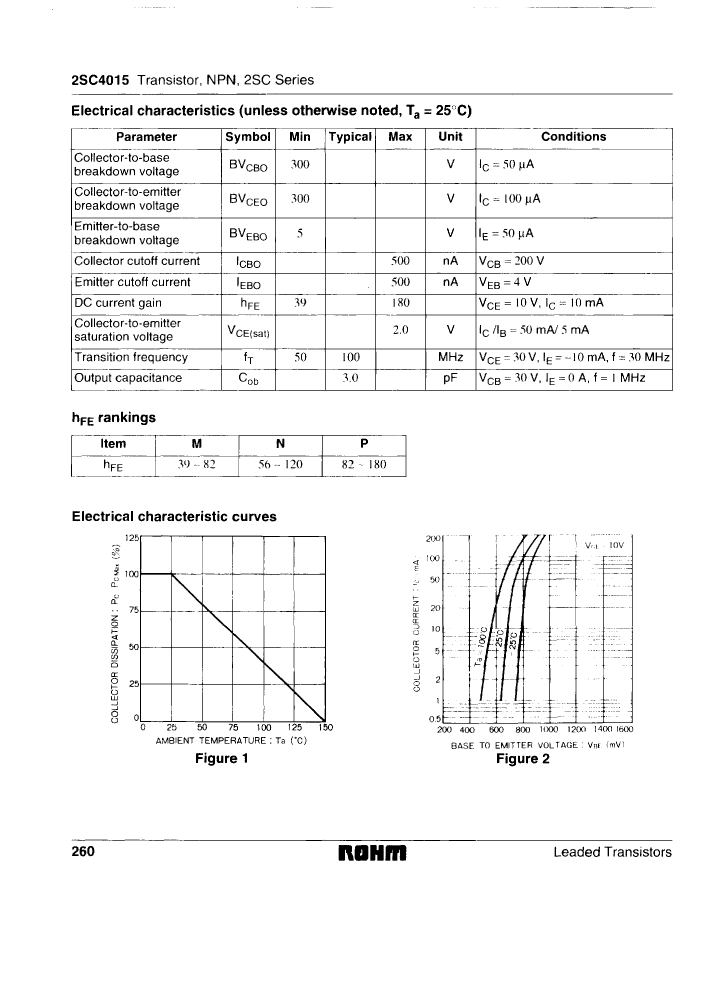

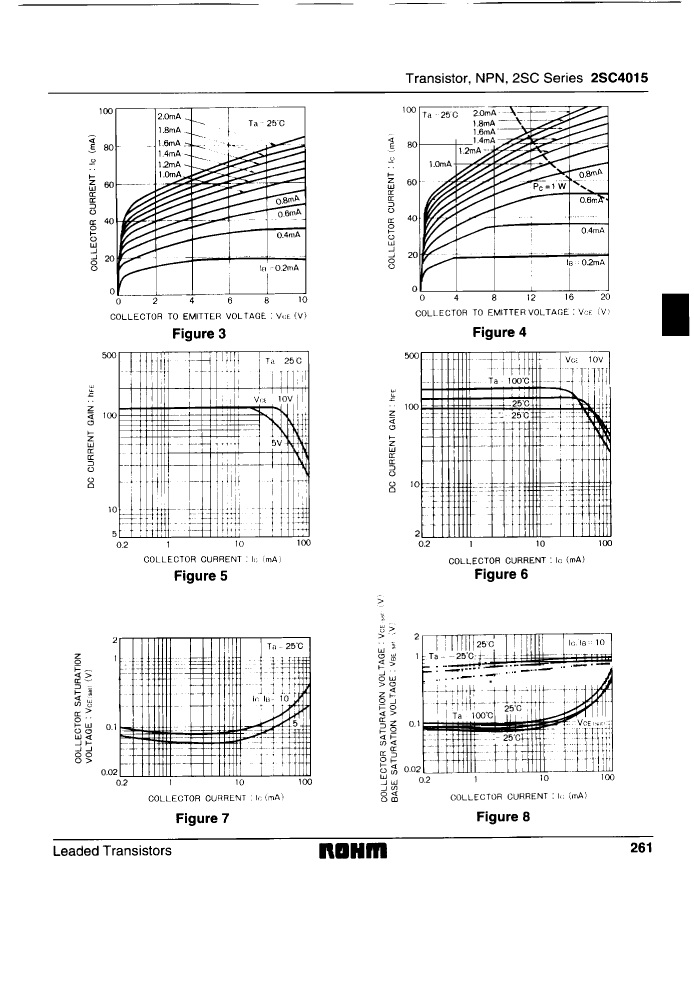

Preview

Download Datasheet

View All

2SC4015TL2N Related Products

	2SC4015TL2N	2SC4015TL2P	2SC4015TL2M	2SC4015TL2
Description	Small Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	300 V	300 V	300 V	300 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	56	82	39	39
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3
JESD-609 code	e1	e1	e1	e1
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Polarity/channel type	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	10	10	10	10
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz
Base Number Matches	1	1	1	1
