2SB1427T100SU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB1427T100SU

2SB1427T100SU: DescriptionSmall Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size76KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SB1427T100SU Overview

Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,

2SB1427T100SU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	270
JESD-30 code	R-PSSO-F3
JESD-609 code	e2
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power consumption environment	2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN COPPER
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	90 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

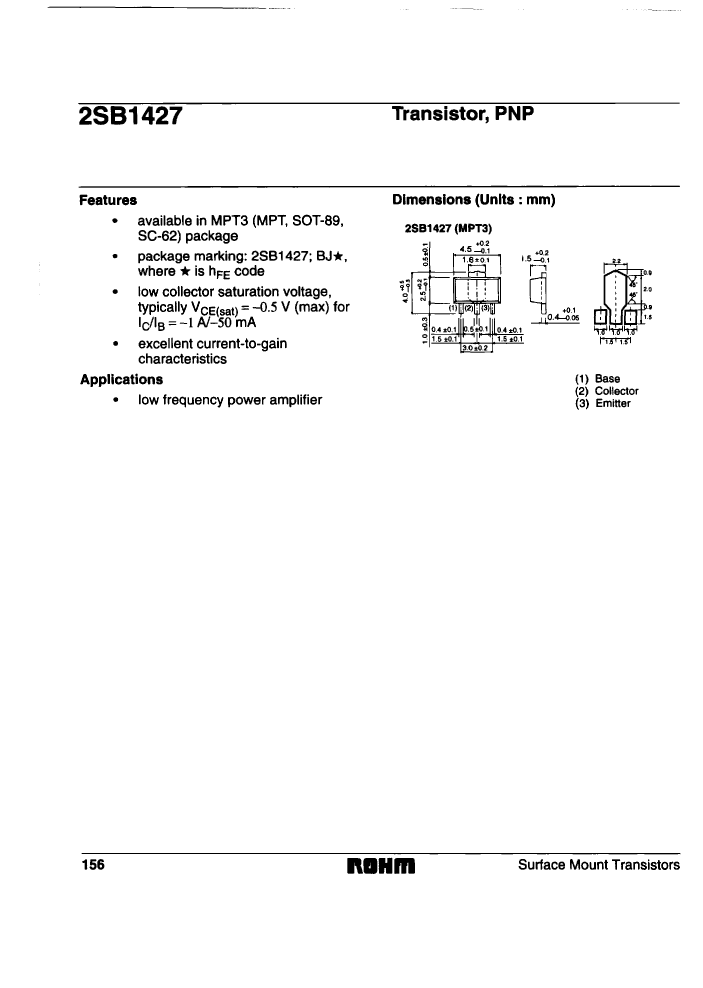

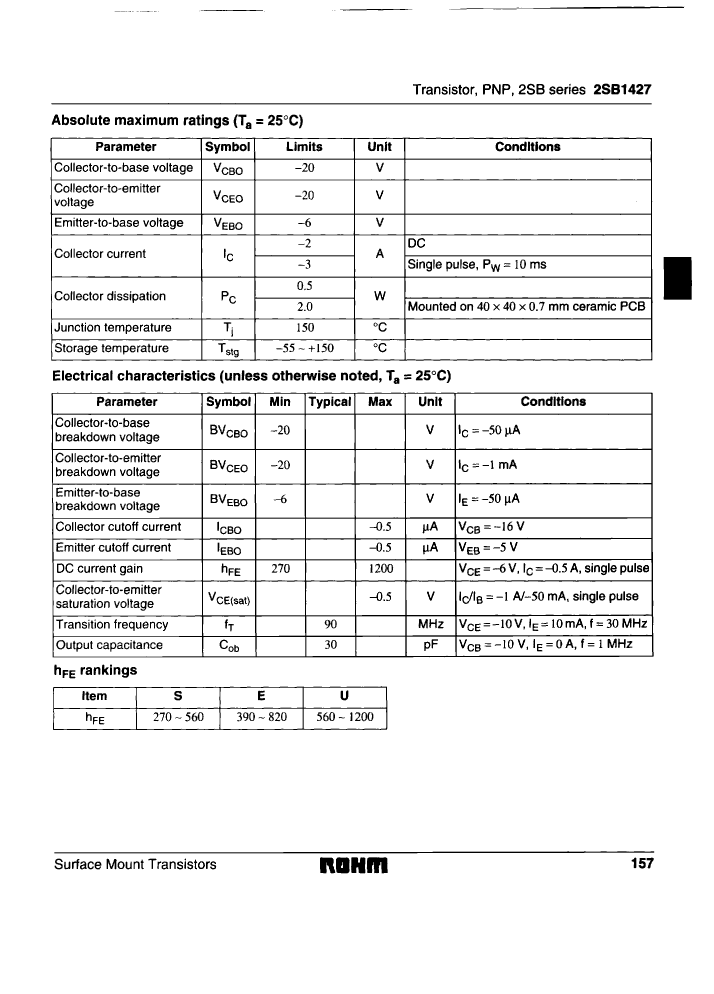

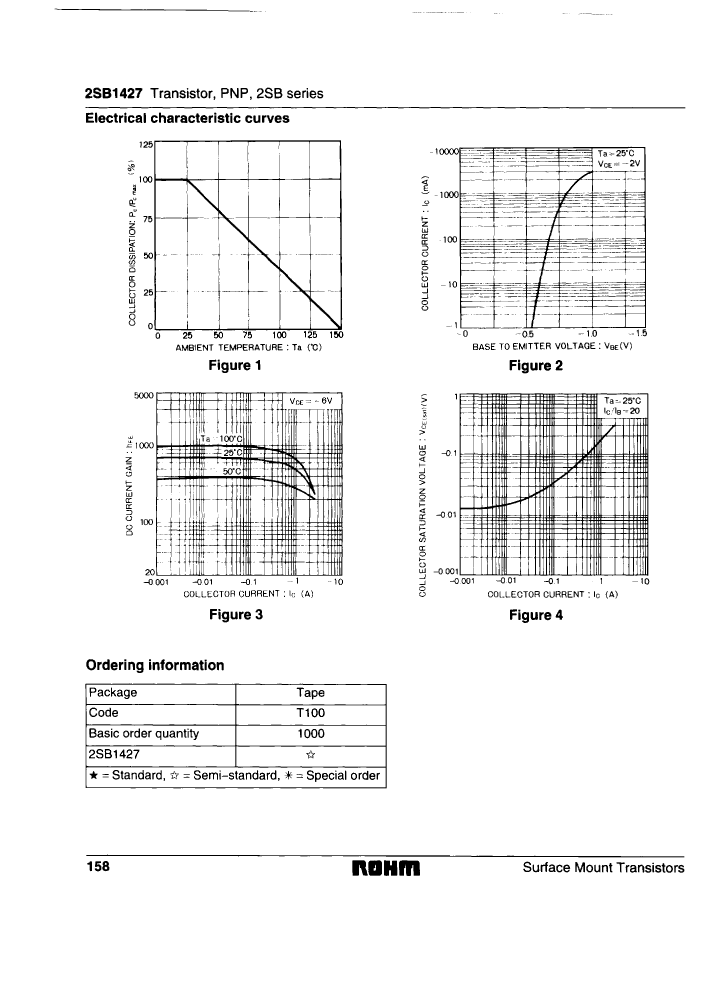

Preview

Download Datasheet

View All

2SB1427T100SU Related Products

	2SB1427T100SU	2SB1427T100/EU	2SB1427T100/U	2SB1427T100/S	2SB1427T100/SE	2SB1427T100U	2SB1427T100/SU	2SB1427T100EU	2SB1427T100SE	2SB1427T100S
Description	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,	2A, 20V, PNP, Si, POWER TRANSISTOR	2A, 20V, PNP, Si, POWER TRANSISTOR	2A, 20V, PNP, Si, POWER TRANSISTOR	2A, 20V, PNP, Si, POWER TRANSISTOR	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	compli
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2	e2	e2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10	10	10
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
Maximum collector current (IC)	2 A	2 A	2 A	2 A	2 A	2 A	-	2 A	2 A	2 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V	20 V	-	20 V	20 V	20 V
Minimum DC current gain (hFE)	270	390	560	270	270	560	-	390	270	270
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	-	PNP	PNP	PNP
Nominal transition frequency (fT)	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	-	90 MHz	90 MHz	90 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	-	0.5 V	0.5 V	0.5 V
