PMN80XP
20 V, single P-channel Trench MOSFET
Rev. 1 — 8 May 2012
Product data sheet
1. Product profile
1.1 General description
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT457 (SC-74)
Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
1.2 Features and benefits
R
DSon
specified at 1.8 V operation
Trench MOSFET technology
Fast switching
1.3 Applications
Relay driver
High-speed line driver
High-side loadswitch
Switching circuits
1.4 Quick reference data
Table 1.
Symbol
V
DS
V
GS
I
D
R
DSon
Quick reference data
Parameter
drain-source voltage
gate-source voltage
drain current
drain-source on-state
resistance
V
GS
= -4.5 V; T
amb
= 25 °C; t
≤
5 s
V
GS
= -4.5 V; I
D
= -2.5 A; T
j
= 25 °C
[1]
Conditions
T
amb
= 25 °C
Min
-
-12
-
-
Typ
-
-
-
80
Max
-20
12
-3.2
102
Unit
V
V
A
mΩ
Static characteristics
[1]
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm
2
.
2. Pinning information
Table 2.
Pin
1
2
3
4
5
6
Pinning information
Symbol Description
D
D
G
S
D
D
drain
drain
gate
source
drain
drain
1
2
3
S
017aaa257
Simplified outline
6
5
4
Graphic symbol
D
G
SOT457 (TSOP6)
NXP Semiconductors
PMN80XP
20 V, single P-channel Trench MOSFET
3. Ordering information
Table 3.
Ordering information
Package
Name
PMN80XP
TSOP6
Description
plastic surface-mounted package (TSOP6); 6 leads
Version
SOT457
Type number
4. Marking
Table 4.
PMN80XP
Marking codes
Marking code
WA
Type number
5. Limiting values
Table 5.
Symbol
V
DS
V
GS
I
D
Limiting values
Parameter
drain-source voltage
gate-source voltage
drain current
V
GS
= -4.5 V; T
amb
= 25 °C; t
≤
5 s
V
GS
= -4.5 V; T
amb
= 25 °C
V
GS
= -4.5 V; T
amb
= 100 °C
I
DM
P
tot
peak drain current
total power dissipation
T
amb
= 25 °C; single pulse; t
p
≤
10 µs
T
amb
= 25 °C
T
sp
= 25 °C
T
j
T
amb
T
stg
I
S
[1]
[2]
[2]
[1]
[1]
[1]
[1]
In accordance with the Absolute Maximum Rating System (IEC 60134).
Conditions
T
amb
= 25 °C
Min
-
-12
-
-
-
-
-
-
-
-55
-55
-65
T
amb
= 25 °C
[1]
Max
-20
12
-3.2
-2.5
-1.6
-10
385
925
4000
150
150
150
-1
Unit
V
V
A
A
A
A
mW
mW
mW
°C
°C
°C
A
junction temperature
ambient temperature
storage temperature
source current
Source-drain diode
-
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm
2
.
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
PMN80XP
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 1 — 8 May 2012
2 of 15
NXP Semiconductors
PMN80XP
20 V, single P-channel Trench MOSFET
120
P
der
(%)
80
017aaa123
120
I
der
(%)
80
017aaa124
40
40
0
−75
−25
25
75
125
T
j
(°C)
175
0
−75
−25
25
75
125
T
j
(°C)
175

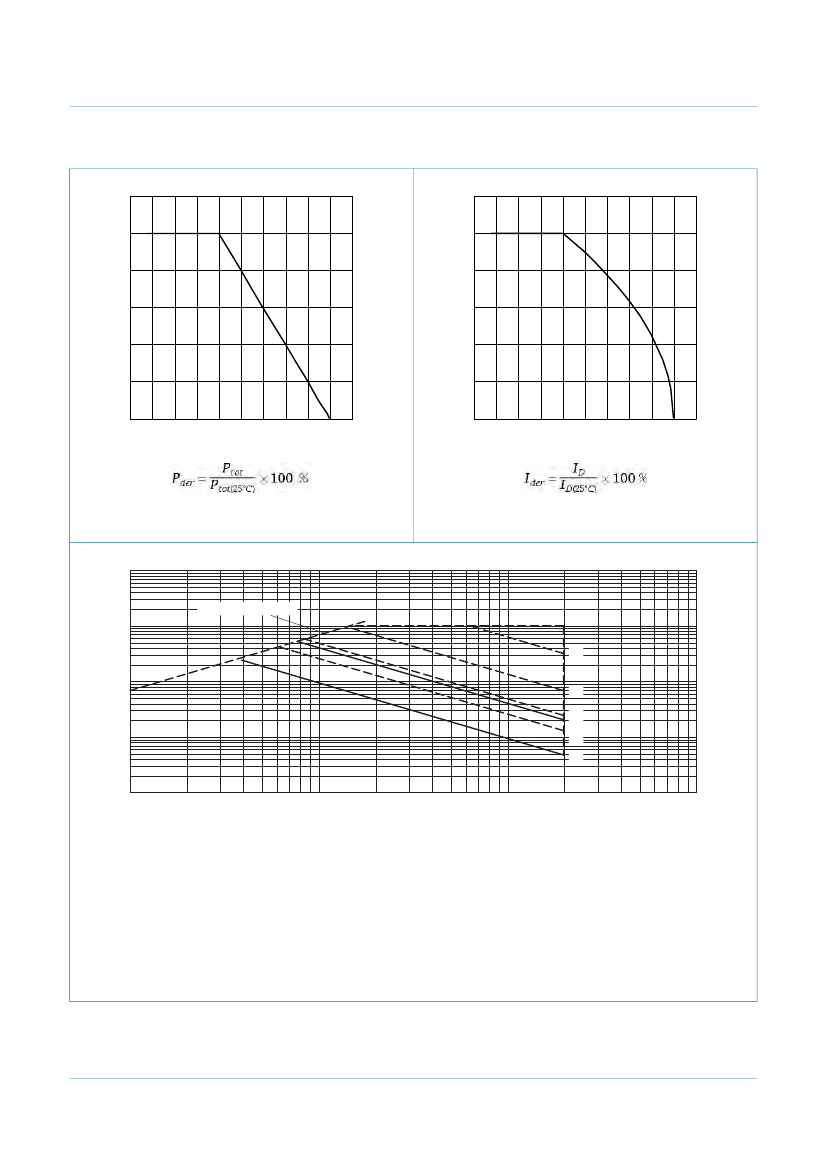

Fig 1.
Normalized total power dissipation as a
function of junction temperature
Fig 2.
Normalized continuous drain current as a
function of junction temperature
017aaa528
-10
2
I
D
(A)
-10
(1)
Limit R
DSon
= V
DS
/I
D
-1
(2)
(3)
(4)
-10
-1
(5)
(6)
-10
-2
-10
-1
-1
-10
V
DS
(V)
-10
2
I
DM
= single pulse
(1) t
p
= 100 µs
(2) t
p
= 1 ms
(3) t
p
= 10 ms
(4) DC; T
sp
= 25 °C
(5) t
p
= 100 ms
(6) DC; T
amb
= 25 °C; drain mounting pad 6 cm
2
Fig 3.
Safe operating area; junction to ambient; continuous and peak drain currents as a function of drain-source
voltage
PMN80XP
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 1 — 8 May 2012
3 of 15
NXP Semiconductors
PMN80XP
20 V, single P-channel Trench MOSFET
6. Thermal characteristics
Table 6.
Symbol
R
th(j-a)
Thermal characteristics
Parameter
thermal resistance
from junction to
ambient
thermal resistance
from junction to solder
point
Conditions
in free air
[1]
[2]
[3]
Min
-
-
-
-
Typ
281
116
73
27
Max
325
135
85
31
Unit
K/W
K/W
K/W
K/W
R
th(j-sp)
[1]
[2]
[3]
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm
2
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm
2
, t
≤
5 s
10
3
Z
th(j-a)
(K/W)
10
2
duty cycle = 1
0.75
0.33
0.2
0.05
0.02
0.01
1
0
0.5
0.25
0.1
10
017aaa529
10
-1
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
10
2
t
p
(s)
10
3
FR4 PCB, standard footprint
Fig 4.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMN80XP
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 1 — 8 May 2012
4 of 15
NXP Semiconductors
PMN80XP
20 V, single P-channel Trench MOSFET
10
3
Z
th(j-a)
(K/W)
10
2
duty cycle = 1
0.75
0.33
0.2
10
0.05
0.02
1
0.01
0
0.5
0.25
0.1
017aaa530
10
-1
10
-5
10
-4
10
-3
10
-2
10
-1
1
10
10
2
t
p
(s)
10
3
FR4 PCB, mounting pad for drain 6 cm
2
Fig 5.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMN80XP
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 1 — 8 May 2012
5 of 15
