3.0x2.5mm SURFACE MOUNT LED LAMP
KPB-3025YSGC
YELLOW / SUPER BRIGHT GREEN
Features
!
3.0mmx2.5mm
!
BI
Description
SMT LED, 1.1mm THICKNESS.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.
-COLOR,LOW POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL
!
VARIOUS
!
PACKAGE

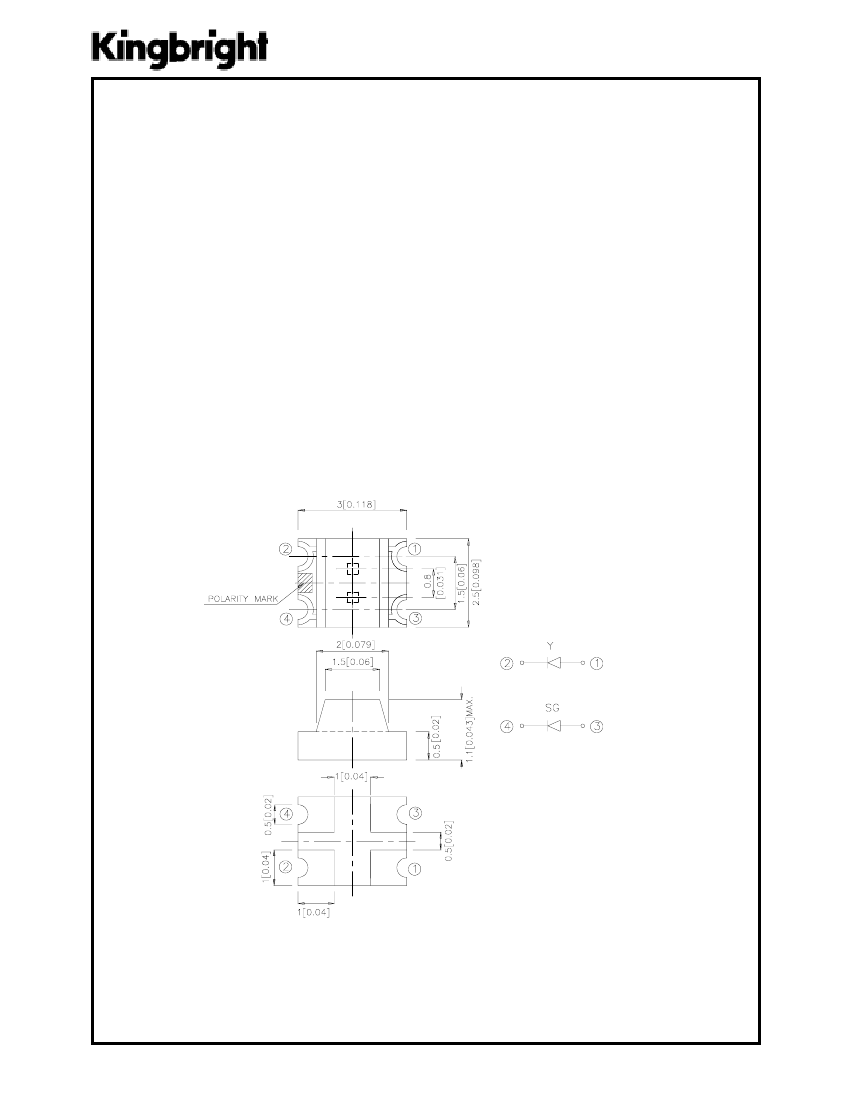

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAA9810
APPROVED: J.Lu
REV NO: V.4
CHECKED:Allen Liu
DATE: DEC/20/2002
DRAWN: S.J.HOU
PAGE: 1 OF 4
Selection Guide
Iv (m c d )
@ 20 m A
Min .
YELLOW (GaAsP/GaP)
KPB-3025YSGC
SUPER BRIGHT GREEN (GaP)
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
P ar t N o .
Dic e
L en s Ty p e
V i ew i n g
An g l e
2θ1/2
120°
Ty p .
8
12
2.6
WATER CLEAR
2.6
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
P ar am et er
Peak Wavelength
Dominate Wavelength
D ev i c e
Yellow
Super Bright Green
Yellow
Super Bright Green
Ty p .
590
565
588
568
35
30
20
15
2.1
2.2
2.5
2.5
10
Max .
Un its
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
= 2 0 m A
I
F
= 2 0 m A
I
F
= 2 0 m A
V
F
= 0 V;f= 1 M Hz
I
F
= 2 0 m A
V
R
= 5V
Yellow
Spectral Line Half-width Super Bright Green
Capacitance
Forward Voltage
Reverse Current
Yellow
Super Bright Green
Yellow
Super Bright Green
All
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Yello w
105
30
140
5
Su p er B r ig h t Gr een
105
25
140
Un its
mW
mA
mA
V
-40
°
C To +85
°C
SPEC NO: DSAA9810
APPROVED: J.Lu
REV NO: V.4
CHECKED:Allen Liu
DATE: DEC/20/2002
DRAWN: S.J.HOU
PAGE: 2 OF 4

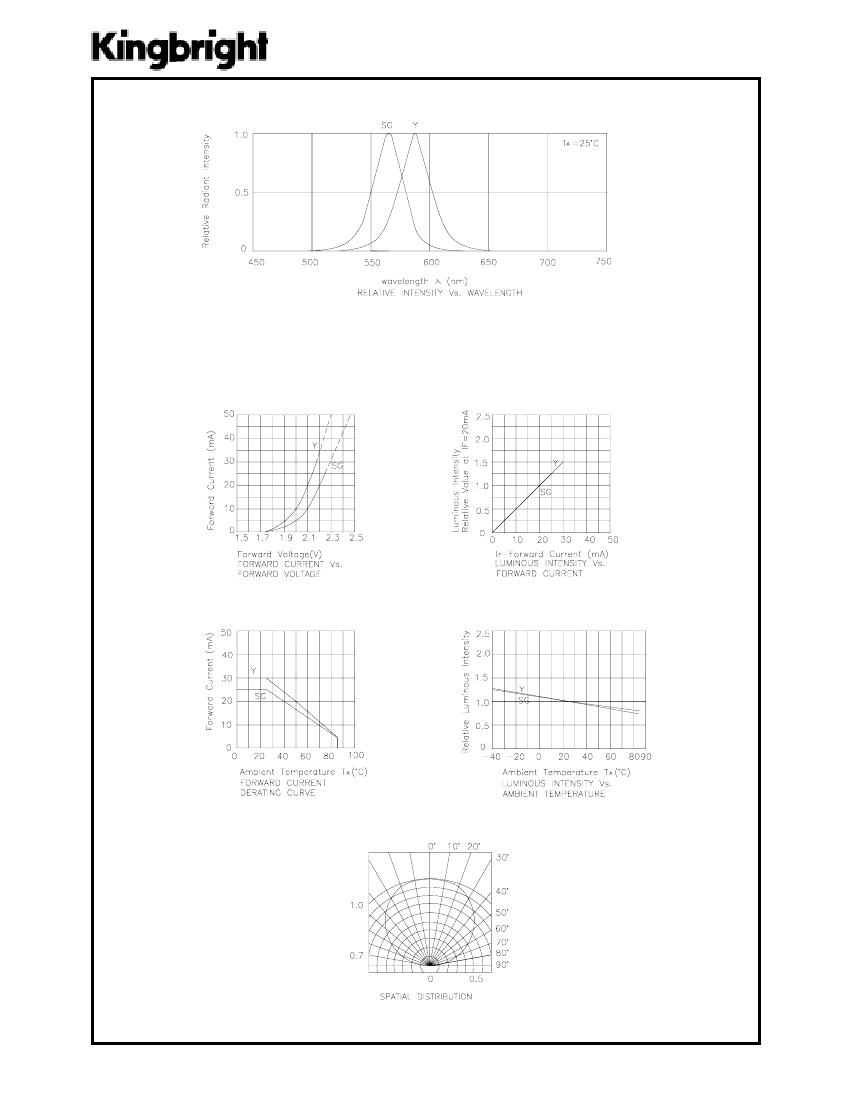

Yellow / Super Bright Green
KPB-3025YSGC
SPEC NO: DSAA9810
APPROVED: J.Lu
REV NO: V.4
CHECKED:Allen Liu
DATE: DEC/20/2002
DRAWN: S.J.HOU
PAGE: 3 OF 4
KPB-3025YSGC

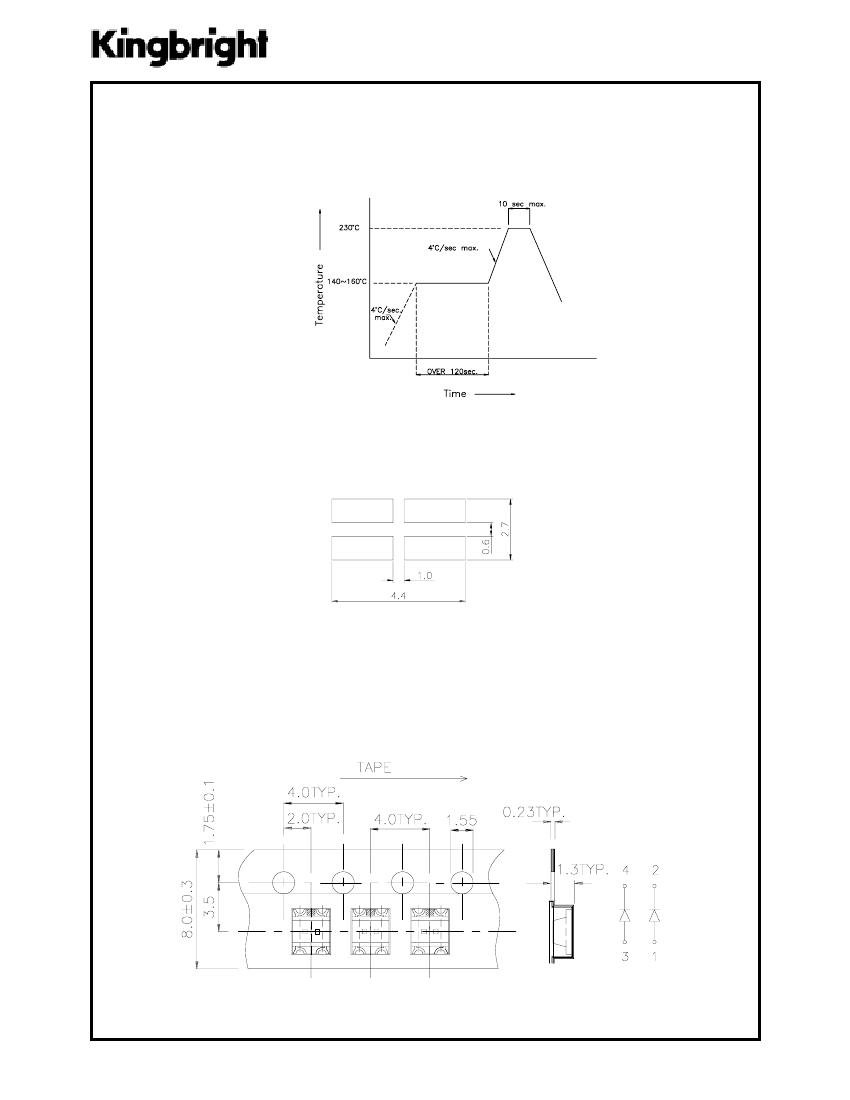

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAA9810
APPROVED: J.Lu
REV NO: V.4
CHECKED:Allen Liu
DATE: DEC/20/2002
DRAWN: S.J.HOU
PAGE: 4 OF 4
