PCF2104XU/12 datasheet, PDF - EEWORLD Datasheet

PCF2104XU/12: DescriptionIC 32 X 60 DOTS DOT MAT LCD DRVR AND DSPL CTLR, UUC, Display Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size72KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

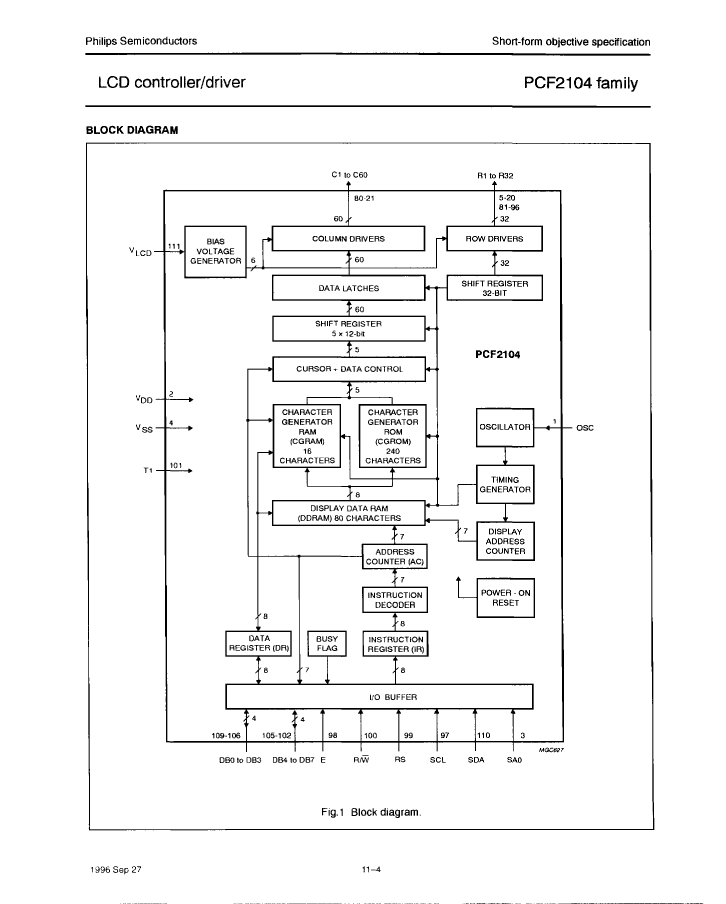

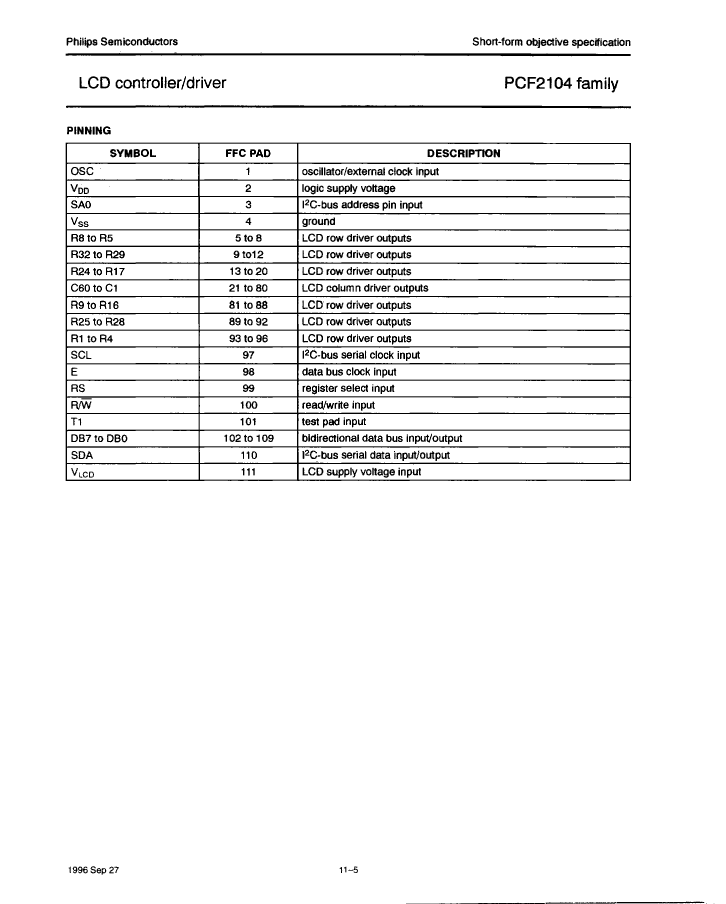

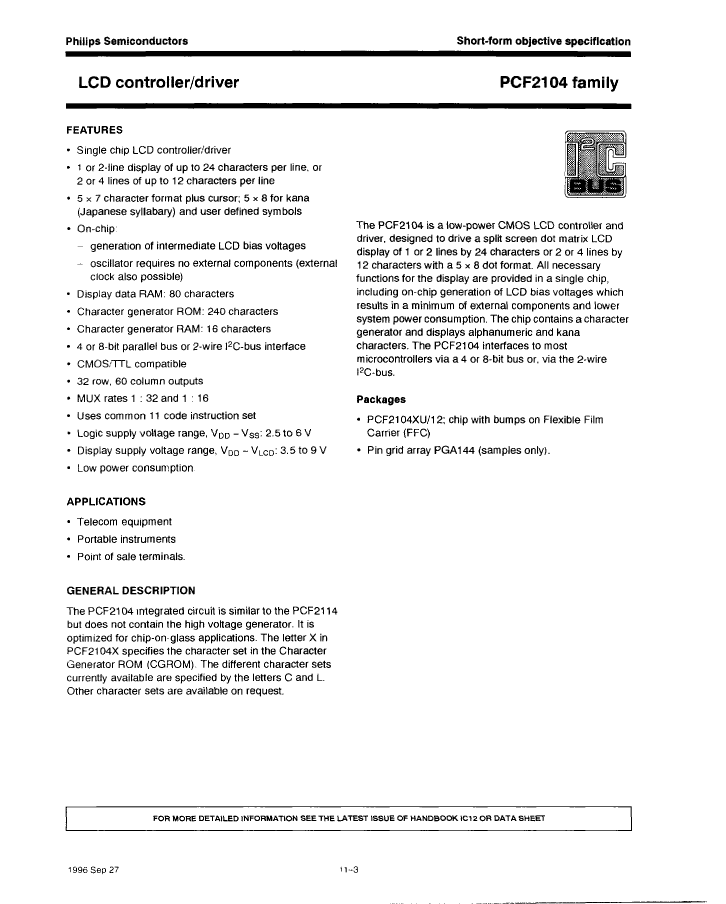

PCF2104XU/12 Overview

IC 32 X 60 DOTS DOT MAT LCD DRVR AND DSPL CTLR, UUC, Display Controller

Parameter Name	Attribute value
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Address bus width	1
Bus compatibility	I2C
show configuration	32 X 60 DOTS
External data bus width	8
JESD-30 code	X-XUUC-N
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, DOT MATRIX LCD DRIVER
