NRM474J630F2F2F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NRM474J630F2F2F

Preview

NRM474J630F2F2F: DescriptionCAP,MET POLYESTER (MYLAR),470NF,630VDC,5% -TOL,5% +TOL; CategoryPassive components capacitor; File Size90KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NRM474J630F2F2F Overview

CAP,MET POLYESTER (MYLAR),470NF,630VDC,5% -TOL,5% +TOL

NRM474J630F2F2F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
Capacitor type	FILM CAPACITOR
Manufacturer's serial number	NRM

Preview

Download Datasheet

View All

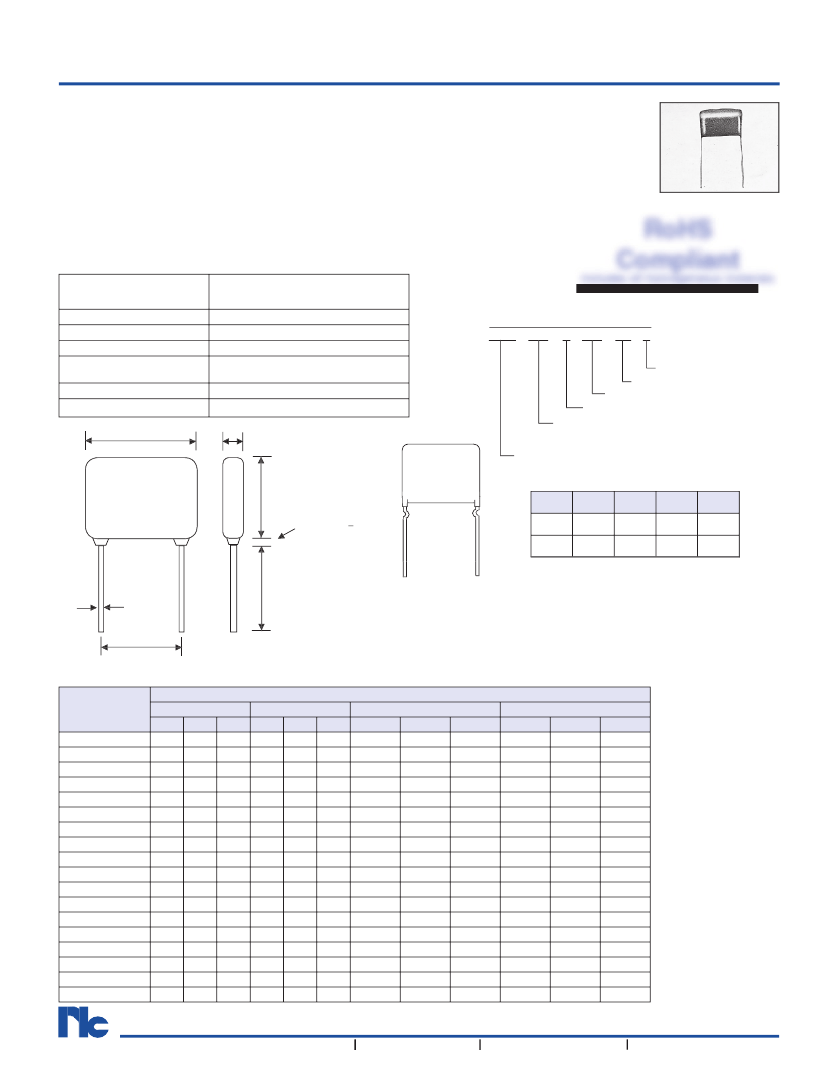

Metallized Polyester Film Capacitors

EPOXY COATED, NON-INDUCTIVE, CAPACITORS,

RADIAL LEAD

NRM Series

FEATURES

• NON-INDUCTIVE CONSTRUCTION

• EPOXY RESIN COATED FOR EXCELLENT MOISTURE RESISTANCE

• HIGH STABILITY WITH FREQUENCY OVER AN EXTENDED OPERATING LIFE

• HIGH PERFORMANCE AT LOW COST

• LEAD FORMING AND CUT LEADS AVAILABLE

• METALLIZED CONSTRUCTION PROVIDE SELF HEALING CHARACTERISTICS

SPECIFICATIONS

includes all homogeneous materials

RoHS

Compliant

Operating Temperature

Rated Voltage (VDC)

Capacitance Range

Capacitance Tolerance

Insulation Resistance

Dissipation Factor

Dielectric Strength

L max.

-40

o

C to +105°C

(voltage derating 1.5%/°C above 85°C)

100V, 250V, 400V 630V

0.01 to 6.8

µF

±10% (K), ±5% (J)

C<0.33

µ

F IR

≥

15,000 Megohm

C≥0.33

µ

F IR

≥

5,000 Megohm/

µF

≤

.01 (at 1 KHZ)

150% of Rated Voltage for 5 Seconds

T max.

Series

*See Part

Number System for Details

NRM

PART NUMBER SYSTEM

104

K 250

TR

F

RoHS compliant

Tape & Reel Packaging

Voltage (VDC)

Tolerance Code J =

±5%,

K =

±10%

Capacitance code in pF, first two digits are

significant, third digit is no. of zeros.

E.G. 102 = .001µF, 103 = .01µF, 104 = .1µF

H max.

*2mm max. L > 20mm

1.5mm max. L < 20mm

LEAD SPACING AND DIAMETER (mm)

½

½∅

½½½½

½½½

½½½½

½½½

½½½½

½½½

½½½½

½½½

LL = 25mm min.

dφ

SPECIAL LEAD FORMING AVAILABLE,

PLEASE CONSULT FACTORY

S + 1mm

STANDARD PRODUCTS AND CASE SIZE TABLE (mm)

Cap (

µ

F)

0.01

0.015

0.022

0.033

0.047

0.068

0.1

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

®

100VDC/63VAC

L

T

H

250VDC/160VAC

L

T

H

12.5 5.0

9.5

12.5 5.0

9.5

12.5 5.0

9.5

12.5 5.0

9.5

12.5 5.0

9.5

12.5 5.0

9.5

12.5 5.5 10.0

12.5 6.5 10.5

18.0 6.5 11.5

18.0 7.0 12.5

26.0 7.0 12.5

26.0 8.0 14.5

26.0 10.5 17.5

26.0 10.5 18.0

31.0 12.5 19.0

31.0 14.0 23.0

31.0 16.5 27.0

Working Voltage

400VDC/200VAC

L

T

H

12.5

5.0

9.5

12.5

5.0

9.5

12.5

5.0

9.5

12.5

5.5

10.5

12.5

6.0

10.5

18.0

6.0

10.5

18.0

6.5

11.5

26.0*

6.0*

12.5*

26.0*

7.0*

15.0*

26.0

8.5

15.5

26.0

9.5

18.0

26.0

12.0

18.5

31.0

12.0

20.0

31.0

13.5

23.5

31.0

16.5

26.0

630VDC/220VAC

L

T

H

12.5

5.0

9.5

12.5

5.0

9.5

12.5

7.0

10.5

18.0

6.0

11.0

18.0

6.5

11.5

18.0

7.0

12.5

26.0

7.0

13.0

26.0

8.5

14.0

26.0

10.0

16.5

31.0

10.5

17.5

31.0

12.0

19.5

31.0

15.0

22.5

31.0

19.0

27.0

12.5

18.0

26.0

31.0

5.0

5.5

6.5

7.5

9.0

11.0

12.0

14.0

9.5

10.0

10.5

11.5

12.0

14.0

14.5

16.0

19.0

23.0

25.0

*REDUCED SIZE 18mmx 8.5mm x15mm ALSO AVAILABLE.

56

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

NRM474J630F2F2F Related Products

	NRM474J630F2F2F	NRM474K400F2F2F	NRM474J400F2F2F	NRM474K630F2F2F	NRM474K250F2F2F	NRM474J250F2F2F	NRM474K100F2F2F	NRM475K400F2F2F
Description	CAP,MET POLYESTER (MYLAR),470NF,630VDC,5% -TOL,5% +TOL	CAP,MET POLYESTER (MYLAR),470NF,400VDC,10% -TOL,10% +TOL	CAP,MET POLYESTER (MYLAR),470NF,400VDC,5% -TOL,5% +TOL	CAP,MET POLYESTER (MYLAR),470NF,630VDC,10% -TOL,10% +TOL	CAP,MET POLYESTER (MYLAR),470NF,250VDC,10% -TOL,10% +TOL	CAP,MET POLYESTER (MYLAR),470NF,250VDC,5% -TOL,5% +TOL	CAP,MET POLYESTER (MYLAR),470NF,100VDC,10% -TOL,10% +TOL	CAP,MET POLYESTER (MYLAR),4.7UF,400VDC,10% -TOL,10% +TOL
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compli	compli
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
Manufacturer's serial number	NRM	NRM	NRM	NRM	NRM	NRM	NRM	NRM
