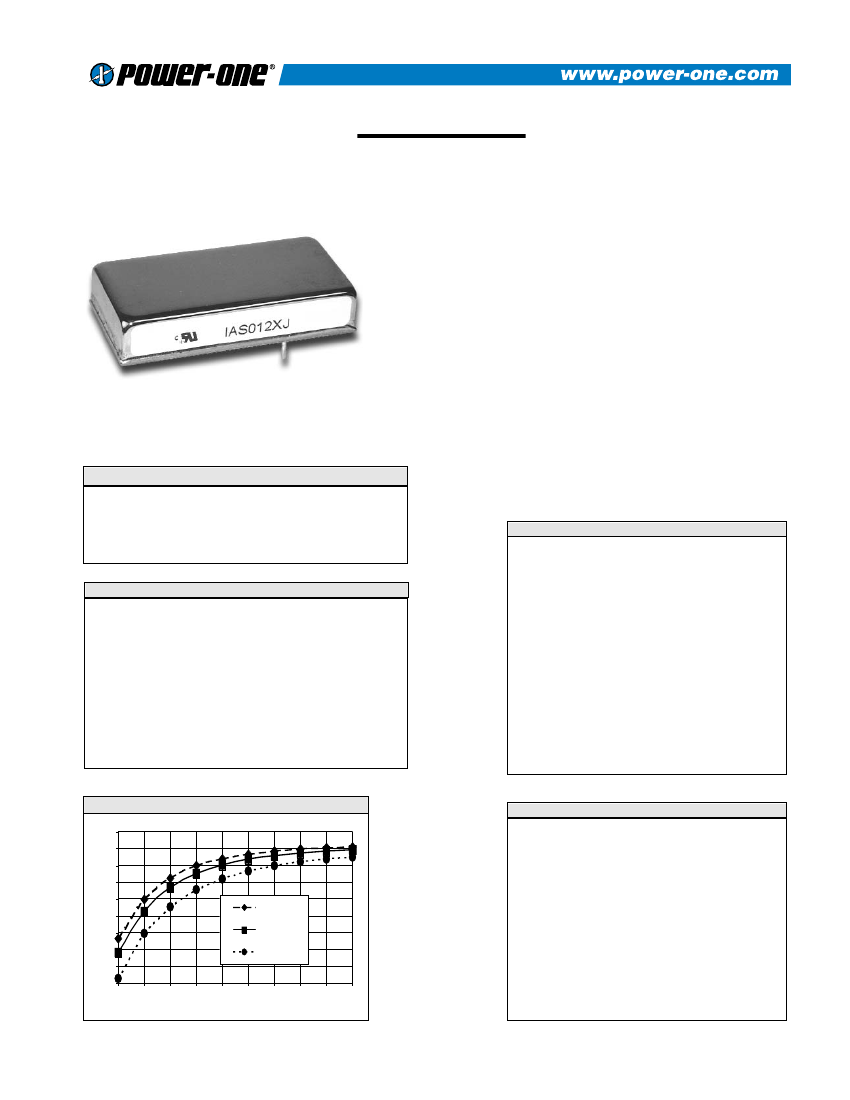

IAS SERIES - 12 WATT
DESCRIPTION
IAS
DC/DC converters provide up to 12 watts of output power in
an industry-standard package and footprint. With a maximum case
temperature of 100°C, the IAS is well suited for the most
demanding applications. The IAS features 1500 VDC isolation,
short circuit, and overtemperature protection, as well as six-sided
shielding. The IAS is available with optional enable and voltage
trim pins. Please see the IAD series for dual output applications.
FEATURES
• Industry Standard
Package
• Industry Standard
Footprint
• Up to 12W Output
• 100°C Case Operation
18 - 36 VDC
34 - 75 VDC
25 mA
Shunt Diode
TECHNICAL SPECIFICATIONS
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Reflected Ripple
Input Reverse Input Current
• Optional Trim and
Enable
• Wide Range Input
• 1500V Isolation
• Short Circuit Protection
General
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Input - Case (24 Vin)
Output - Case (48 Vin)
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore Tr-nwt-000332)
Safety
Weight (Approx.)
10 mS
Positive Logic
375 kHz
1500 VDC
1050 VDC
500 VDC
±0.03%/°C
-40 To +100°C
-55 To +115°C
95%
5 g, 10 - 55 Hz
2.1 X 106 hrs
UL, cUL, VDE
1.0 oz
Output
Setpoint Accuracy
Line Regulation Vin Min. - Vin Max., Iout Rated
Load Regulation Iout Min. - Iout Max., Vin Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of Iout Rated
±1%
±0.2% Vout
±0.5% Vout
10 % Iout Rated
25% Iout
4% Vout
500 mS
±10%
Shutdown / Hiccup
110 - 140%
Efficiency vs. Load (24V Input)
85
80
75
EFFICIENCY%
Notes
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load,
unless otherwise stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully
compatible with commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model.
Please consult factory for specific model information.
Units are water-washable and fully compatible with
commercial spray or immersion post wave-solder washing
equipment.
70
65
IAS010YG
EFF. (18v)
60
55
50
45
40
10
20
30
40
50
60
70
80
90
100
LOAD %
EFF. (24v)
EFF. (36v)
REV. 08/30/01
3
OPTIONS

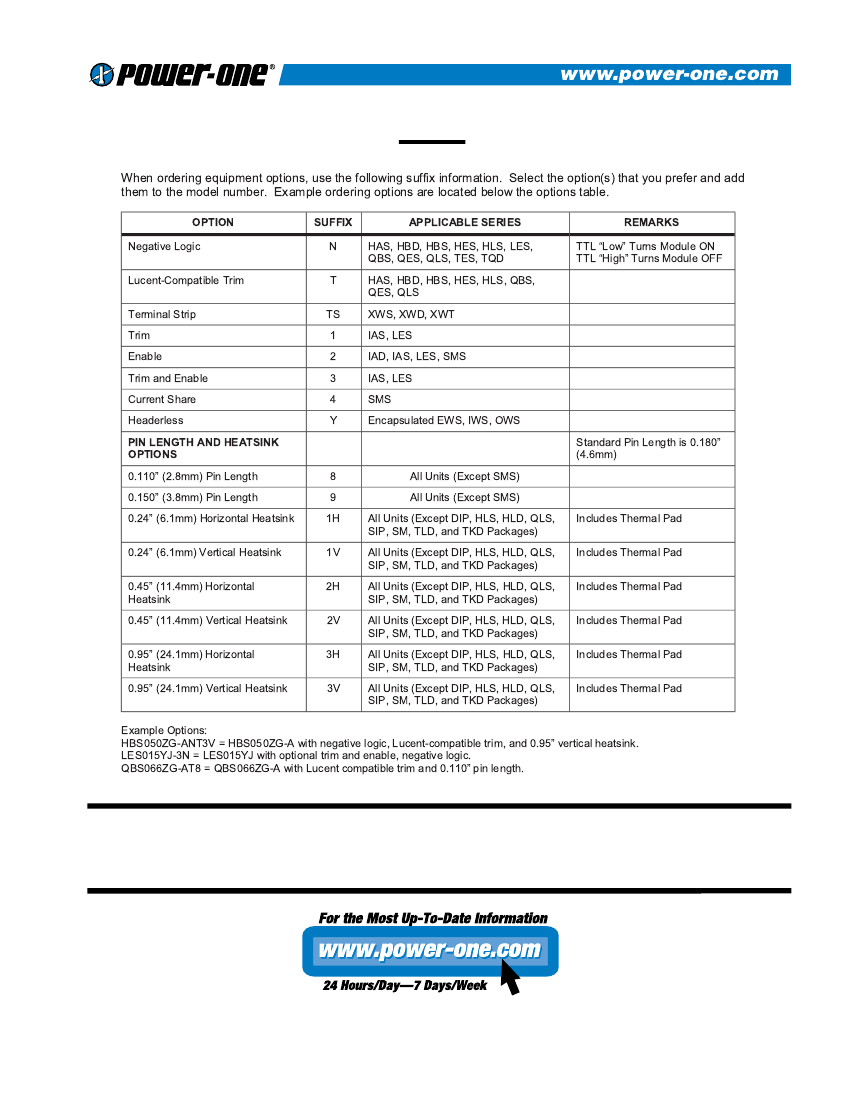

When ordering equipment options, use the following suffix information. Select the option(s) that you prefer and add
them to the model number. Example ordering options are located below the options table.
Negative Logic
OPTION
SUFFIX
N
T
Lucent-Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
PIN LENGTH AND HEATSINK
OPTIONS
TS
1
2
3
4
Y
8
9
1H
1V
2H
2V
3H
3V
HAS, HBD, HBS, HES, HLS, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS,
QES, QLS
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
APPLICABLE SERIES
TTL Low Turns Module ON
TTL High Turns Module OFF
REMARKS
0.110 (2.8mm) Pin Length
0.150 (3.8mm) Pin Length
0.24 (6.1mm) Horizontal Heatsink
0.24 (6.1mm) Vertical Heatsink
0.45 (11.4mm) Horizontal
Heatsink
0.45 (11.4mm) Vertical Heatsink
0.95 (24.1mm) Horizontal
Heatsink
0.95 (24.1mm) Vertical Heatsink
Standard Pin Length is 0.180
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95 vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110 pin length.
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
5
