UF815 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UF815

Preview

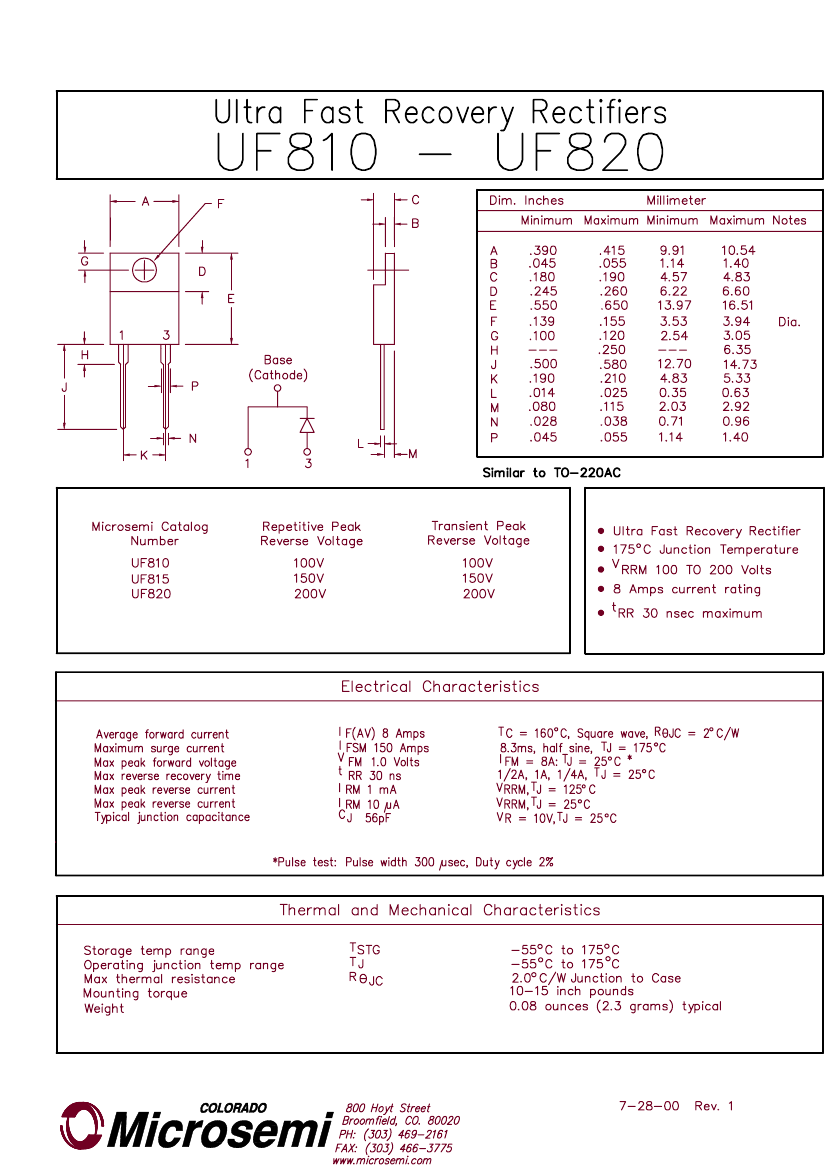

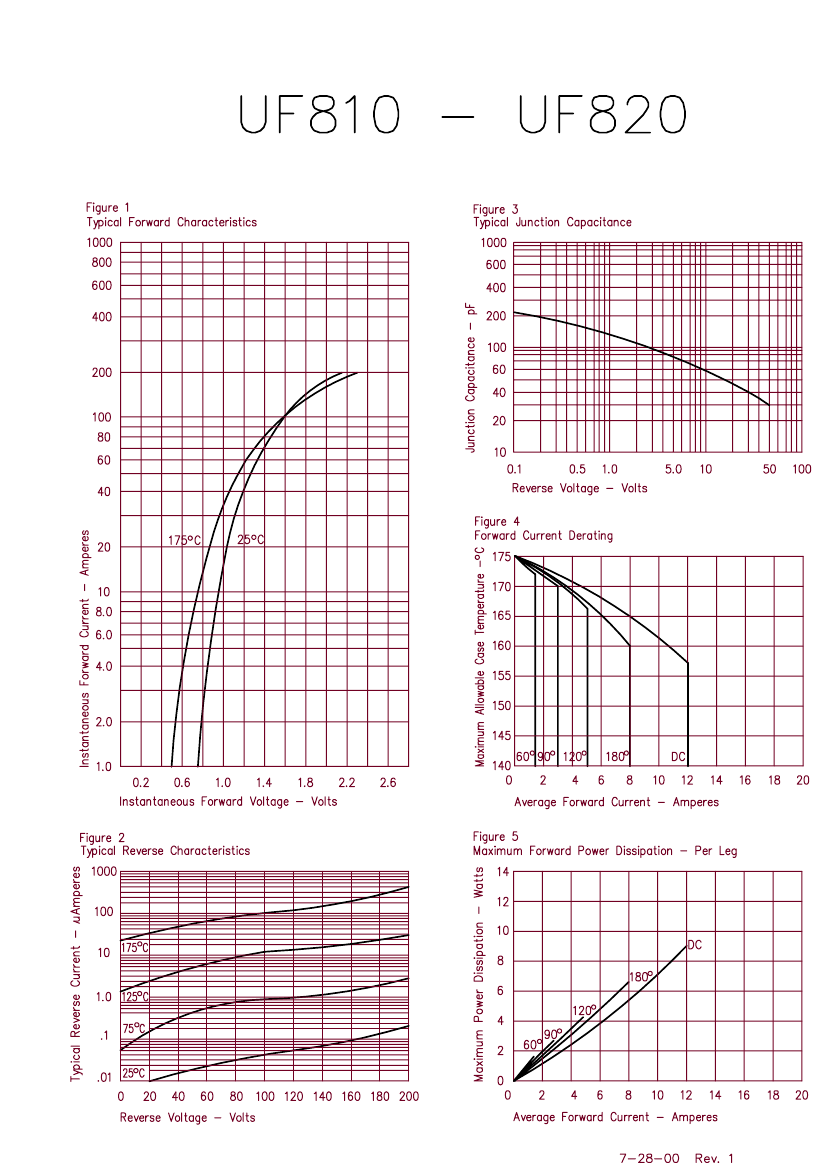

UF815: Description10 A, 200 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size120KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UF815 Overview

10 A, 200 V, SILICON, RECTIFIER DIODE

UF815 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

UF815 Related Products

	UF815	VHE1404	UF820	UF810
Description	10 A, 200 V, SILICON, RECTIFIER DIODE	10 A, 200 V, SILICON, RECTIFIER DIODE	10 A, 200 V, SILICON, RECTIFIER DIODE	10 A, 200 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknow	unknown	unknown	unknow
application	ULTRA FAST RECOVERY	EFFICIENCY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.4 V	1 V	1 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-65 °C	-55 °C	-55 °C
Maximum output current	8 A	10 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V	200 V	100 V
Maximum reverse recovery time	0.03 µs	0.035 µs	0.03 µs	0.03 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Parts packaging code	TO-220AC	-	TO-220AC	TO-220AC
package instruction	R-PSFM-T2	-	SIMILAR TO TO-220AC, 2 PIN	SIMILAR TO TO-220AC, 2 PIN
Contacts	3	-	3	3
ECCN code	EAR99	-	EAR99	EAR99
JEDEC-95 code	TO-220AC	-	TO-220AC	TO-220AC
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
