CLC532AID datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> CLC532AID

CLC532AID: DescriptionSingle-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC The signal circuit; File Size178KB，4 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

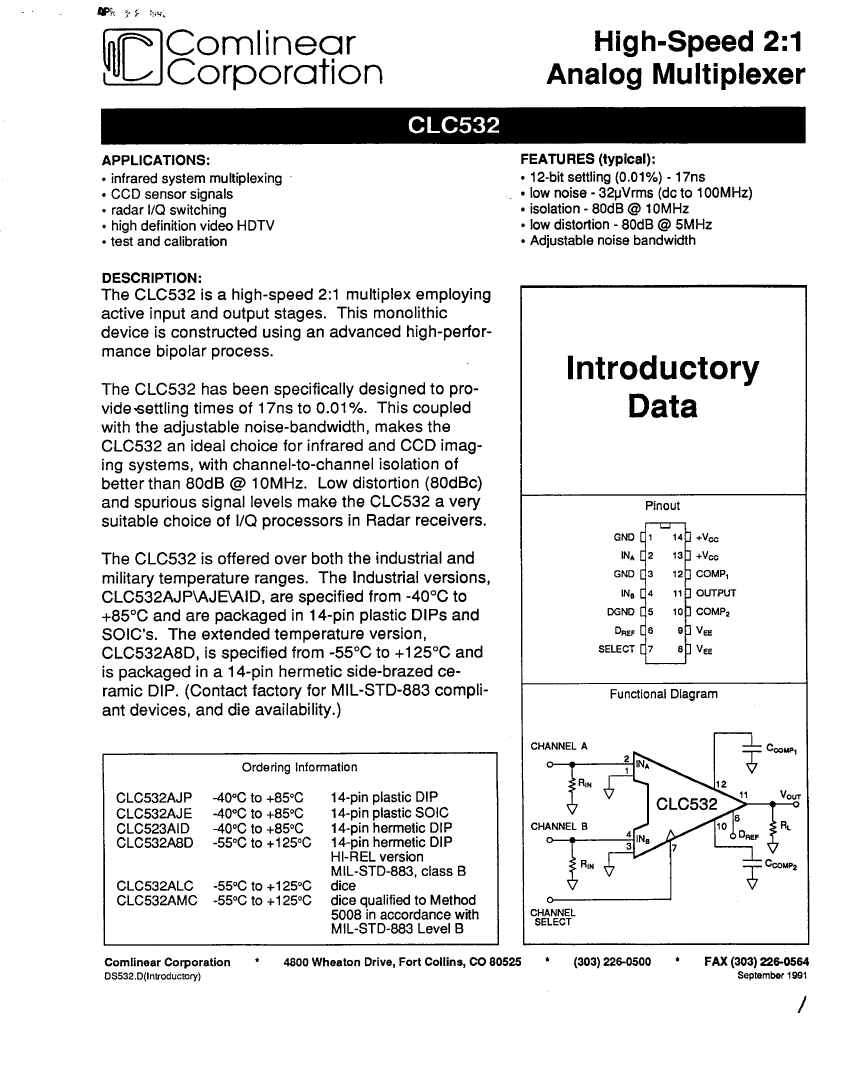

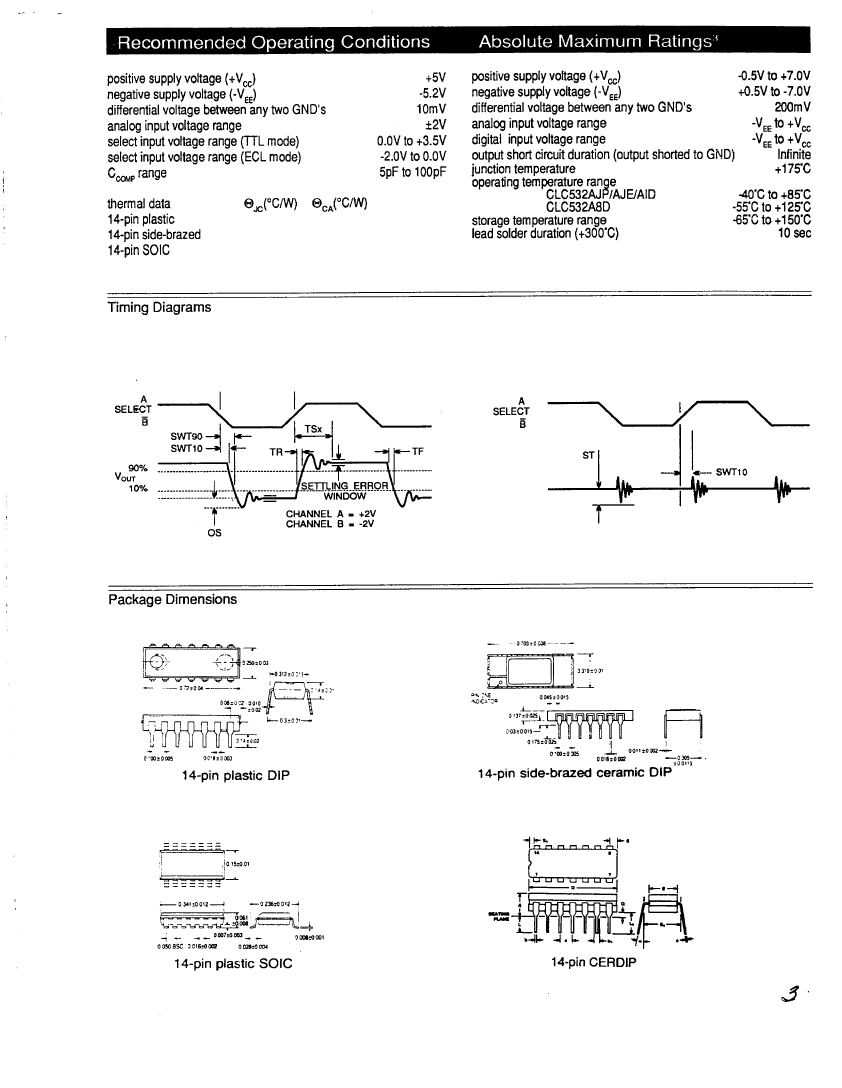

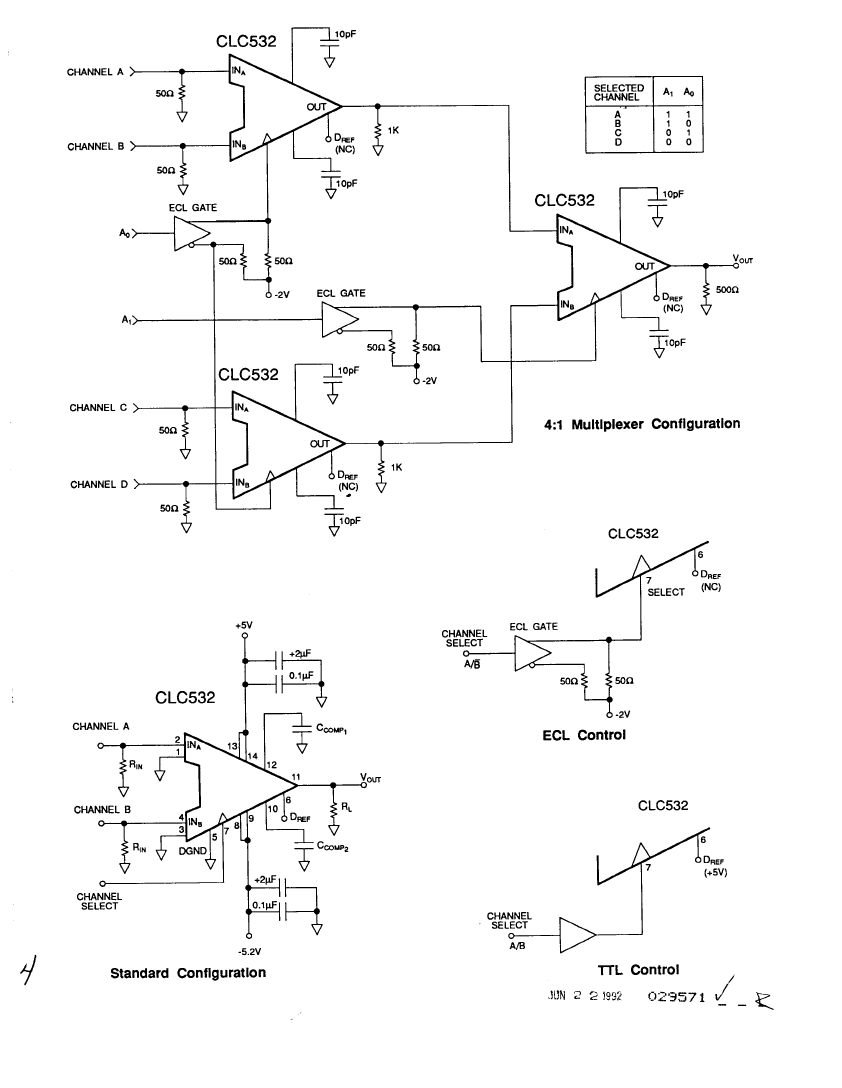

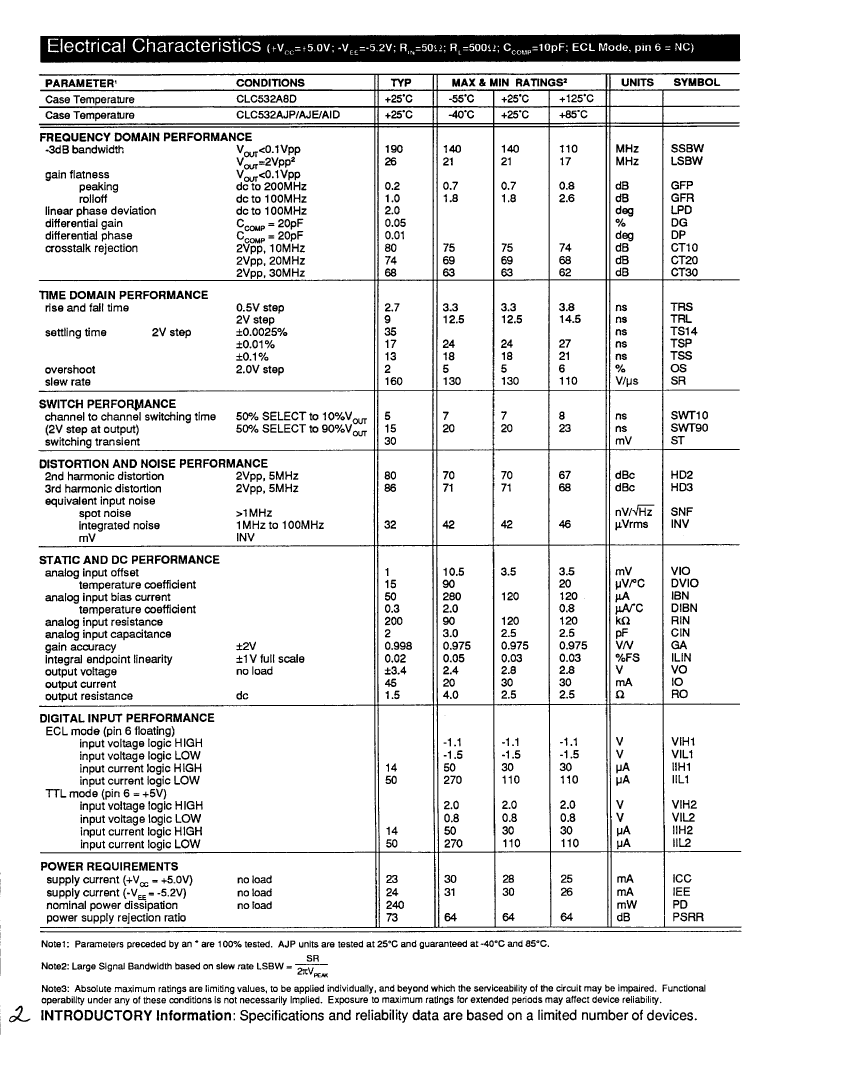

CLC532AID Overview

Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,

CLC532AID Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Comlinear Corporation
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-5.2 V
Number of channels	2
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-5.2 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	31 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum disconnect time	20 ns
Maximum connection time	20 ns
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CLC532AID Related Products

	CLC532AID	CLC532A8D	CLC532AJP	CLC532AMC	CLC532ALC	CLC532AJE
Description	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, PDIP14,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, PDSO14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
Number of channels	2	2	2	2	2	2
Number of functions	1	1	1	1	1	1
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIE OR CHIP	DIE OR CHIP	SOP14,.25
power supply	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	31 mA	31 mA	31 mA	31 mA	31 mA	31 mA
Maximum connection time	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible
Maker	Comlinear Corporation	-	Comlinear Corporation	-	Comlinear Corporation	Comlinear Corporation
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	-	-	R-PDSO-G14
JESD-609 code	e0	e0	e0	-	-	e0
Nominal Negative Supply Voltage (Vsup)	-5.2 V	-5.2 V	-5.2 V	-	-	-5.2 V
Number of terminals	14	14	14	-	-	14
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	-	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	-	5 V
surface mount	NO	NO	NO	-	-	YES
Maximum disconnect time	20 ns	20 ns	20 ns	-	-	20 ns
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
