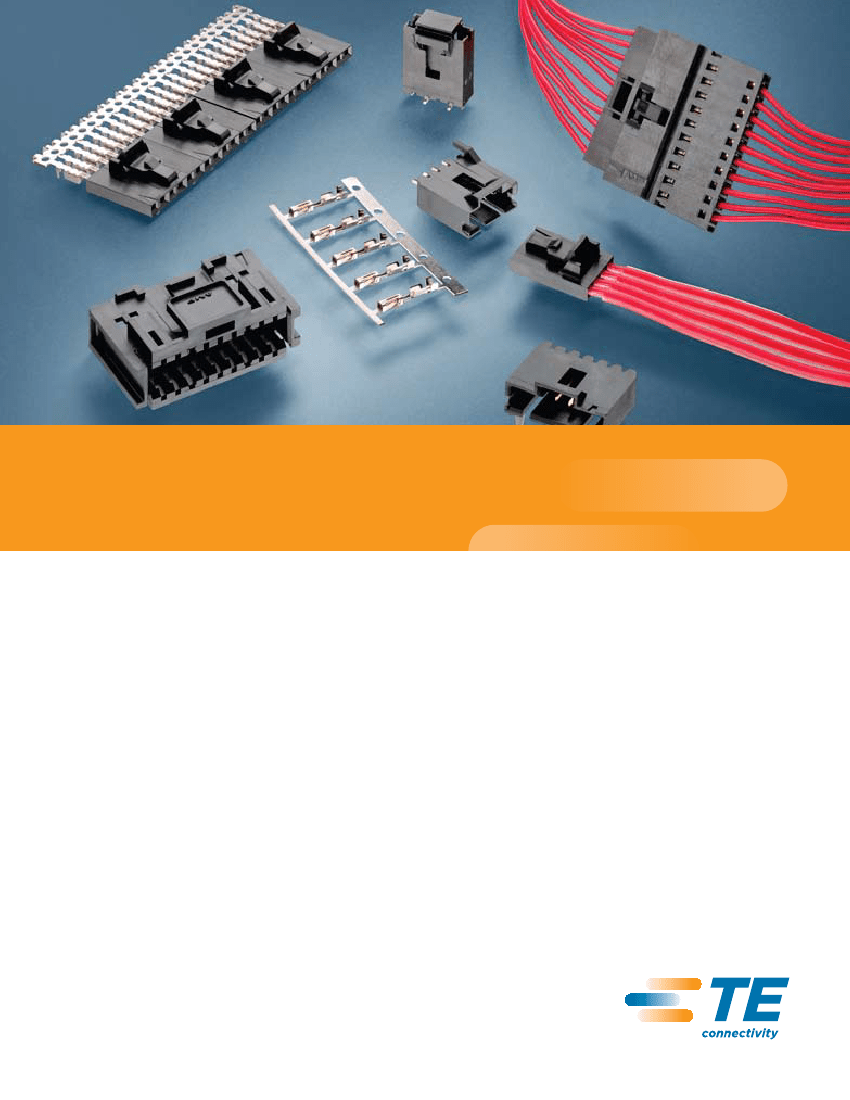

AMPMODU MTE Interconnect System
The TE Connectivity AMPMODU MTE interconnection system is utilized in wire-to-board and wire-to-wire
applications, and can be found in many types of electronic equipment including computers, copiers,
commercial printers, appliances, medical equipment, and automotive controls. The product implements
Insulation Displacement Contacts (IDC) or Crimp Snap-In contacts to suit customer’s needs.
FEATURES AnD BEnEFiTS
•
Assembly designs offer latching and polarization
•
Coupling shrouds permit ganging of smaller
receptacle and pin assemblies with guide ribs
to form larger single or double row latching
connectors
•
Available in three platings
•
Swage option on posts provides retention in
PC board
•
High temperature option is SMT compatible
•
Applicable Sizes 2-25
PRODUCT APPliCATiOnS
•
•
•
•
•
•
•
•
•
•
Medical Instruments
Automotive Controls
Copiers
Appliances
Commercial Printers
Vending
Computers
Instrumentation & Test Equipment
Telecommunications
Storage Equipment
te.com/products/ampmodumte
TE Connectivity
AMPMODU MTE Interconnect System
insulation Displacement vs. Crimp Snap-in
iDC
•
•
•
•
Time savings
Preloaded contacts
Automation
Mates with same headers as crimp
Crimp Snap-in
•
•
•
•
Cost effective
Flexibility (AWG)
Manual labor
Mates with same headers as IDC

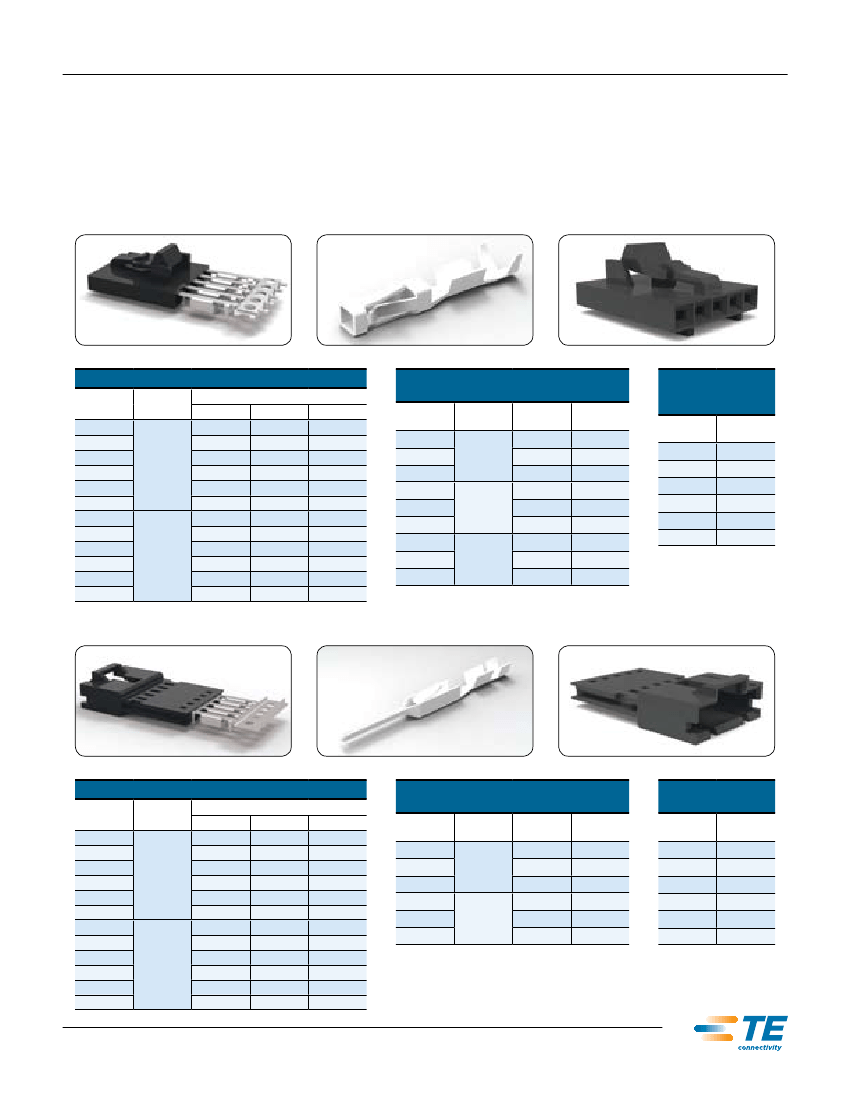

Receptacle Assemblies
iDC AMPMODU MTE
Crimp Snap-in Short Point Contact
AMPMODU MTE Housing
RECEPTAClES
Size
2
3
4
5
…
25
2
3
4
5
…
25
26-30
22-26
AWG
Plating
15 µ” Au
5-103957-1
5-103957-2
5-103957-3
5-103957-4
…
7-103644-4
5-103960-1
5-103960-2
5-103960-3
5-103960-4
…
7-103640-4
SHORT POinT REPlACEMEnT
COnTACTS
Matte Tin
5-103956-1
5-103956-2
5-103956-3
5-103956-4
…
7-103645-4
5-103959-1
5-103959-2
5-103959-3
5-103959-4
…
7-103641-4
30 µ” Au
5-103958-1
5-103958-2
5-103958-3
5-103958-4
…
7-103734-4
5-103961-1
5-103961-2
5-103961-3
5-103961-4
…
7-103897-4
Plating
15 µ” Au
30 µ” Au
Matte Tin
15 µ” Au
30 µ” Au
Matte Tin
15 µ” Au
30 µ” Au
Matte Tin
AWG
Strip
104479-9
Loose
Piece
1-104479-2
1-104479-3
1-104479-1
1-104480-5
1-104480-6
1-104480-4
1-104481-2
1-104481-3
5-104481-6
MTE
RECEPTAClE
HOUSingS
Size
2
3
4
5
…
25
Part
Number
104257-1
104257-2
104257-3
104257-4
…
2-104257-4
20-24
1-104479-0
104479-8
1-104480-2
22-26
1-104480-3
1-104480-7
1-104481-0
28-32
1-104481-1
5-104481-2
Pin Counterparts
iDC AMPMODU MTE
Crimp Snap-in Pin Contact
AMPMODU MTE Housing
PinS
Size
2
3
4
5
…
25
2
3
4
5
…
25
26-30
22-26
AWG
Plating
15 µ” Au
5-103945-1
5-103945-2
5-103945-3
5-103945-4
…
7-103660-4
5-103948-1
5-103948-2
5-103948-3
5-103948-4
…
7-103658-4
CRiMP Pin REPlACEMEnT
COnTACTS
Matte Tin
5-103944-1
5-103944-2
5-103944-3
5-103944-4
…
7-103661-4
5-103947-1
5-103947-2
5-103947-3
5-103947-4
…
7-103659-4
MTE CRiMP Pin
HOUSingS
Loose
Piece
5-104505-5
5-104505-7
5-104505-3
5-104506-5
5-104506-7
5-104506-3
Size
2
3
4
5
…
25
Part
Number
103653-1
103653-2
103653-3
103653-4
…
2-103653-4
30 µ” Au
5-103946-1
5-103946-2
5-103946-3
5-103946-4
…
7-103893-4
5-103949-1
5-103949-2
5-103949-3
5-103949-4
…
7-103894-4
Plating
15 µ” Au
30 µ” Au
Matte Tin
15 µ” Au
30 µ” Au
Matte Tin
AWG
Strip
5-104505-4
22-26
5-104505-6
5-104505-2
5-104506-4
28-32
5-104506-6
5-104506-2
te.com/products/ampmodumte
TE Connectivity
AMPMODU MTE Interconnect System

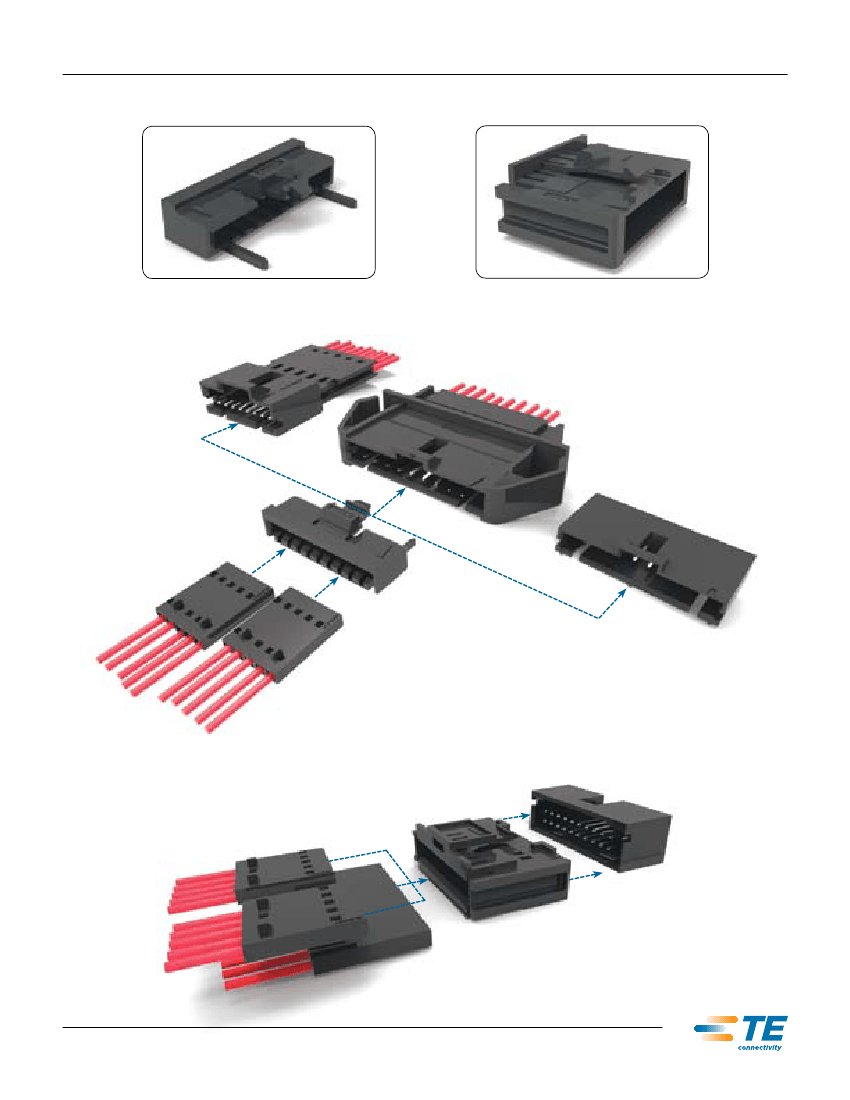

Coupling Shrouds
Single Row
Double Row
Typical Application of Single-Row Coupling Shroud and Mating AMPMODU MTE Products
5-103949-9
103682-9 and
5-103955-9
5-103735-9
5-103973-4
103680-7
5-103973-4
Typical Application of Double-Row Coupling Shroud and Mating AMPMODU MTE Products
104500-2
5-103973-4
5-103169-8
5-103973-4
5-103973-9
te.com/products/ampmodumte
TE Connectivity
AMPMODU MTE Interconnect System

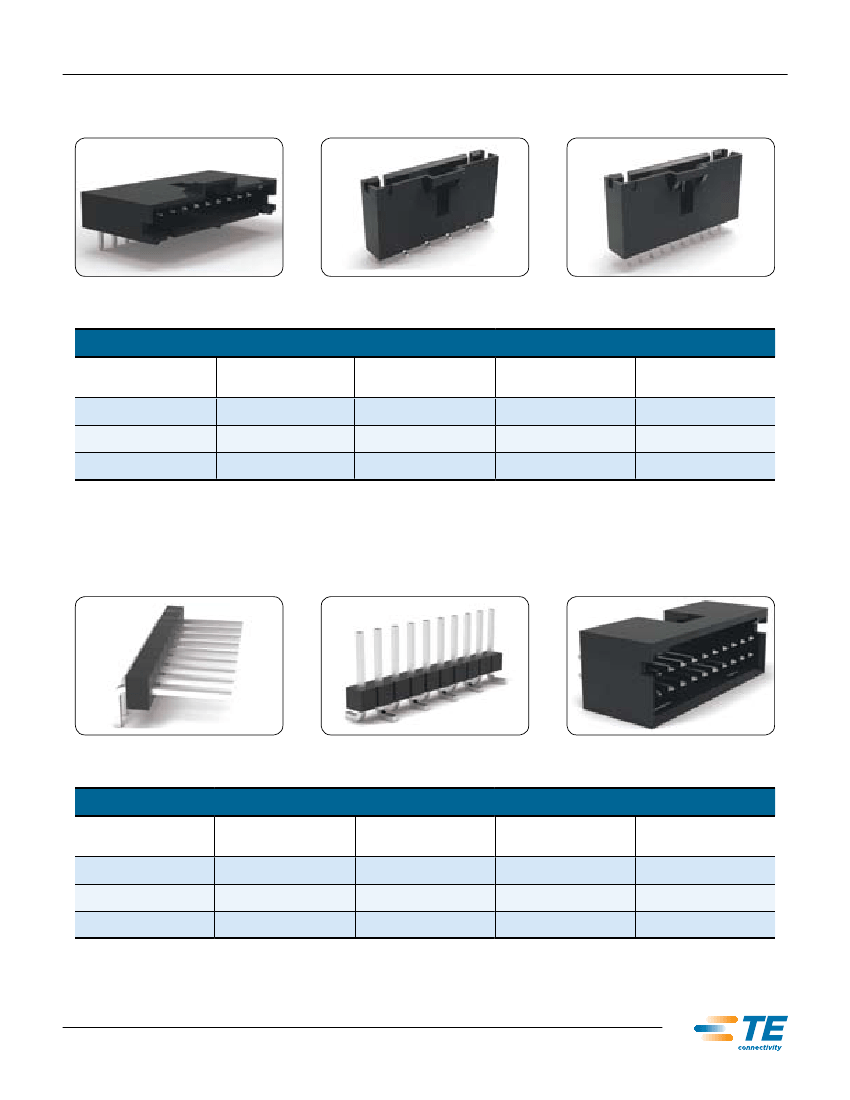

Board Mount Products — With latching
Right Angle
Surface Mount
Vertical
PERFORMAnCE SPECiFiCATiOnS
Type
Right Angle
Surface Mount
Vertical
Position Size
2-25
2-25
2-25
Soldering
Temperature
265˚C Wave
245˚C Reflow
265˚C Wave
Current Rating
3 amps*
3 amps*
3 amps*
Application
Specification
114-25026
114-25026
114-25026
* For a single contact in free air
Miscellaneous (non-MTE) Board Mount Solutions & Configurations
Right Angle / Breakaway Header**
Surface Mount / Breakaway Header**
Vertical / Shrouded Header
PERFORMAnCE SPECiFiCATiOnS
Type
Right Angle
Surface Mount
Vertical
Position Size
2-25
3-15
8-50
Soldering
Temperature
265˚C Wave
245˚C Reflow
265˚C Wave
Current Rating
3 amps*
3 amps*
3 amps*
Application
Specification
N/A
N/A
N/A
* For a single contact in free air
** Only breakaway header configurations with .230 mating post length
te.com/products/ampmodumte
TE Connectivity
AMPMODU MTE Interconnect System

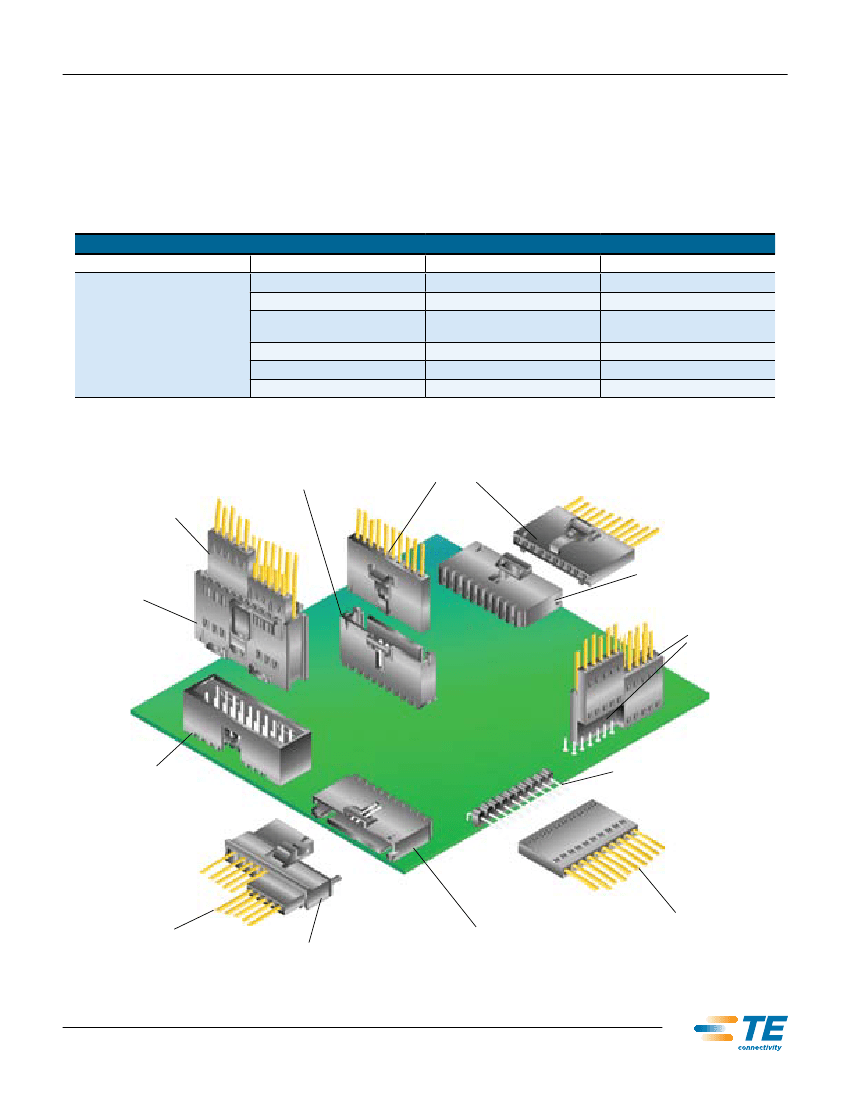

Product / Application Specification
Product Specification
— 108-25034 (Standard Product)
108-25034-2 (Surface Mount Product)
Application Specification
— 114-25026
Operating Temperature
— -65 to +105°C
Current
— 3 amps max. (single contact in free air)
APPliCATiOn TOOling
AMPMODU MTE Part Number
Tooling Part Number
58074-1
58075-1
All
Receptacle Assembly
Part Numbers
Listed Below
58338-1
931800-1
58336-1
856002-1
Tooling Description
Manual Pistol Grip
Pneumatic Pistol Grip
Bench Mounted Pneumatic Power
Assembly
IDC Electric Power Unit
MTE Modular Head
Tube Fed Ribbon Cable Machine
Instruction Sheet
408-6790
408-6789
408-9393
409-5746
408-9359
409-5832
Receptacle Assembly
with Guide Ribs
5-103971-4
Vertical Header
Polarized and Latching
5-103908-9
Receptacle Assembly
Polarized and Latching
5-103961-9
Double Row
Coupling Shroud
104500-2
Right Angle
High Temperature
Header Shrouded
Polarized and Latching
5-104361-9
Receptacle
Assemblies
Plain
5-103976-4
Vertical Shrouded
Header Double Row
5-87587-6
Breakaway Right Angle
Header Single Row
6-146306-0
Receptacle Assembly
with Guide Ribs
5-103971-4
Single Row
Coupling Shroud
103680-7
Right Angle Shrouded Header
Polarized and Latching
5-103634-9
High Pressure
Receptacle Assembly
5-104439-9
