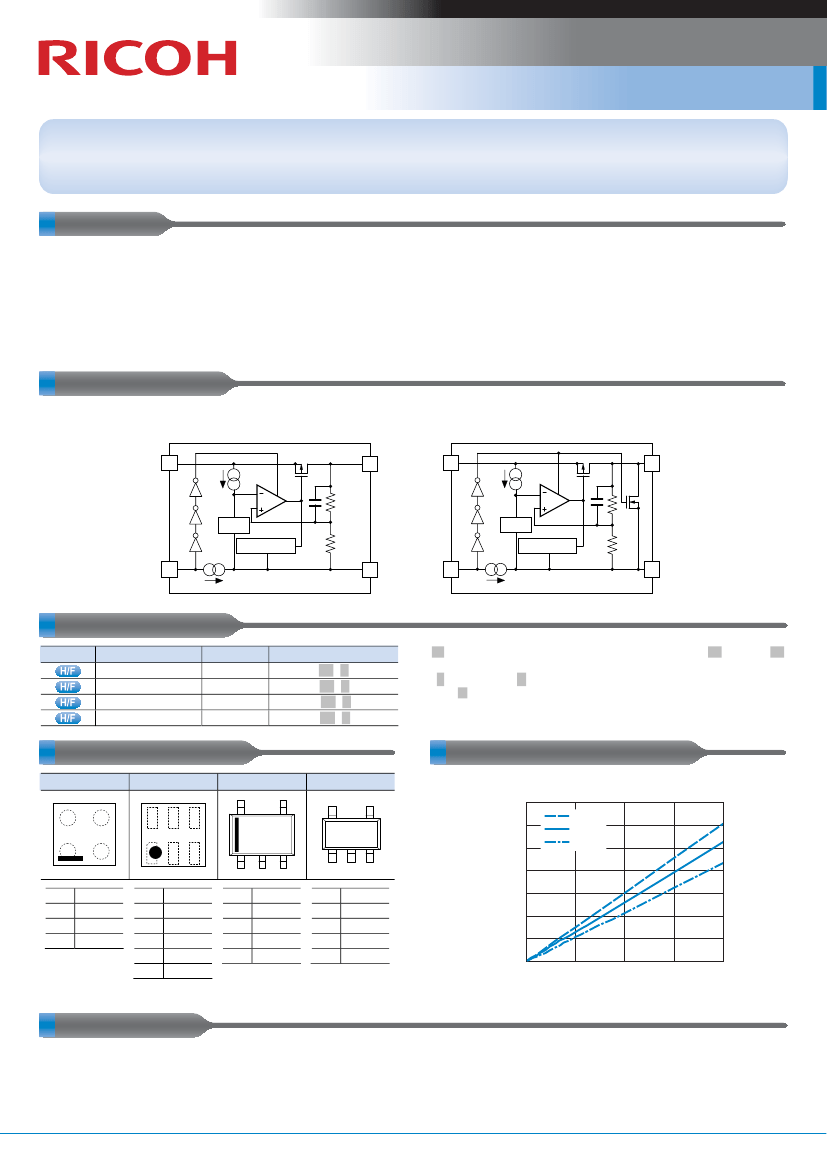

RP107x Series
Output Capacitor-less 200mA LDO
The RP107x Series are CMOS-based LDO regulators featuring 200mA output. Since the output capacitor and noise bypass capacitor
are able to be reduced and the packages are small DFN(PLP)1212-6, WLCSP-4-P5, and SC-88A, high density mounting on boards are
possible. The input voltage (V
IN
) is as low as Min.1.4V and the output voltage can be set from 1.0V. Supply current is as low as 9.5μA
compared to existing lines. The CE pin can switch the regulator to standby mode.
FEATURES
•
Supply Current (I
SS
) ························ Typ. 9.5μA (I
OUT
=0mA)
•
Standby Current (I
standby
) ················· Typ. 0.1μA (In standby)
•
Dropout Voltage (V
DIF
) ···················· Typ. 0.27V (I
OUT
=200mA, V
OUT
=2.8V)
•
Ripple Rejection (RR)····················· Typ. 60dB (f=1kHz, V
OUT
>2.5V)
•
Input Voltage Range (V
IN
) ··············· 1.4V to 5.25V
•
Output Voltage Range (V
OUT
)·········· 1.0V to 4.2V (internally fixed)
•
Output Voltage Accuracy ················± 1%
•
Temp. coeff. of Output Voltage ······· Typ.
±
100ppm/°C
•
Line Regulation ······························ Typ. 0.02%/V
•
Fold-back Protection Circuit ··········· Current limit Typ. 50mA
•
Constant Slope Circuit
•
Auto-Discharge function················· D Version
•
Packages ······································· WLCSP-4-P5, DFN(PLP)1212-6,
SC-88A, SOT-23-5
BLOCK DIAGRAMS
RP107xxxxB
(Without Auto-Discharge function)
V
DD
V
OUT
V
DD
RP107xxxxD
(With Auto-Discharge function)
V
OUT
Vref
Current Limit
Vref
Current Limit
CE
GND
CE
GND
SELECTION GUIDES
Halogen Free
Package
WLCSP-4-P5
DFN(PLP)1212-6
SC-88A
SOT-23-5
Q'ty per Reel
5,000 pcs
5,000 pcs
3,000 pcs
3,000 pcs
Part No.
RP107Z.xx.1.
∗
-TR-F
RP107K.xx.1.
∗
-TR
RP107Q.xx.2.
∗
-TR-FE
RP107N.xx.1.
∗
-TR-FE
.xx.
: Specify the output voltage within the range of 1.0V (.10.) to 4.2V (.42.)
iin
0.1V steps.
.∗
: Select from (.B.) without auto-discharge function or
(.D.) with auto-discharge function
PACKAGES (Top View)
WLCSP-4-P5 DFN(PLP)1212-6
4
3
6
5
4
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
SC-88A
5
4
RP107x30xx
350
300
200
250
150
100
50
0
0
Dropout Voltage vs. Output Current
85°C
25°C
- 40°C
1
2
1
2
3
1
2
3
1
2
3
1
2
3
4
V
DD
CE
GND
V
OUT
1
2
3
4
5
6
NC
GND
CE
V
DD
NC
V
OUT
1
2
3
4
5
CE
NC
GND
V
OUT
V
DD
1
2
3
4
5
V
DD
GND
CE
NC
V
OUT
Dropout Voltage V
DIF
(mV)
50
100
150
Output Current I
OUT
(mA)
200
APPLICATIONS
•
Power source for hand-held communication equipment, camera and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
