Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTA208B500E

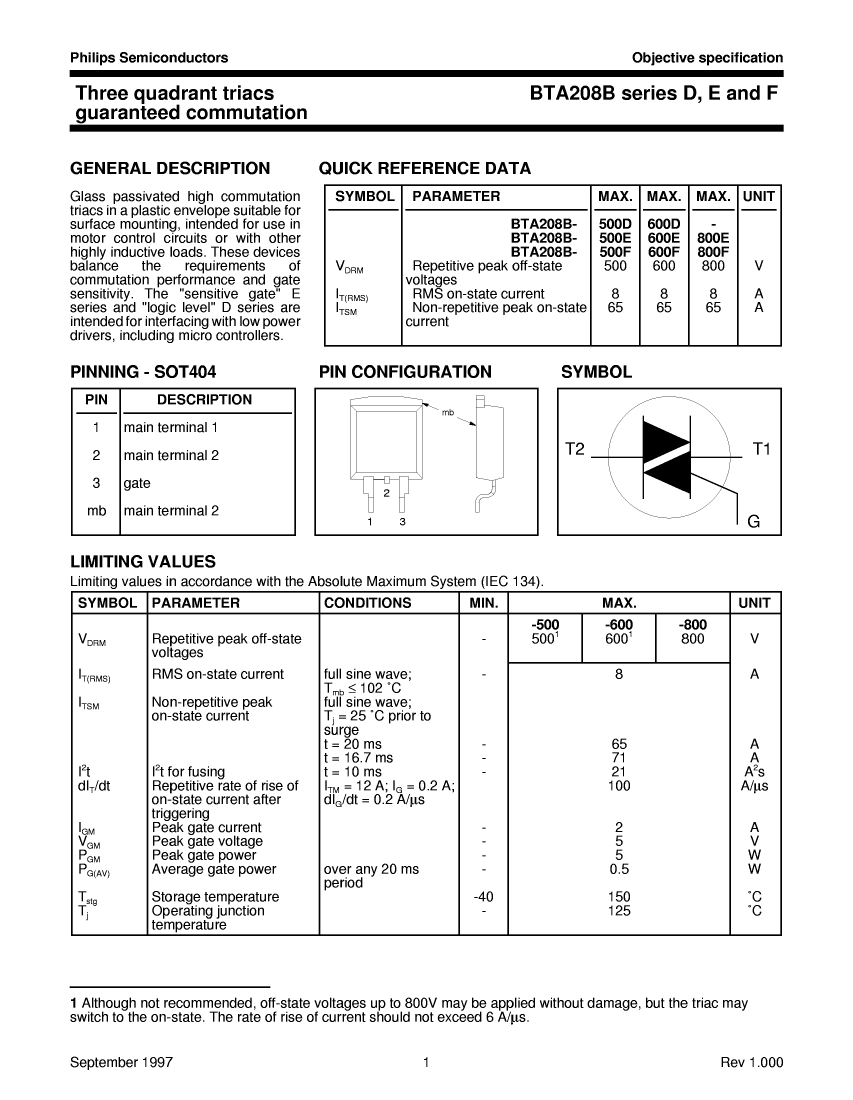

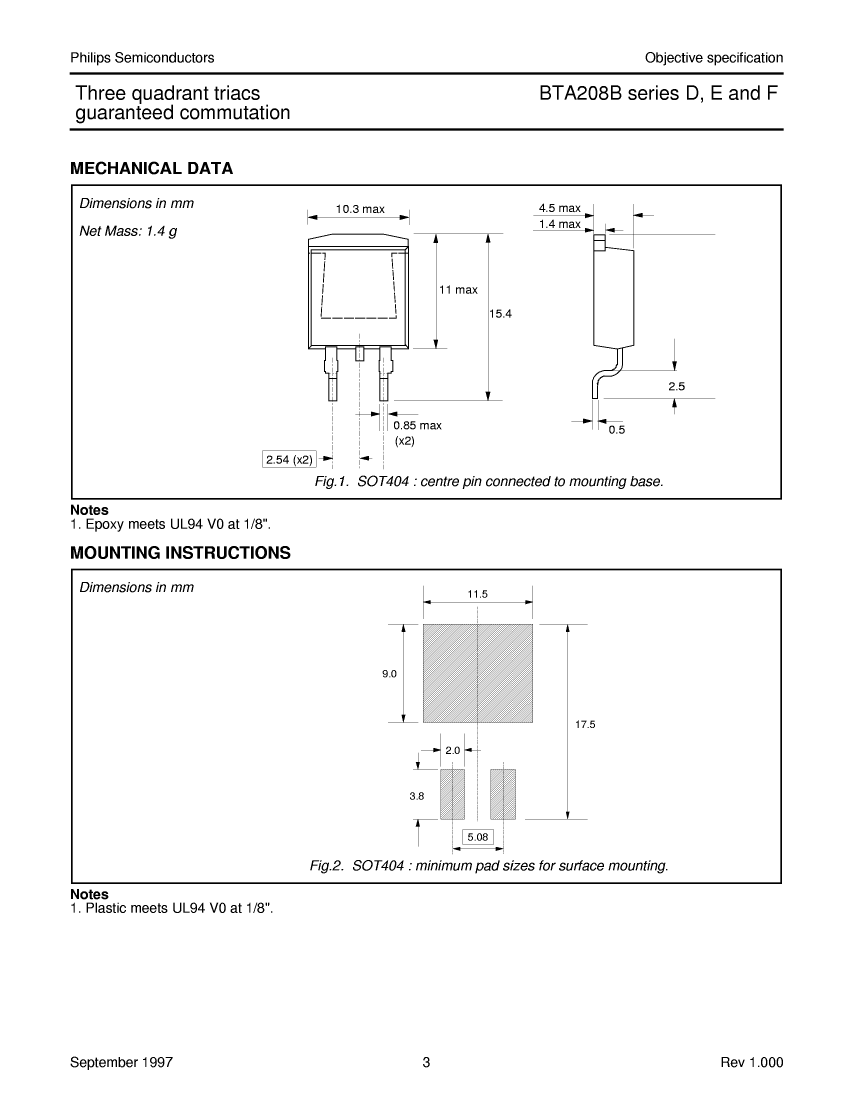

Preview

BTA208B500E: DescriptionTRIAC, 500V V(DRM), 8A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size168KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

BTA208B500E Overview

TRIAC, 500V V(DRM), 8A I(T)RMS

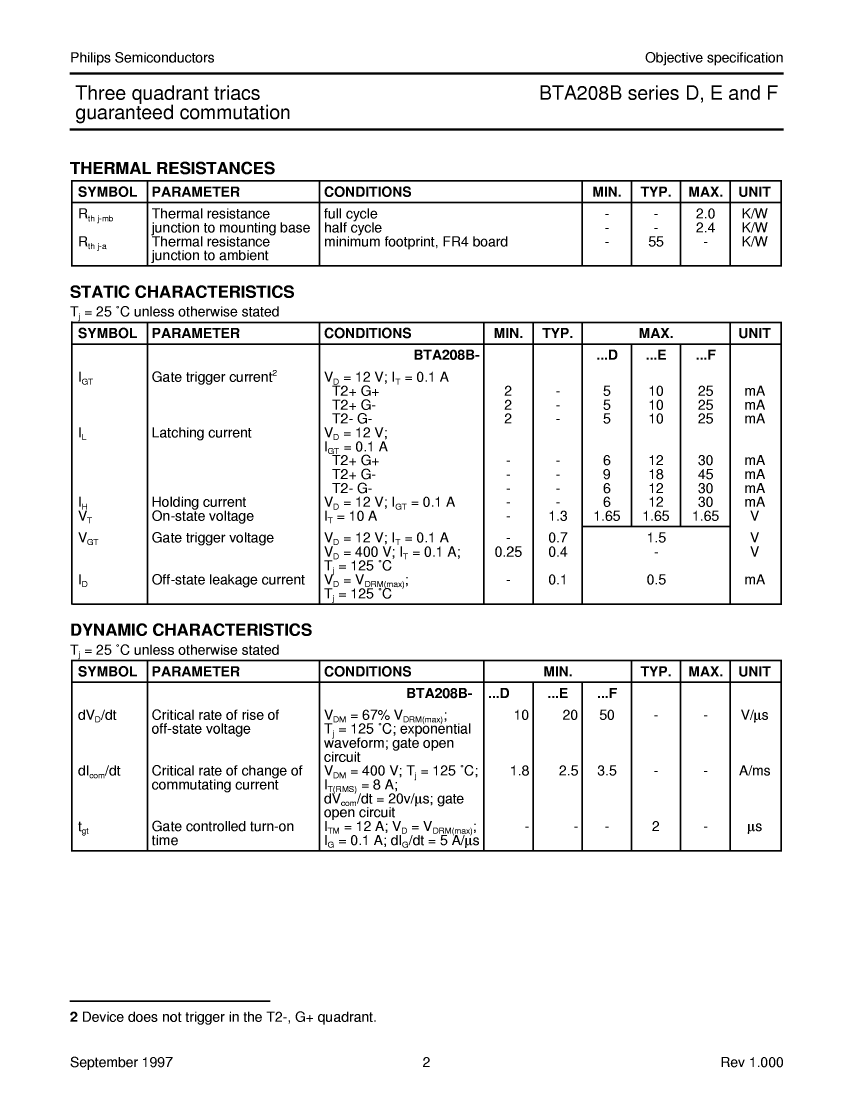

BTA208B500E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	12 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.65 V
Maximum operating temperature	125 °C
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

Preview

Download Datasheet

View All

BTA208B500E Related Products

	BTA208B500E	BTA208B500F	BTA208B800F	BTA208B800E	BTA208B600D	BTA208B600E	BTA208B600F	BTA208B500D
Description	TRIAC, 500V V(DRM), 8A I(T)RMS	TRIAC, 500V V(DRM), 8A I(T)RMS	TRIAC, 800V V(DRM), 8A I(T)RMS	TRIAC, 800V V(DRM), 8A I(T)RMS	TRIAC, 600V V(DRM), 8A I(T)RMS	TRIAC, 600V V(DRM), 8A I(T)RMS	TRIAC, 600V V(DRM), 8A I(T)RMS	TRIAC, 500V V(DRM), 8A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Critical rise rate of minimum off-state voltage	20 V/us	50 V/us	50 V/us	20 V/us	10 V/us	20 V/us	50 V/us	10 V/us
Maximum DC gate trigger current	10 mA	25 mA	25 mA	10 mA	5 mA	10 mA	25 mA	5 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	12 mA	30 mA	30 mA	12 mA	6 mA	12 mA	30 mA	6 mA
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V	1.65 V
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum rms on-state current	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Off-state repetitive peak voltage	500 V	500 V	800 V	800 V	600 V	600 V	600 V	500 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
