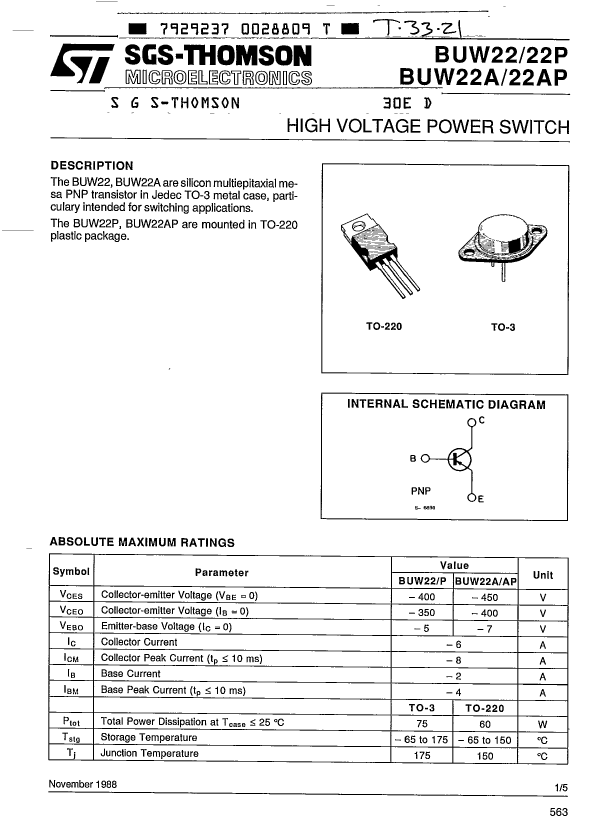

BUW22P: Description6A, 350V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size242KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

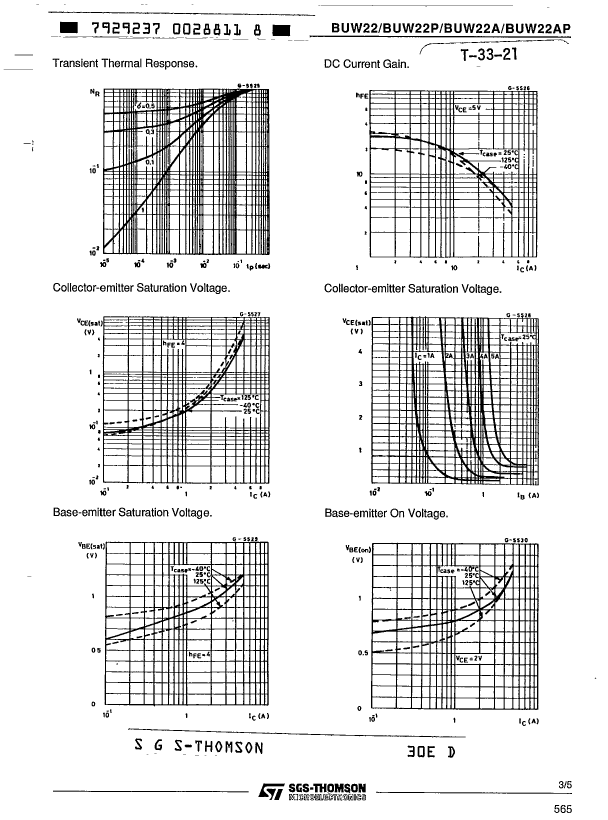

BUW22P Overview

6A, 350V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

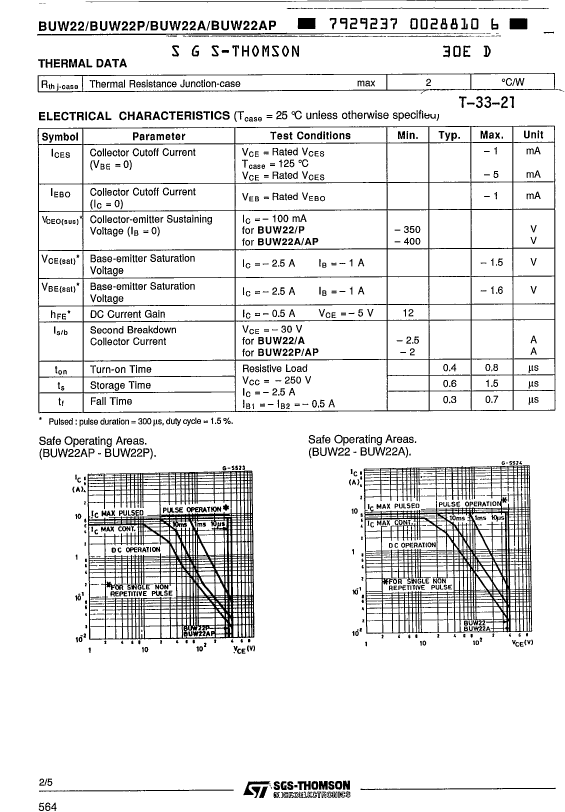

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	TO-220, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Maximum collector current (IC)	6 A
Collector-emitter maximum voltage	350 V
Configuration	SINGLE
Minimum DC current gain (hFE)	12
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power consumption environment	60 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

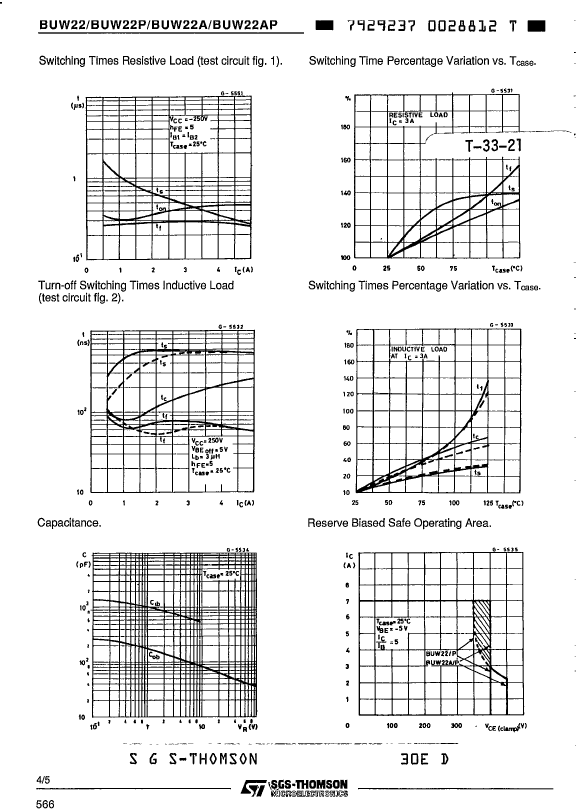

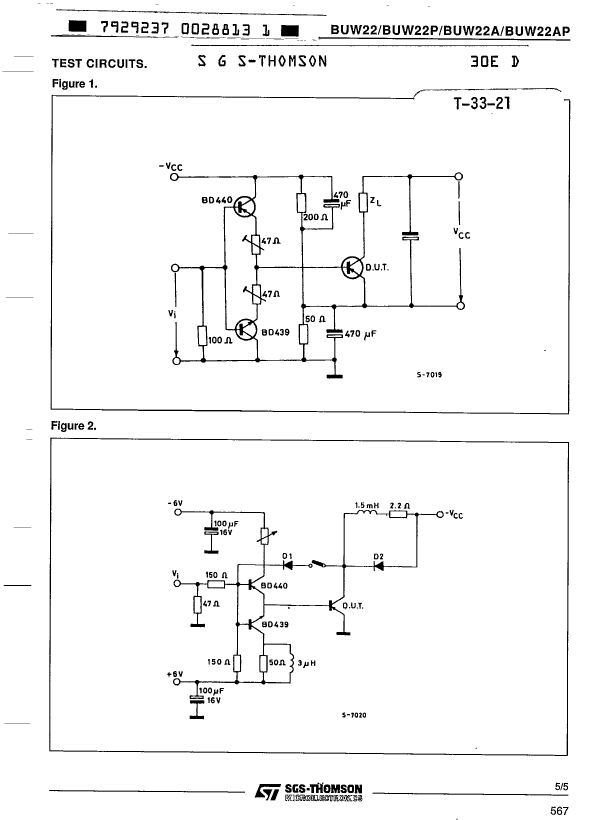

Maximum off time (toff)	2200 ns
Maximum opening time (tons)	800 ns
VCEsat-Max	1.5 V

	BUW22P	BUW22
Description	6A, 350V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	6A, 350V, PNP, Si, POWER TRANSISTOR, TO-3
Is it Rohs certified?	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics
Reach Compliance Code	not_compliant	not_compliant
Maximum collector current (IC)	6 A	6 A
Collector-emitter maximum voltage	350 V	350 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	12	12
JEDEC-95 code	TO-220AB	TO-3
JESD-30 code	R-PSFM-T3	O-MBFM-P2
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	2
Maximum operating temperature	150 °C	175 °C
Package body material	PLASTIC/EPOXY	METAL
Package shape	RECTANGULAR	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	PNP	PNP
Maximum power consumption environment	60 W	75 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	PIN/PEG
Terminal location	SINGLE	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Maximum off time (toff)	2200 ns	2200 ns
Maximum opening time (tons)	800 ns	800 ns
VCEsat-Max	1.5 V	1.5 V
