FRL15TCWA-D8619090A datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FRL15TCWA-D8619090A

FRL15TCWA-D8619090A: DescriptionDFB Laser Module Emitter, 1570nm Min, 1607nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26; CategoryWireless rf/communication Optical fiber; File Size226KB，6 Pages; ManufacturerFurukawa Electric Co., Ltd.

Download Datasheet Parametric Compare View All

FRL15TCWA-D8619090A Overview

DFB Laser Module Emitter, 1570nm Min, 1607nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26

FRL15TCWA-D8619090A Parametric

Parameter Name	Attribute value
Maker	Furukawa Electric Co., Ltd.
Objectid	1159679552
package instruction	BUTTERFLY
Reach Compliance Code	unknown
compound_id	13280619
body width	15.2 mm
body height	7.8 mm
Body length or diameter	20.83 mm
Built-in features	ISOLATOR, MONITOR PD, TEC, THERMISTOR
Communication standards	TELCORDIA-GR-468
Fiber optic equipment types	DFB LASER MODULE EMITTER
Fiber type	PMF
Installation features	PANEL MOUNT
Number of channels	88
Maximum operating temperature	50 °C
Minimum operating temperature	10 °C
Maximum operating wavelength	1607 nm
Minimum operating wavelength	1570 nm
Nominal operating wavelength	1589 nm
Package form	BUTTERFLY
surface mount	NO
Transmission type	DIGITAL

Preview

Download Datasheet

View All

Data Sheet

FRL15TCWx-D86-xxxxxA

Mar. 2011

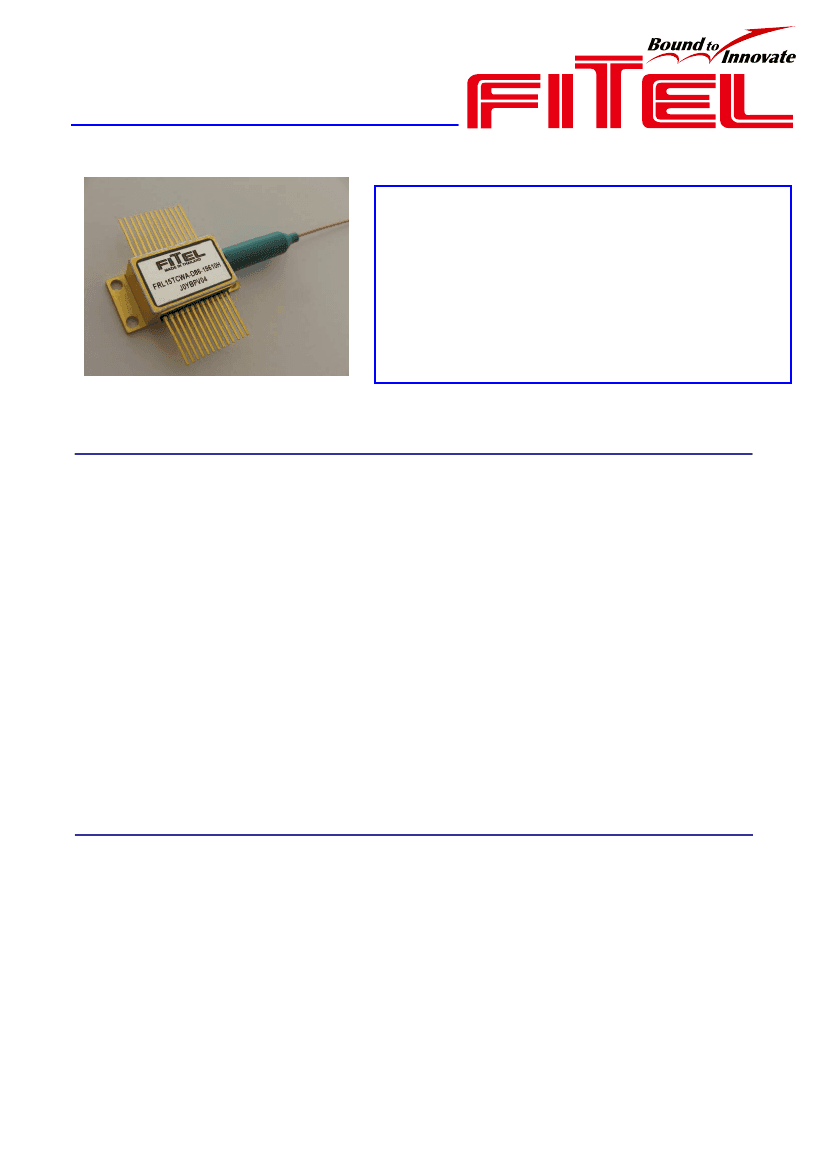

Full Band Tunable DFB Laser Module

Applications



Long Haul or Metropolitan DWDM

Transmission Systems



Dynamic Wavelength Provisioning and

Add/Drop Multiplexer

Descriptions



FRL15TCWx-D86 series is full band tunable DFB laser module designed for long haul

DWDM applications with external intensity modulator.



The polarization maintaining fiber pigtail enables to directly connect a modulator without

polarization control. The polarization state of output laser beam is maintained to a

consistent orientation.



Full band thermally tunable DFB laser diode chip is integrated with an optical isolator,

thermo-electric coolers (TEC), thermistors, a power monitor photodiode, and a

wavelength monitor photodiode in a hermetically sealed 26 pin butterfly package with

same foot print as an industry standard 14 pin butterfly package.



Full band thermally tunable DFB laser diode chip consists of DFB laser array and

semiconductor optical amplifier (SOA). Each DFB laser is biased under constant

current and output power is maintained by adjusting SOA current under automatic

power control. By selecting an appropriate DFB laser and tuning the laser temperature,

FRL15TCWx-D86 series can provide any ITU channel in 35 nm tuning range.



This laser module complies with telecom requirements described in Telcordia

GR-468

and is manufactured in an ISO

9001 certified production line.

Features



35nm tunability (88 ITU channels at 50GHz spacing) available in C or L band



Stable wavelength with integrated wavelength monitor



High optical output power up to 20mW for C band



High side mode suppression ratio (SMSR) in entire tuning range



26 pin butterfly package



Low TEC power consumption



Polarization maintaining fiber pigtail



RoHS compliant package

ODC-7AH001E

1/6

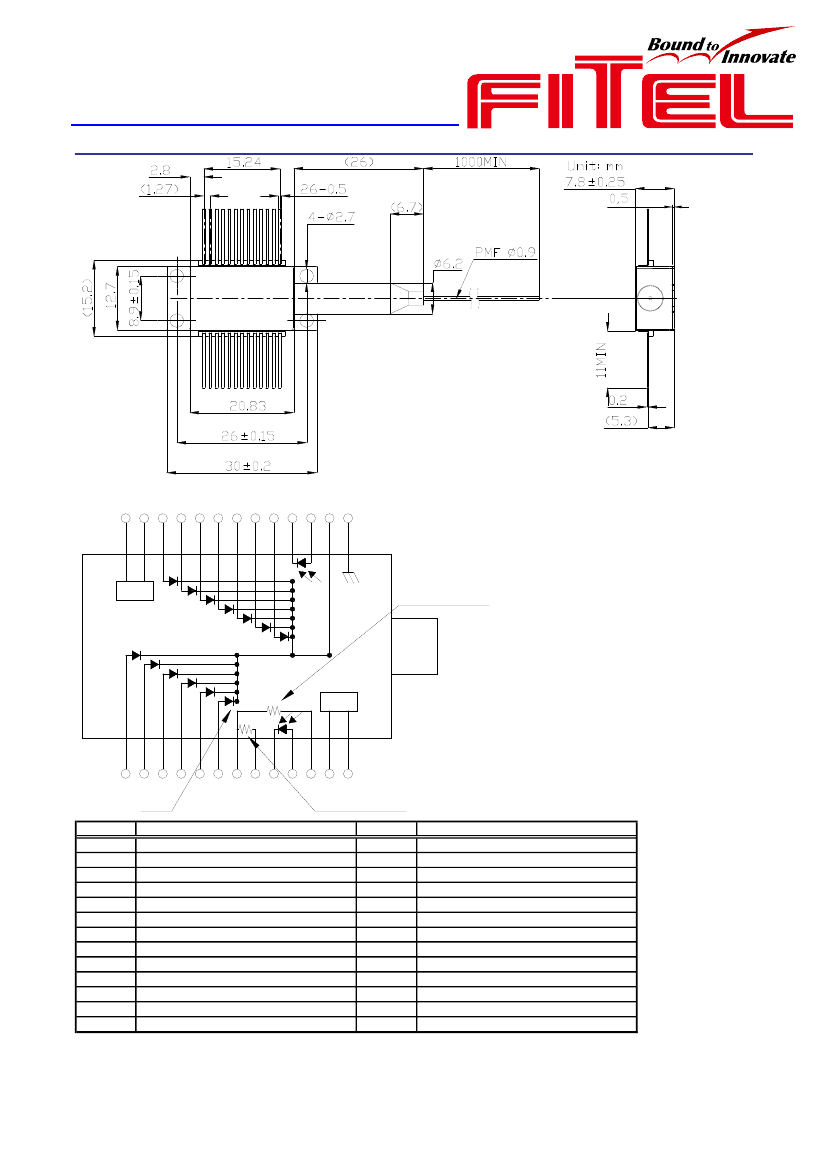

FRL15TCWA-D8619090A Related Products

	FRL15TCWA-D8619090A	FRL15TCWB-D8619610A	FRL15TCWB-D8619090A	FRL15TCWA-D8619610A
Description	DFB Laser Module Emitter, 1570nm Min, 1607nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26	DFB Laser Module Emitter, 1529nm Min, 1563nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26	DFB Laser Module Emitter, 1570nm Min, 1607nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26	DFB Laser Module Emitter, 1529nm Min, 1563nm Max, Butterfly, Panel Mount, ROHS COMPLIANT, HERMETIC SEALED, PACKAGE-26
Maker	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.	Furukawa Electric Co., Ltd.
package instruction	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	15.2 mm	15.2 mm	15.2 mm	15.2 mm
body height	7.8 mm	7.8 mm	7.8 mm	7.8 mm
Body length or diameter	20.83 mm	20.83 mm	20.83 mm	20.83 mm
Built-in features	ISOLATOR, MONITOR PD, TEC, THERMISTOR	ISOLATOR, MONITOR PD, TEC, THERMISTOR	ISOLATOR, MONITOR PD, TEC, THERMISTOR	ISOLATOR, MONITOR PD, TEC, THERMISTOR
Communication standards	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468	TELCORDIA-GR-468
Fiber optic equipment types	DFB LASER MODULE EMITTER	DFB LASER MODULE EMITTER	DFB LASER MODULE EMITTER	DFB LASER MODULE EMITTER
Fiber type	PMF	PMF	PMF	PMF
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of channels	88	88	88	88
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	10 °C	10 °C	10 °C	10 °C
Maximum operating wavelength	1607 nm	1563 nm	1607 nm	1563 nm
Minimum operating wavelength	1570 nm	1529 nm	1570 nm	1529 nm
Nominal operating wavelength	1589 nm	1546 nm	1589 nm	1546 nm
Package form	BUTTERFLY	BUTTERFLY	BUTTERFLY	BUTTERFLY
surface mount	NO	NO	NO	NO
Transmission type	DIGITAL	DIGITAL	DIGITAL	DIGITAL
