9100-31-139-04: DescriptionBoard Connector, 39 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9100-31-139-04 Overview

Board Connector, 39 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

9100-31-139-04 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	9100
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	39
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

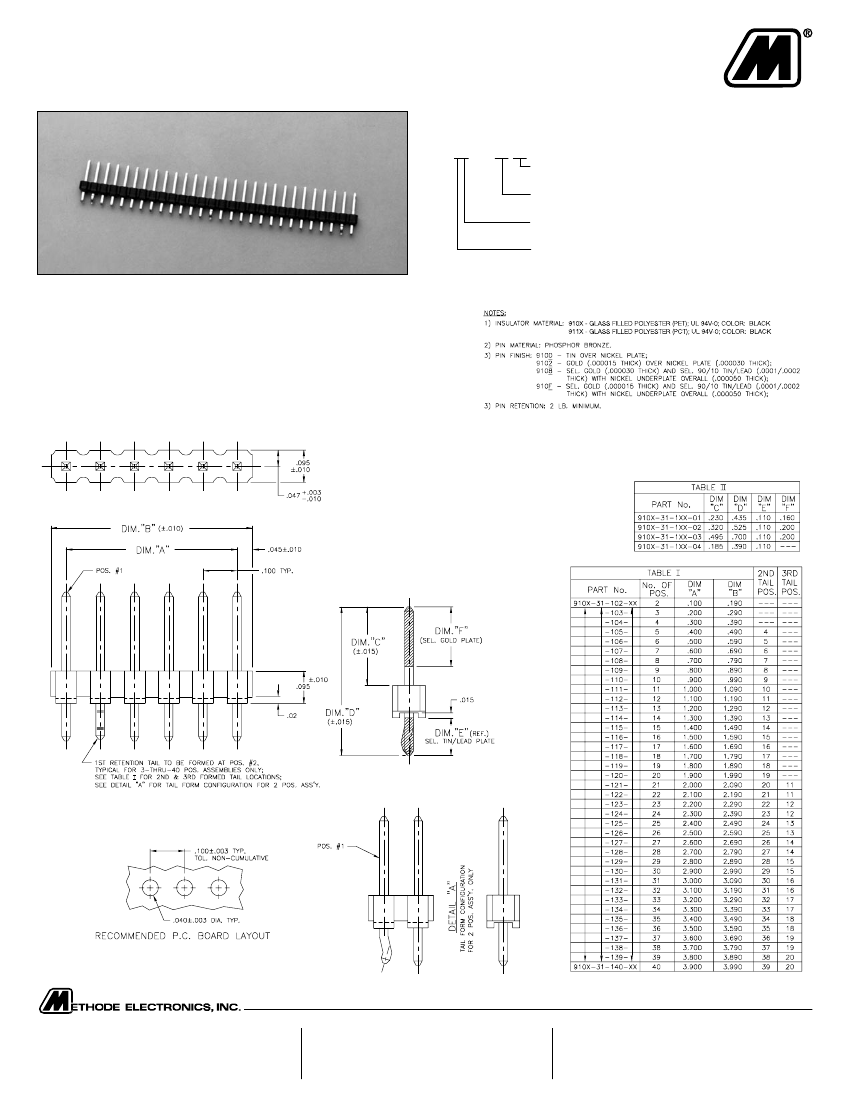

.100" (2.54mm) Single Row, Through Hole,

Vertical Header with Retention Tails

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-31-1XX-XX

PIN NUMBER

(SEE TABLE II)

NUMBER OF POSITIONS

(SEE TABLE I)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 9000 SERIES

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
