IRGNI165F06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRGNI165F06

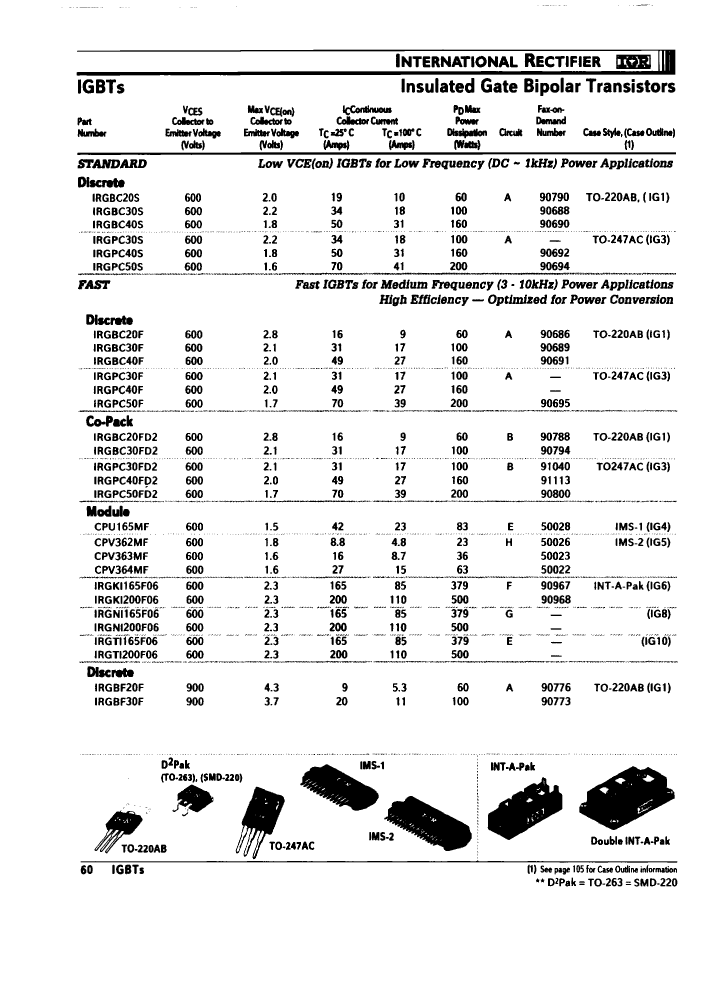

IRGNI165F06: DescriptionInsulated Gate Bipolar Transistor, 165A I(C), 600V V(BR)CES, N-Channel; CategoryDiscrete semiconductor The transistor; File Size47KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

IRGNI165F06 Overview

Insulated Gate Bipolar Transistor, 165A I(C), 600V V(BR)CES, N-Channel

IRGNI165F06 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X4
Reach Compliance Code	unknown
Other features	CHOPPER SWITCH
Shell connection	ISOLATED
Maximum collector current (IC)	165 A
Collector-emitter maximum voltage	600 V
Configuration	SINGLE WITH BUILT-IN CONFIGURABLE DIODE
Gate emitter threshold voltage maximum	5.5 V
Gate-emitter maximum voltage	20 V
JESD-30 code	R-PUFM-X4
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	379 W
Maximum power dissipation(Abs)	379 W
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	POWER CONTROL
Transistor component materials	SILICON
VCEsat-Max	2.3 V

Preview

Download Datasheet

View All

IRGNI165F06 Related Products

	IRGNI165F06	IRGKI200F06	IRGKI165F06	IRGTI165F06
Description	Insulated Gate Bipolar Transistor, 165A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 200A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 165A I(C), 600V V(BR)CES, N-Channel	Insulated Gate Bipolar Transistor, 165A I(C), 600V V(BR)CES, N-Channel,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X4	FLANGE MOUNT, R-PUFM-X7	FLANGE MOUNT, R-PUFM-X7	FLANGE MOUNT, R-MUFM-X7
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	CHOPPER SWITCH	CHOPPER SWITCH	CHOPPER SWITCH	FAST
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	165 A	200 A	165 A	165 A
Collector-emitter maximum voltage	600 V	600 V	600 V	600 V
Configuration	SINGLE WITH BUILT-IN CONFIGURABLE DIODE	SINGLE WITH BUILT-IN CONFIGURABLE DIODE	SINGLE WITH BUILT-IN CONFIGURABLE DIODE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate emitter threshold voltage maximum	5.5 V	5.5 V	5.5 V	5.5 V
Gate-emitter maximum voltage	20 V	20 V	20 V	20 V
JESD-30 code	R-PUFM-X4	R-PUFM-X7	R-PUFM-X7	R-MUFM-X7
Number of components	1	1	1	2
Number of terminals	4	7	7	7
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	379 W	500 W	379 W	379 W
Maximum power dissipation(Abs)	379 W	500 W	379 W	379 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER
transistor applications	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL
Transistor component materials	SILICON	SILICON	SILICON	SILICON
VCEsat-Max	2.3 V	2.3 V	2.3 V	2.3 V
