81036-M0020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 81036-M0020

81036-M0020: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，5 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

81036-M0020 Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

81036-M0020 Parametric

Parameter Name	Attribute value
Maker	3M
Objectid	305023110
Reach Compliance Code	unknown
compound_id	179707437
Board mount options	PEG
body width	0.31 inch
subject depth	0.701 inch
body length	1.46 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.103 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

™

4-Wall, Tripolarized Header

.050″

.100″ Latch/Ejector, Right Angle, 4 Rows of Solder Tails

810 Series

• Tripolarization to mating socket

• 50 mil

100 mil halves the connector length

• Latch and eject for rugged high performance

applications

• Two-row tail design saves board space

• High temperature plastic

• Four-wall shroud provides contact protection

• Contacts: 20, 26, 36, 40, 50, 60, 68, 80 and 100

• See Regulatory Information Appendix (RIA)

for chemical compliance information

Date Modified: March 27, 2007

TS-0334-17

Sheet 1 of 3

Physical

Insulator

Material:

High Temperature Plastic (LCP)

Flammability:

UL 94V-0

Color:

Black (RB Plating Only) or Natural

Contact

Material:

Copper Alloy

Plating

Underplating:

100

μ″

[ 2.54

μm

] Nickel

Wiping Area:

μ″

[ 0.76

μm

] Gold

Solder Tails:

See Ordering Information

Terminal Finish Indicator:

e3 (ref JESD97)

Marking:

3M Logo, Part Number and Orientation Triangle

Electrical

Current Rating:

0.5 A

500 V

RMS

at Sea Level

Insulation Resistance:

> 1

at 500 V

Withstanding Voltage:

Environmental

Operating Temperature Rating:

-55°C to +105°C

Process Rating:

Maximum

260°C (per J-STD-020C)

Moisture Sensitivity Level:

1 (Profile per J-STD-020C)

UL File No.: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

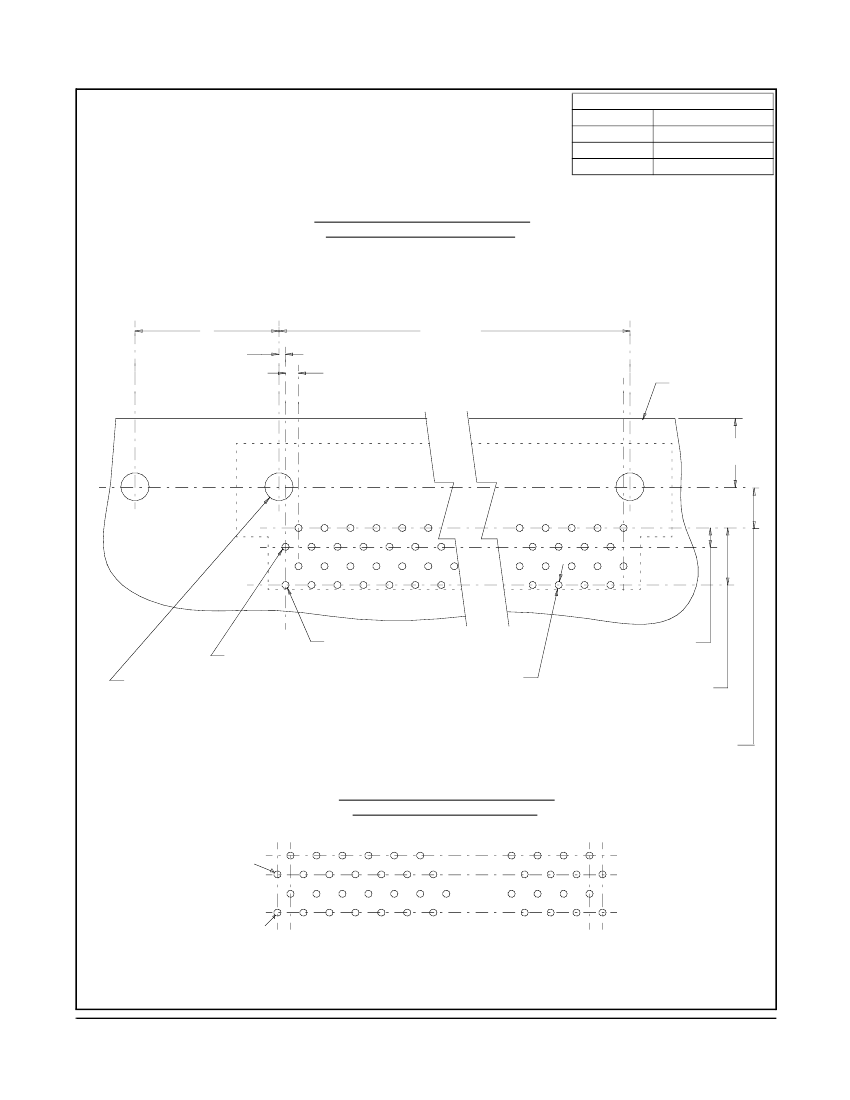

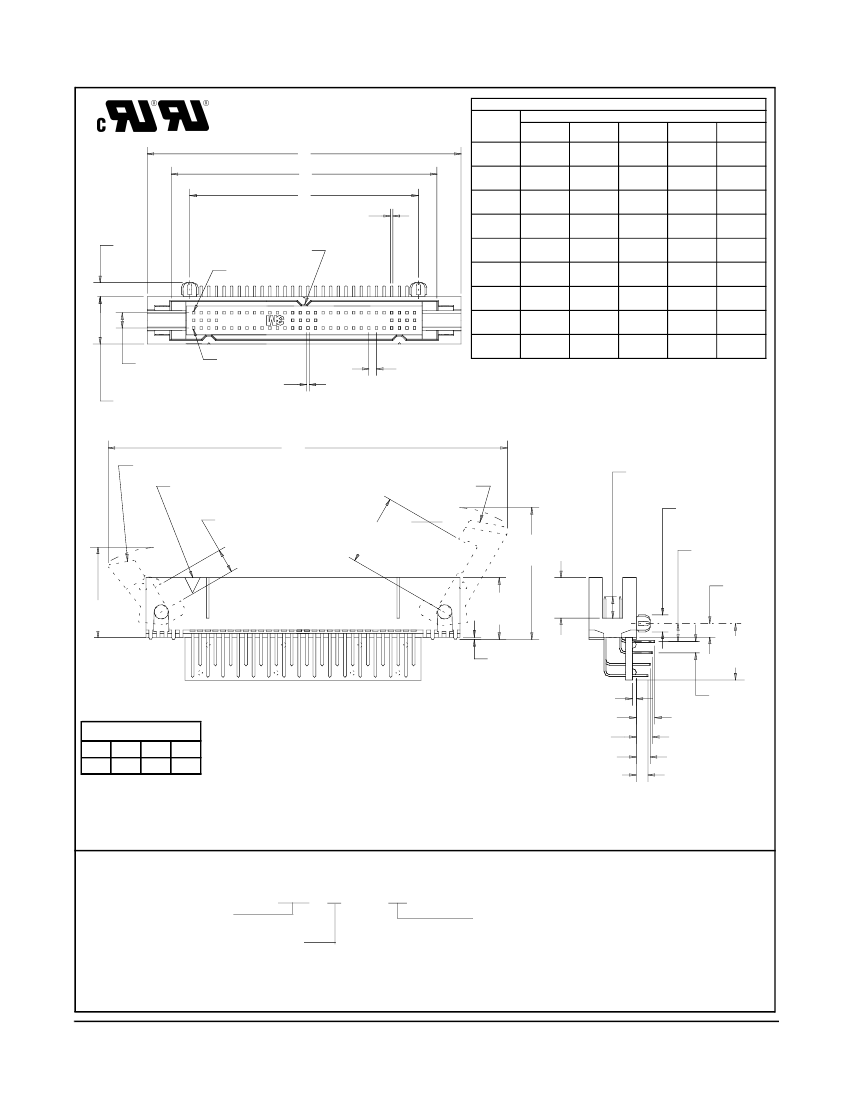

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon

information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/17/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision

2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in

writing, this information represents 3M’s best knowledge and belief based upon information provided by third party

suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217-A

CHINA

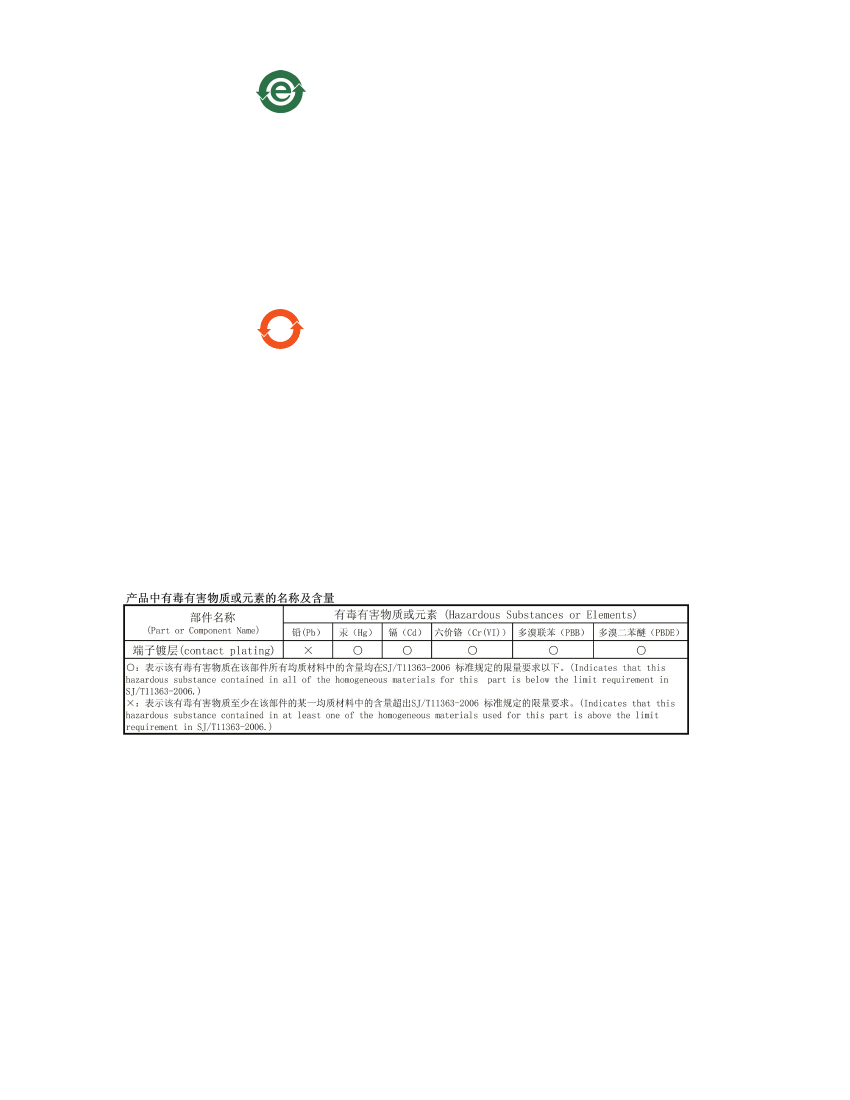

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits

for Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,

means that the product or part

does not

contain any of the following substances in excess of the following maximum

concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,

polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise

stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by

third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits

for Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,

means that the product or part

does

contain a substance, as detailed in the chart below, in excess of the following

maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent

chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless

otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform

with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in

accordance with the product Warranty stated below.

Name and Content of Hazardous Substances or Elements

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the

accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended

application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s

current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in

writing, by an authorized officer of 3M.

Warranty; Limited Remedy; Limited Liability.

This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.

3M MAKES NO

OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE.

If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s

option, to replace or repair the 3M product or refund the purchase price of the 3M product.

Except where prohibited by law, 3M will not be liable for

any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.

Electronic Solutions Division

6801 River Place Blvd.

Austin, TX 78726-9000

800/225-5373

www.3M.com/interconnects
