UF5406 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UF5406

UF5406: Description3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size148KB，2 Pages; ManufacturerJGD（Jinan Gude Electronic Device）; Websitehttp://www.jgd.com.cn/

Download Datasheet Parametric Compare View All

UF5406 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UF5406	-	-	View	Buy Now

UF5406 Overview

3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD

UF5406 Parametric

Parameter Name	Attribute value
Maker	JGD（Jinan Gude Electronic Device）
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

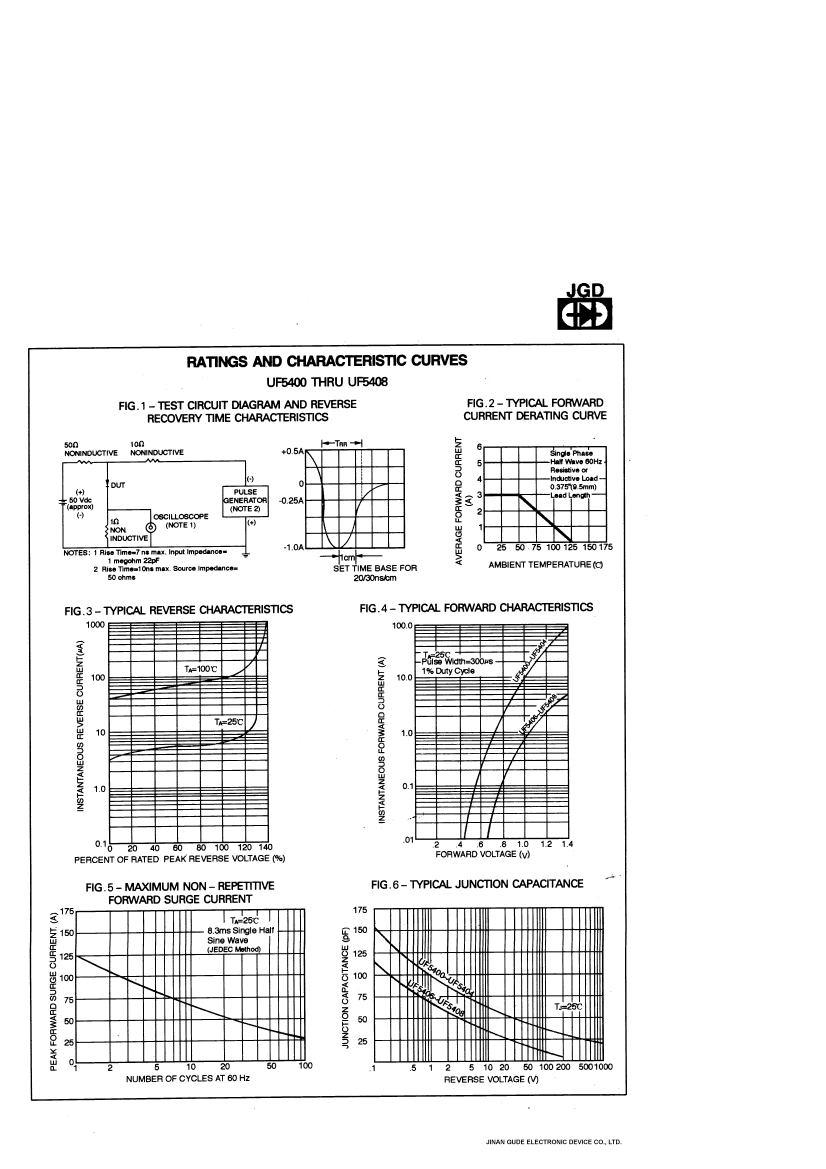

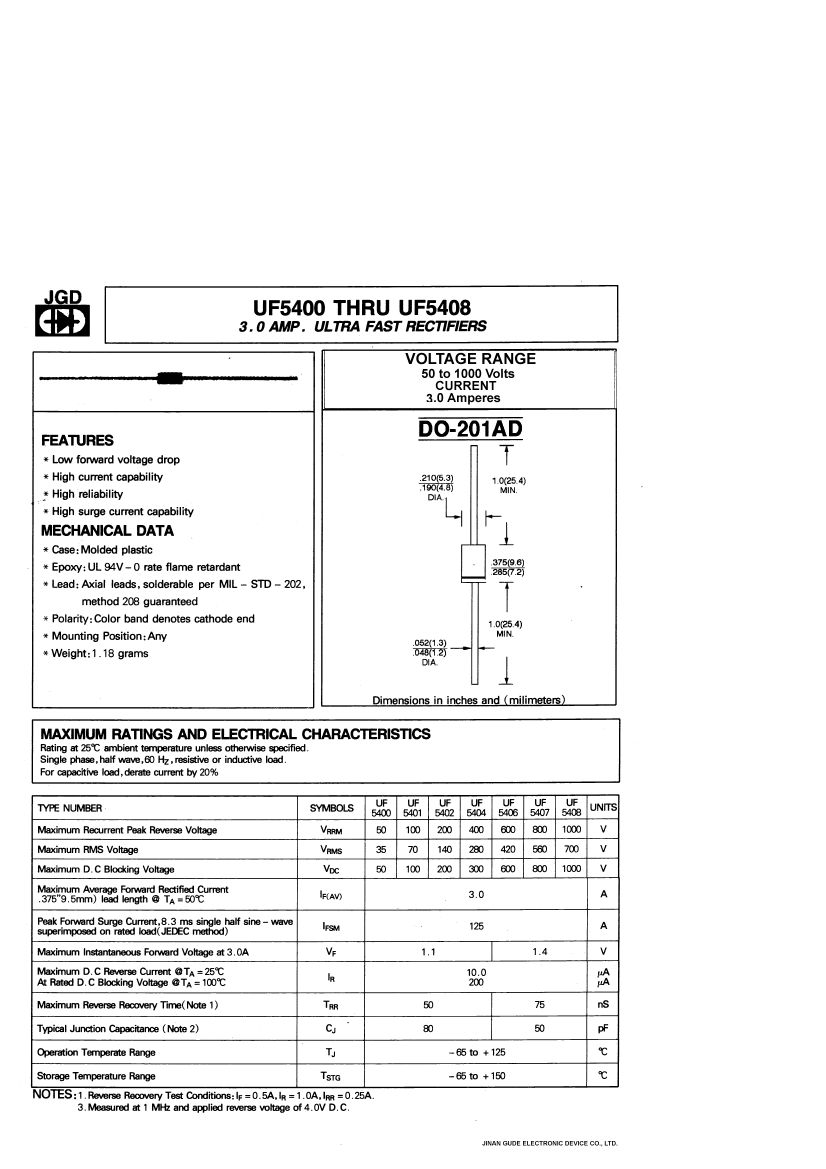

Preview

Download Datasheet

View All

UF5406 Related Products

	UF5406	UF5408	UF5407	UF5404	UF5402	UF5401	UF5400
Description	3 A, 600 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 1000 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 800 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknow	unknow
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.1 V	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A	125 A	125 A	125 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	600 V	1000 V	800 V	400 V	200 V	100 V	50 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.075 µs	0.075 µs	0.075 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
