S5M-T3-LF datasheet, PDF - EEWORLD Datasheet

S5M-T3-LF: DescriptionRectifier Diode, 1 Phase, 1 Element, 5A, 1000V V(RRM), Silicon, DO-214AB, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size2MB，4 Pages; ManufacturerSurge Components; Websitehttp://www.surgecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

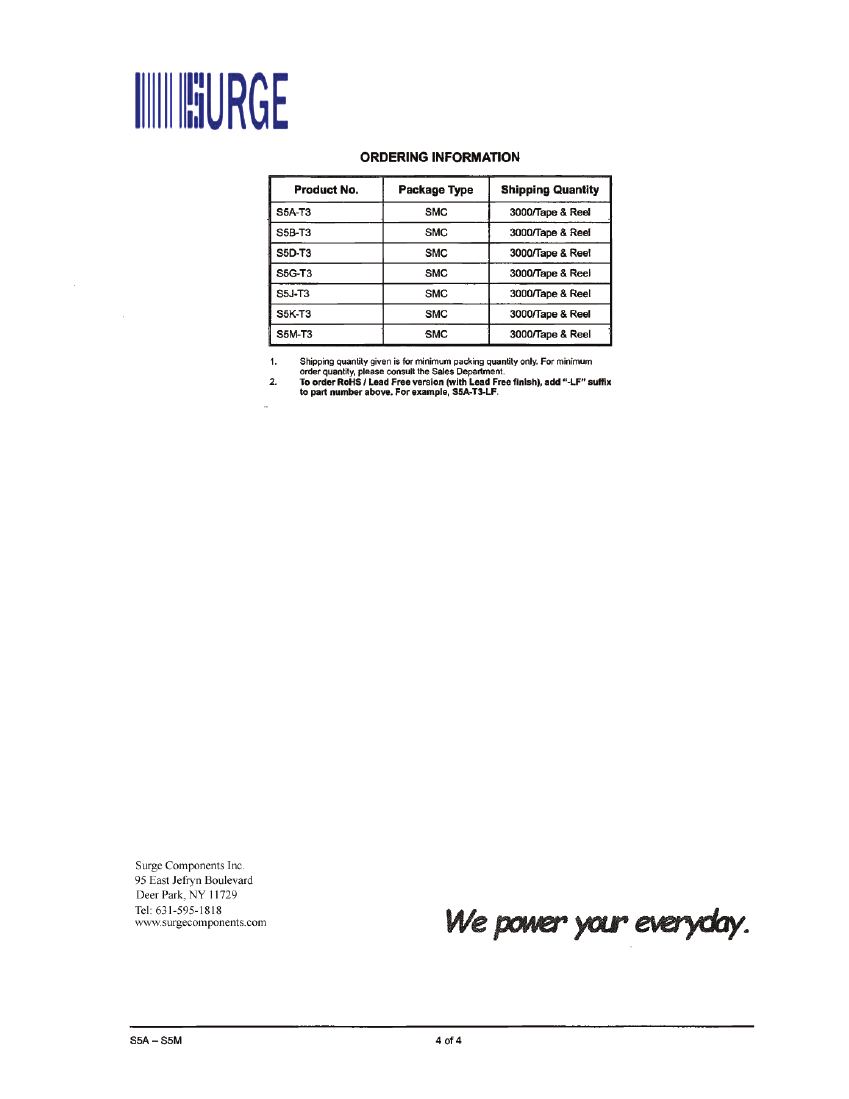

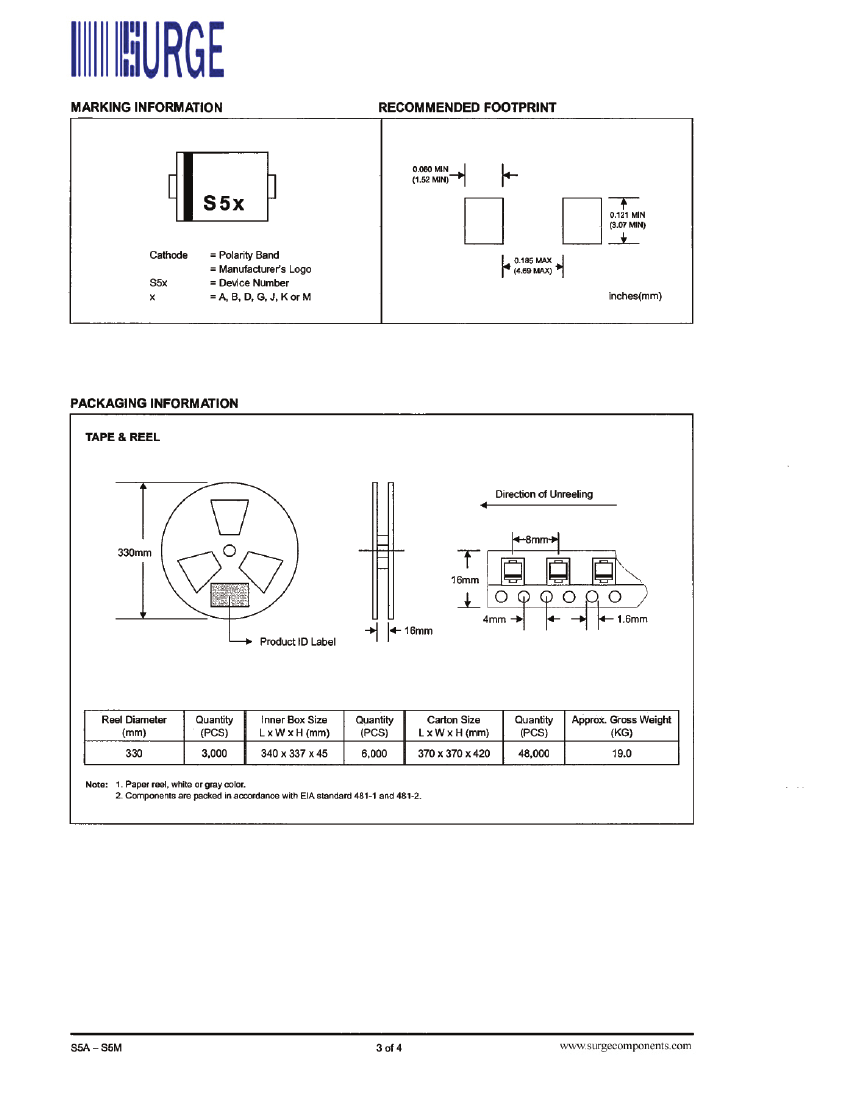

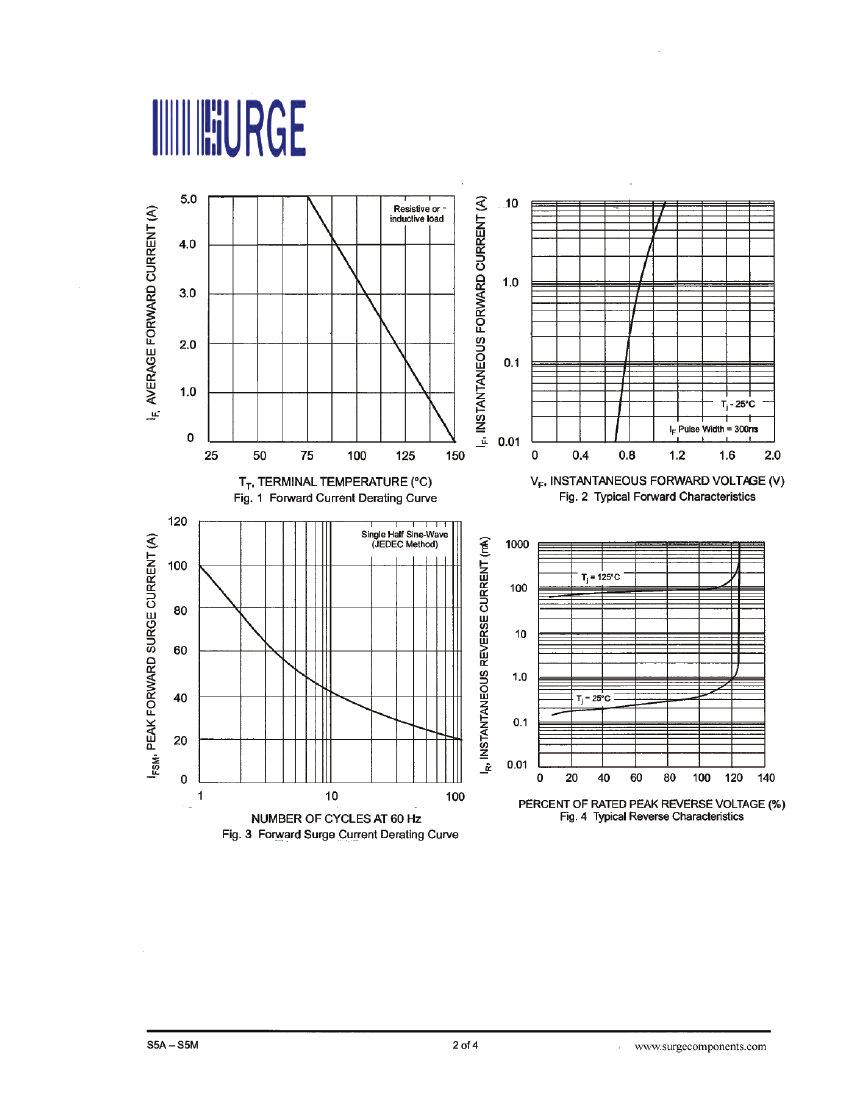

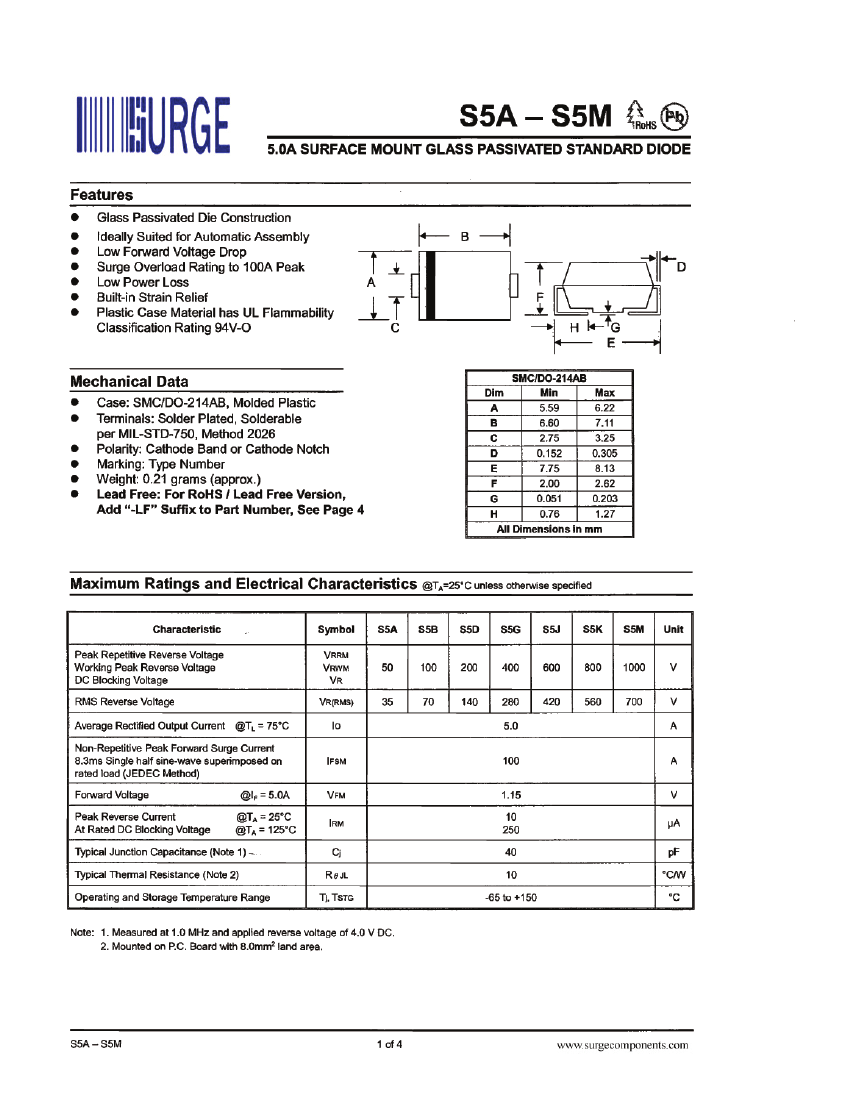

S5M-T3-LF Overview

Rectifier Diode, 1 Phase, 1 Element, 5A, 1000V V(RRM), Silicon, DO-214AB, SMC, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Surge Components
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	10 µA
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
