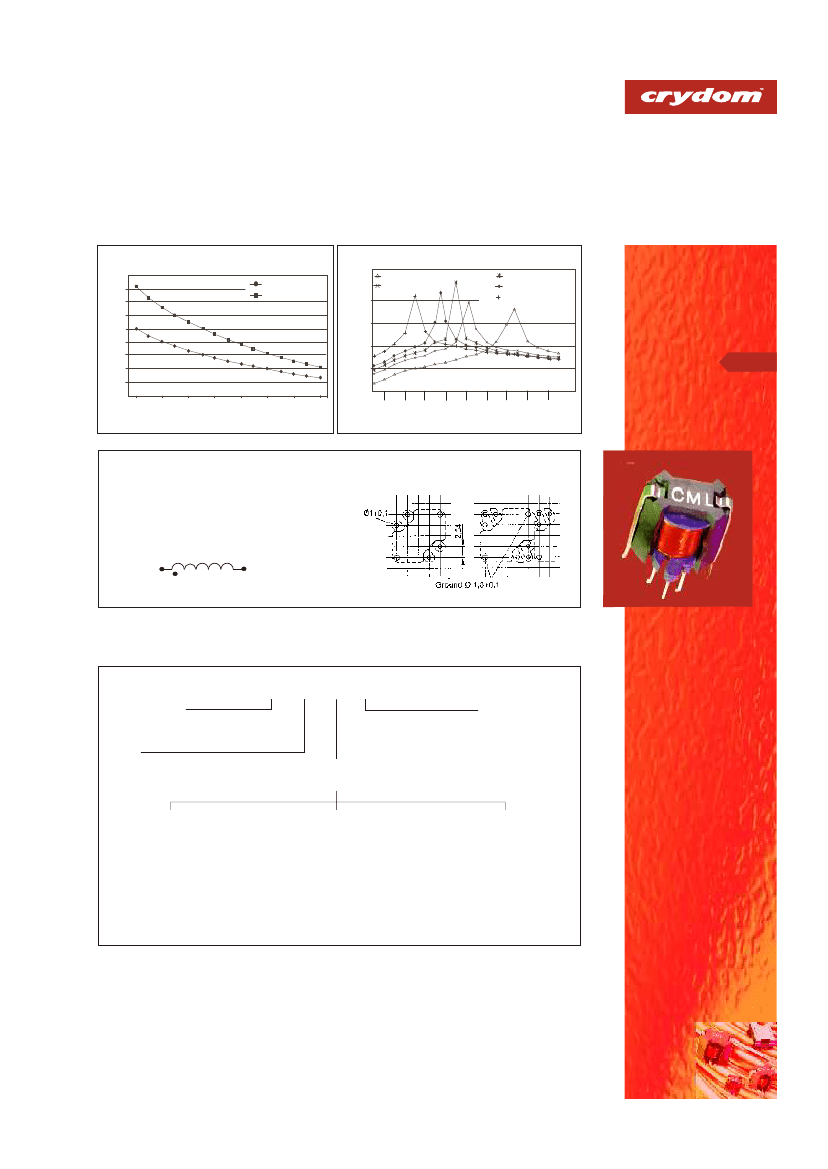

RM5 Inductors
Single Inductor Current Capacity
900
800
700
600
500
400
300
200
100
0
1 dc. mA. Rated
1 dc. mA. Saturation
10000
Impedance (Z) Kilohms
1000
100
10
1
0.1
180
270
390
560
820
1200 1800
2700
Single Inductor Frequency Response
Impedance for 180mH
Impedance for 470mH
Impedance for 680mH
Impedance for 1.0mH
Impedance for 2.7mH
DC Current mA.
3
0.2
0.5
0.85 1.3 1.68 2.2 3.0 3.4 4.2 5.0
0.3
0.7 1.0 1.4 2.0 2.6 3.3 3.8 4.6
Frequency, MHz
Inductance,
mH
Mechanical Data
Mass 5gm approx.
13.5 x 13.5 plan x 11mm height
2
5
1
2
6
5
3
4
Part Numbering System
Example
- RM
Style
RM
Pinned Bobbin
RS
Surface Mount
• Inductance Range
180mH - 2.7mH
5F 682 S
Form
S
- single
C
- common mode
D
- differential
• Fixed or Tuneable
up to 15%
• Temperature Range
-20 to 120°C
• Core Material Curie
Temperature >150°C
Size
5F -
Fixed
5T -
Tuneable.
Inductance Value
Extended Range
392 = 390
m
H
562 = 560
m
H
822 = 820
m
H
123 = 1.2 mH
Specials
182 = 180
m
H 153 = 1.5mH
222 = 220
m
H 183 = 1.8mH
272 = 270
m
H 223 = 2.2mH
273 = 2.7mH
332 = 330
m
H
Preferred values
472 = 470
m
H
682 = 680
m
H
103 = 1.0 mH
Example RM5F682S =
RM5 680mH fixed single inductor with pinned bobbin.
Other values & package styles available on request.
rm
5
inducto
rs
