8-188275-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8-188275-2

8-188275-2: Description12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector; File Size2MB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

8-188275-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-188275-2	-	-	View	Buy Now

8-188275-2 Overview

12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

8-188275-2 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	12
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Manufacturer Series	188275
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	Dual board connector
Connector male and female	Jack
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation method	straight
Installation type	BOARD
Number of load rows	2
Terminal type	surface mount
UL flammability code	94V-0

Preview

Download Datasheet

View All

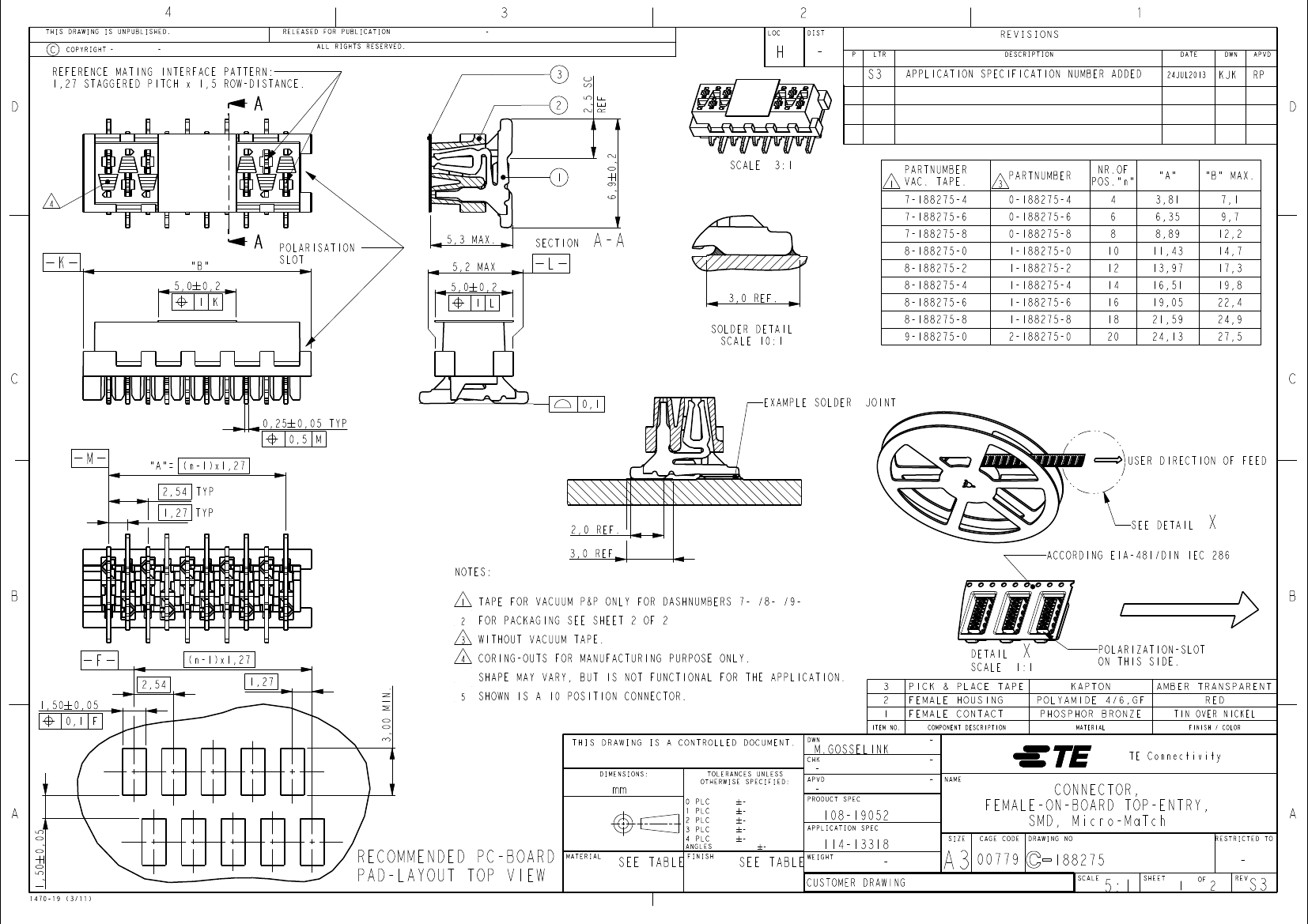

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

2,5 SC

REF

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

APPLICATION SPECIFICATION NUMBER ADDED

24JUL2013

KJK

6,9 # 0,2

SCALE

3:1

PARTNUMBER

VAC. TAPE.

7-188275-4

7-188275-6

7-188275-8

8-188275-0

8-188275-2

8-188275-4

8-188275-6

8-188275-8

9-188275-0

PARTNUMBER

0-188275-4

0-188275-6

0-188275-8

1-188275-0

1-188275-2

1-188275-4

1-188275-6

1-188275-8

2-188275-0

NR.OF

POS."n"

"A"

3,81

6,35

11,43

13,97

16,51

19,05

21,59

24,13

8,89

"B" MAX.

7,1

12,2

14,7

17,3

19,8

22,4

24,9

27,5

9,7

"B"

5,0 0,2

1 K

POLARISATION

SLOT

5,3 MAX.

5,2 MAX

5,0 0,2

1 L

SECTION

A-A

3,0 REF.

SOLDER DETAIL

SCALE 10:1

0,1

0,25 0,05 TYP

0,5 M

EXAMPLE SOLDER

JOINT

"A"= (n-1)x1,27

2,54 TYP

1,27 TYP

2,0 REF.

3,0 REF

NOTES:

USER DIRECTION OF FEED

SEE DETAIL

ACCORDING EIA-481/DIN IEC 286

TAPE FOR VACUUM P &P ONLY FOR DASHNUMBERS 7- /8- /9-

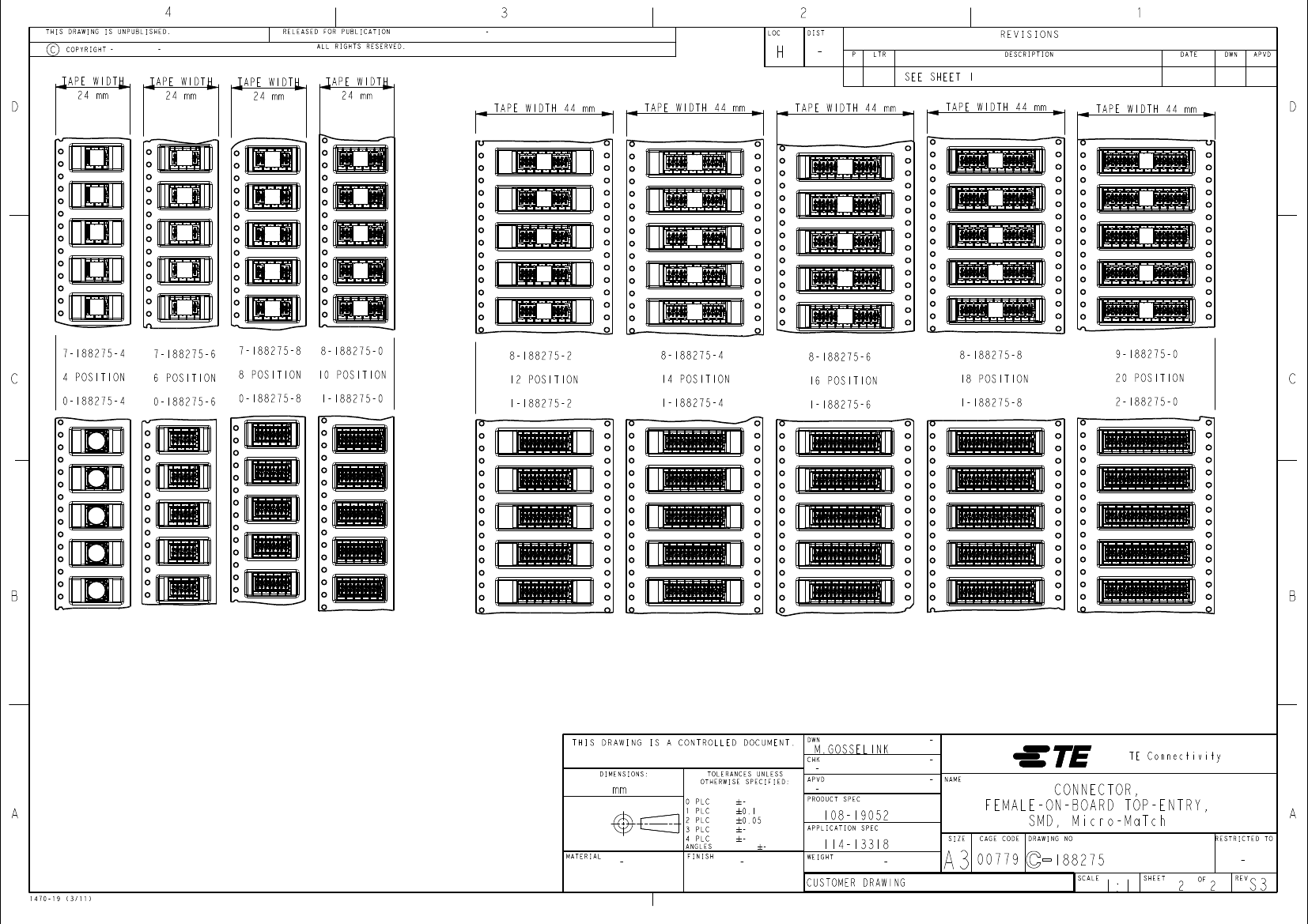

FOR PACKAGING SEE SHEET 2 OF 2

WITHOUT VACUUM TAPE.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

ITEM NO.

2,54

1,50 0,05

0,1 F

(n-1)x1,27

3,00 MIN.

1,27

DETAIL

SCALE 1:1

PICK & PLACE TAPE

FEMALE HOUSING

FEMALE CONTACT

POLARIZATION-SLOT

ON THIS SIDE.

POLYAMIDE 4/6,GF

PHOSPHOR BRONZE

MATERIAL

KAPTON

AMBER TRANSPARENT

TIN OVER NICKEL

FINISH / COLOR

RED

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

M.GOSSELINK

COMPONENT DESCRIPTION

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NAME

TE Connectivity

APVD

PRODUCT SPEC

1,50 0,05

RECOMMENDED PC-BOARD

PAD-LAYOUT TOP VIEW

MATERIAL

ANGLES

PLC

SEE TABLE

FINISH

114-13318

WEIGHT

SEE TABLE

APPLICATION SPEC

108-19052

SIZE

CUSTOMER DRAWING

00779

CAGE CODE

CONNECTOR,

FEMALE-ON-BOARD TOP-ENTRY,

SMD, Micro-MaTch

DRAWING NO

RESTRICTED TO

188275

SCALE

1470-19 (3/11)

5:1

SHEET

REV
