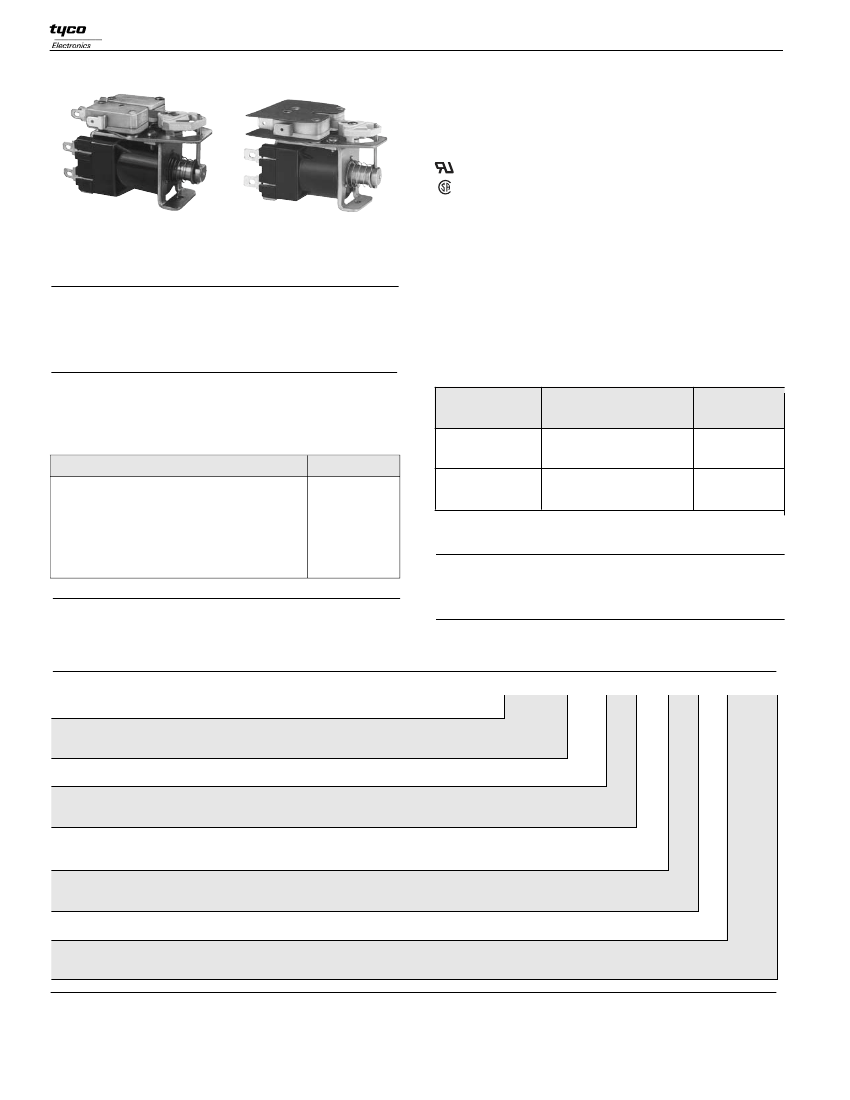

Catalog 1308242
Issued 3-03 (PDF Rev. 5-05)
P&B
S89R/S90R
series
Bistable, Impulse Relay
15 and 20 Amp Industrial Rating
Continuous Coil Rating
File E22575
File LR15734
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files
of the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
S89R
S90R
Features
• Low cost, bistable impulse relay.
• Operates on 75ms min. pulse.
• Used in garage door controls, motor reversing and lighting controls.
• S89R available with plastic cover and octal plug-in base.
Insulation:
Class B (130°C).
Initial Breakdown Voltage:
1,500V rms, 60 Hz.
Must-Operate Voltage:
DC Coils:
75% of nominal voltage @ +25°C.
AC Coils:
85% of nominal voltage @ +25°C.
Contact Data @ 25°C
Ratings: S89R:
15 amps, 1/2 HP 125/250VAC; 5 amps, 125VAC, tungsten
,
filament lamp load; 1/2 amp, 125VDC; 1/4 amp, 250VDC.
Expected Life:
100,000 operations, mechanical; 50,000 operations at
rated loads.
Ratings: S90R:
Load
20A, 120VAC or 7
.5A, 277VAC, Tungsten.
15A, 125VAC or 7A, 277VAC, Fluorescent.
20A, 277VAC, 75-80% PF
.
1 HP 125VAC, 50/60 Hz.
,
2 HP 250VAC, 50/60 Hz.
,
12 FLA, 60 LRA, 120VAC.
8 FLA, 48 LRA, 240VAC.
Pilot Duty, 360VA, 125/250VAC.
Minimum Life
10,000 Cycles
10,000 Cycles
50,000 Cycles
50,000 Cycles
50,000 Cycles
50,000 Cycles
50,000 Cycles
50,000 Cycles
Coil Data
Nominal
Voltage
24VAC
120VAC
240VAC
6VDC
12VDC
24VDC
Resistance
DC Ohms
±15% @ +25°C
8.7
260
1084
5.8
22.5
92
Nominal
Current
mA
375
75
38
1035
533
260
Environmental Data
Temperature Range:
-10°C to +60°C.
Coil Data @ 25°C
Nominal Power:
DC Coils:
6.33 Watts @ +25°C.
AC Coils:
9VA @ +25°C.
Mechanical Data
Weight:
7 oz. (241g) approximately.
.75
Ordering Information
Typical Part No.
1. Basic Series:
S89R = 15A
S90R = 20A
2.Contact Arrangement:
5 = SPDT
11 = DPDT
3.Coil Input:
A = AC
D = DC
4.Coil Terminal Style:
A = .187" (4.75mm) Quick connect/solder.
B = .250" (6.35mm) Quick connect/solder.
5.Switch Terminal Style:
C = .187" (4.75mm) Quick connect.*
D = .250" (6.35mm) Quick connect. (S90 only)
6.Switch Terminal Configuration:

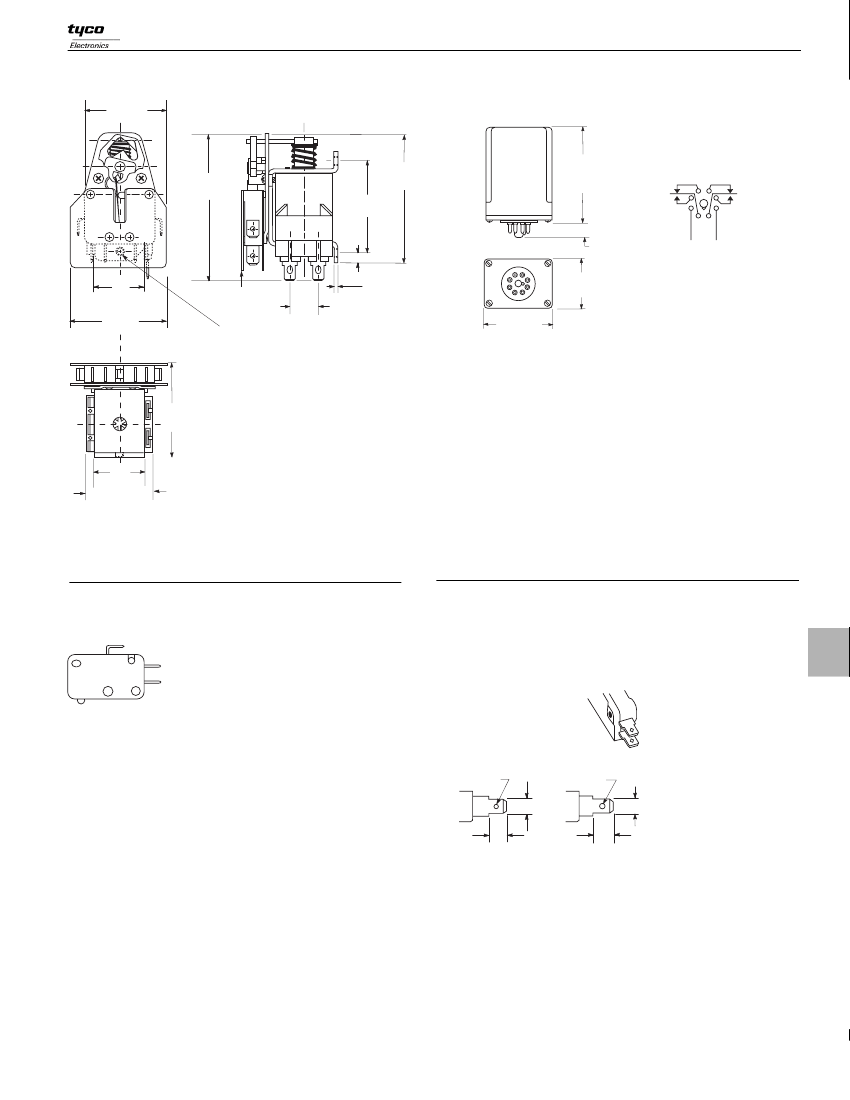

1 = Style 1 (See outline drawings.)
7. Coil Voltage:
24, 120, 240VAC
6, 12, 24VDC
P = Dust cover with octal plug-in base. (S89R only.)
B
S89R
5
A
B
D
1
-24
P = Dust cover with octal plug-in base.*
* S89R only.
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
S89R5ABD1-24
S89R5ABD1-120
S89R5DBD1-12
S89R11AAC1-24
S89R11AAC1-120
S89R11ABD1-24
.
S89R11ABD1-120
S89R11APP1-120
S89R11DAC1-12
S89R11DAC1-24
S89R11DBD1-12
S89R11DBD1-24
S90R5ABD1-120
S90R11ABD1-24
S90R11ABD1-120
