TPCM-130-11-H-Q-771-4: DescriptionRectangular Power Connector, 104 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size761KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

TPCM-130-11-H-Q-771-4 Overview

Rectangular Power Connector, 104 Contact(s), Male, Solder Terminal

TPCM-130-11-H-Q-771-4 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Objectid	1864776706
Reach Compliance Code	compliant
compound_id	56288420
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TPCM
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	104

Preview

Download Datasheet

View All

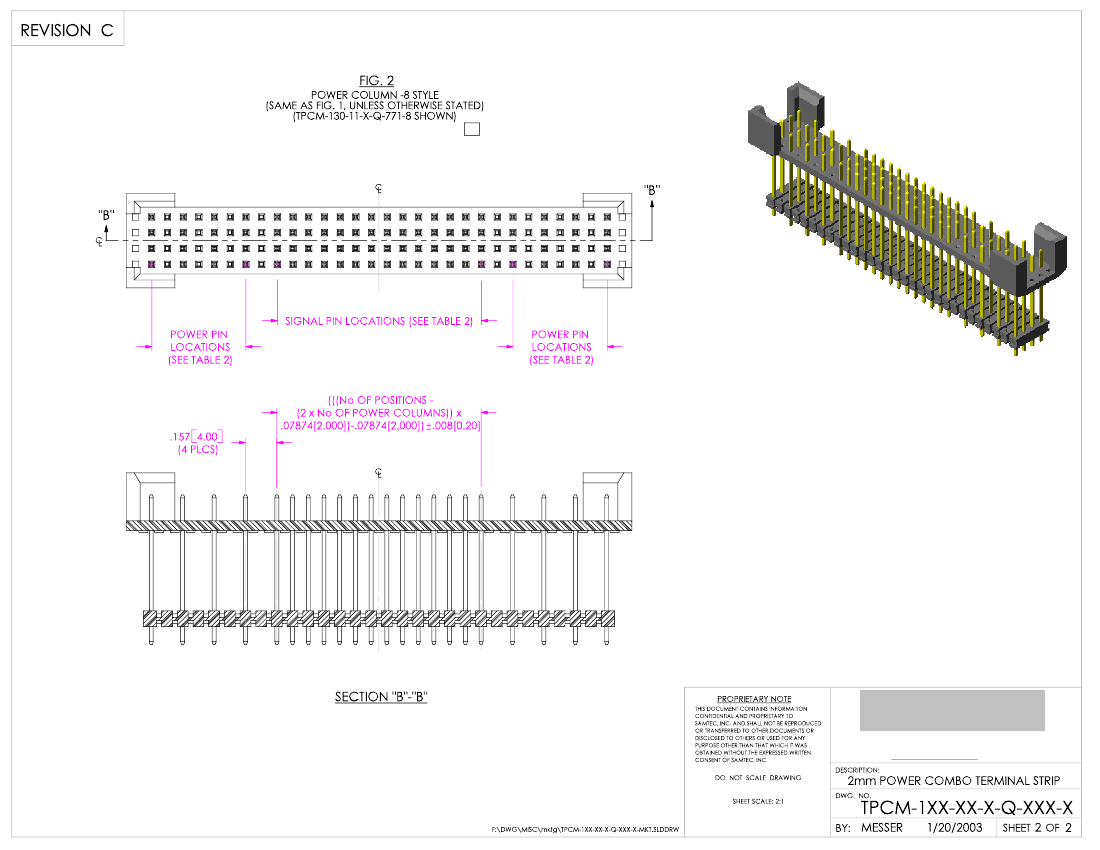

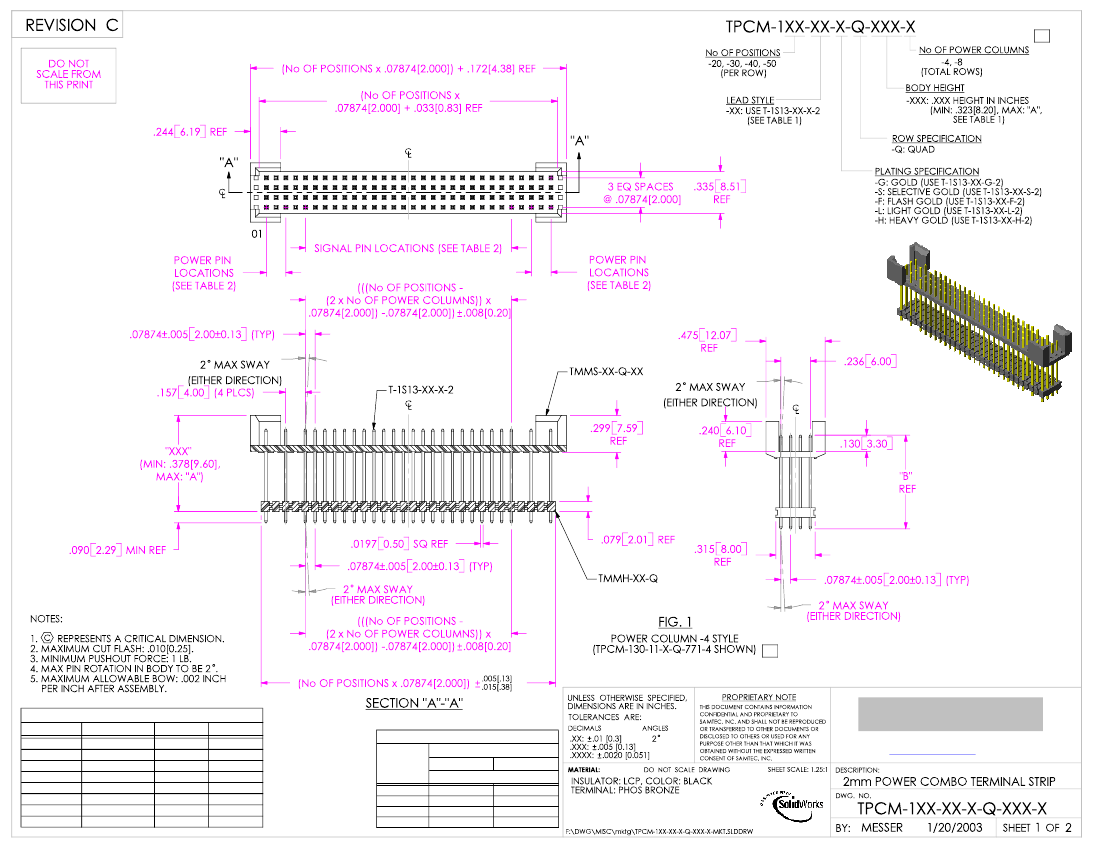

C

TABLE 1

LEAD STYLE

-02

-03

-05

-06

-55

-09

-10

-11

TERMINAL

T-1S13-02-X-2

T-1S13-03-X-2

T-1S13-05-X-2

T-1S13-06-X-2

T-1S13-20-X-2

T-1S13-09-X-2

T-1S13-10-X-2

T-1S13-11-X-2

"A"

.397[10.08]

.555[14.10]

.417[10.59]

.575[14.61]

.343[8.71]

.614[15.60]

.693[17.60]

.771[19.58]

"B"

.377[9.58]

.535[13.59]

.397[10.08]

.555[14.10]

.323[8.20]

.594[15.09]

.673[17.09]

.751[19.08]

TABLE 2

No. OF

POSITIONS

-20

-30

-40

-50

No OF POWER COLUMNS

-4

-8

QTY OF SIGNAL PINS (PER ROW)

12

22

32

42

4

14

24

34

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e -M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
