HM2P09PNF2F4GLLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P09PNF2F4GLLF

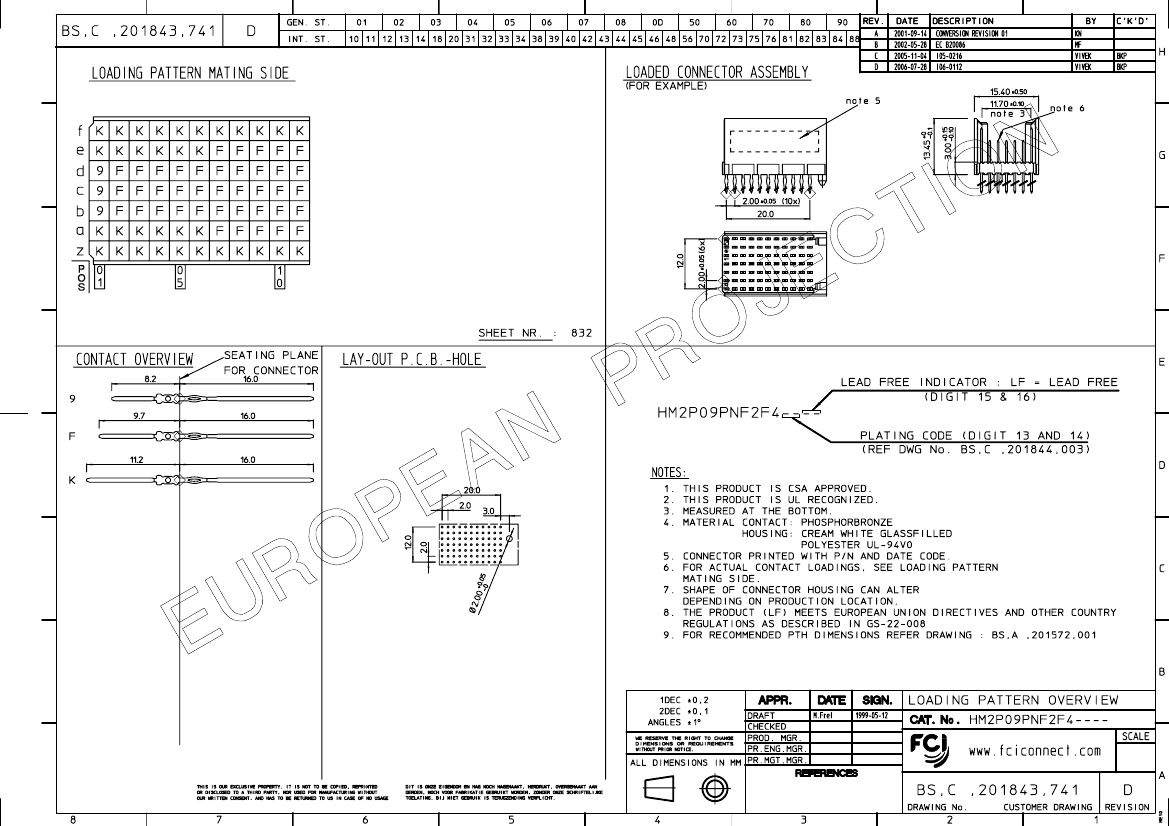

HM2P09PNF2F4GLLF: DescriptionBoard Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size236KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P09PNF2F4GLLF Overview

Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P09PNF2F4GLLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (39) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	77
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007

HM2P09PNF2F4GLLF Related Products

	HM2P09PNF2F4GLLF	HM2P09PNF2F4GCLF	HM2P09PNF2F4GF	HM2P09PNF2F4GFLF	HM2P09PNF2F4GL
Description	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	22 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (39) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	77	77	77	77	77
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	-
Base Number Matches	-	1	1	1	-
