2N6660B-2 datasheet, PDF - EEWORLD Datasheet

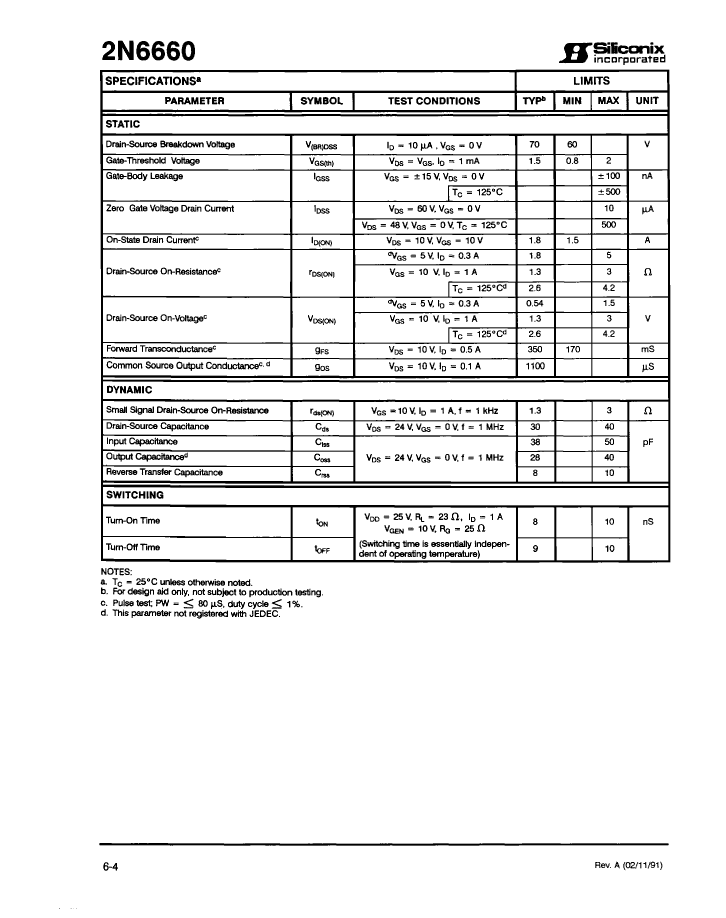

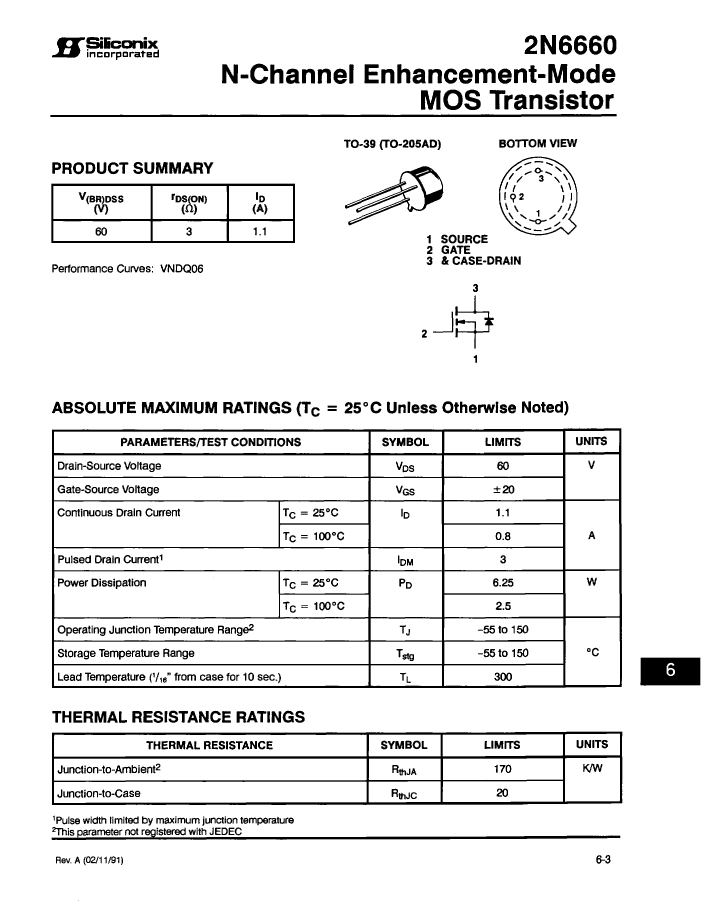

2N6660B-2: DescriptionSmall Signal Field-Effect Transistor, 1.1A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AD; CategoryDiscrete semiconductor The transistor; File Size48KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

2N6660B-2 Overview

Small Signal Field-Effect Transistor, 1.1A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AD

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	1.1 A
Maximum drain-source on-resistance	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF
JEDEC-95 code	TO-205AD
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	6.25 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
Transistor component materials	SILICON
Base Number Matches	1

	2N6660B-2	2N6660B-1
Description	Small Signal Field-Effect Transistor, 1.1A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AD	Small Signal Field-Effect Transistor, 1.1A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-205AD
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V	60 V
Maximum drain current (ID)	1.1 A	1.1 A
Maximum drain-source on-resistance	3 Ω	3 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	10 pF	10 pF
JEDEC-95 code	TO-205AD	TO-205AD
JESD-30 code	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	6.25 W	6.25 W
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
