General Purpose Transistor (50V, 0.15A)
2SA1774EB
Applications
General purpose small signal amplifier.
Features
1) Excellent h
FE
linearity.
2) Complements the 2SC4617EB.
0.26
Dimensions
(Unit : mm)
EMT3F
1.6
0.7
1.6
0.86 0.37
(3)
(1)
0.5 0.5
1.0
(2)
0.13
Each lead has same dimensions
(1) Base
(2) Emitter
(3) Collector
∗ =
Denotes h
FE
Abbreviated symbol : F
∗
Absolute maximum
(Ta=25°C)
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Power dissipation
Junction temperature
Range of storage temperature
∗1
Pw=1ms Single pulse
∗2
Each terminal mounted on a recommended land
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
D
Tj
Tstg
∗1
∗2
Limits
−60
−50
−6
−150
−200
150
150
−55
to
+150
Unit
V
V
V
mA
mW
°C
°C
Electrical characteristics
(Ta=25°C)
Parameter
Collector-emitter breakdown voltage
Collector-base breakdown voltage
Emitter-base breakdown voltage
Collector cutoff current
Emitter cutoff current
Collector-emitter saturation voltage
DC current gain
Transition frequency
Output capacitance
Symbol
BV
CEO
BV
CBO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
f
T
Cob
Min.
−50
−60
−6
−
−
−
82
−
−
Typ.
−
−
−
−
−
−
−
140
4.0
Max.
−
−
−
−100
−100
−0.5
560
−
5.0
Unit
V
V
V
nA
nA
V
−
MHz
pF
I
C
=−1mA
I
C
=−50µA
I
E
=−50µA
V
CB
=−60V
V
EB
=−6V
I
C
/I
B
=−50mA/−5mA
V
CE
=−6V, I
C
=−1mA
V
CE
=−12V, I
E
=2mA, f=100MHz
V
CE
=−12V, I
E
=0A, f=1MHz
Conditions
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
1/2
2009.03 - Rev.B
0.45
0.37
Structure
PNP silicon epitaxial.
planar transistor.
0.45
2SA1774EB
h
FE
rank categories
Rank
h
FE
P
82 to 180
Q
120 to 270
R
180 to 390
S
270 to 560
Data Sheet

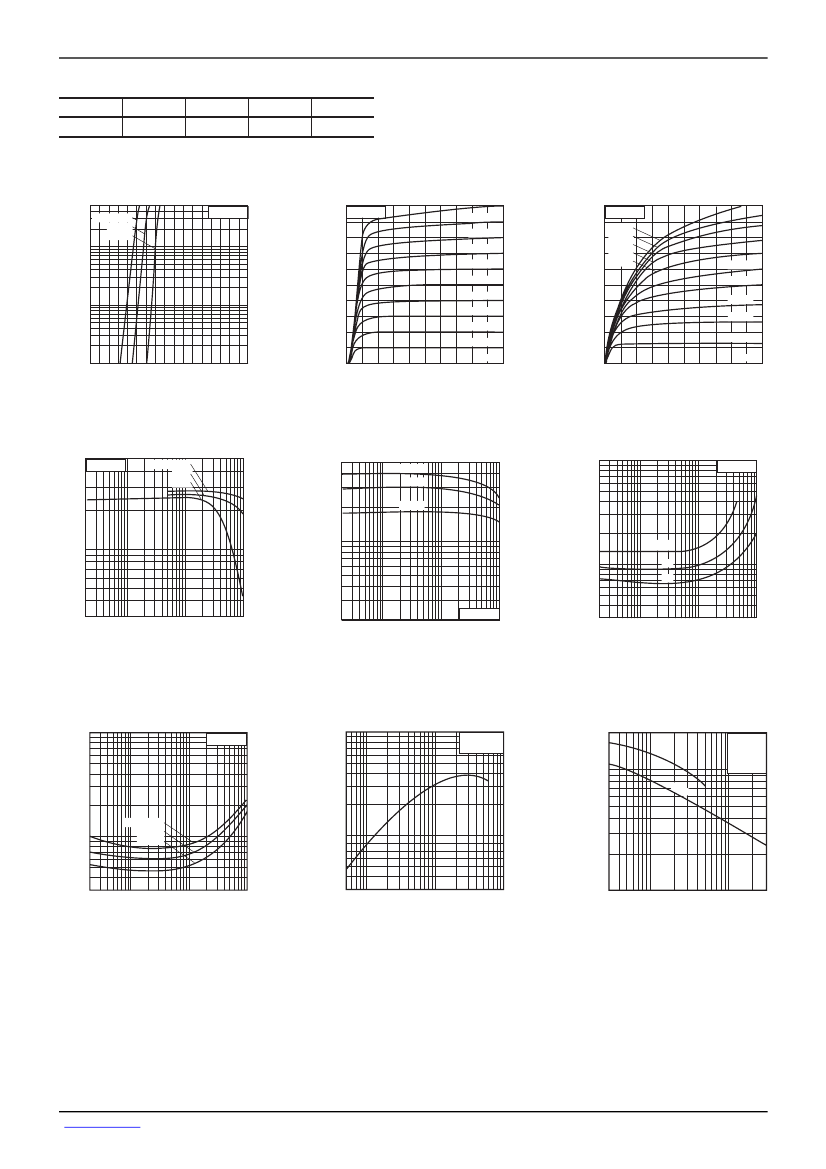

Electrical characterristic curves
−50
COLLECTOR CURRENT : Ic (
mA)
−20
−10
−5
−2
−1
−0.5
−0.2
−0.1
COLLECTOR CURRENT : I
C
(
mA)
COLLECTOR CURRENT : I
C
(
mA
)
Ta=100˚C
25˚C
−40˚C
V
CE
=
−6V
−10
−35.0
Ta=25˚C
−31.5
−28.0
−24.5
−100
Ta=25˚C
−500
−450
−400
−350
−300
−8
−80
−6
−21.0
−17.5
−60
−250
−200
−4
−14.0
−10.5
−40
−150
−100
−2
−7.0
−3.5µA
−20
−50µA
I
B
=0
−0.2 −0.4 −0.6 −0.8 −1.0 −1.2 −1.4 −1.6
BASE TO EMITTER VOLTAGE : V
BE
(
V)
0
−0.4
−0.8
−1.2
−1.6
I
B
=0
−2.0
0
−1
−2
−3
−4
−5
COLLECTOR TO MITTER VOLTAGE : V
CE
(
V)
COLLECTOR TO EMITTER VOLTAGE : V
CE
(
V)
Fig.1 Grounded emitter propagation
characteristics
Fig.2 Grounded emitter output
characteristics (I)
Fig.3 Grounded emitter output
characteristics (II)
Ta=25˚C
V
CE
=
−5V
−3V
−1V
COLLECTOR SATURATION VOLTAGE : V
CE(sat)
(
V)
500
500
Ta=100˚C
25˚C
−1
Ta=25˚C
DC CURRENT GAIN : h
FE
DC CURRENT GAIN : h
FE
−0.5
200
200
−40˚C
100
−0.2
I
C
/I
B
=50
−0.1
20
10
100
50
50
−0.05
−0.2 −0.5 −1
−2
−5 −10 −20
−50 −100
−0.2 −0.5 −1
−2
−5 −10 −20
−50 −100
−0.2 −0.5 −1
−2
V
CE
=
−6V
−5 −10 −20 −50 −100
COLLECTOR CURRENT : I
C
(
mA)
COLLECTOR CURRENT : I
C
(
mA)
COLLECTOR CURRENT : I
C
(
mA)
Fig.4 DC current gain vs.
collector current (I)
Fig.5 DC current gain vs.
collector current (II)
Fig.6 Collector-emitter saturation
voltage vs. collector current (I)
COLLECTOR SATURATION VOLTAGE : V
CE(sat)
(
V)
l
C
/l
B
=10
TRANSITION FREQUENCY : f
T
(
MHz)
Ta=25˚C
V
CE
=
−
12V
COLLECTOR OUTPUT CAPACITANCE : Cob (
pF)
EMITTER INPUT CAPACITANCE
: Cib (
pF)
−1
1000
20
Cib
−0.5
500
10
Co
b
Ta=25˚C
f=1MHz
I
E
=0A
I
C
=0A
−0.2
Ta=100˚C
25˚C
−40˚C
200
5
−0.1
100
2
−0.05
−0.2 −0.5 −1
−2
−5 −10 −20
−50 −100
50
0.5
1
2
5
10
20
50
100
−0.5
−1
−2
−5
−10
−20
COLLECTOR CURRENT : I
C
(
mA)
EMITTER CURRENT : I
E
(
mA)
COLLECTOR TO BASE VOLTAGE : V
CB
(V)
EMITTER TO BASE VOLTAGE : V
EB
(V)
Fig.7 Collector-emitter saturation
voltage vs. collector current (II)
Fig.8 Gain bandwidth product vs.
emitter current
Fig.9 Collector output capacitance vs.
collector-base voltage
Emitter inputcapacitance vs.
emitter-base voltage
www.rohm.com
c
○
2009 ROHM Co., Ltd. All rights reserved.
2/2
2009.03 - Rev.B
Notice
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the
consent of ROHM Co.,Ltd.
The content specified herein is subject to change for improvement without notice.
The content specified herein is for the purpose of introducing ROHM's products (hereinafter
"Products"). If you wish to use any such Product, please be sure to refer to the specifications,
which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein
illustrate the standard usage and operations of the Products. The peripheral conditions must
be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specified in this document.
However, should you incur any damage arising from any inaccuracy or misprint of such
information, ROHM shall bear no responsibility for such damage.
The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or
implicitly, any license to use or exercise intellectual property or other rights held by ROHM and
other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the
use of such technical information.
The Products specified in this document are intended to be used with general-use electronic
equipment or devices (such as audio visual equipment, office-automation equipment, commu-
nication devices, electronic appliances and amusement devices).
The Products specified in this document are not designed to be radiation tolerant.
While ROHM always makes efforts to enhance the quality and reliability of its Products, a
Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard
against the possibility of physical injury, fire or any other damage caused in the event of the
failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM
shall bear no responsibility whatsoever for your use of any Product outside of the prescribed
scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or
system which requires an extremely high level of reliability the failure or malfunction of which
may result in a direct threat to human life or create a risk of human injury (such as a medical
instrument, transportation equipment, aerospace machinery, nuclear-reactor controller,
fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of
any of the Products for the above special purposes. If a Product is intended to be used for any
such special purpose, please contact a ROHM sales representative before purchasing.
If you intend to export or ship overseas any Product or technology specified herein that may
be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to
obtain a license or permit under the Law.
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
