2N5484J05Z datasheet, PDF - EEWORLD Datasheet

2N5484J05Z: DescriptionRF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Junction FET, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size220KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

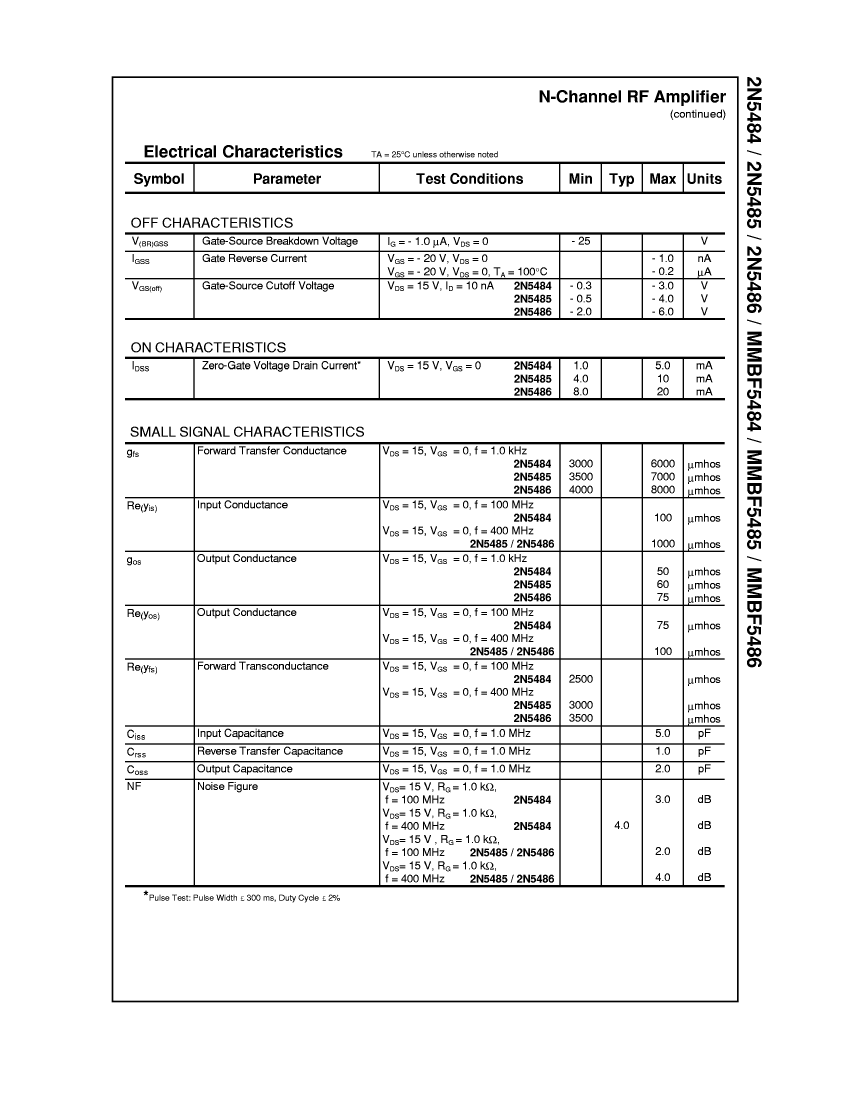

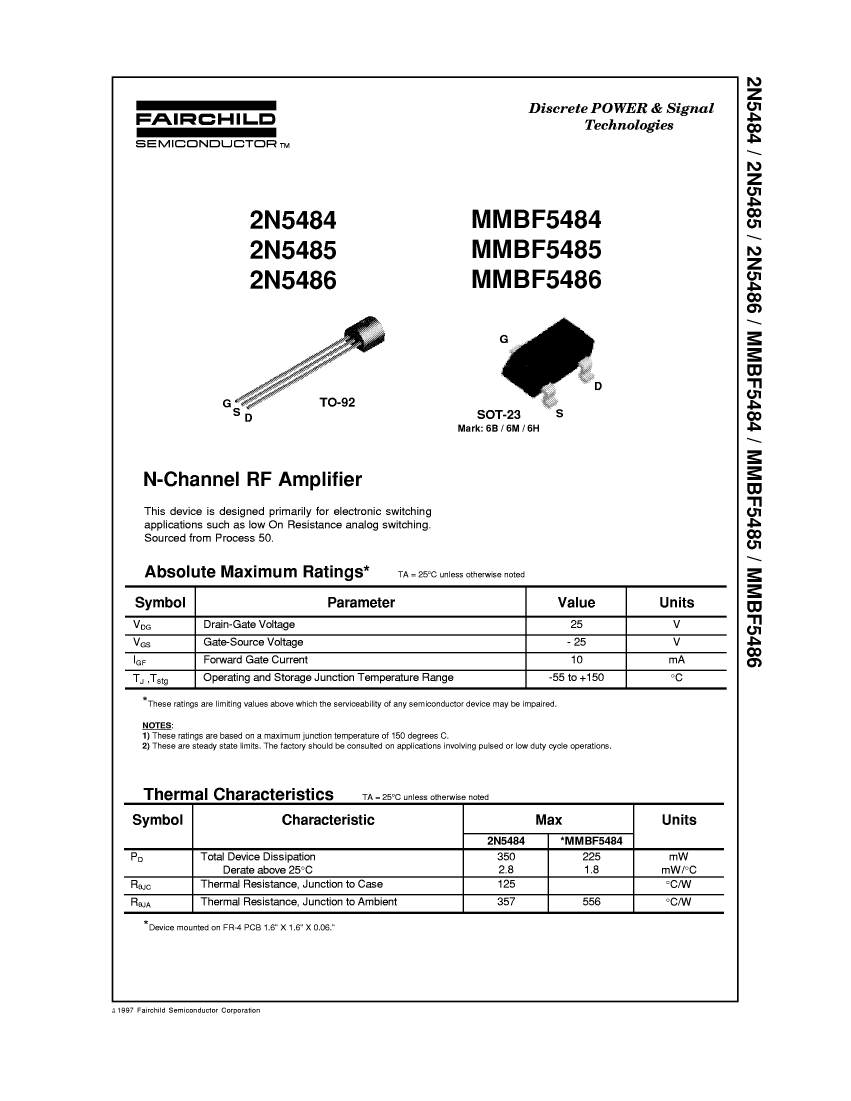

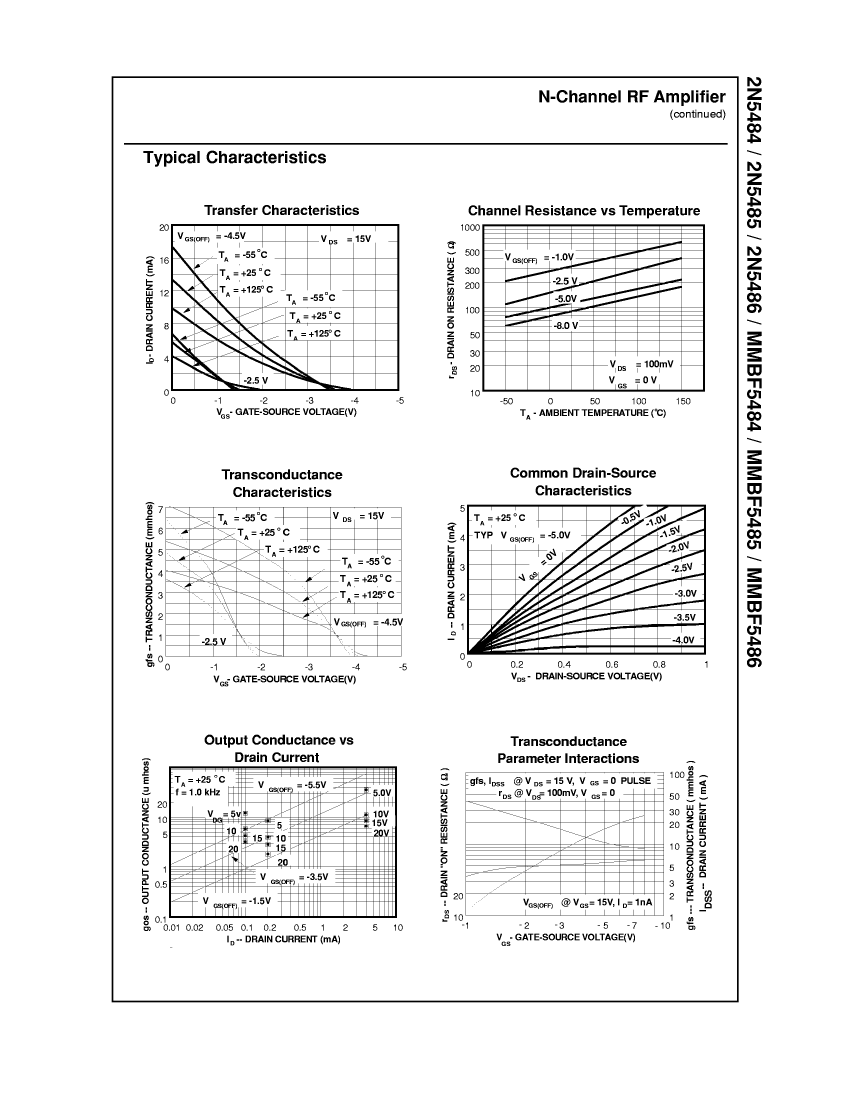

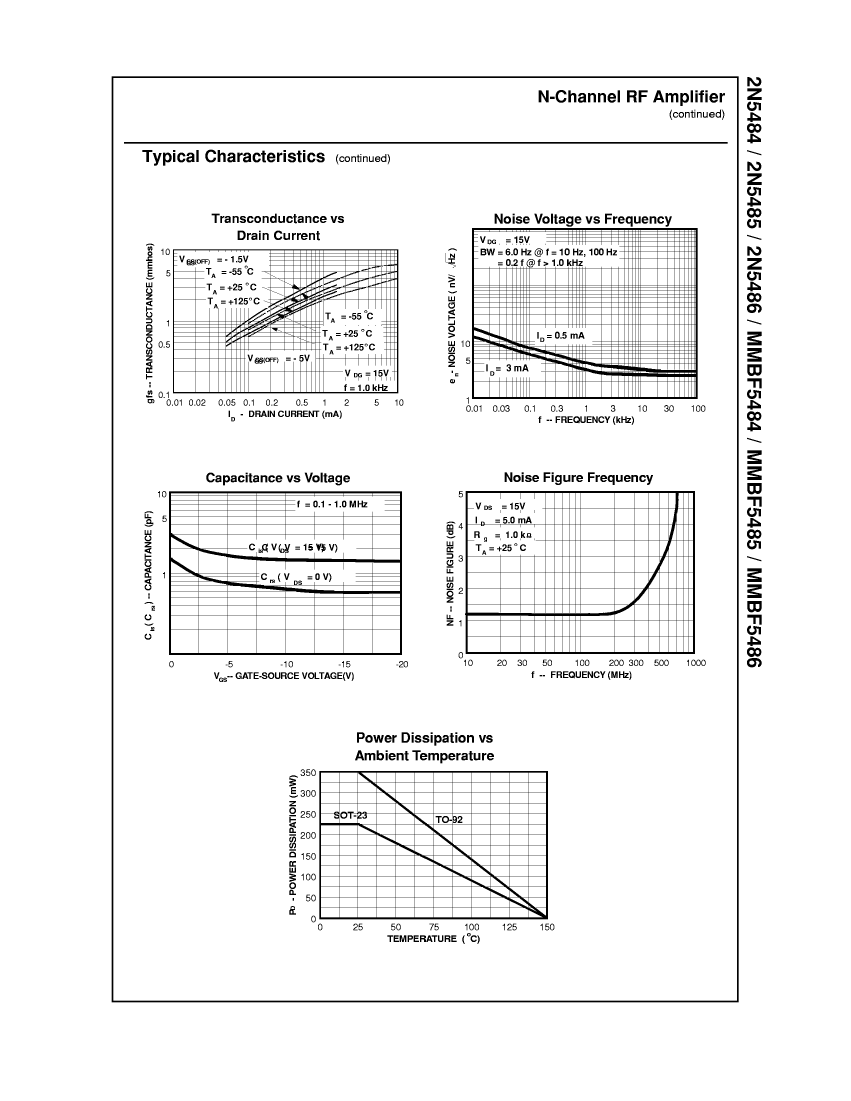

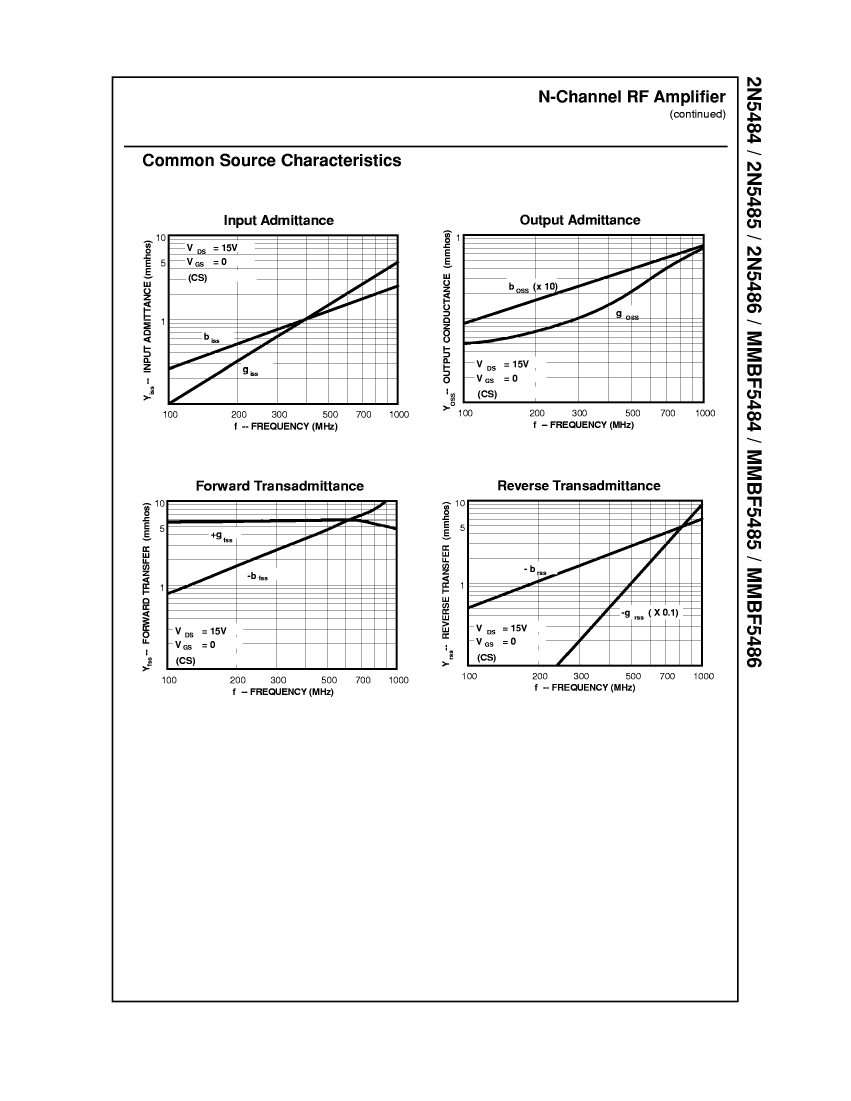

2N5484J05Z Overview

RF Small Signal Field-Effect Transistor, 1-Element, Very High Frequency Band, Silicon, N-Channel, Junction FET, TO-92, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TO-92
package instruction	TO-92, 3 PIN
Contacts	3
Reach Compliance Code	compli
Configuration	SINGLE
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	1 pF
highest frequency band	VERY HIGH FREQUENCY BAND
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.31 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
