BCR146E6433 datasheet, PDF - EEWORLD Datasheet

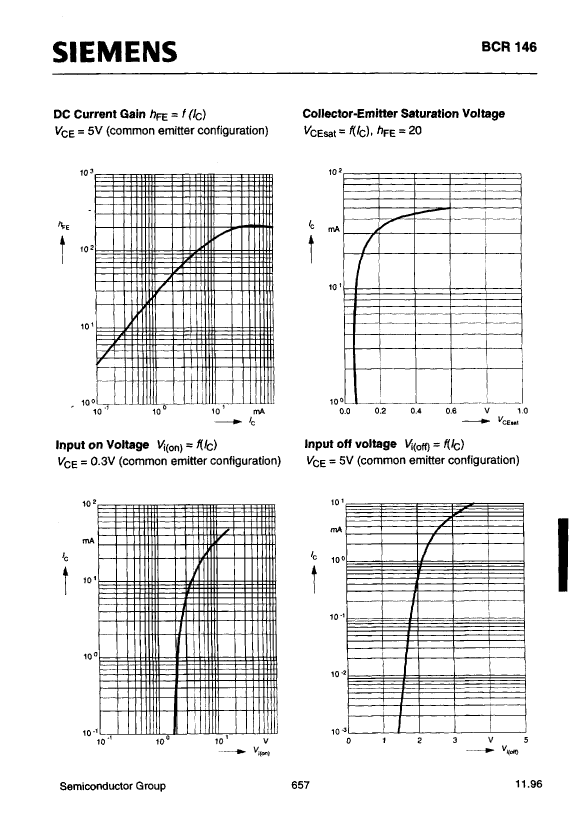

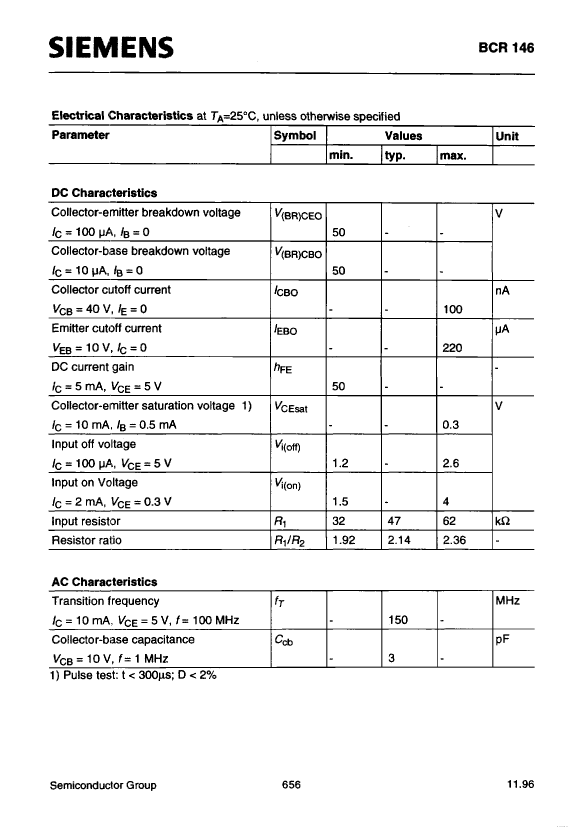

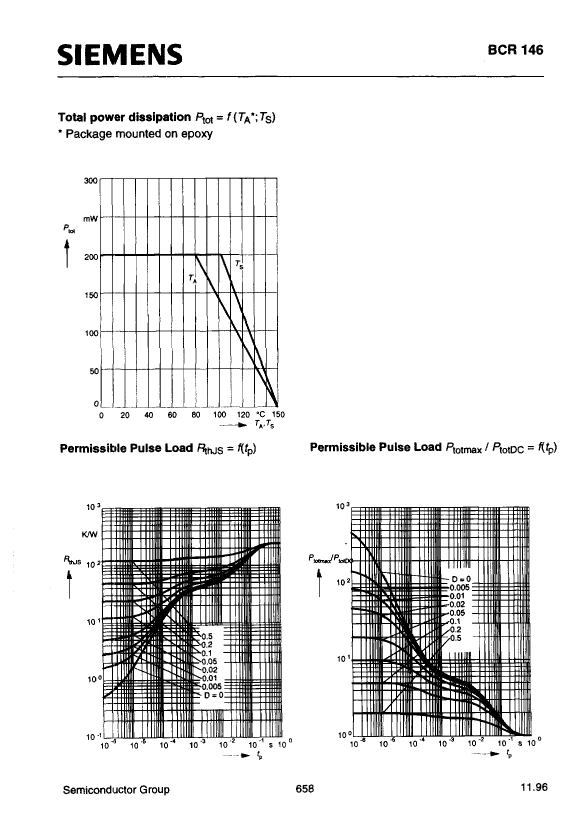

BCR146E6433: DescriptionSmall Signal Bipolar Transistor, 0.07A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon; CategoryDiscrete semiconductor The transistor; File Size110KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BCR146E6433 Overview

Small Signal Bipolar Transistor, 0.07A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 0.468
Maximum collector current (IC)	0.07 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	150 MHz
VCEsat-Max	0.3 V

	BCR146E6433	BCR146E6327
Description	Small Signal Bipolar Transistor, 0.07A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 0.07A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Maker	SIEMENS	SIEMENS
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 0.468	BUILT-IN BIAS RESISTOR RATIO IS 0.468
Maximum collector current (IC)	0.07 A	0.07 A
Collector-emitter maximum voltage	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	50	50
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power consumption environment	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	150 MHz	150 MHz
VCEsat-Max	0.3 V	0.3 V
