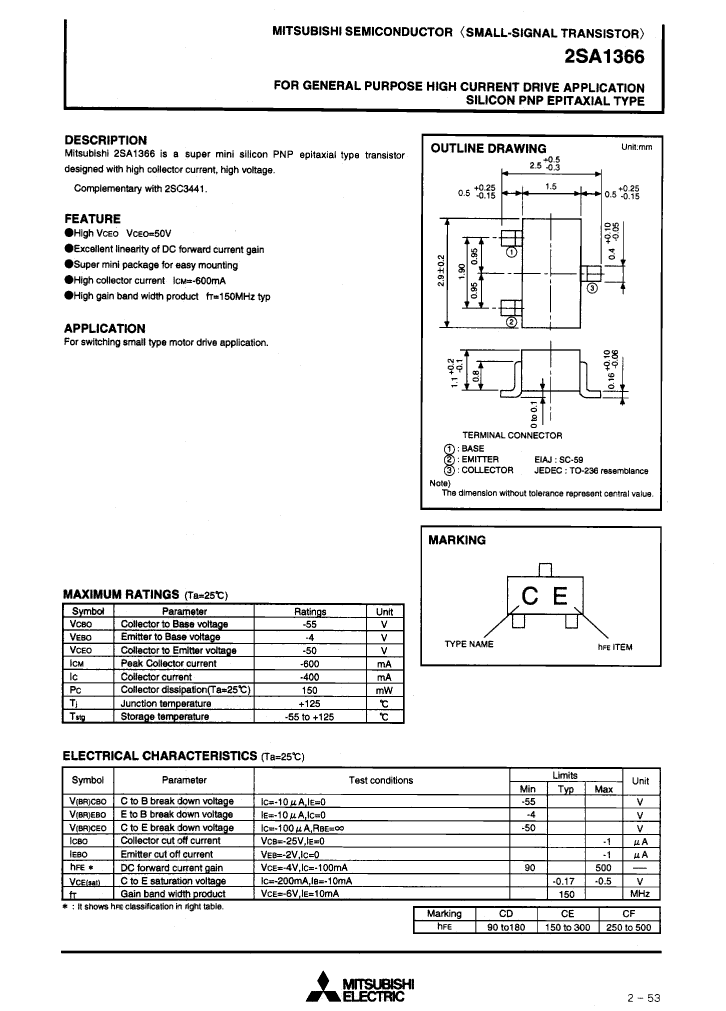

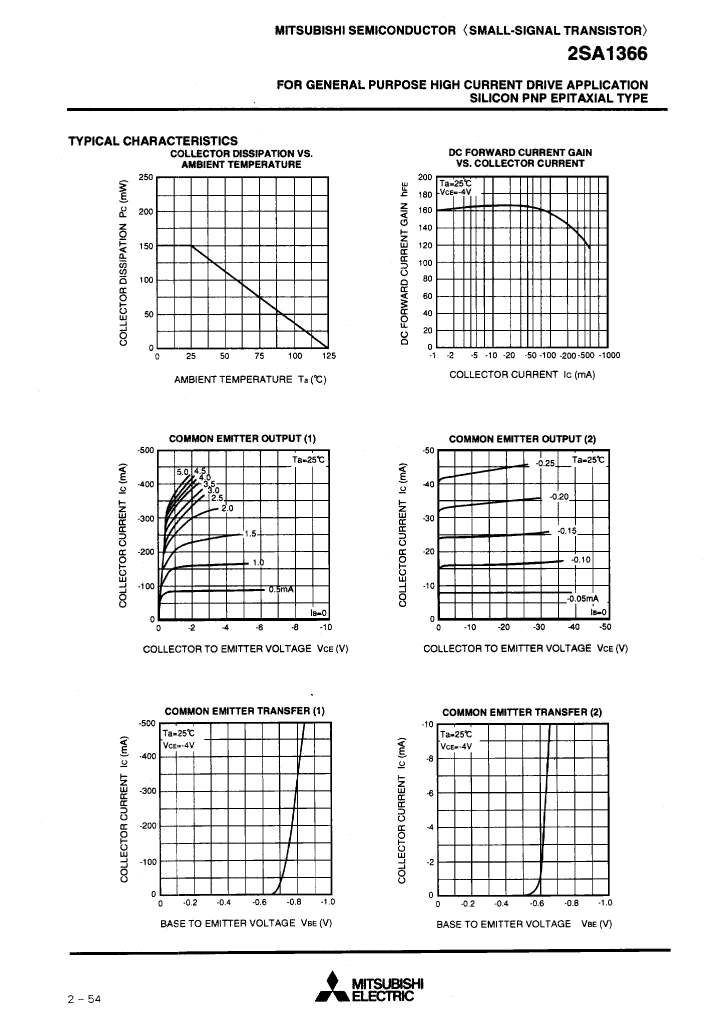

Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236
| Parameter Name | Attribute value |
| package instruction | SMALL OUTLINE, R-PDSO-G3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | HIGH CURRENT DRIVER |
| Maximum collector current (IC) | 0.4 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 250 |
| JEDEC-95 code | TO-236 |
| JESD-30 code | R-PDSO-G3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 150 MHz |
| Base Number Matches | 1 |
| 2SA1366-12-1F | 2SA1366-12-1E | 2SA1366-T12-1F | 2SA1366-12-1D | 2SA1366-T12-1D | 2SA1366-T12-1E | |
|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 | Small Signal Bipolar Transistor, 0.4A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-236 |
| package instruction | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | HIGH CURRENT DRIVER | HIGH CURRENT DRIVER | HIGH CURRENT DRIVER | HIGH CURRENT DRIVER | HIGH CURRENT DRIVER | HIGH CURRENT DRIVER |
| Maximum collector current (IC) | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A | 0.4 A |
| Collector-emitter maximum voltage | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 250 | 150 | 250 | 90 | 90 | 150 |
| JEDEC-95 code | TO-236 | TO-236 | TO-236 | TO-236 | TO-236 | TO-236 |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 150 MHz | 150 MHz | 150 MHz | 150 MHz | 150 MHz | 150 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
