2SB1412F5TLPQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB1412F5TLPQ

2SB1412F5TLPQ: DescriptionSmall Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size71KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SB1412F5TLPQ Overview

Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon

2SB1412F5TLPQ Parametric

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	82
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power consumption environment	10 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz
VCEsat-Max	1 V
Base Number Matches	1

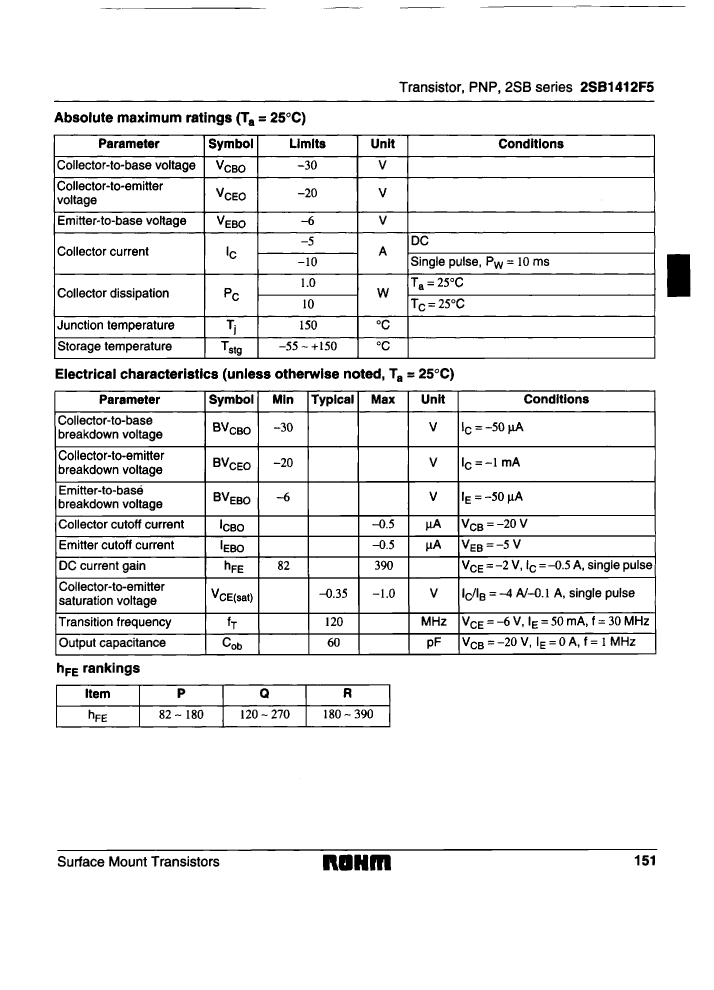

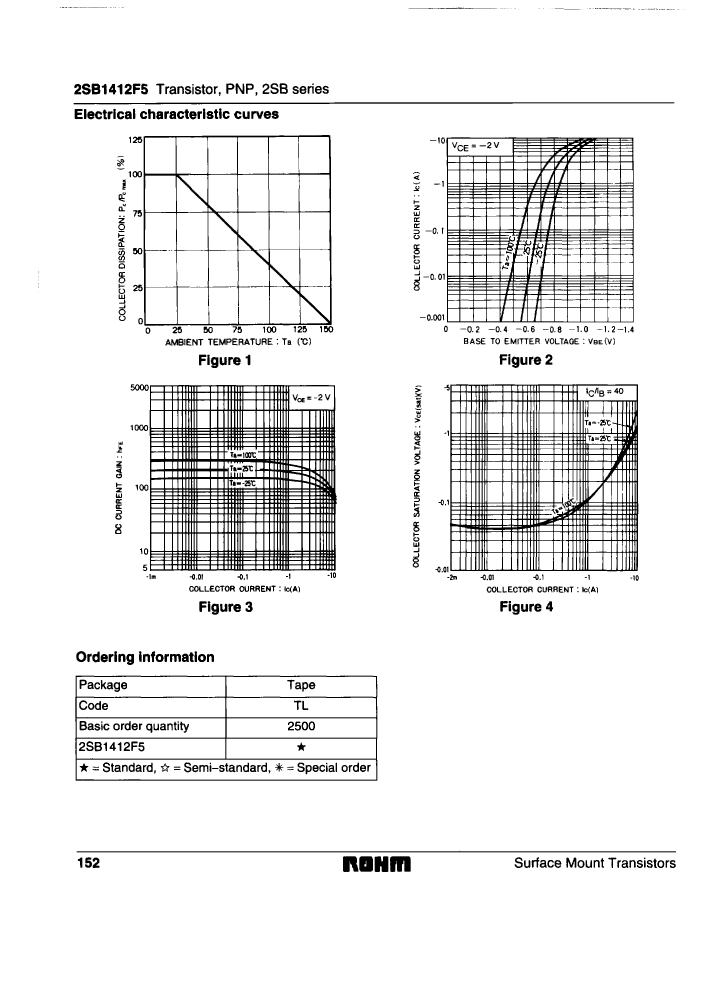

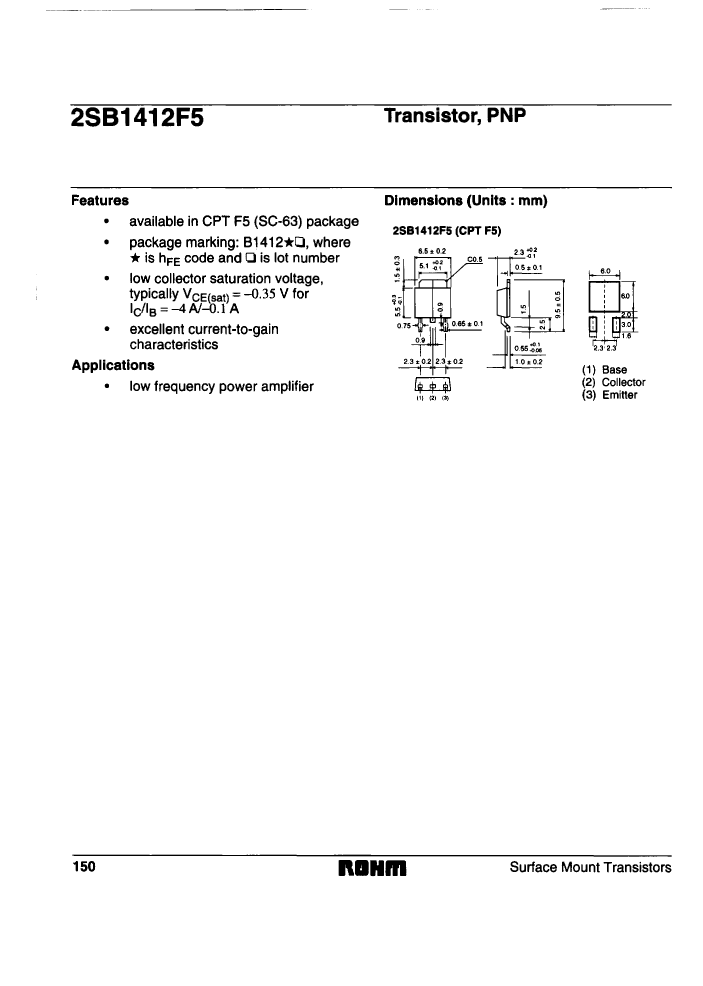

Preview

Download Datasheet

View All

2SB1412F5TLPQ Related Products

	2SB1412F5TLPQ	2SB1412F5TLQR	2SB1412F5TLPR	2SB1412F5TLP	2SB1412F5TLQ	2SB1412F5TLR
Description	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 5A I(C), 20V V(BR)CEO, 1-Element, PNP, Silicon
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	5 A	5 A	5 A	5 A	5 A	5 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V	20 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	82	120	82	82	120	180
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power consumption environment	10 W	10 W	10 W	10 W	10 W	10 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz
VCEsat-Max	1 V	1 V	1 V	1 V	1 V	1 V
Base Number Matches	1	1	1	1	1	1
