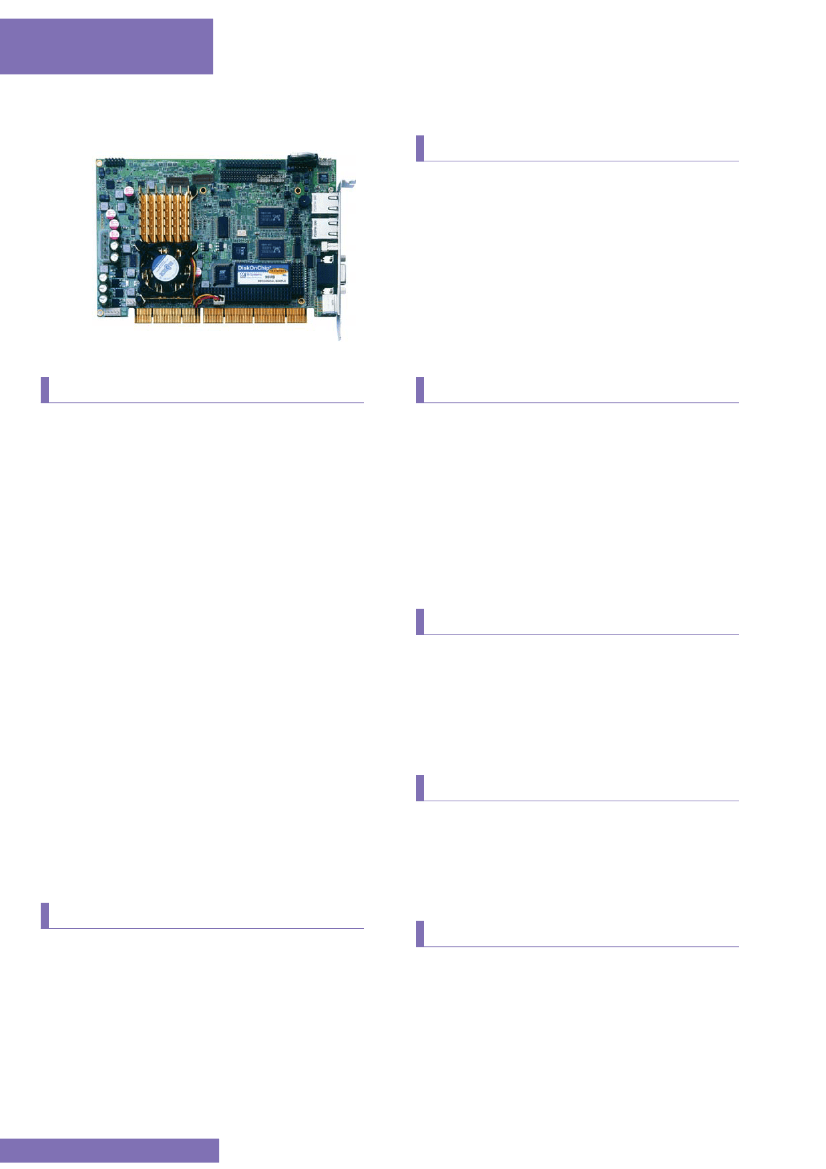

HS-6254
PCI-ISA Bus
VIA V4 Eden or C7 processor PCI-ISA Bus SBC w/CF, PC/104, CRT/LVDS,
Dual Ethernet, Audio, 4 COM, 5 USB
Features
»
»
»
»
»
»
»
VIA V4 Eden or C7 processor
1 x SO-DIMM up to 1GB DDR2 SDRAM
VIA CX700(M) system chipset
24-bit dual-channel LVDS
Dual Ethernet
VT1708A Codec
Hardware Monitor function
System
CPU
VIA V4 Eden processor 1GHz
VIA C7 processor 1GHz
Bus Interface
PCI-ISA Bus (no 3.3V output through Golden Finger)
FSB
800/400MHz FSB
BIOS
Award PnP Flash BIOS
System Chipset
VIA CX700(M)
I/O Chipset
Winbond W83697UF
System Memory
1 x 200-pin SO-DIMM, DDR2 533MHz, Max. 1GB
Storage
1 x Type II CF socket
1 x M-Systems DiskOnChip
Expansion Interface
1 x PC/104 slot
Watchdog Timer
Software programmable time-out intervals from
1~255 sec. or 1~255 min.
H/W Status Monitor
Monitoring temperatures, voltages, and cooling fan
status
Operating Temperature
0~60ºC
Operating Humidity
0~95%, non-condensing
Board Size (LxW)
186 x 122 mm
Display
Chipset
VIA CX700(M)
Display Memory
32/64/128MB video memory
LVDS
24-bit single/dual-channel
Resolution
VGA Mode: 1920 x 1440
LVDS Mode: 1600 x 1200
Audio
Chipset
VIA VT1708A
Audio Interface
MIC In, Line Out
Ethernet
Chipset
Dual RealTek RTL8100C Ethernet
Ethernet Interface
2 x RJ-45
I/O Interface
I/O Port
3 x RS-232
1 x RS-232/422/485
5 x USB2.0 (1 x external)
1 x IDE
1 x FDD
2 x SATA
1 x PS/2 for KB/MS
1 x 6-pin header for PS/2 KB/MS
Ordering Information
HS-6254/Eden
PCI-ISA Bus SBC w/Eden 1GHz CPU, CF, CRT, Dual
Ethernet, Audio
HS-6254/C7
PCI-ISA Bus SBC w/C7 1GHz CPU, CF, CRT, Dual
Ethernet, Audio
Accessory Options
IDE Cable, SATA Cable, SATA Power Cable, COM
Cable, USB Cable
www.boser.com.tw
All specifications and photos are subject to change without notice. #201104
