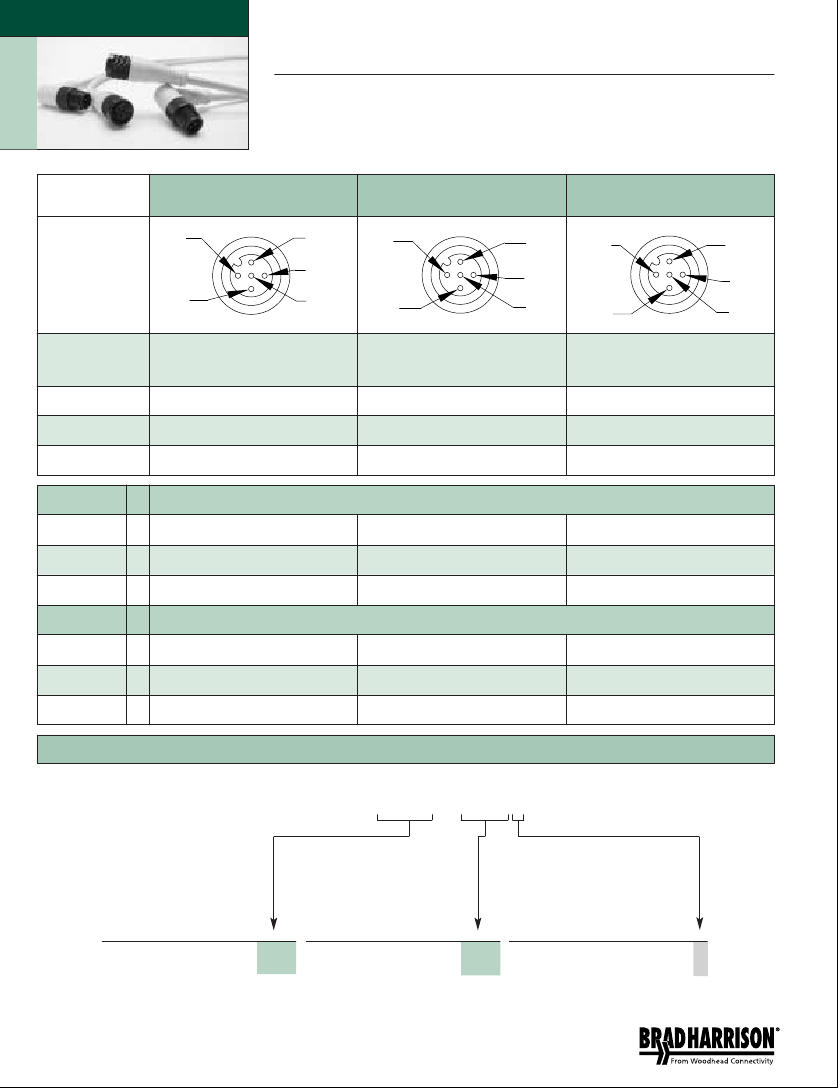

Micro-Change Cordsets
®
Single-Ended Cordsets
Single Keyway M12
#22 AWG yellow PVC cables with or without braid – DC color code
Oil-resistant PVC jacket for all types of heavy-duty industrial environments
Highly reliable low-resistance contact design with gold/palladium nickel plating
3P to 5P
3P
1
2
3
4
5
1
4P
2
3
4
5
5P
1
2
3
4
1- brown
2- white
3- blue
4- black
5- gray
FEMALE FACE
VIEW
5
COLOR CODE
VOLTAGE
CURRENT
CONDUCTOR
FEMALE
STRAIGHT
90°
MATING
RECEPTACLE*
1- brown
2- not used
3- blue
4- black
5- not used
1- brown
2- white
3- blue
4- black
5- not used
250V AC/DC
4A
#22-3
250V AC/DC
4A
#22-4
250V AC/DC
4A
#22-5
FIG
SINGLE-ENDED CORDSETS
803000A09M020
803001A09M020
8R3006A18A120
WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
1
2
5
FIG
804000A09M020
804001A09M020
8R4006A18A120
805000A09M020
805001A09M020
8R5006A18A120
MALE
STRAIGHT
90°
MATING
RECEPTACLE*
SINGLE-ENDED CORDSETS
803006A09M020
803007A09M020
8R3A00A18A120
WITH #22 AWG PVC CABLE WITHOUT BRAID 2 METERS LONG
3
4
6
804006A09M020
804007A09M020
8R4A00A18A120
805006A09M020
805007A09M020
8R5A00A18A120
CATALOG OPTIONS
*See Page 116 for additional Mating Receptacles
Use the following chart to modify your part’s specifications
803000A09M0201
WIRE TYPE
#22 AWG YELLOW PVC
W/ METALLIC BRAID . . . . D01
CABLE LENGTH
4 METER . . . . . . . . . . . . 040
5 METER . . . . . . . . . . . . 050
COUPLING NUT
STAINLESS STEEL . . . . . .ADD 1
NON-METALLIC . . . . . . .ADD 2
(NON-METALLIC AVAILABLE ON
FEMALE CONNECTORS ONLY)
94
1 - 8 0 0 - 2 2 5 - 7 7 2 4
SALES AND TECHNICAL SUPPORT
Micro-Change Cordsets
®

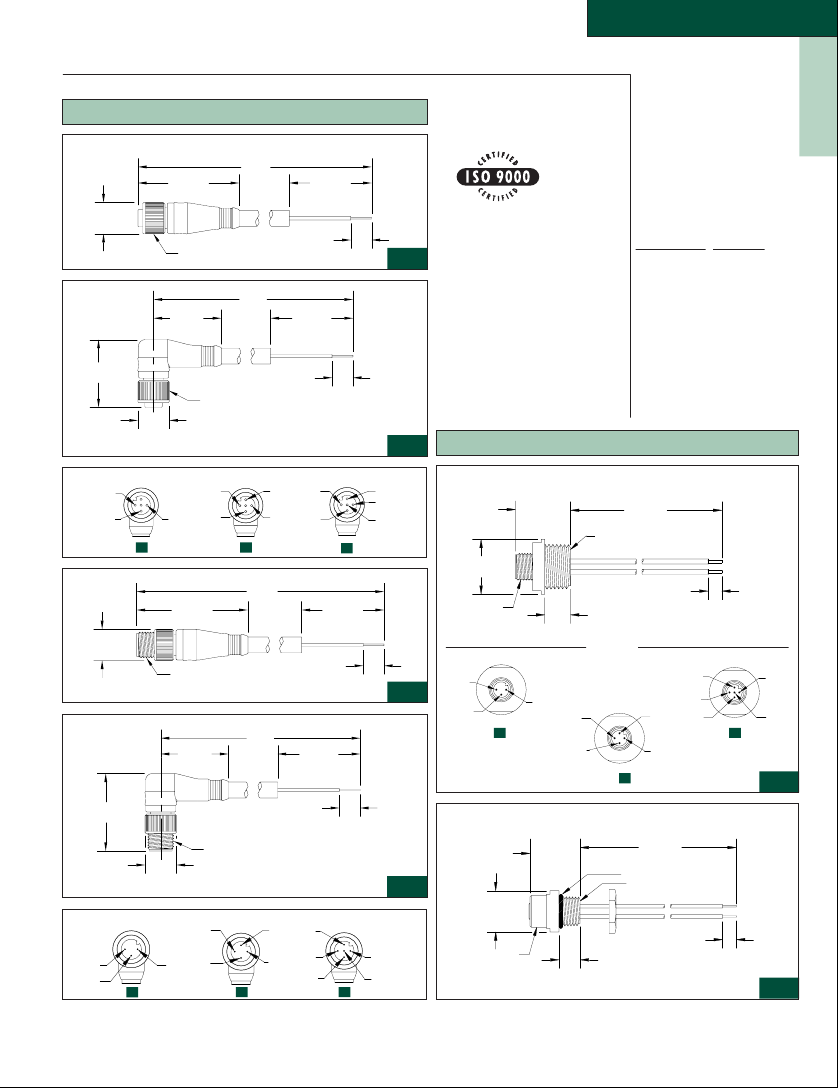

CONNECTOR DIMENSIONS
FEMALE STRAIGHT
LENGTH
1.84" REF
[46.74mm]
Ø
.57" REF
[14.48mm]
.38" REF
[9.65mm]
M12x1
1.50" REF
[38.10mm]
FIG 1
LENGTH
FEMALE 90º
1.23" REF
[31.24mm]
1.50" REF
[38.10mm]
1.23" REF
[31.24mm]
.38" REF
[9.65mm]
M12x1
Ø.57" REF
[14.48mm]
NYLON 6/6
PVC
NITRILE RUBBER
ZINC DIECAST W/ BLACK EPOXY
COAT, OPTIONAL STAINLESS STEEL
TYPE 303 OR NON-METALLIC
BLACK DELRIN
CABLE: YELLOW #22 AWG PVC JACKET AND
PVC CONDUCTOR INSULATION OVER
26 X #36 COPPER STRANDING, 300V,
UL STYLE 2661, CSA AWM I/II A/B,
OPTIONAL 80% METALLIC BRAID
OUTSIDE DIAMETER: WITHOUT BRAID WITH BRAID
3P - .18" (4.6mm) 3P - .23" (5.8mm )
4P - .20" (5.1mm) 4P - .25" (6.4mm)
5P - .23" (5.8mm) 5P - .26" (6.6mm)
ELECTRICAL
VOLTAGE RATING: 250 V AC/DC
AMPERAGE: 3P - 4A
4P - 4A
5P - 4A
ENVIRONMENTAL
PROTECTION: IP 68, NEMA 6P
AMBIENT OPERATING TEMP: -4° TO 221° F (-20° TO 105° C)
CERTIFICATIONS
UL: UL LISTED, FILE NO. E152210
CSA: CSA CERTIFIED, FILE NO. LR6837
MECHANICAL
CONNECTOR FACE:
MOLDED BODY:
O-RING:
COUPLING NUT:
FIG 2
FEMALE CONNECTORS - FACE VIEWS
1
1
2
1
2
3
4
4
3
RECEPTACLE DIMENSIONS
MALE RECEPTACLE W/ EXTERNAL THREADS AND 1/2"-14NPT THREADS
1.00" REF
[25.40mm]
12.00" REF
[304.8mm]
1/2-14 NPT REF
3
4
5
3P
4P
5P
1.00" REF
[25.40mm]
MALE STRAIGHT
LENGTH
2.02" REF
[51.31mm]
Ø
.57" REF
[14.48mm]
M12x1
.38" REF
[9.65mm]
2-WHITE
3-BLUE
1-BROWN
1.50" REF
[38.10mm]
M12x1
.47" REF
[11.94mm]
.25" REF
[6.35mm]
FACE VIEW
FIG 3
1-BROWN
4-BLACK
3-BLUE
2-WHITE
3-BLUE
4-BLACK
5-GRAY
MALE 90º
LENGTH
1.23" REF
[31.24mm]
1.50" REF
[38.10mm]
3P
4-BLACK
1-BROWN
5P
SEE PAGE 116 FOR
ADDITIONAL
RECEPTACLES
4P
FIG 5
1.41" REF
[35.81mm]
.38" REF
[9.65mm]
FEMALE RECEPTACLE W/ INTERNAL THREADS AND 1/4" - 18NPT THREADS
.91" REF
[23.11mm]
12.00" REF
[304.8mm]
O-RING
1/4-18 NPT REF
.75" REF
[19.05mm]
M12x1
Ø.57" REF
[14.48mm]
FIG 4
MALE CONNECTORS - FACE VIEWS
3
2
2
3
4
1
4
1
3
4
1
5
.25" REF
[6.35mm]
M12x1
.38" REF
[9.65mm]
3P
4P
5P
FIG 6
w w w. c o n n e c t o r. c o m
FA X
1-847-272-8133
95
3P to 5P
Specifications
