1200651501: DescriptionMICRO-CHANGE CORDSET 3/4/5-POL. MALE 90 SE 22/3-5 TPE YELLOW CABLE; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

1200651501 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1200651501	-	-	View	Buy Now

1200651501 Overview

MICRO-CHANGE CORDSET 3/4/5-POL. MALE 90 SE 22/3-5 TPE YELLOW CABLE

1200651501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Manufacturer's serial number	120065

Preview

Download Datasheet

View All

10

9

8

7

6

5

4

3

2

1

F

E

D

C

B

DESCRIPTION

EC NO: WEU2010-0278

2010/01/18

DRWN:

LSTEMMLE

----

CH'KD:

NS

2010/01/26

APPR:

NSTAUDIG

QUALITY

SYMBOLS

DESCRIPTION

=

C

=

A

GENERAL TOLERANCES

(UNLESS SPECIFIED)

mm

INCH

0

4 PLACES

± ---

3 PLACES

± ---

0

2 PLACES

± ---

± .01

1 PLACE

± 0.3

± ---

ANGULAR ±

---

°

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

2:1

----

METRIC

THIRD ANGLE

PROJECTION

----

CHECKED BY

DATE

RE

APPROVED BY

2010/01/21

DATE

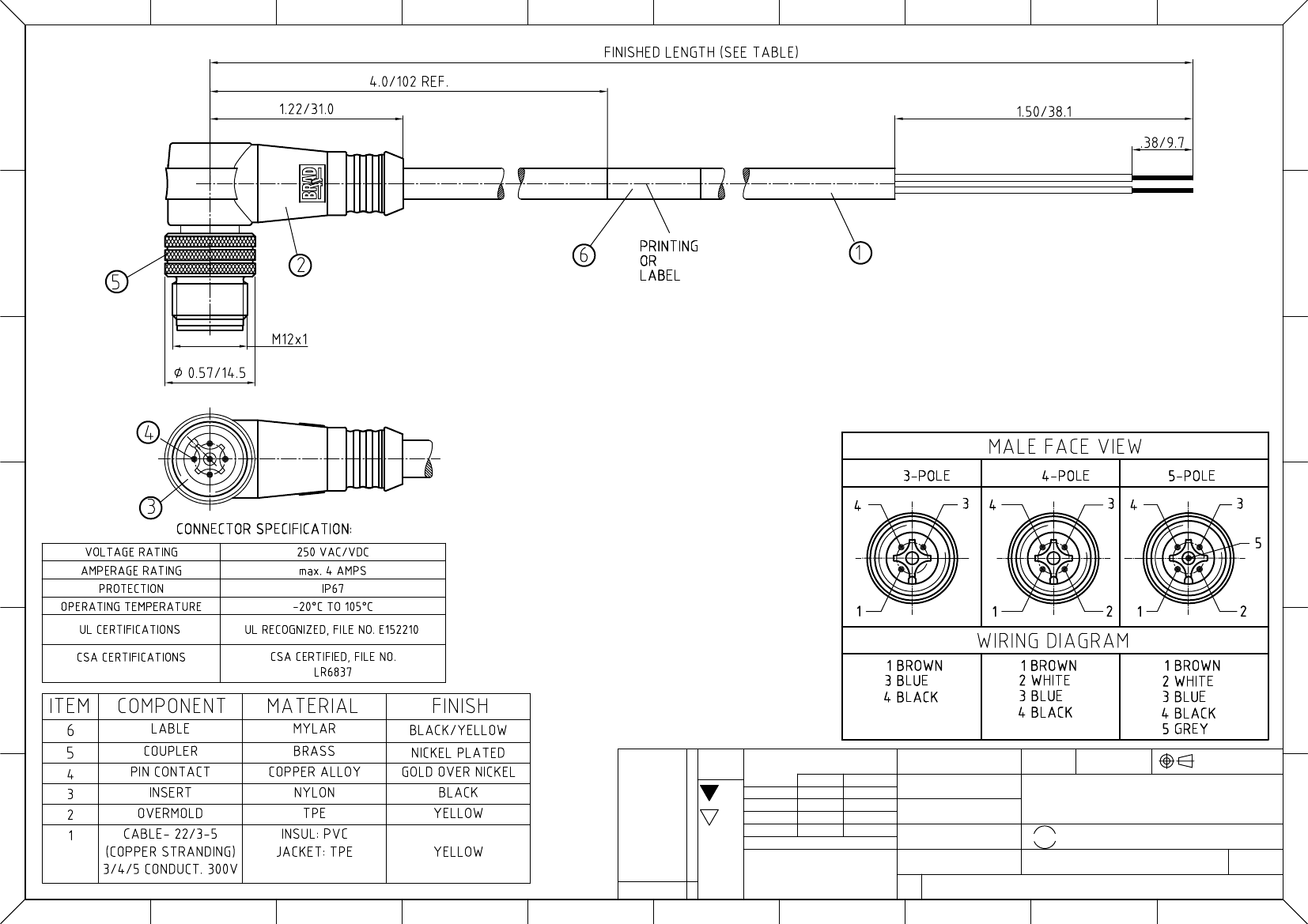

MICRO-CHANGE CORDSET

3/4/5-POL. MALE 90 SE

22/3-5 TPE YELLOW CABLE

molex

NSTAUDIG

MATERIAL NO.

2010/01/25

MOLEX INCORPORATED

SHEET NO.

A

DOCUMENT NO.

REV

1

10

9

8

7

6

DRAFT WHERE APPLICABLE

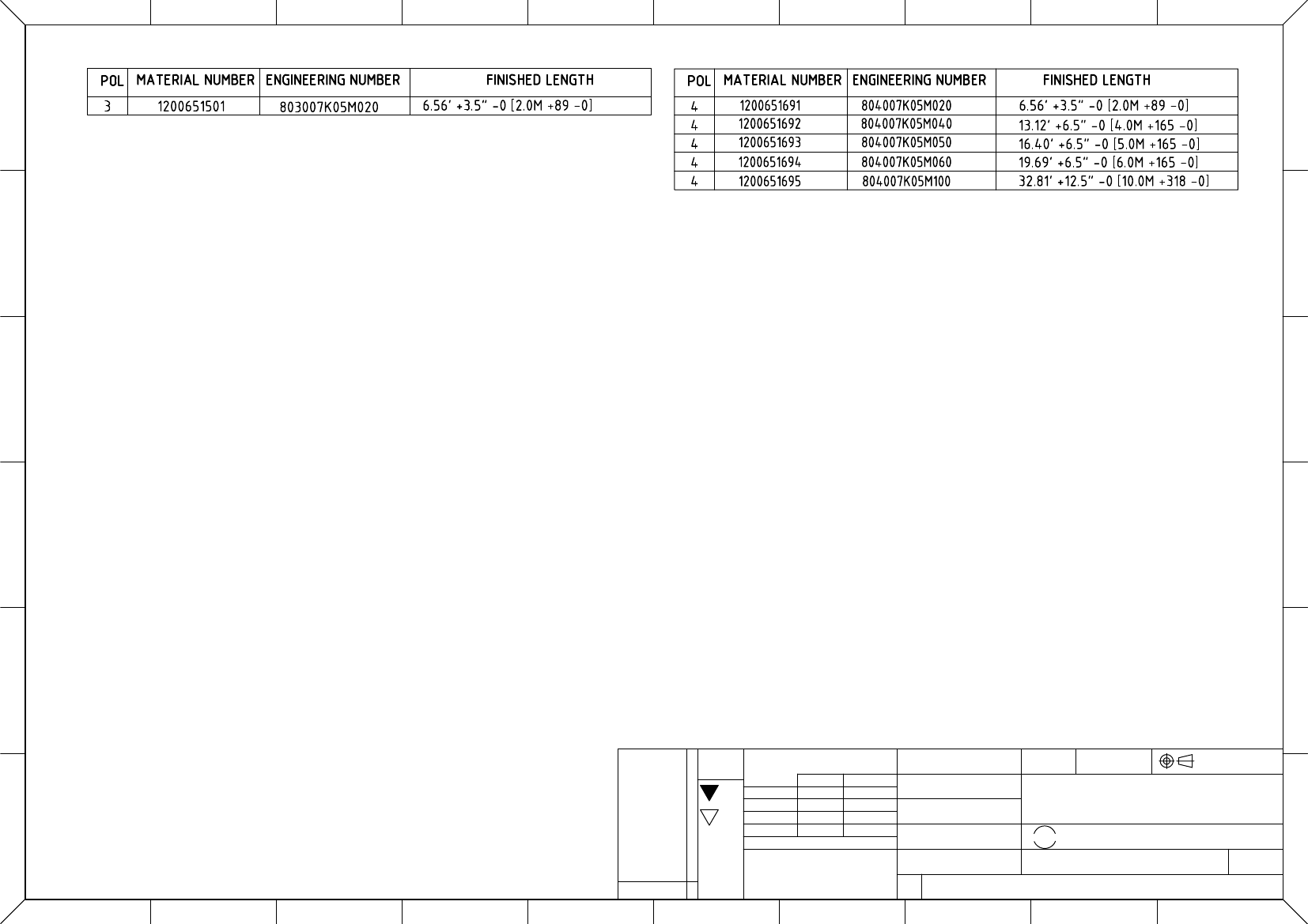

SEE TABLE SHEET 2

SD-120065-037

1 OF 1

MUST REMAIN

SIZE

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

WITHIN DIMENSIONS

A3

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

5

4

3

2

1
