SMT power inductors
Size 6.0 x 6.0 x 3.0 (mm)
Rated inductance 1 ... 1000 μH
Rated current 0.11 ... 3 A
Construction
■
Ferrite core
■
Winding: enamel copper wire
■
Winding welded to terminals
B82462A4
Features
■
■
■
■
Temperature range up to +150 °C
High rated current
Low DC resistance
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
Qualified to AEC-Q200
■
RoHS-compatible
Applications
■
■
■
■
■
Filtering of supply voltages
Coupling, decoupling
DC/DC converters
Automotive electronics
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Ag, Sn (lead-free)
1)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (nH, coded),
L tolerance (coded), manufacturing date (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value,
■
quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
■
Packing unit: 2500 pcs./reel
reel
1) Ni-barrier-plated terminals on request (B82462A4*50).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/12
SMT power inductors
Size 6.0 x 6.0 x 3.0 (mm)

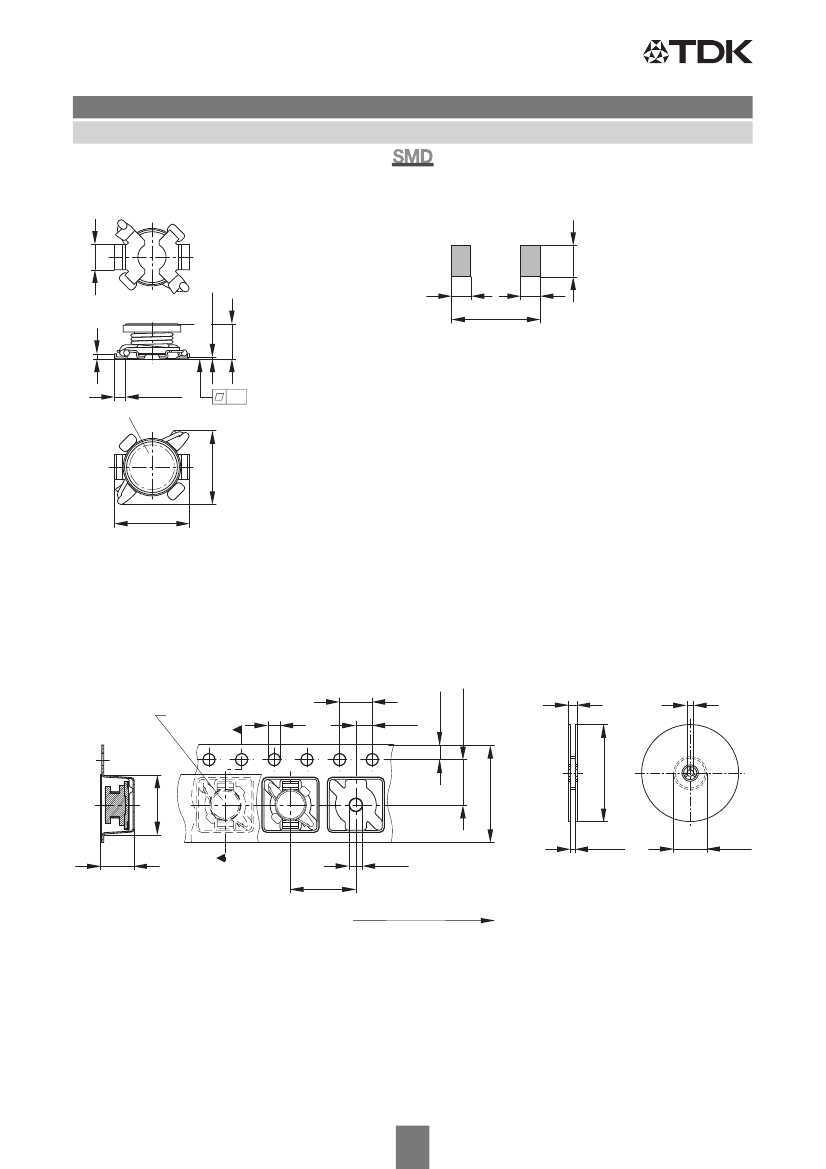

Dimensional drawing and layout recommendation
B82462A4
2±0.1
1)
0.15±0.03
1.5
7
1.5
IND0469-B
0.45±0.1
0.9±0.1
1)
0.1
Marking
6±0.2
1) Soldering area
IND0471-F-E
6 max.
3 max.
1)
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
5.5±0.05
Reel
4±0.1
Component
1.5+0.1
2±0.05
18.4 max.
13±0.2
2.4
7.5 max.
_
0.1
12
+0.3
_
0
12.4
+1.5
_
2
330
+0
62±1.5
IND0350-S
1.6±0.1
3.45 max.
8±0.1
Direction of unreeling
IND0330-5-E
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/12
SMT power inductors
Size 6.0 x 6.0 x 3.0 (mm)
Technical data and measuring conditions
Rated inductance L
R
Rated temperature T
R
Rated current I
R
Saturation current I
sat
DC resistance R
max
Solderability (lead-free)
B82462A4
Measured with impedance analyzer Agilent 4294A at
frequency f
L
, 0.1 V, +20 °C
+85 °C
Max. permissible DC with temperature increase of
at rated temperature
Max. permissible DC with inductance decrease
L/L
0
of approx. 10%
Measured at +20 °C
Dip and look method Sn95.5Ag3.8Cu0.7:
+(245 5) °C, (5 0.3) s
Wetting of soldering area 90%
(based on IEC 60068-2-58)
+260 °C, 40 s as referenced in JEDEC J-STD 020D
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C,
Approx. 0.2 g
75% RH
40 K
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/12
SMT power inductors
Size 6.0 x 6.0 x 3.0 (mm)
Characteristics and ordering codes
L
R
H
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
10%
^
B82462A4
Tolerance f
L
MHz
20%
^
I
R
A
3.00
2.60
2.30
2.00
1.65
1.40
1.15
0.90
0.80
0.63
0.54
0.43
0.35
0.29
0.24
0.20
0.17
0.14
0.11
I
sat
A
5.8
4.6
3.8
3.2
2.8
2.3
1.8
1.5
1.28
1.04
0.82
0.69
0.57
0.49
0.40
0.34
0.28
0.23
0.18
R
max
0.024
0.030
0.042
0.060
0.080
0.10
0.14
0.21
0.26
0.42
0.64
0.86
1.28
1.76
2.72
3.90
5.60
8.00
13.00
Ordering code
1)
B82462A4102M000
B82462A4152M000
B82462A4222M000
B82462A4332M000
B82462A4472M000
B82462A4682M000
B82462A4103M000
B82462A4153K000
B82462A4223K000
B82462A4333K000
B82462A4473K000
B82462A4683K000
B82462A4104K000
B82462A4154K000
B82462A4224K000
B82462A4334K000
B82462A4474K000
B82462A4684K000
B82462A4105K000
M 0.1
0.1
0.1
0.1
0.1
0.1
0.1
K 0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
Sample kit available. Ordering code: B82462X004
For more information refer to chapter “Sample kits”.
1) For Ni-barrier-plated terminals replace the last two digits “00” by “50”.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
06/12
