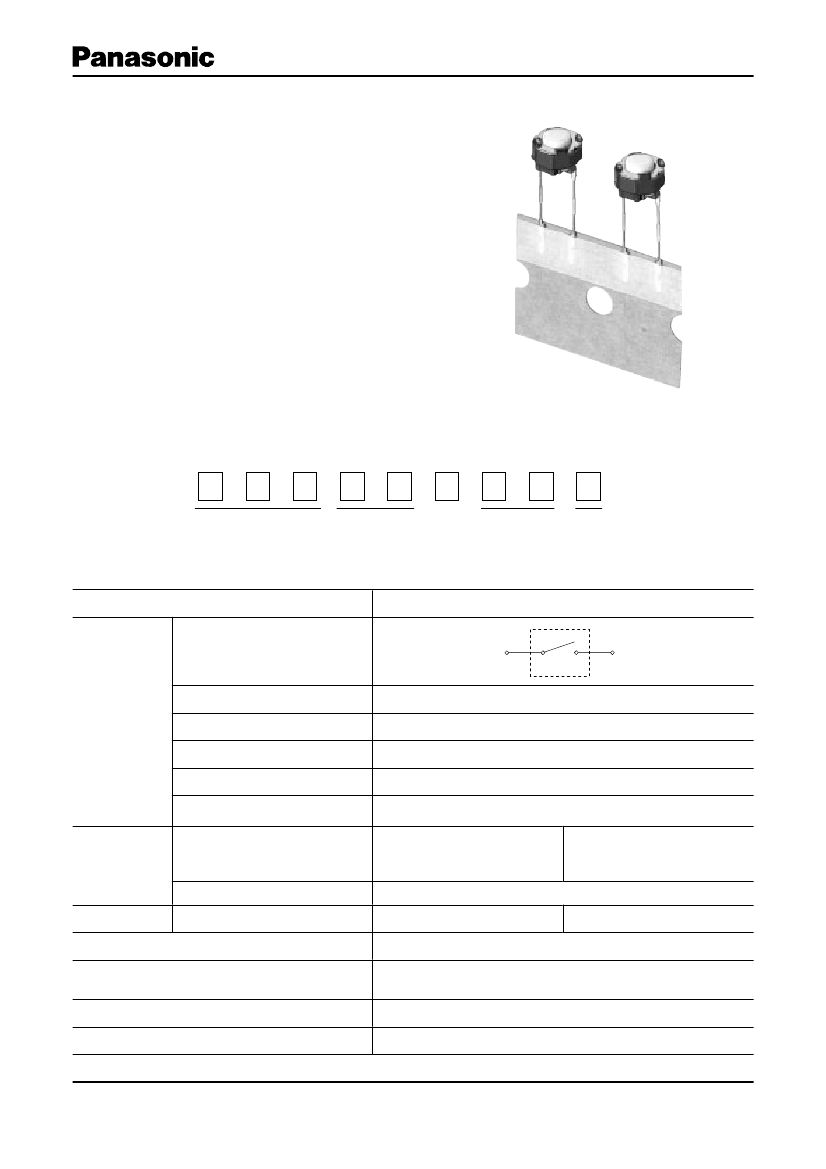

Light Touch Switches/EVQ11
Round Type 2R Light Touch Switches
Type:
EVQ11
■
Features
●
External dimensions : 6.0 mm 6.0 mm, Height 3.9 mm
(Excluding the push plate)
●
The cast-processed terminals improve the mountability
■
Recommended Applications
●
Operating switches for electronic equipment
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
E
V
Product Code
Q
1
Type
1
Height
Push Plate Color
■
Specifications
Type
Snap action/Push-on type SPST
Circuit Diagram
A
B
Rating
Electrical
Contact Resistance
Insulation Resistance
Dielectric Withstanding Voltage
Bouncing
Operating Force
Mechanical
Travel
Endurance
Operating Life
10 µA 2 Vdc to 20 mA 15 Vdc (Resistive load)
50 mΩ max.
50 MΩ min. (at 100 Vdc)
250 Vac for 1 minute
3 ms max. (ON)
8 ms max. (OFF)
1.0 N±0.4 N
1.3 N±0.4 N
1.6 N±0.5 N
0.25 mm±0.10 mm
100000 cycles min.
½
50000 cycles min.
2.6 N±0.6 N
Operating Temperature
Storage Temperature
Minimum Quantity/Packing Unit
Quantity/Carton
½
1 million cycles also available, consult our salesmen.
–20 °C to +70 °C
–40 °C to +85 °C (Bulk)
–20 °C to +40 °C (Taping)
2500 pcs. Radial Taping (Reel Pack)
25000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00
Oct. 2012
– ES126 –

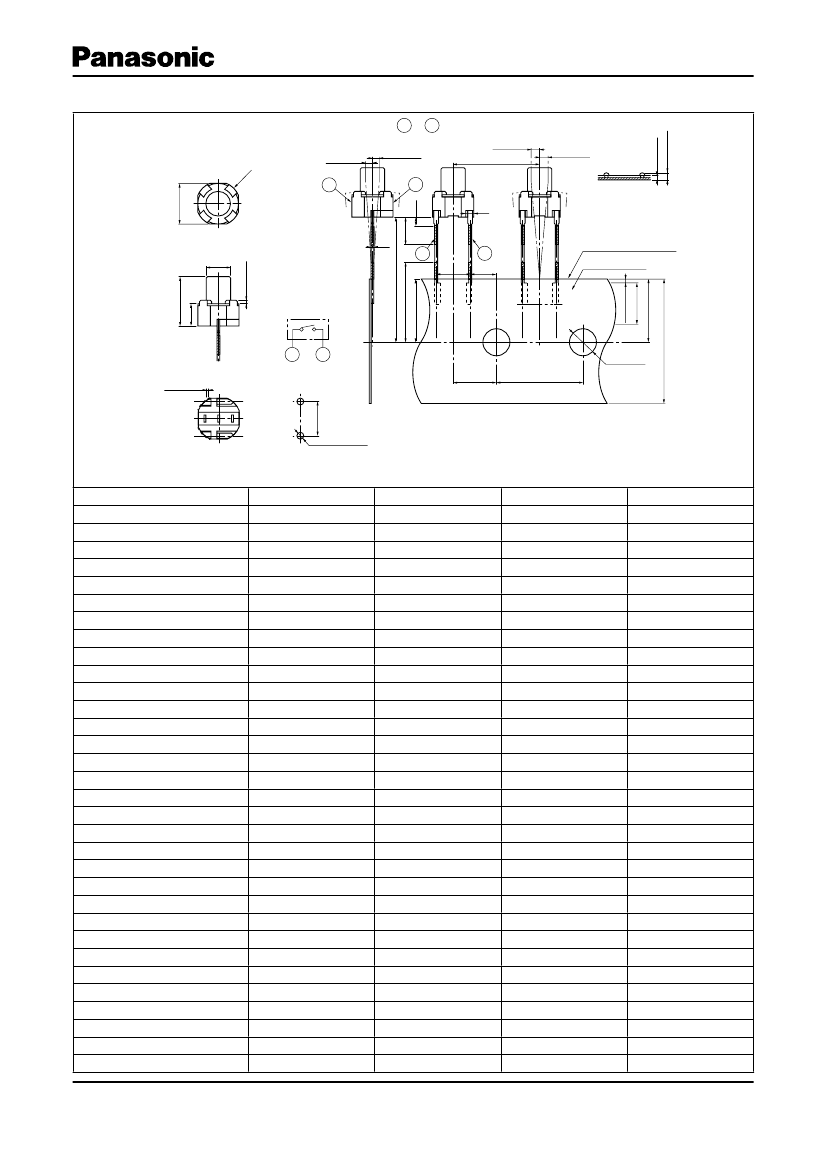

Light Touch Switches/EVQ11
■
Dimensions in mm (not to scale)
1.0 max.
Q
(1.1)
0.8
E-E' section
Adhesive tape shall
not extend beyond
base paper.
B
0.5 max.
+1.0
0
+0.8
5.0
–0.2
1.3 max.
12.7±1.0
(Radial Taping)
R3
.2
1.0 max.
P
1.3 max.
6.0
0.3
φ3.6
(3.8)
A
3.85±0.70
Adhesive tape
2.0 max.
6.0±0.5
9.0±0.5
18.0
(11.4)
(8.9)
H
3.4
E
E'
0.2 max.
Circuit diagram
5.0±0.1
6.35±0.70
12.7±0.3
2-φ1.00±0.05
PWB mounting hole for reference
View from mounting side
JIS C0806-2 shall be applied to the items
not specified here.
Part Numbers
EVQ11A04M
EVQ11A05R
EVQ11A07K
EVQ11A09K
EVQ11D04K
EVQ11D05B
EVQ11D07K
EVQ11D09K
EVQ11G04M
EVQ11G05R
EVQ11G07K
EVQ11G09K
EVQ11K04K
EVQ11K05B
EVQ11K07K
EVQ11K09K
EVQ11L04M
EVQ11L05R
EVQ11L07K
EVQ11L09K
EVQ11Y04K
EVQ11Y05B
EVQ11Y07K
EVQ11Y09K
EVQ11U04M
EVQ11U05R
EVQ11U07K
EVQ11U09K
EVQ11V04K
EVQ11V05B
EVQ11V07K
EVQ11V09K
Operating Force
1.0N
1.0N
1.0N
1.0N
1.0N
1.0N
1.0N
1.0N
1.3N
1.3N
1.3N
1.3N
1.3N
1.3N
1.3N
1.3N
1.6N
1.6N
1.6N
1.6N
1.6N
1.6N
1.6N
1.6N
2.6N
2.6N
2.6N
2.6N
2.6N
2.6N
2.6N
2.6N
H=Height
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
4.3 mm
5.0 mm
7.0 mm
9.5 mm
Push Plate Color
White
Red
Black
Black
Black
Blue
Black
Black
White
Red
Black
Black
Black
Blue
Black
Black
White
Red
Black
Black
Black
Blue
Black
Black
White
Red
Black
Black
Black
Blue
Black
Black
Operating Life
100000 cycles
100000 cycles
100000 cycles
100000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
50000 cycles
50000 cycles
50000 cycles
50000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
18.0
–0.5
+1.0
A
B
φ4.0±0.3
0.6±0.3
1.5 max.
00
EVQ11
The direction of P or Q side is randomly settled.
Oct. 2012
– ES127 –
