A Product Line of
Diodes Incorporated
ZRC250
PRECISION 2.5 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
Description
The ZRC250 uses a bandgap circuit design to achieve a
precision micropower voltage reference of 2.5 volts. The
device is available in a small outline surface mount package,
ideal for applications where space saving is important, as
well as a package for through hole requirements.
The ZRC250 design provides a stable voltage without an
external capacitor and is stable with capacitive loads. The
ZRC250 is recommended for operation between 20μA and
5mA and so is ideally suited to low power and battery
powered applications.
Excellent performance is maintained to an absolute
maximum of 25mA, however the rugged design and 20 volt
processing allows the reference to withstand transient effects
and currents up to 200mA. Superior switching capability
allows the device to reach stable operating conditions in only
a few microseconds.
Pin Assignments
SOT23 Package Suffix – F
V
R
3
1
GND 2
(Top View)
Pin 1 floating or connected to pin 2
Features
•
•
•
•
•
•
•
•
•
•
Small outline SOT23 package
No stabilizing capacitor required
Low knee current, 15μA typical
Typical T
C
30ppm/°C
Typical slope resistance 0.4Ω
±3, ±2 and ±1% tolerance
Industrial temperature range
Operating current 20μA to 5mA
Transient response, stable in less than 10μs
Green molding compound (No Br, Sb)
Typical Application Circuit
Applications
•
•
•
Battery powered and portable equipment.
Instrumentation.
Test equipment.
ZRC250
Document number: DS32182 Rev. 6 - 2
1 of 5
www.diodes.com
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZRC250
PRECISION 2.5 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
Absolute Maximum Ratings
(Voltages to GND Unless Otherwise Stated)
Parameter
Reverse Current
Forward Current
Operating Temperature
Storage Temperature
Power Dissipation (T
AMB
= 25°C)
SOT23
Rating
25
25
-40 to 85
-55 to 125
330
Unit
mA
mA
°C
°C
mW
Electrical Characteristics
(Test conditions: T
AMB
= 25°C, unless otherwise specified.)
Symbol
V
R
I
MIN
I
R
T
C
R
S
(*)
Parameter
Reverse breakdown voltage
Minimum operating current
Recommended operating current
Average reverse breakdown voltage
temperature coefficient
Slope resistance
Reverse dynamic impedance
Condition
I
R
= 150µA
Min.
2.475
2.45
2.425
0.02
Typ.
2.5
2.5
2.5
13
Max.
2.525
2.55
2.575
20
5
Tol. (%)
1
2
3
Unit
V
µA
mA
ppm/°C
Ω
Ω
(†)
I
R(MIN)
to
I
R(MAX)
I
R
= 1mA
f = 100Hz
I
AC
= 0.1I
R
I
R
= 150µA
f = 10Hz to
10kHz
40
30
0.4
0.3
90
1
0.8
Z
R
E
N
Note:
Wideband noise voltage
60
µV(rms)
(*) T
C
=
(
V
R(MAX)
−
V
R(MIN)
)
x1000000
V
R
x
(
T
(MAX )
−
T
(MIN)
)
REVERSE CURRENT (µA)
30
Note: V
R(MAX)
– V
R(MIN)
is the maximum deviation in reference
voltage measured over the full operating temperature range
(†)
R
S
=
V
R
Change I
R(MIN)
to I
R(MAX )
I
R(MAX)
−
I
R(MIN)
(
)
20
T
A
= 25°C
10
0
0.0
1.0
2.0
REVERSE VOLTAGE (V)
Reverse Characteristics
3.0
ZRC250
Document number: DS32182 Rev. 6 - 2
2 of 5
www.diodes.com
March 2012
© Diodes Incorporated

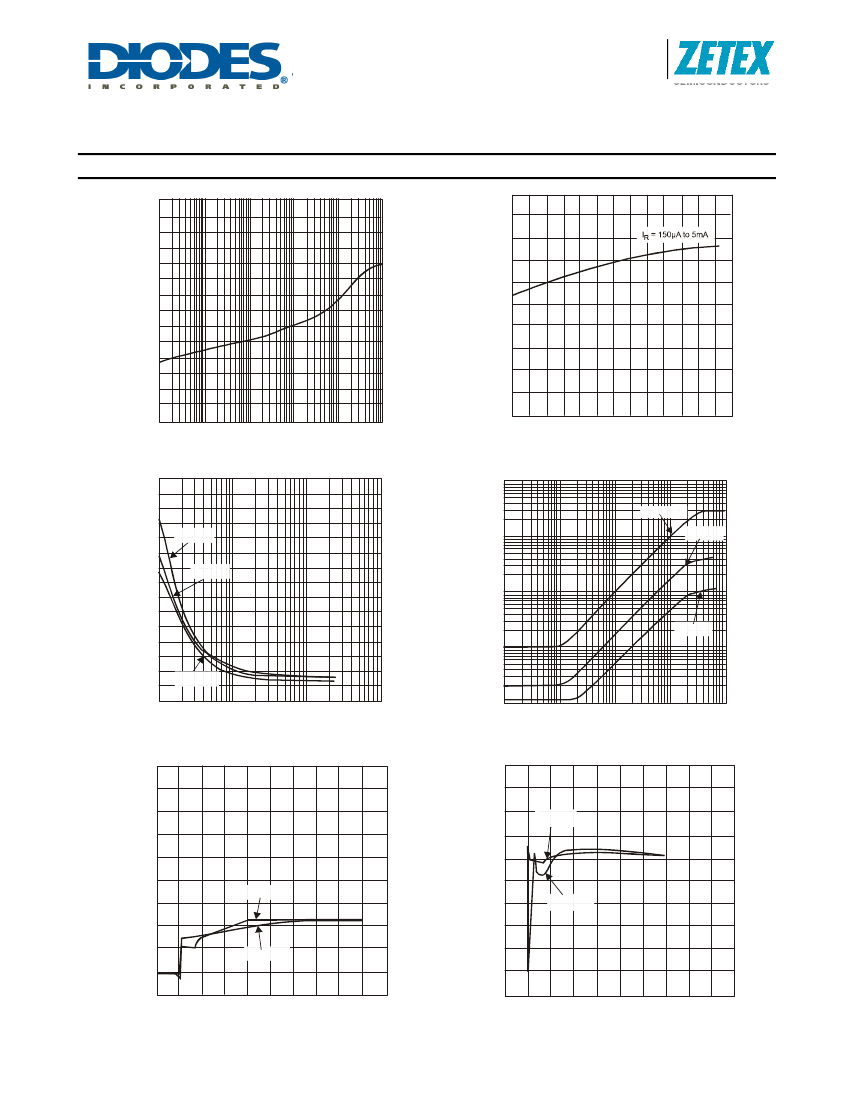

A Product Line of
Diodes Incorporated
ZRC250
PRECISION 2.5 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
