ZR25DTC datasheet, PDF - EEWORLD Datasheet

ZR25DTC: DescriptionTwo Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PDSO3, SOT-23, SMT-3; CategoryPower/power management The power supply circuit; File Size160KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

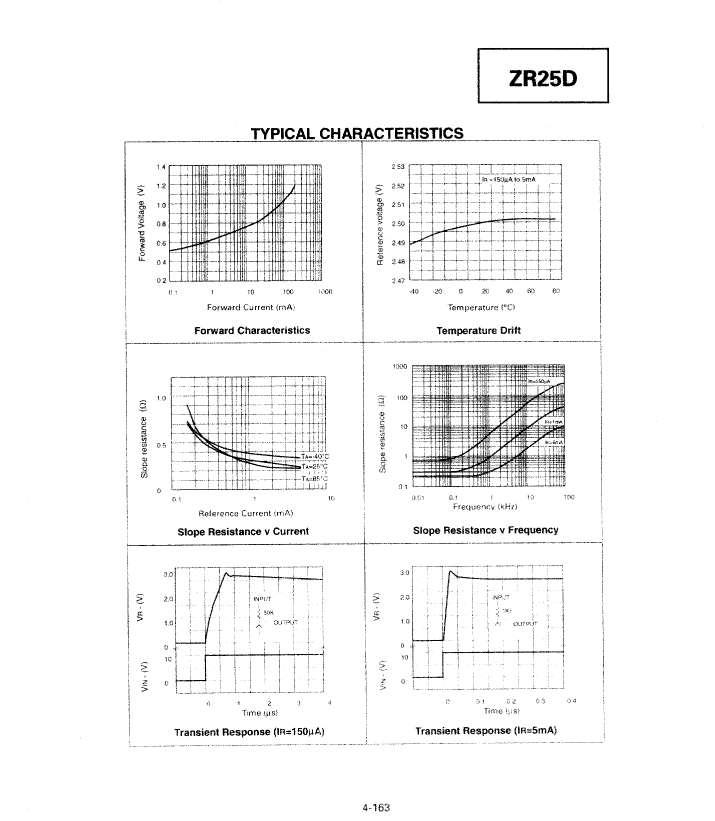

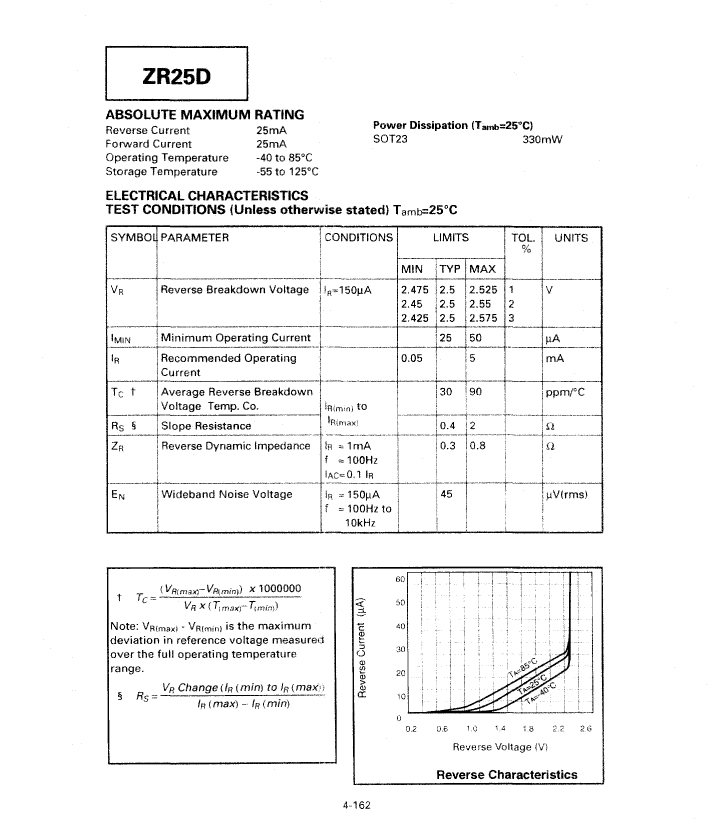

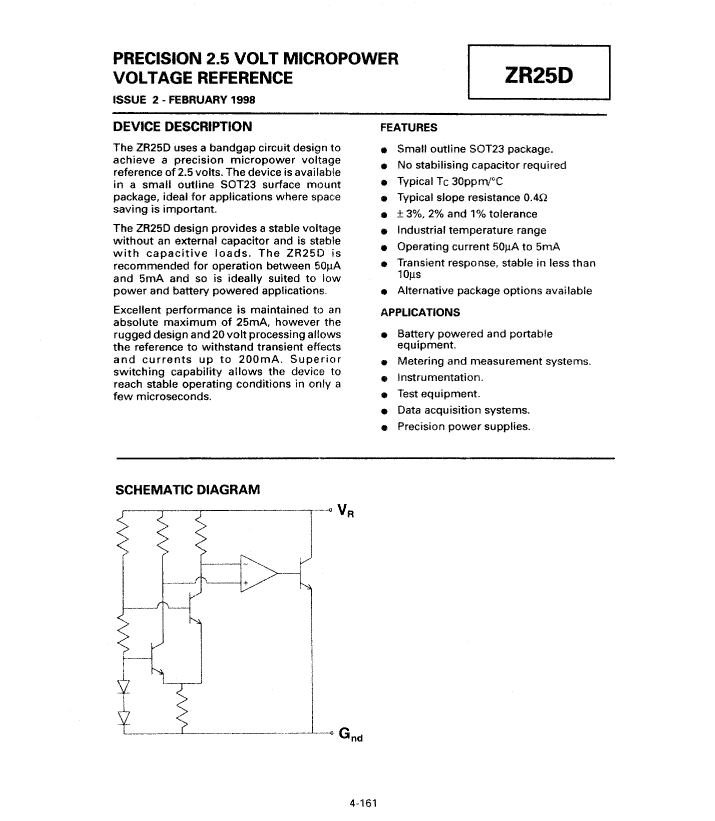

ZR25DTC Overview

Two Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PDSO3, SOT-23, SMT-3

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	SOT-23
package instruction	TSOP,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G3
length	2.86 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.575 V
Minimum output voltage	2.425 V
Nominal output voltage	2.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.1 mm
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	90 ppm/°C
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
width	1.3 mm
