UCC2807J-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> UCC2807J-3

UCC2807J-3: DescriptionSwitching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,; CategoryPower/power management The power supply circuit; File Size360KB，5 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

UCC2807J-3 Overview

Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,

UCC2807J-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Unitrode Corporation
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	12 V
Minimum input voltage	4.3 V
Nominal input voltage	10 V
JESD-30 code	R-CDIP-T8
JESD-609 code	e0
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	1 A
Nominal output voltage	2 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	2.1 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	1000 kHz
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

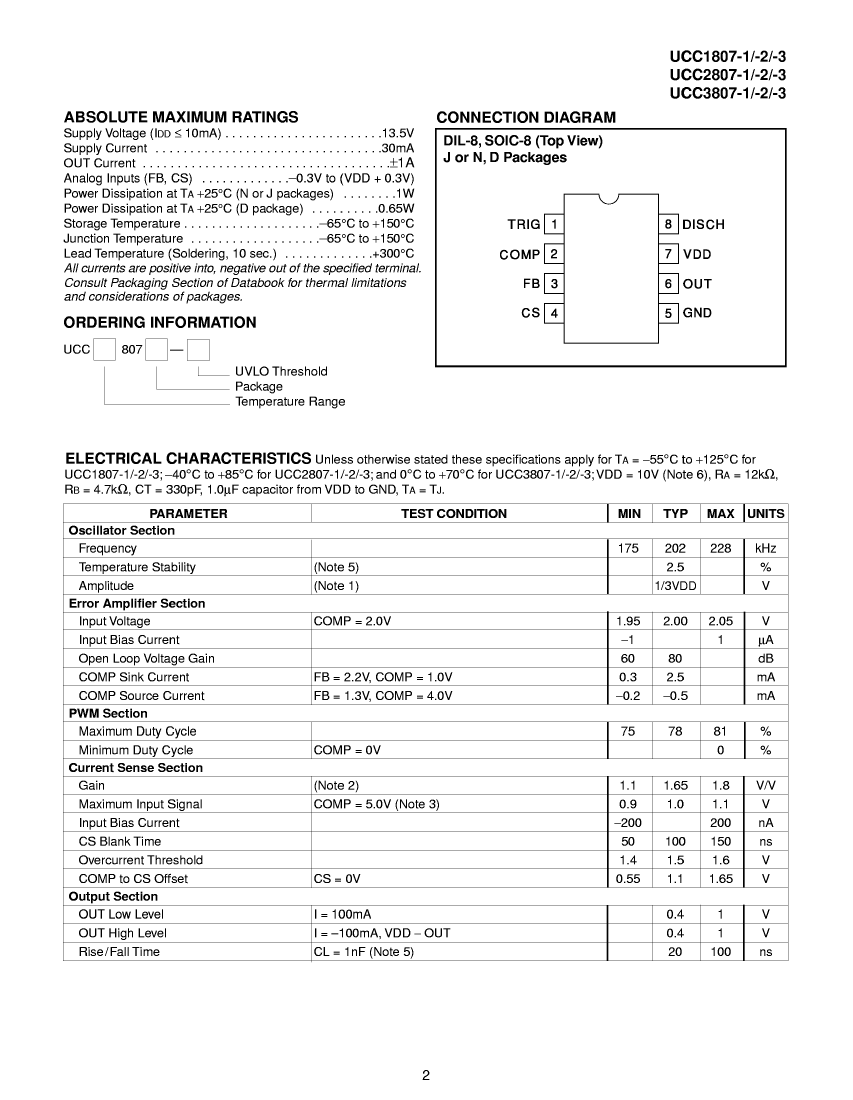

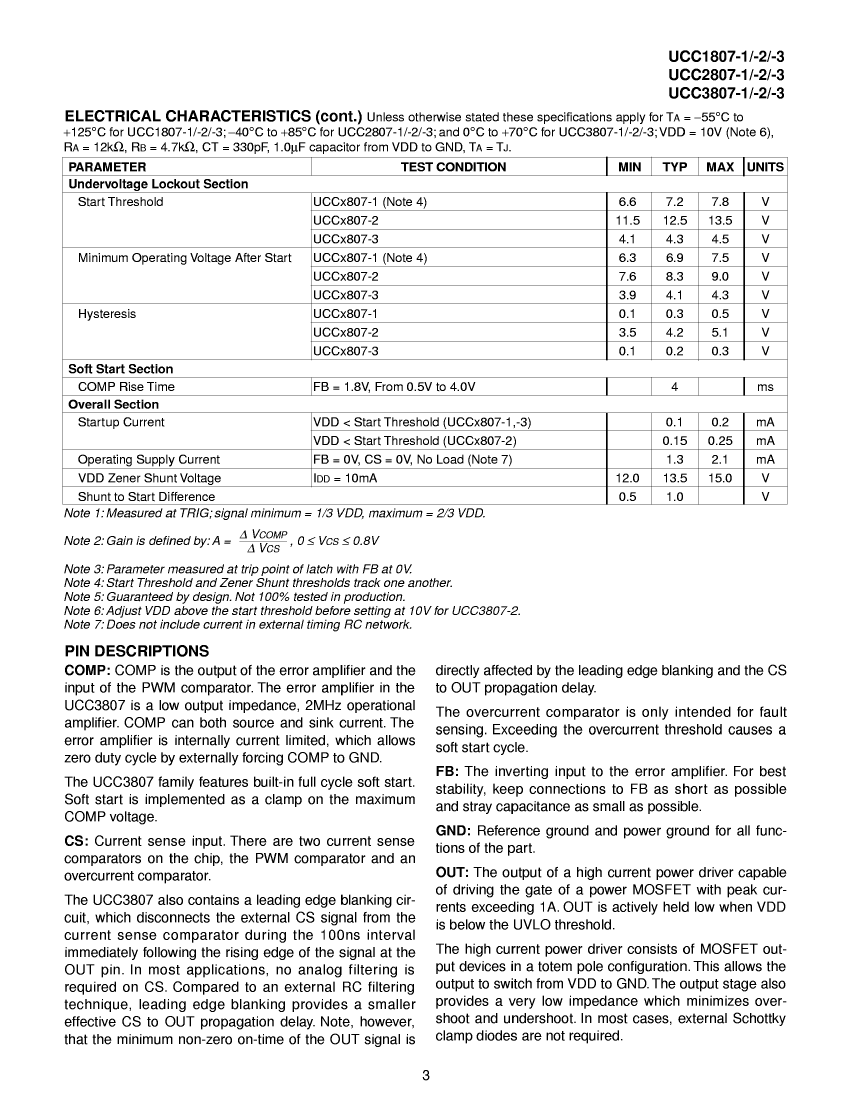

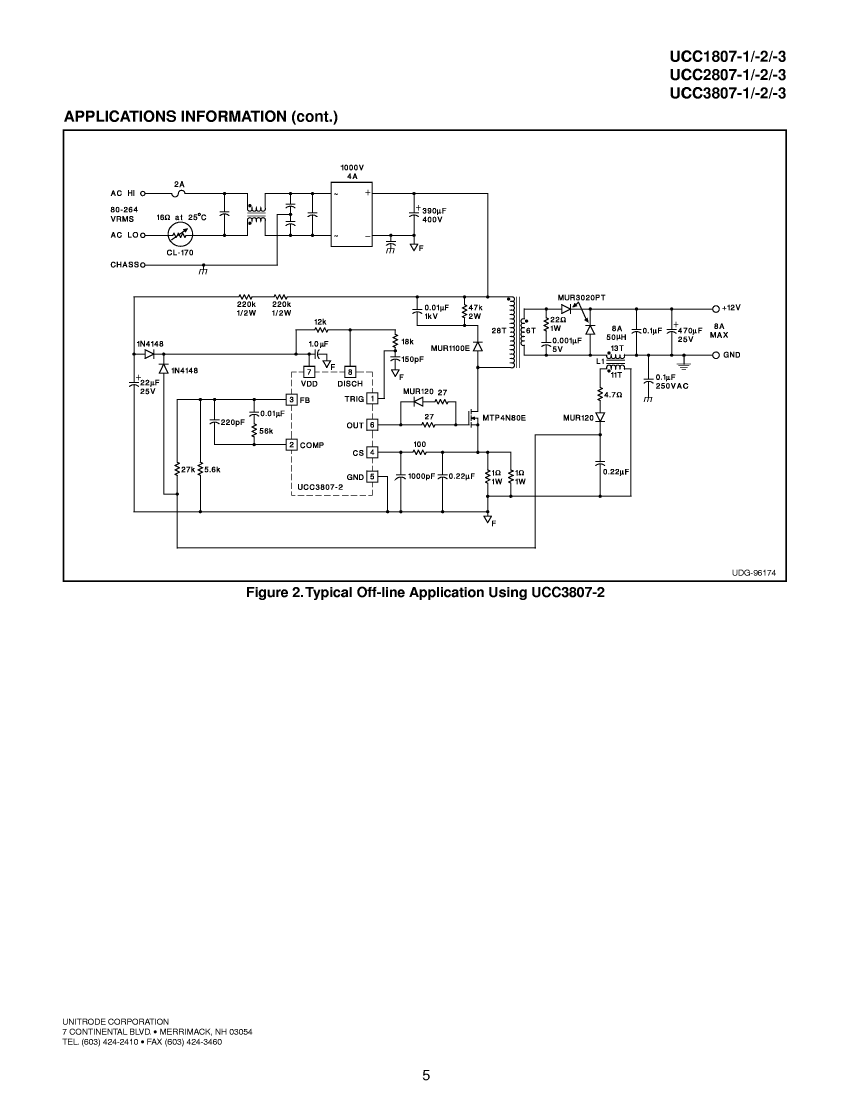

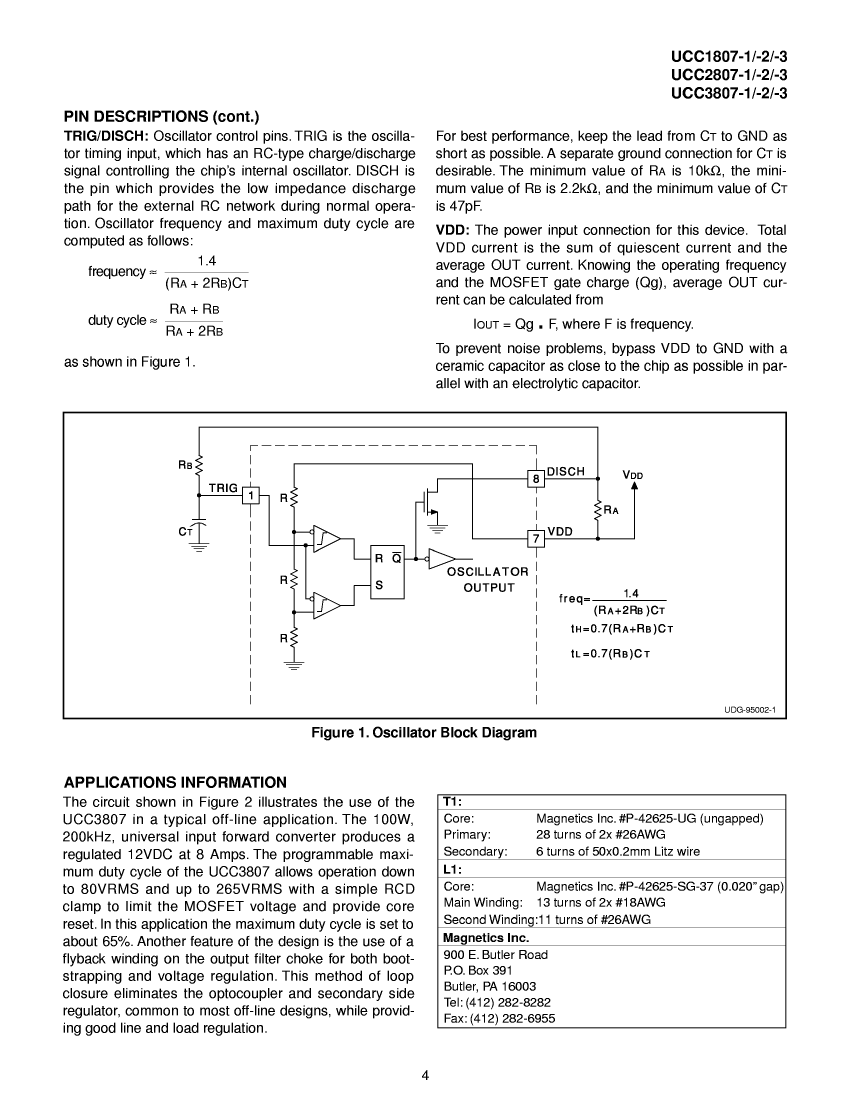

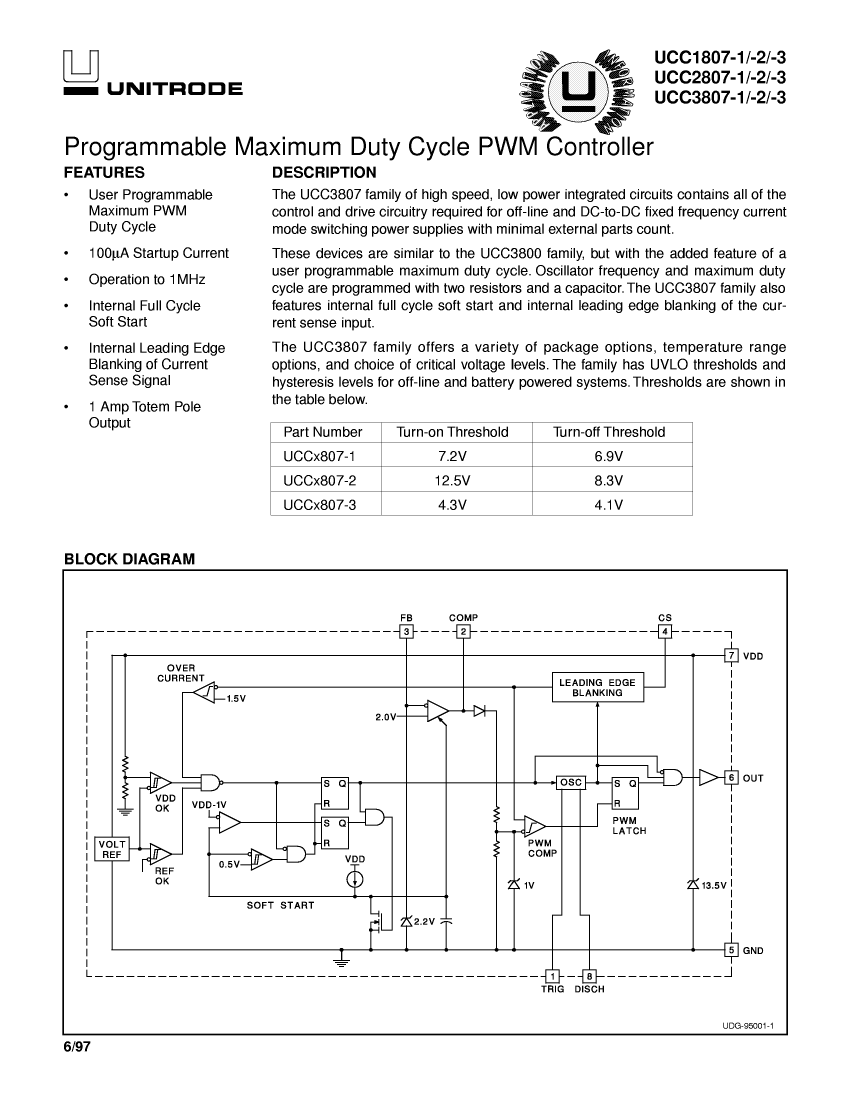

Preview

Download Datasheet

View All

UCC2807J-3 Related Products

	UCC2807J-3	UCC2807J-1	UCC1807J-1	UCC2807N-3	UCC1807J-3	UCC2807J-2
Description	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, PDIP8,	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,	Switching Controller, Current-mode, 1A, 1000kHz Switching Freq-Max, BICMOS, CDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	12 V	12 V	12 V	12 V	12 V	12 V
Minimum input voltage	4.3 V	7.5 V	7.5 V	4.3 V	4.3 V	9 V
Nominal input voltage	10 V	10 V	10 V	10 V	10 V	10 V
JESD-30 code	R-CDIP-T8	R-CDIP-T8	R-CDIP-T8	R-PDIP-T8	R-CDIP-T8	R-CDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A
Nominal output voltage	2 V	2 V	2 V	2 V	2 V	2 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	2.1 mA	2.1 mA	2.1 mA	2.1 mA	2.1 mA	2.1 mA
surface mount	NO	NO	NO	NO	NO	NO
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
