BAS70-06B5000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70-06B5000

BAS70-06B5000: DescriptionRectifier Diode, Schottky, 2 Element, 0.07A, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size214KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS70-06B5000 Overview

Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, SOT-23, 3 PIN

BAS70-06B5000 Parametric

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	1 week
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Number of components	2
Number of terminals	3
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

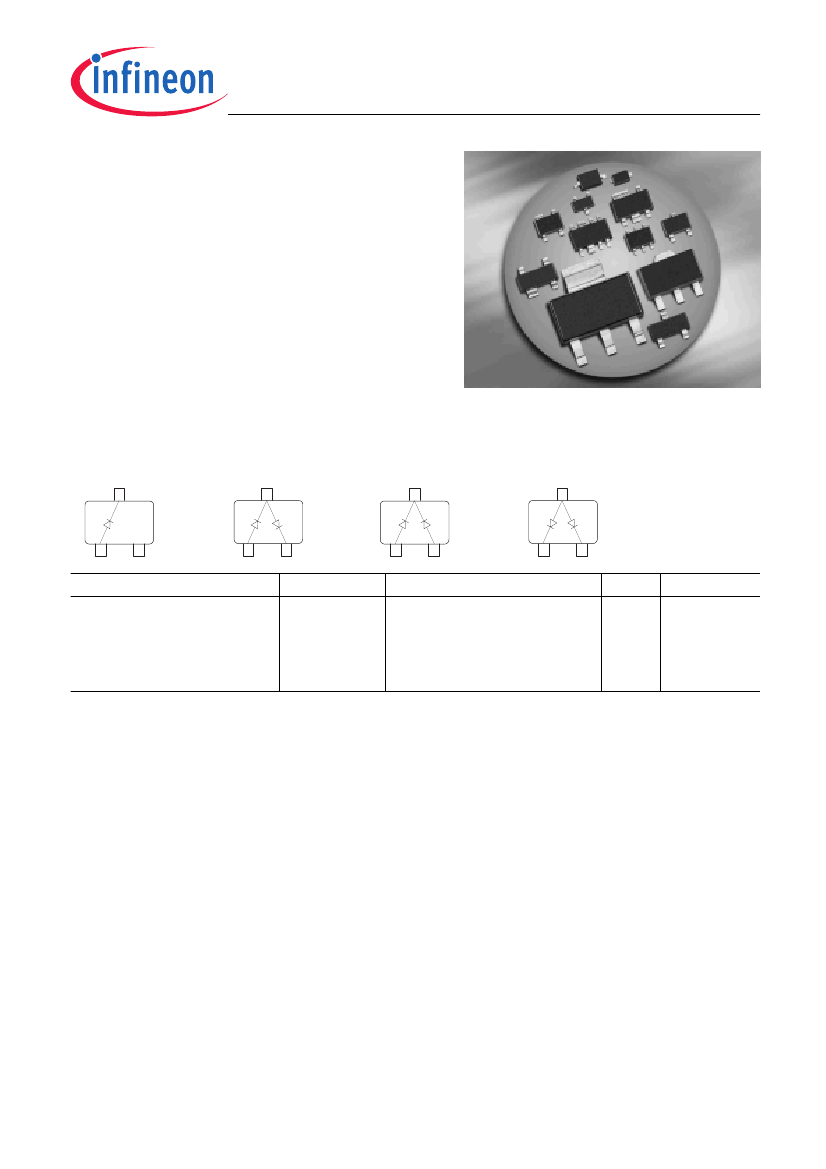

BAS70...B5000 / B5003

Silicon Schottky Diode

•

General-purpose diode for high-speed switching

•

Circuit protection

•

Voltage clamping

•

High-level detecting and mixing

•

Improved operating temperature range

due to extra-low thermal resistance

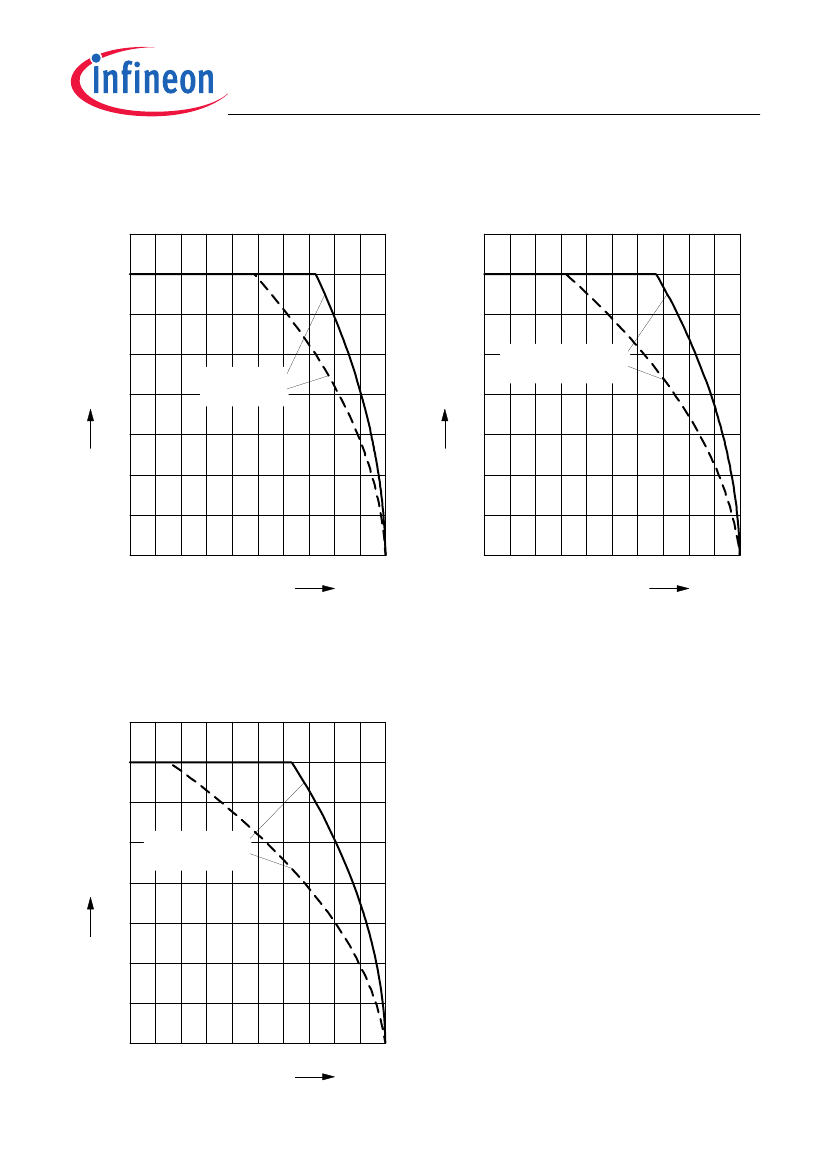

(see attached Forward current curves)

•

High volume packing size:

B5000: 9 x 10kreels, B5003: 10 x 3k reels

•

Not for automotive applications*

BAS70

BAS70-04

BAS70-05

BAS70-06

D 1

D 2

D 1

D 2

D 1

D 2

Type

BAS70

BAS70-04

BAS70-05

BAS70-06

Package

SOT23

Configuration

single

series

common cathode

common anode

(nH)

1.8

Marking

73s

74s

75s

76s

* Automotive qualification ongoing

2006-08-04

BAS70-06B5000 Related Products

	BAS70-06B5000	BAS70-05B5000	BAS70-04B5000	BAS70B5000
Description	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.07A, Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 1 Element, 0.07A, Silicon, SOT-23, 3 PIN
Maker	Infineon	Infineon	Infineon	Infineon
Parts packaging code	SOT-23	SOT-23	SOT-23	SOT-23
package instruction	SOT-23, 3 PIN	SOT-23, 3 PIN	SOT-23, 3 PIN	R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3
Number of components	2	2	2	1
Number of terminals	3	3	3	3
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
