Air Dielectric Trimmer Capacitors
Series MAV
The MAV range of air dielectric trimmers are specifi-
cally designed for high frequency applications that
demand extreme stability and a high 'Q' under severe
environmental conditions in a small physical size.
The internal shells are silver plated to provide optimum
surface conductivity and long life. A guiding element
maintains the rotor concentricity under extremes of
shock and vibration, and a rubber gasketted threaded
end cap provides seal against moisture and contami-
nants. All terminals are gold plated for optimum high
frequency conductivity and dependable solderability.
Solder coating on terminals is offered as an option.
The "Top-Tuned" styles were developed to enable the
more efficient use of mounting space in miniature
U.H.F
.circuits and are tuned at right angles to the mount-
ing surface. In addition to the standard model special
units can be manufactured which are designated with the
prefix SAV. For further information contact our Technical
Department.
Physical Specifications:
General Electrical Data
❐
❐
❐
❐
❐
❐
❐
❐
❐
Meet or exceed all requirements of MIL-C-14409
Insulation resistance at 25°C > 10
6
megohms.
Capacitance range: 0.4 - 30pF at 1 MHz
Operating temperature range: -55°C to 125°C.
Typical contact resistance: < 6milliohms throughout
capacitance range.
Working Voltage: 250V d.c.
Dielectric Test Voltage: 500V d.c.
'Q' Typically above 1,000 at 100 MHz and
25°C at Maximum Rated Capacitance
UHF to Microwave Frequencies
❐
Tuning Torque: 0.3 - 3.0 ounce - inch (2.1-21mN.m)
for MAV 01 and 0.5 - 6.0 ounce - inch (3.5-42mN.m)
for MAV 02 - MAV 05
❐
Body - Alumina.
❐
Terminal and leads - Brass, Gold plated.
❐
Unless otherwise specified, tolerances are:
1. For dimensions
≤
.124 (3.15mm):
±.
005 (0.12 mm)
2. For dimensions
≥
.125 (3.17mm):
±.
015 (0.4 mm)
❐
Adjustment: Use screwdriver tip: 015 inch (.38 mm)
max. wide - .075 inch (1.9 mm) max. long.- only for
MAV 01, for others use screw driver tip .017 inch
(0.43mm) max. wide, .160 inch (4.0mm) max long.
❐

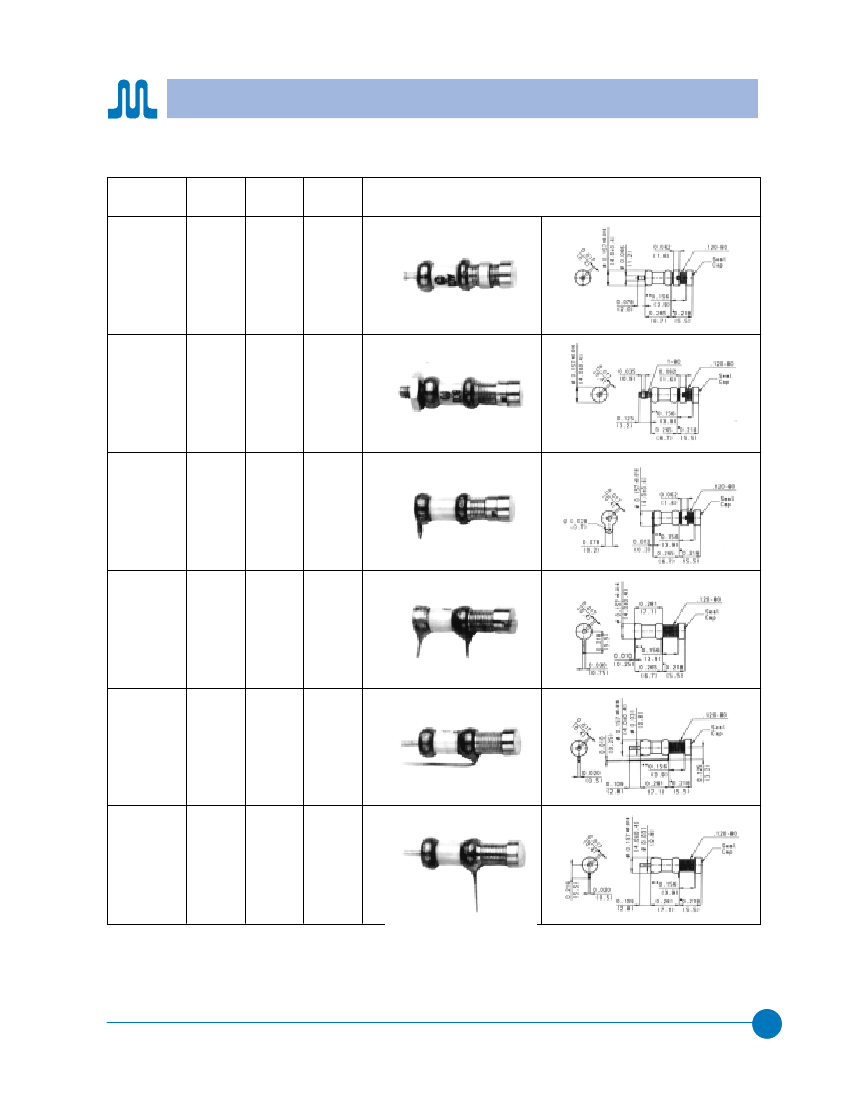

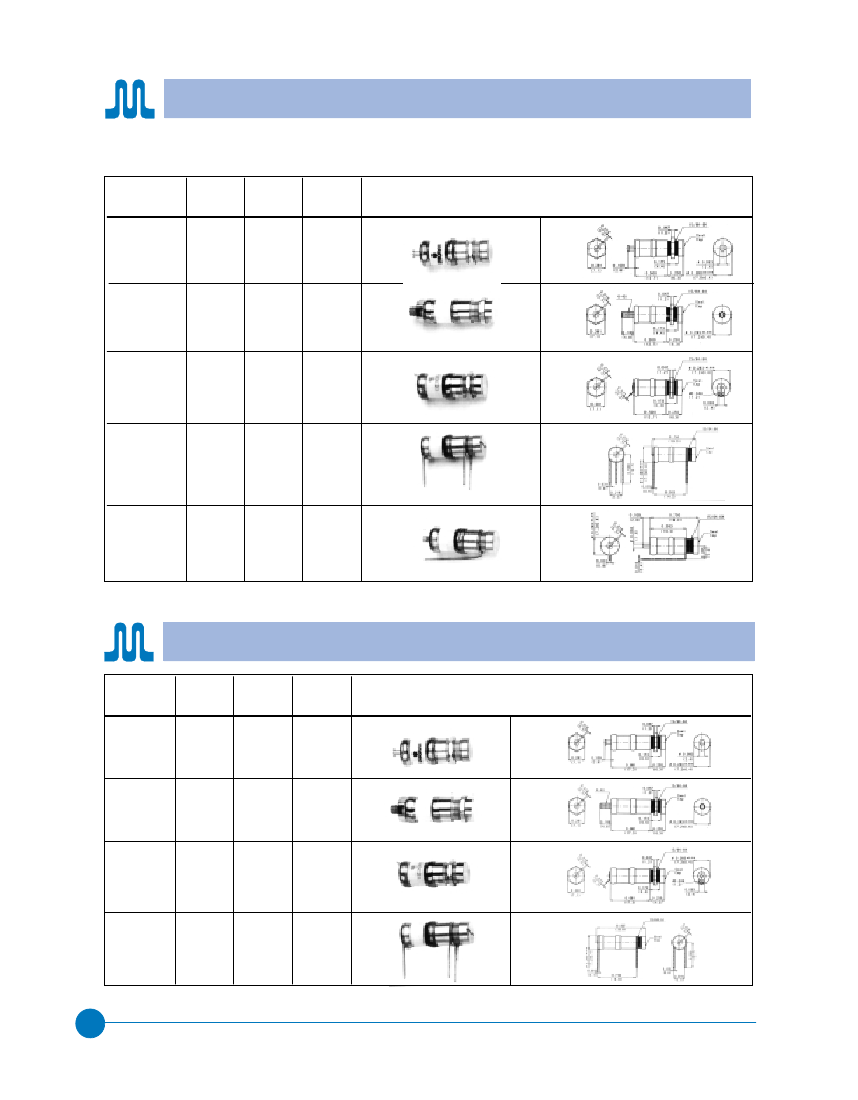

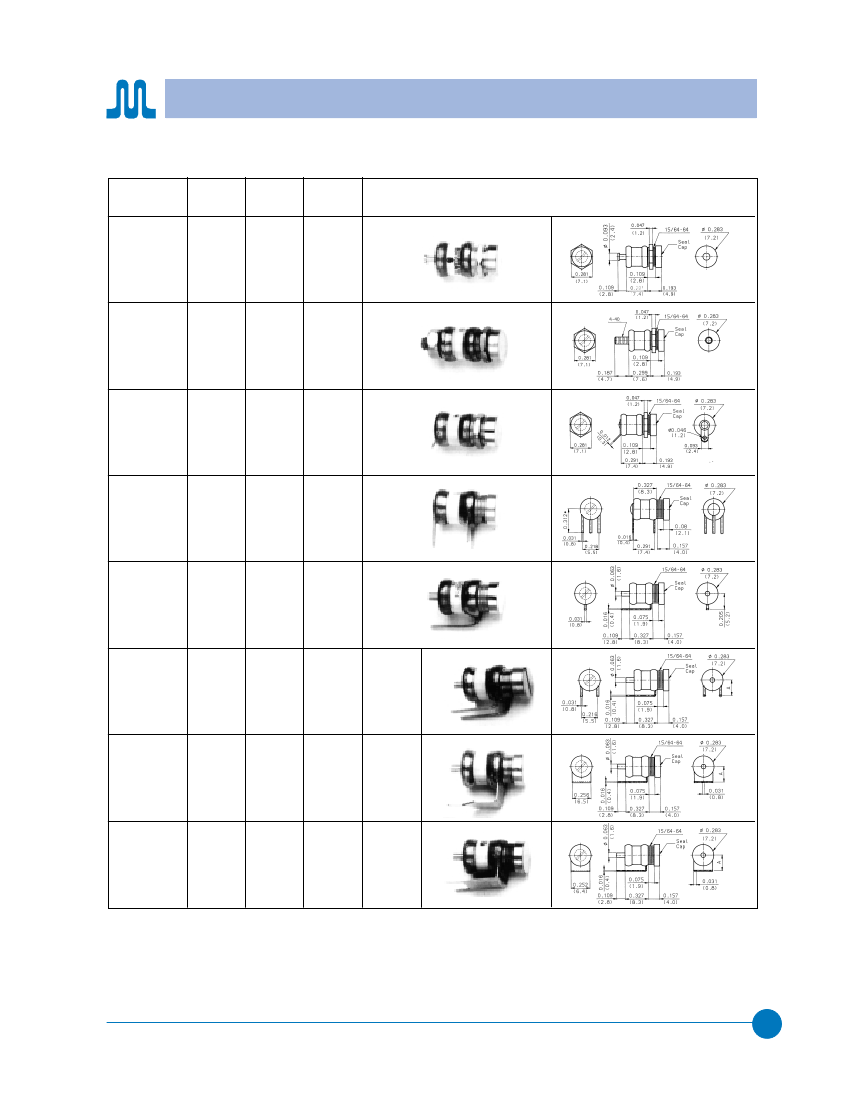

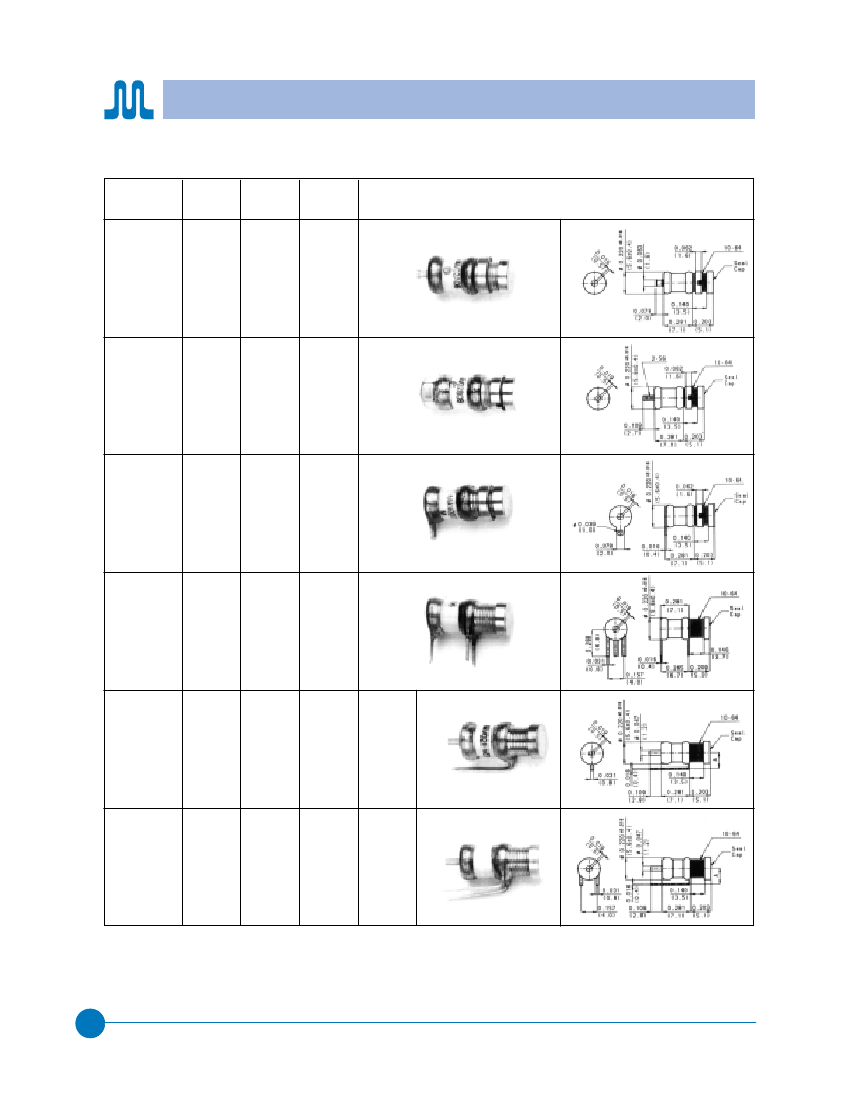

Panel Mount or Printed Circuit Mounting.
Standard marking &
MAV Ordering Information
MAV
Series
01
Size Code
01
02
03
04
05
A
Mounting configuration
A- Panel Mount with
Turret Terminal
B- Panel Mount with
Threaded Terminal
C- Panel mount
with lug terminal
D- Printed circuit
Horizontal Mounting
E- Top Tuned
F- 3 Pin Printed Circuit
Mounting Top Tuned
G- 2 Pin Printed Circuit
Mounting Ribbon
Lead Top Tuned
H- 2 Pin Printed Circuit
Mounting Ribbon Lead
I- 3 Lead Printed Circult
Mounting Top Tuned
K- 3 Pin Printed Circult
Mounting Ribbon Lead
Top Tuned
L- 3 Pin Printed Circult
Mounting Ribbon Lead
Top Tuned
N- 2 Pin Printed Cirult
Mounting Top Tuned
P- Printed Circuit Mounting
With Horizontal Lead
03
Maximum
Capacitance
in pF (to the
.
nearest digit)
SC
Slotted cap
Note: Allow an
increase
In overall length
of 0.028 Inches
(0.7 mm).
14
