CO418-10-FREQ-TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO418-10-FREQ-TR

CO418-10-FREQ-TR: DescriptionCMOS Output Clock Oscillator, 1.544MHz Min, 100MHz Max, ROHS COMPLIANT, ULTRA SMALL PACKAGE-4; CategoryPassive components oscillator; File Size791KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO418-10-FREQ-TR Overview

CMOS Output Clock Oscillator, 1.544MHz Min, 100MHz Max, ROHS COMPLIANT, ULTRA SMALL PACKAGE-4

CO418-10-FREQ-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; EXTENDED TEMPERATURE RANGE -40 TO 85 DEG C AVAILABLE; TAPE AND REEL
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	CO418
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.5mm x 5.0mm x 1.8mm
longest rise time	6 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

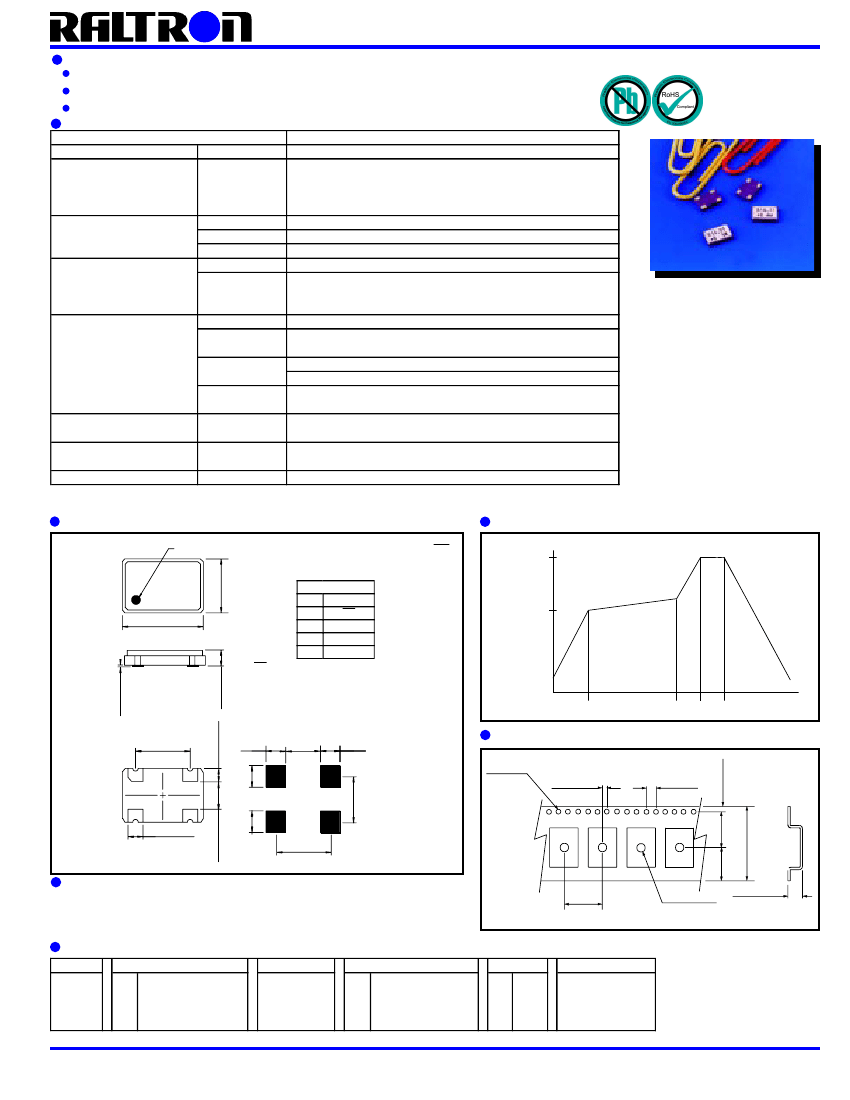

SURFACE MOUNT CLOCK OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE

EXCELLENT FOR HIGH DENSITY PACKAGING

STANDBY CURRENT

SPECIFICATIONS

SERIES

FREQUENCY RANGE

FREQUENCY STABILITY

OPERATING

EXTENDED

STORAGE

VOLTAGE

CURRENT

LOAD

SYMMETRY

OUTPUT

LEVEL

RISE/FALL TIME

(20% TO 80%)

STANBY CURRENT

ENABLE/DISABLE

FUNCTION

START-UP TIME

CO418

1.544 MHz TO

100.00

MHz

±100 PPM

±50 PPM

-10°C TO +70°C

-40°C TO +85°C

-55°C TO +125°C

1.8 VDC ±5%

1.544 MHz TO 25.000 MHz: 3 mA MAX

25.001 MHz TO 40.000 MHz: 4 mA MAX

40.001 MHz TO

100.000

MHz: 8 mA MAX

15 pF CMOS MAX, 30 pF & 50 pF CMOS availble

NORMAL: 40% TO 60%

TIGHT: 45% TO 55%

LOGIC "0": 0.18 VDC MAX

LOGIC "1": 1.62 VDC MAX

1.544 MHz TO 35.000 MHz: 6 ns MAX (20%~80%, CMOS load)

35.001 MHz TO

100.000

MHz: 3 ns MAX (0.4V~2.4V, TTL load)

1.544 MHz TO 35.000 MHz: 100µA MAX

35.001 MHz TO

100.000

MHz: 10µA MAX

PIN 1: HIGH(+1.62 VDC MIN) PIN3: ENABLED

PIN1: LOW(+0.18 VDC MAX) PIN3: DISABLED(HIGH IMPEDANCE)

10 ms MAX

SERIES CO418

TEMPERATURE RANGE

INPUT

† INCLUSIVE OF 25°C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES, AGING, SHOCK AND VIBRATION

* CONSULT RALTRON FOR SPECIFICATIONS

OUTLINE DRAWING

PIN 1 LOCATION

Scale none Dimension in

inch

REFLOW SOLDERING PROFILE

.197 ± 0.008

240 °C

REFLOW

5.0 ± 0.2

MARKING

AREA

CO43/46 SERIES

FUNCTION

INH

GROUND

OUTPUT

VDD

TEMPERATURE

PREHEATING

150 °C

COOLING

7.5 MAX

.295 MAX

0.05 MAX

.002 MAX

1.8 MAX

.070 MAX

INH: HI OR OPEN-Fout LOW-OSCILLATION STOPS

25 °C

100 s TYPICAL

10 s

TIME (SECONDS)

.043 ± .005

1.1 ± 0.12

5.08 ± 0.12

.200 ± .005

.082

1.5 ± 0.1

059 ± .004

2.60 ± 0.12

.102 ± .005

1.4 ± 0.12

.055 ± .005

5.08

.200

PACKAGING

254 mm REEL DIAMETER, 16mm TAPE WIDTH, 8mm PITCH

QUANTITY: 1000 PIECES PER REEL

PART NUMBERING SYSTEM

FREQUENCY STABILITY

FREQUENCY

±100 PPM

- 05

±50 PPM

CO418

IN MHz

025

±25 PPM

020

±20 PPM

EXAMPLE: CO41810-32.000-TR, CO418025-52.000-T-TR

SERIES

OPTION

OUTPUT

6.75

.266

8.0±0.1

.315±.004

1.5 ± 0.1 DIA

.059 ± .004 DIA

2.16 ± 0.1

.085 ± .004

TAPE AND REEL

TIGHT SYMMETRY - L30 30 pF -

(45% TO 55%)

L50 50 pF

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

.630 ± .012

7.5 ± 0.1

.082

2.1

.295 ± .004

16.0 ± 0.3

.165

4.2

2.0 ± 0.1

.079 ± .004

4.0 ± 0.1

.157 ± .004

1.75 ± 0.1

.069 ± .004

1.8

.071

3.28

.129

1.8

.071

CARRIER TAPE DIMENSIONS

2.1
