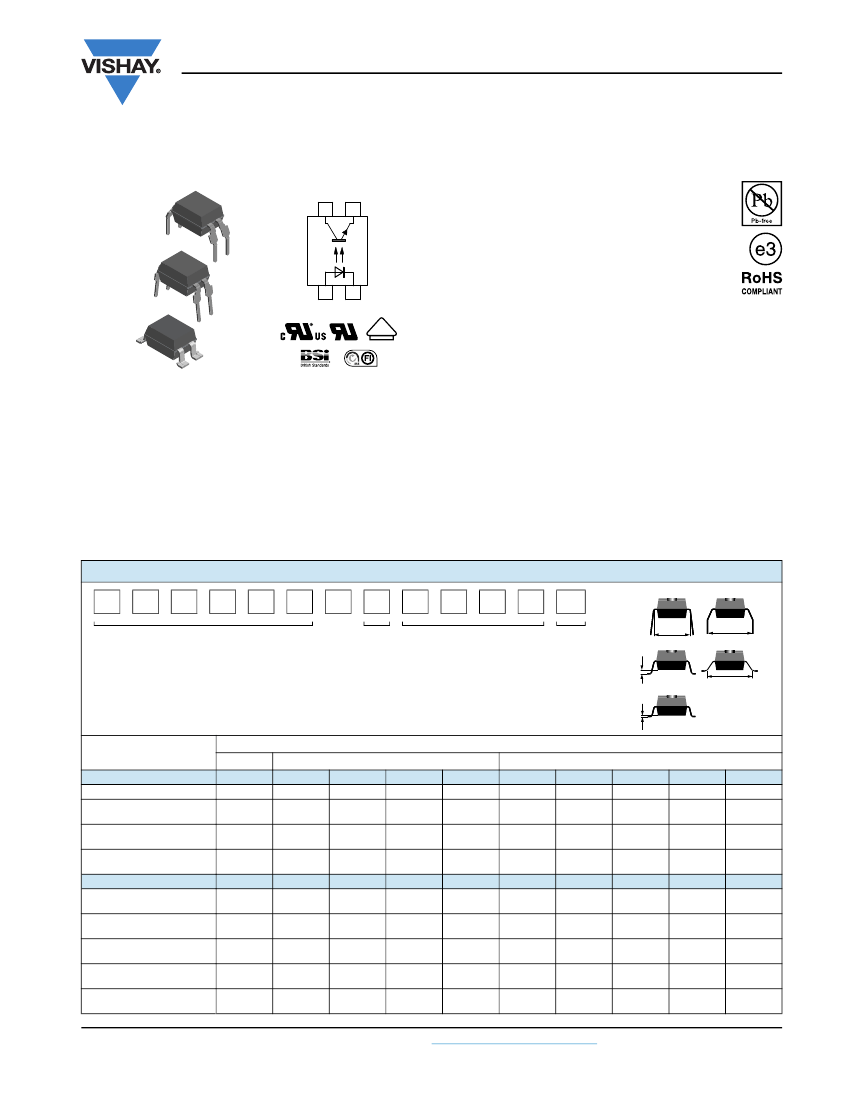

VO615A
Vishay Semiconductors
Optocoupler, Phototransistor Output,
High Temperature, 110 °C Rated
C
E
FEATURES
•
•
•
•
•
•
•
•
•
•
•
CTR offered in 9 groups
Isolation materials according to UL 94 V-0
Pollution degree 2 (DIN/VDE 0110/resp. IEC 60664)
Climatic classification 55/110/21 (IEC 60068 part 1)
Temperature range - 55 °C to + 110 °C
Rated impulse voltage (transient overvoltage)
V
IOTM
= 6 kV
peak
Isolation test voltage (partial discharge test voltage) V
pd
= 1.6 kV
Rated isolation voltage (RMS includes DC) V
IOWM
= 600 V
RMS
Rated recurring peak voltage (repetitive) V
IORM
= 850 V
peak
Creepage current resistance according to VDE 0303/ IEC 60112
comparative tracking index: CTI
≥
250
Compliant to RoHS Directive 2002/95/EC
17918_4
1
A
C
V
D E
17918_10
DESCRIPTION
The VO615A consists of a phototransistor optically coupled
to a gallium arsenide infrared-emitting diode in a 4 pin
plastic dual inline package.
APPLICATIONS
Circuits for safe protective separation against electrical
shock according to safety class II (reinforced isolation):
• for appl. class I - IV at mains voltage
≤
300 V
• for appl. class I - IV at mains voltage
≤
600 V according to
table 1 of IEC 60664-1, suitable for:
- Switch-mode power supplies
- Line receiver
- Computer peripheral interface
- Microprocessor system interface
AGENCY APPROVALS
•
•
•
•
•
BSI: EN 60065:2002, EN 60950-1:2006
DIN EN 60747-5-2 (VDE 0884)
FIMKO
UL file no. E52744
cUL tested to CSA 22.2 bulletin 5A
ORDERING INFORMATION
DIP
Option 6
V
O
6
1
5
A
-
X
CTR
BIN
X
0
#
#
T
TAPE
AND
REEL
7.62 mm
Option 7
10.16 mm
PART NUMBER
PACKAGE OPTION
Option 8
9.27 mm
> 0.7 mm
Option 9
> 0.1 mm
AGENCY CERTIFIED/
PACKAGE
CTR (%)
5 mA
10 mA
5 mA
BSI, FIMKO, UL, cUL
50 to 600 40 to 80 63 to 125 100 to 200 160 to 320 50 to 150 100 to 300 80 to 160 130 to 260 200 to 400
DIP-4
VO615A VO615A-1 VO615A-2 VO615A-3 VO615A-4 VO615A-5 VO615A-6 VO615A-7 VO615A-8 VO615A-9
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
DIP-4, 400 mil, option 6
-X006
-1X006
-2X006
-3X006
-4X006
-5X006
-6X006
-7X006
-8X006
-9X006
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
SMD-4, option 7
-X007T
-1X007T
-2X007T
-3X007T
-4X007T
-5X007T
-6X007T
-7X007T
-8X007T
-9X007T
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
-
-
SMD-4, option 9
-X009T
-1X009T
-2X009T
-3X009T
-4X009T
-5X009T
-6X009T
-7X009T
VDE, BSI, FIMKO, UL, cUL 50 to 600 40 to 80 63 to 125 100 to 200 160 to 320 50 to 150 100 to 300 80 to 160 130 to 260 200 to 400
VO615A
VO615A
VO615A
VO615A
VO615A
-
-
-
-
-
DIP-4
-8X001
-6X001
-3X001
-X001
-1X001
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
-
-
DIP-4, 400 mil, option 6
-
-
-8X016
-9X0016
-2X016
-3X016
-4X016
-5X016
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
VO615A
-
-
-
SMD-4, option 7
-8X017T -9X017T
-6X017T
-3X017T -4X017T
-X017T
-1X017T
VO615A
VO615A
-
-
-
-
-
SMD-4, option 8
-
-
-
-3X018T -4X018T
VO615A
VO615A
VO615A
-
-
-
-
-
SMD-4, option 9
-
-
-2X019T -3X019T -4X019T
Document Number: 81753
Rev. 1.5, 09-Nov-10
For technical questions, contact:
optocoupleranswers@vishay.com
www.vishay.com
1
VO615A
Vishay Semiconductors
Optocoupler, Phototransistor Output,
High Temperature, 110 °C Rated
ABSOLUTE MAXIMUM RATINGS
PARAMETER
INPUT
Reverse voltage
Forward current
Forward surge current
LED power dissipation
OUTPUT
Collector emitter voltage
Emitter collector voltage
Collector current
Collector peak current
Output power dissipation
COUPLER
Isolation test voltage (RMS)
Operating ambient temperature range
Storage temperature range
Soldering temperature
(2)
2 mm from case,
≤
10 s
t=1s
V
ISO
T
amb
T
stg
T
sld
5000
- 55 to + 110
- 55 to + 125
260
V
RMS
°C
°C
°C
t
p
/T = 0.5, t
p
≤
10 ms
at 25 °C
V
CEO
V
ECO
I
C
I
CM
P
diss
70
7
50
100
70
V
V
mA
mA
mW
t
p
≤
10 μs
at 25 °C
V
R
I
F
I
FSM
P
diss
6
60
1.5
70
V
mA
A
mW
(1)
(T
amb
= 25 °C, unless otherwise specified)
SYMBOL
VALUE
UNIT
TEST CONDITION
Notes
(1)
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not
implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
maximum ratings for extended periods of the time can adversely affect reliability.
(2)
Refer to reflow profile for soldering conditions for surface mounted devices (SMD). Refer to wave profile for soldering conditions for through
hole devices (DIP).
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
INPUT
Forward voltage
Junction capacitance
OUTPUT
Collector emitter voltage
Emitter collector voltage
Collector emitter cut-off current
COUPLER
Collector emitter saturation voltage
Cut-off frequency
Coupling capacitance
I
F
= 10 mA, I
C
= 1 mA
V
CE
= 5 V, I
F
= 10 mA,
R
L
= 100
Ω
f = 1 MHz
V
CEsat
f
c
C
k
110
0.6
0.3
V
kHz
pF
I
C
= 1 mA
I
E
= 100 μA
V
CE
= 20 V, I
F
= 0
V
CEO
V
ECO
I
CEO
70
7
10
100
V
V
nA
I
F
= 50 mA
V
R
= 0, f = 1 MHz
V
F
C
j
1.25
50
1.6
V
pF
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering
evaluation. Typical values are for information only and are not part of the testing requirements.
www.vishay.com
2
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 81753
Rev. 1.5, 09-Nov-10
VO615A
Optocoupler, Phototransistor Output,
Vishay Semiconductors
High Temperature, 110 °C Rated
CURRENT TRANSFER RATIO
PARAMETER
TEST CONDITION
PART
VO615A-1
VO615A-2
VO615A-3
VO615A-4
VO615A
VO615A-5
VO615A-6
VO615A-7
VO615A-8
VO615A-9
VO615A-1
VO615A-2
VO615A-3
VO615A-4
SYMBOL
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
MIN.
13
22
34
56
50
50
100
80
130
200
40
63
100
160
TYP.
30
45
70
90
600
150
300
160
260
400
80
125
200
320
MAX.
UNIT
%
%
%
%
%
%
%
%
%
%
%
%
%
%
V
CE
= 5 V, I
F
= 1 mA
I
C
/I
F
V
CE
= 5 V, I
F
= 5 mA
V
CE
= 5 V, I
F
= 10 mA
SAFETY AND INSULATION RATED PARAMETERS
PARAMETER
Partial discharge test voltage -
routine test
Partial discharge test voltage -
lot test (sample test)
TEST CONDITION
100 %, t
test
= 1 s
t
Tr
= 60 s, t
test
= 10 s,
(see figure 2)
V
IO
= 500 V
Insulation resistance
V
IO
= 500 V, T
amb
= 100 °C
V
IO
= 500 V, T
amb
= 150 °C
(construction test only)
Rated impulse voltage
Max. working voltages
Forward current
Power dissipation
Safety temperature
Creepage distance
Recurring peak voltage
SYMBOL
V
pd
V
pd
R
IO
R
IO
R
IO
V
IOTM
V
IORM
I
F
P
diss
T
si
850
130
265
150
7.6
MIN.
1.6
1.36
10
12
10
11
10
9
6
TYP.
MAX.
UNIT
kV
kV
Ω
Ω
Ω
kV
V
mA
mW
°C
mm
Note
• According to DIN EN 60747-5-2 (VDE 0884) (see figure 2). This optocoupler is suitable for safe electrical isolation only within the safety
ratings. Compliance with the safety ratings shall be ensured by means of suitable protective circuits.
P
tot
- Total Power Dissipation (mW)
300
250
200
Phototransistor
P
si
(mW)
V
IOTM
t
1
, t
2
t
3
, t
4
t
test
t
stres
V
Pd
= 1 to 10 s
=1s
= 10 s
= 12 s
150
100
50
0
0
25
50
75
100
125
IR-diode
I
si
(mA)
V
IOWM
V
IORM
0
t
3
t
test
t
4
t
1
t
Tr
= 60 s
t
2
t
stres
t
150
13930
94 9182
T
si
- Safety Temperature (°C)
Fig. 1 - Derating Diagram
Fig. 2 - Test Pulse Diagram for Sample Test According to
DIN EN 60747-5-2 (VDE 0884); IEC 60747-5-5
www.vishay.com
3
Document Number: 81753
Rev. 1.5, 09-Nov-10
For technical questions, contact:
optocoupleranswers@vishay.com
VO615A
Vishay Semiconductors
Optocoupler, Phototransistor Output,
High Temperature, 110 °C Rated
SWITCHING CHARACTERISTICS
PARAMETER
Delay time
Rise time
Fall time
Storage time
Turn-on time
Turn-off time
Turn-on time
Turn-off time
TEST CONDITION
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω,
(see figure 3)
V
S
= 5 V, I
F
= 10 mA, R
L
= 1 kΩ,
(see figure 4)
V
S
= 5 V, I
F
= 10 mA, R
L
= 1 kΩ,
(see figure 4)
SYMBOL
t
d
t
r
t
f
t
s
t
on
t
off
t
on
t
off
MIN
TYP.
3
3
4.7
0.3
6
5
3
10
MAX
UNIT
μs
μs
μs
μs
μs
μs
μs
μs
I
F
I
F
0
I
F
+5V
0
I
C
= 2 mA; adjusted through
input amplitude
I
C
100 %
90 %
t
p
t
R
G
= 50
Ω
t
p
= 0.01
T
t
p
= 50 µs
Channel I
Channel II
50
Ω
95 10804
Oscilloscope
R
L
= 1 MΩ
C
L
= 20 pF
10 %
0
t
r
t
d
t
on
t
p
t
d
t
r
t
on
(= t
d
+ t
r
)
Pulse duration
Delay time
Rise time
Turn-on time
t
s
t
f
t
off
t
s
t
f
t
off
(= t
s
+ t
f
)
Storage time
Fall time
Turn-off time
96 11698
t
100
Ω
Fig. 3 - Test Circuit, Non-Saturated Operation
Fig. 5 - Switching Times
I
F
0
I
F
= 10 mA
+5V
I
C
R
G
= 50
Ω
t
p
= 0.01
T
t
p
= 50 µs
Channel I
Channel II
50
Ω
95 10843
Oscilloscope
R
L
≥
1 MΩ
C
L
≤
20 pF
1 kΩ
Fig. 4 - Test Circuit, Saturated Operation
www.vishay.com
4
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 81753
Rev. 1.5, 09-Nov-10
VO615A
Optocoupler, Phototransistor Output,
Vishay Semiconductors
High Temperature, 110 °C Rated

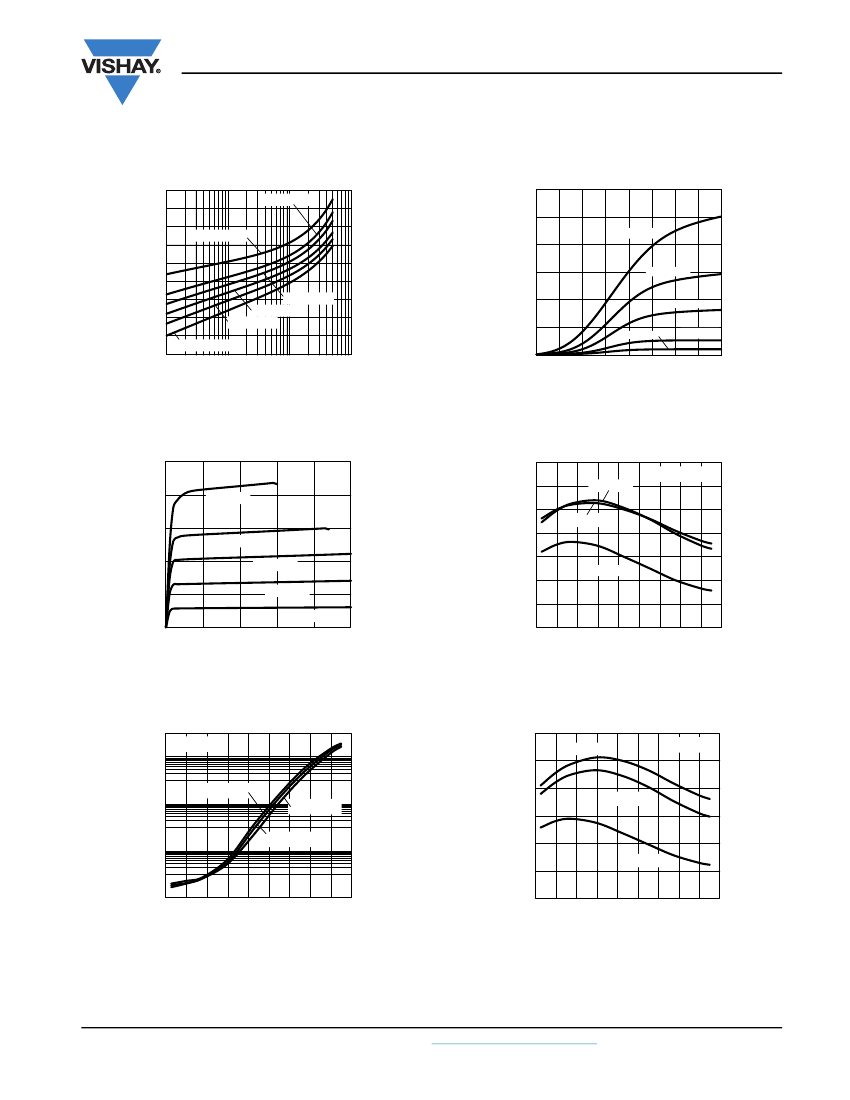

TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
1.6
30
T
amb
= 0 °C
I
C
- Collector Current (mA)
V
F
- Forward Voltage (V)
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.1
T
amb
= 110 °C
T
amb
= - 55 °C
25
I
F
= 25 mA
20
15
10
5
I
F
= 1 mA
I
F
= 10 mA
T
amb
= 25 °C
T
amb
= 50 °C
T
amb
= 75 °C
I
F
= 5 mA
I
F
= 2 mA
0
10
100
22329
1
0
0.1
0.2
0.3
0.4
22326
I
F
- Forward Current (mA)
V
CE
- Collector Emitter Voltage (sat) (V)
Fig. 6 - Forward Voltage vs. Forward Current
Fig. 9 - Collector Current vs. Collector Emitter Voltage (sat)
N
CTR
- Normalized CTR (sat) (%)
25
1.4
V
CE
= 0.4 V
1.2
1.0
I
F
= 5 mA
I
F
= 10 mA
I
C
- Collector Current (mA)
20
15
I
F
= 30 mA
I
F
= 20 mA
0.8
0.6
I
F
= 1 mA
10
5
0
0
2
4
I
F
= 15 mA
I
F
= 10 mA
I
F
= 5 mA
0.4
0.2
0
- 60 - 40 - 20 0
6
8
10
22330
20
40
60
80 100 120
22327
V
CE
- Collector Emitter Voltage (NS) (V)
T
amb
- Ambient Temperature (°C)
Fig. 7 - Collector Current vs. Collector Emitter Voltage (NS)
Fig. 10 - Normalized CTR (sat) vs. Ambient Temperature
I
CE0
- Leakage Current (nA)
I
F
= 0 mA
1000
N
CTR
- Normalized CTR (NS) (%)
1.2
I
F
= 10 mA
V
CE
= 5 V
1.0
0.8
I
F
= 5 mA
V
CE
= 40 V
10
V
CE
= 12 V
V
CE
= 24 V
0.1
0.6
0.4
I
F
= 1 mA
0.2
0
- 60 - 40 - 20 0
20 40 60 80 100 120
0.001
- 60 - 40 - 20 0
22328
20
40
60
80 100 120
22331
T
amb
- Ambient Temperature (°C)
T
amb
- Ambient Temperature (°C)
Fig. 8 - Leakage Current vs. Ambient Temperature
Fig. 11 - Normalized CTR (NS) vs. Ambient Temperature
Document Number: 81753
Rev. 1.5, 09-Nov-10
For technical questions, contact:
optocoupleranswers@vishay.com
www.vishay.com
5
京公网安备 11010802033920号
EEWORLD
