0.4
mm
Pitch
Series
Series
Stacking Height
Pitch
No. of Positions
Rated Current)
Rated Voltage
D.W.Voltage
Contact Material)
Insulator Material)
Operating Temperature)
5801
5801
0.8mm
0.4mm
10
80
AC/DC 0.3A
AC/DC 50V
AC 250Vrms/min.
Copper alloy
Heat resistance plastic
40
85
SERIES 5801
5801
0.8mm
PHS
AV
5.0mm
0.4mm
Outline

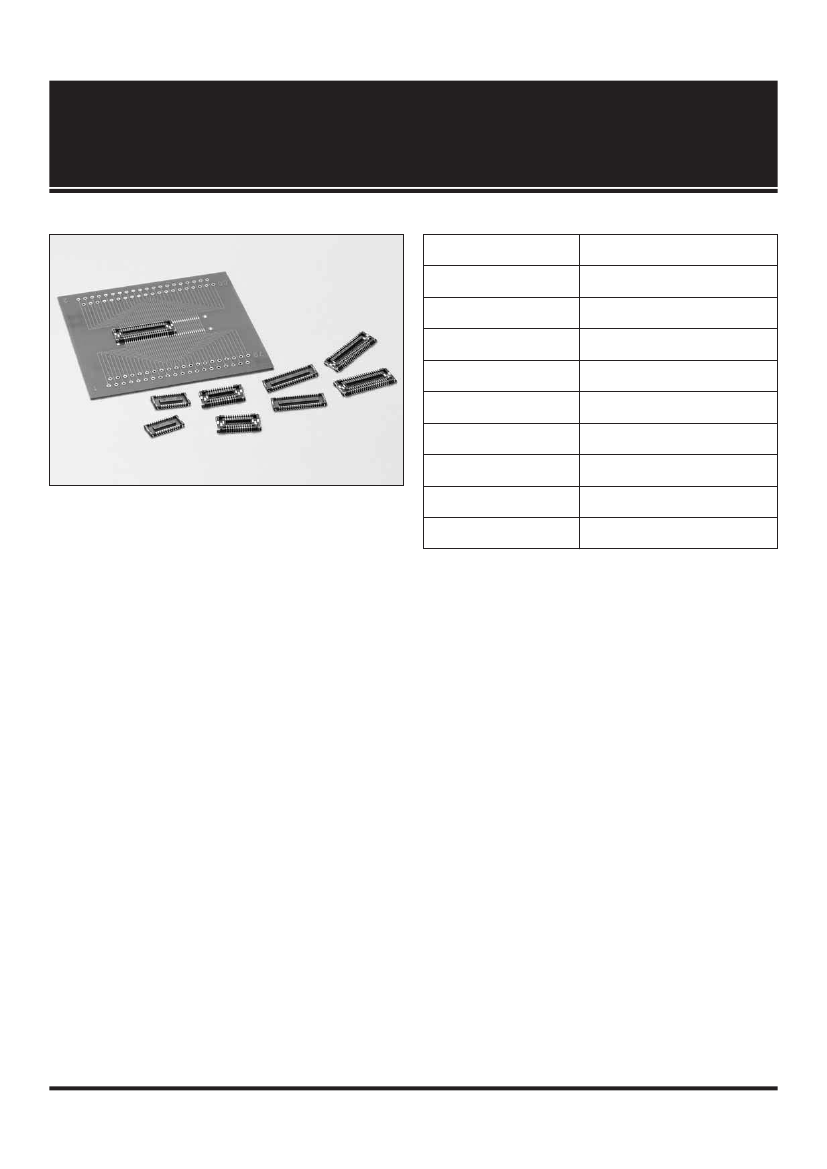

Series 5801 is a 0.4mm pitch Board to Board connector to meet the
market requirement for downsizing and thinner tendency in
cellular phones, PHS, and Digital AV apparatus. 0.8mm in stacki
ng height and 5.0mm in width including tails are realized.
(1)
(2)
(3)
(4)
(5)
(6)
S
H=0.8
FINE-LOCK
GROUND
POWER
Features
(1) KEC-unique S-shaped spring is adopted for the spring structure, which realizes the lowest profile of 0.8mm in this field.
(2) Because no part of pins were exposed owing to the bottom wall of the connector in spite of its slim and low profile, a pattern
can be laid between lands of tail rows, which enables less limited pattern layouts on boards.
(3) The pinching structure, highly resistant to vibration and drop shock, is adopted in contacts and the original structure exclud-
ing splashed flux or foreign matters attached is adopted on contacting points in order to obtain high contacting reliability.
(4) "Fine locking mechanism" adopted for mating structure realizes the nice clicking response and firm retention force against
unmating despite of the ultra low profile.
(5) The metal tab reinforces the locking strength and is utilized for electrical connection such as "Ground", "Power" line or
so.
(6) A checker connector to be mated with a connector is also available to check electrical continuity or short circuit of the
connector.
Recommended plating types are mentioned in this catalogue.
For other plating types and their specifications, and available
num-
bers of positions, please feel free to contact our sales depart
ment.

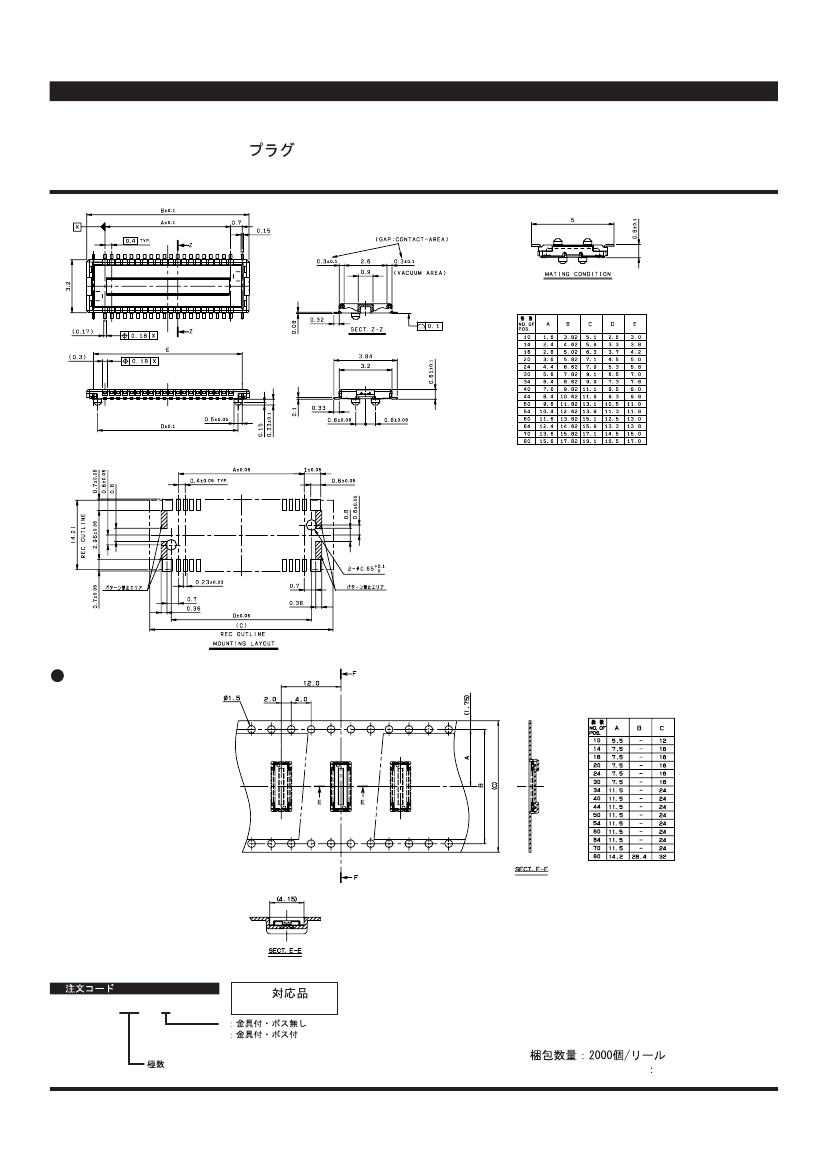

0.4mm Pitch
SERIES
5801
ST SMT
Plug Vertical SMT
PATTERN
NON-EXPOSURE
AREA
PATTERN
NON-EXPOSURE
AREA
Tape & Reel Package
ORDERING CODE
14 5801 0XX 00X 829+
2
3
RoHS
RoHS Compliant Product
With metal tab, Without boss
With metal tab and boss
注）生産可½極数については営業部にご確認願います。
Note) Feel free to contact our sales department
for available numbers of positions.
Number of positions
PACKING QUANTITY 2000 /Reel

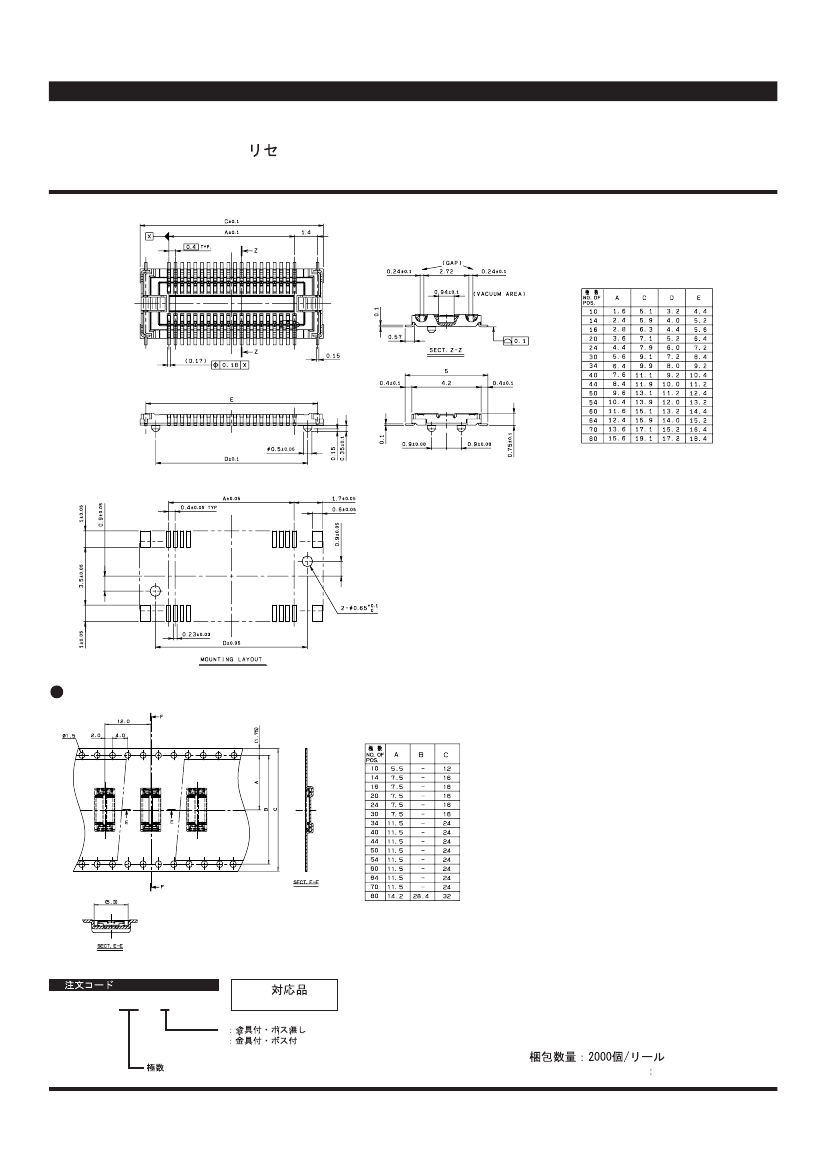

0.4mm Pitch
SERIES
5801
ST SMT
Receptacle Vertical SMT
Tape & Reel Package
ORDERING CODE
24 5801 0XX 00X 829+
2
3
RoHS
RoHS Compliant Product
With metal tab, Without boss
With metal tab and boss
注）生産可½極数については営業部にご確認願います。
Note) Feel free to contact our sales department
for available numbers of positions.
Number of positions
PACKING QUANTITY 2000 /Reel
