1461185 datasheet, PDF - EEWORLD Datasheet

1461185: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.025A (COIL), 12VDC (COIL), 300mW (COIL), 1A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size119KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

1461185 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.025A (COIL), 12VDC (COIL), 300mW (COIL), 1A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

Parameter Name	Attribute value
Maximum operating temperature	80 Cel
Minimum operating temperature	-30 Cel
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
seal	RT3
Coil power	300 mW
Relay action	Transient
Relay function	SPDT
Coil resistance	480 ohm
Electrical life	100000 Cycle(s)
terminal coating	NOT APPLICABLE

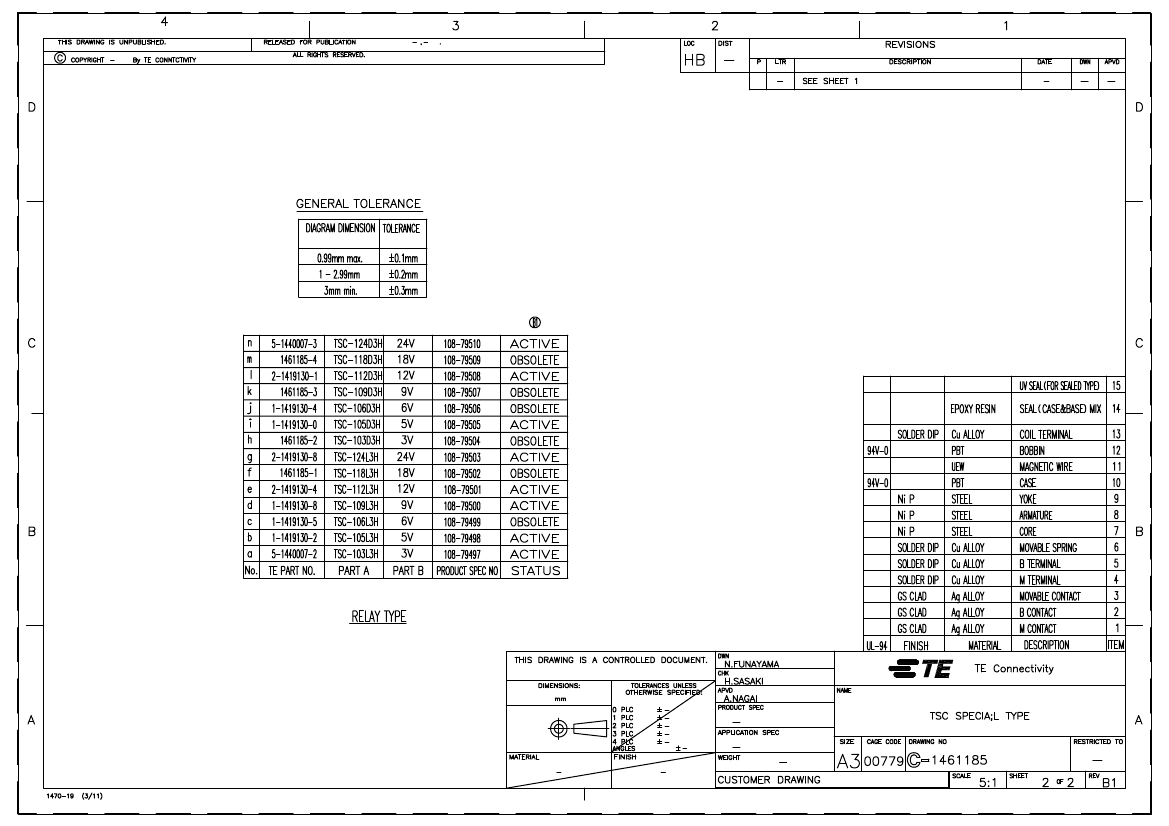

Manufacturer Series	1419130
Maximum DC coil current	0.0250 A
Maximum DC coil voltage	12 V
Maximum AC contact current	1 A
Maximum DC contact current	1 A
Maximum AC contact voltage	120 V
Maximum DC contact voltage	24 V
DC coil operating voltage	9 V
DC coil release voltage	0.6000 V

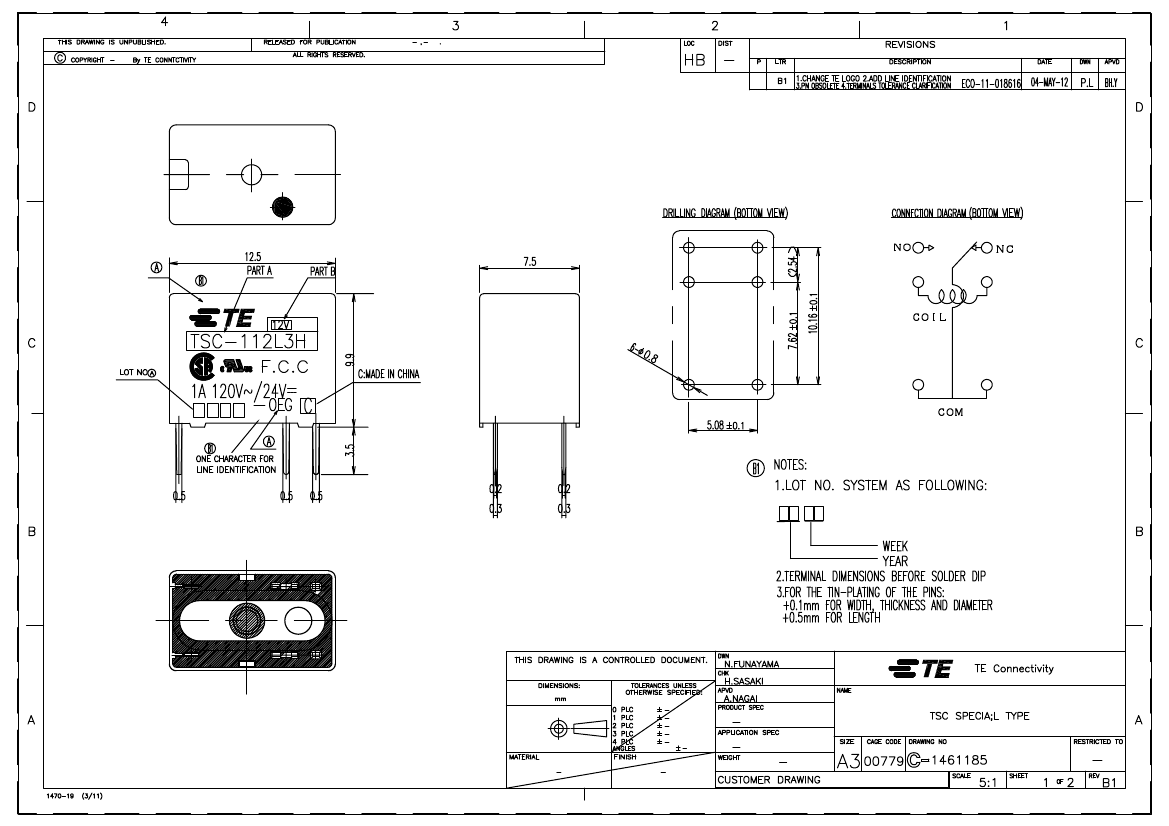

width	7.4 mm
high	9.9 mm
length or diameter	12.3 mm
Installation features	Through hole installation
operating hours	5 ms
Relay type	POWER/SIGNAL RELAY
release time	5 ms
Terminal type	welding
