Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
n
n
n
n
n
n
Small power relay
Limiting continuous current 30A
Minimal weight
Low noise operation
Wave (THT) and reflow (THR/pin-in-paste) solderable versions
For twin version refer to Double Micro Relay K
Typical applications
Car alarm, door control, door lock, hazard warning signal, heated front/rear
screen, immobilizer, lamps front/rear/fog light, interior lights, seat control,
sun roof, turn signal, window lifter, wiper control.
Contact Data
086C/R1_fcw1b
Typical applications
Contact arrangement
Rated voltage
Rated current
Limiting continuous current
23°C
85°C
Limiting making current
Limiting breaking current
Contact material
Min. recommended contact load
Initial voltage drop at 10A, typ./max.
Operate/release time
Electrical enduranc
cyclic temperature -40°C, +25°C, +85°C
form C contact (CO) at 14VDC
Resistive/inductive load
V23086-*100*-A403
1 form C, 1 CO
10/12VDC
NO/NC
30/25A
30/25A
20/15A
40A
1)
30A
Wiper load
V23086-*1*02-A803
1 form C, 1 CO
10/12VDC
NO/NC
30/25A
30/25A
20/15A
40A
1)
30A
AgSnO
2
1A at 5VDC
3)
30/300mV
typ. 3/1.5ms
4)
wiper,
25A make/5A break,
generator peak,
20A on NC,1mH
>1x10
6
ops.
Lamp load
5)
V23086-***21-A502
1 form A, 1 NO
10/12VDC
30A
30A
20A
100A
2)
30A
motor reverse blocked,
25A, 0.77mH
>1x10
5
ops.
resistive 20A
>3x10
5
ops.
form A contact (NO) at 14VDC
lamp 100A inrush,
10A steady state
>1x10
5
ops.
5)
Mechanical endurance
Max. DC load breaking capacity
>5x10
6
ops.
1) The values apply to a resistive or inductive load with suitable spark suppression and at
maximum 13.5VDC for 12VDC load voltages. For a load current duration of maximum
3s for a make/break ratio of 1:10.
2) Corresponds to the peak inrush current on initial actuation (cold filament).
3) See chapter Diagnostics of Relays in our Application Notes or consult the internet at
http://relays.te.com/appnotes/
4) Measured at nominal voltage without coil suppression unit. A low resistive suppression
device in parallel to the relay coil increases the release time and reducesthe lifetime
caused by increased erosion and/or higher risk of contact tack welding.
5) Be aware of using right polarity, see Terminal Assignment. Wrong polarity will reduce
endurance.

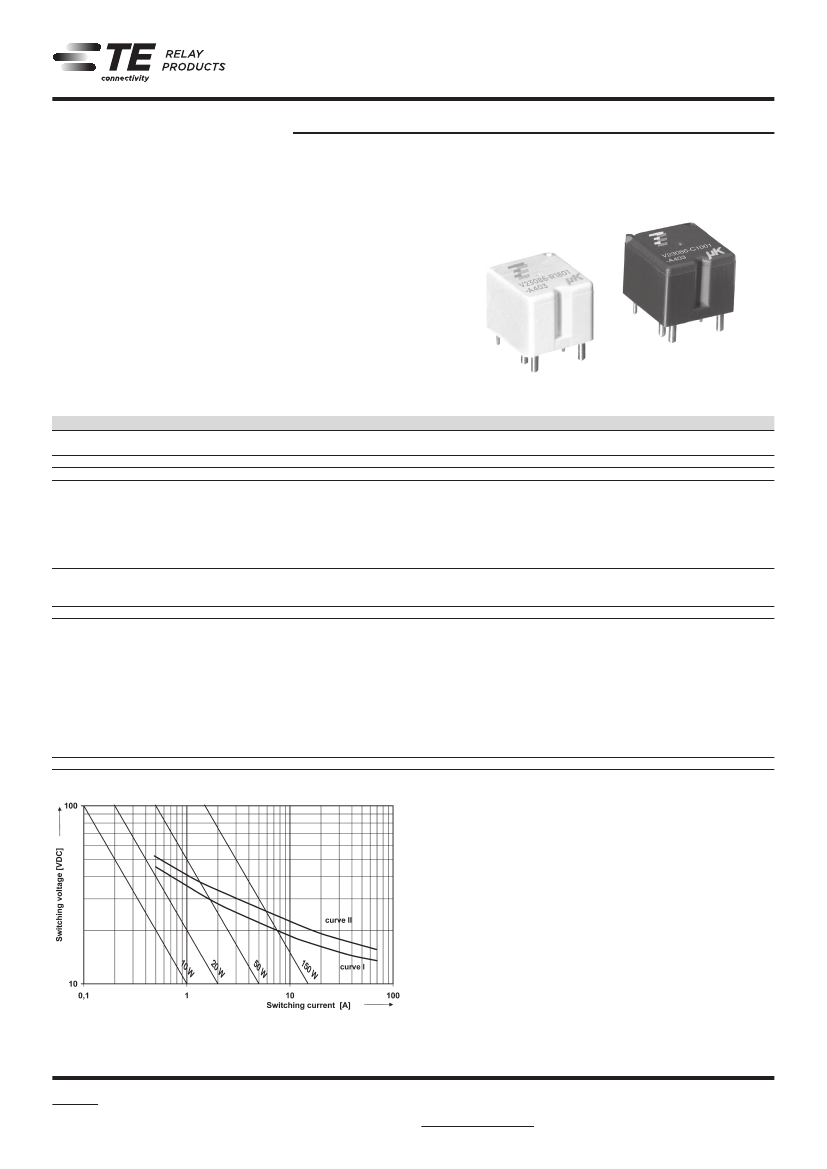

Load limit curve 1: arc extinguishes, during transit time (changeover contact).
Load limit curve 2: safe shutdown, no stationary arc (make contact).
Load limit curves measured with low inductive resistors verified for 1000 switching events.
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
(Continued)
Coil Data
Other Data
Rated coil voltage
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
001/801
12
6.9
002/802
10
5.7
021/821
10
6.9
Coil operating range
300
250
200
150
100
50
0
-40
-20
0
20
40
60
Ambient temperature in °C
12VDC
Release
voltage
VDC
1.5
1.25
1.5
Coil
resistance
Ω±10%
254
181
181
Rated coil
power
mW
567
552
552
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Umax
Uop (E=0V)
80
100
120
Does not take into account the temperature rise due to the contact current
E = pre-energization
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
500VAC
rms
500VAC
rms
EU RoHS/ELV compliance
compliant
Ambient temperature, DC coil
-40 to +105°C
Cold storage, IEC 60068-2-1
1000h; -40°C
Dry heat, IEC 60068-2-2
1000h; +125°C
Climatic cycling with condensation,
EN ISO 6988
20 cycles, storage 8/16h
Temperature cycling (shock),
IEC 60068-2-14, Na
100 cycles; -40/+125°C
Temperature cycling,
IEC 60068-2-14, Nb
35 cycles; -40/+125°C
Damp heat cyclic,
IEC 60068-2-30, Db, variant 1
6 cycles 25°C/55°C/93%RH
Damp heat constant,
IEC 60068-2-3 method Ca
56 days 40°C/95%RH
Degree of protection
THT:
RT III (61810), IP67 (IEC 60529)
THR:
RT II (61810), IP56 (IEC 60529)
Sealing test, IEC 60068-2-17: THT
Qc, method 2, 1min, 70°C
Corrosive gas
IEC 60068-2-42
10 days
IEC 60068-2-43
10 days
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep)
10 to 500Hz; 6g
6)
Shock resistance (functional)
IEC 60068-2-27 (half sine)
6ms, up to 30g
6)
Terminal type
PCB:THT, THR
Weight
approx. 4g (0.14oz)
Solderability (aging 3: 4h/155°C) THT
IEC 60068-2-20
Ta, method 1, hot dip 5s, 215°C
Solderability THR
IEC60068-2-58
hot dip 5s 245°C
Resistance to soldering heat THT
IEC 60068-2-20
Tb, method 1A, hot dip 10s,
260°C with thermal screen
Resistance to soldering heat THR
IEC 60068-2-58
260°C; preheating min 130°C
Storage conditions
according IEC 600688
7)
Packaging unit
2000 pcs.
6) Depending on mounting position: no change in the switching state >10μs.
7) For general storage and processing recommendations please refer to our Application
Notes and especially to Storage in the Definitions or at http://relays.te.com/appnotes/
2
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
(Continued)
Terminal Assignment
Bottom view on solder pins
1 form A, 1 NO
1 form C, 1 CO
1 form A, 1 NO (lamp load)
)–(
8.5
C
B
1.38
7.5
0.5
1.72
1.
0
+0
.0
5
4
5
2
86ets_ab
3
5
2
1
4
)+(
2x
+0.05
0
4
5
2
1
1
86etw_ab
86ets_ab

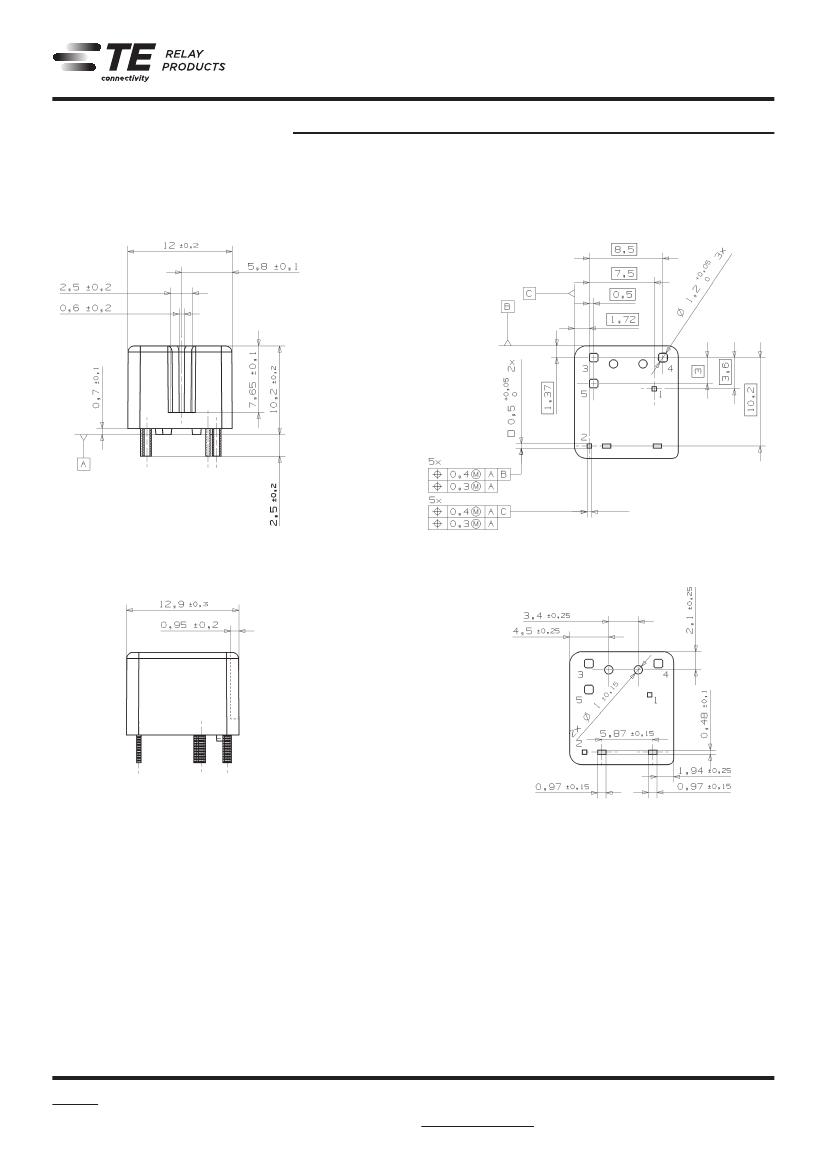

Dimensions
Micro Relay K, THT version
12.0
±
0.2
5.8
2.5
0.6
±
0.2
±
0.2
±
0.1
Mounting Hole Layout
Bottom view on solder pins
±
0.1
±
0.1
3.0
±
0.2
0.4
7.65
9.9
0.5
2
5x
5x
0.4
0.3
A B
A
0.4
0.3
A C
A
TE86etw_an1
A
±
0.2 *)
2.8
12.9
0.95
±
0.3
±
0.2
Remark: Positional tolerances according to DIN EN ISO 5458
TE86etw_se
*) Additional tin tops max. 1 mm
*) Additional tin tops max. 1mm
10.2
5
1
3.6
3
4
2
3x
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
(Continued)
Micro Relay K, THR version
Mounting Hole Layout
Bottom view on solder pins
86R1_DD2_2
86R1_VT3
*)
View of Stand-Offs
Bottom view on solder pins
86R1_DD1_2
86R1_VT1
*) Additional tin tops max. 1mm
4
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Automotive Relays
PCB Single Relays
Micro Relay K (THT – THR)
(Continued)
Product code structure
V23086
Micro Relay K (THT – THR)
Terminal and enclosure
C
PCB version THT, sealed
Design
1
Single relay
Coil
001
Standard (THT)
801
Standard (THR)
021
Special (THT)
Contact type
A
Single contact
Contact material index
4
AgSnO
2
standard
5
AgSnO
2
lamp load
Contact arrangement index
02
NO
Type
Typical product code
V23086
-C
1
001
-A
4
03
R
PCB version THR, vented
002
802
821
Sensitive (THT)
Sensitive (THR)
Special (THR)
8
03
AgSnO
2
wiper load
CO
V23086-C1021-A502
V23086-C1001-A403
V23086-C1002-A803
V23086-R1801-A403
V23086-R1802-A803
V23086-R1821-A502
Product code
PCB THT,
cleanable
PCB THR,
vented
Version
Design
Single
Standard
Sensitive
Standard
Sensitive
Standard
Coil
Contact
Single
Cont. material
AgSnO
2
1 form A, 1 NO (lamp)
1 form C, 1 CO (standard)
1 form C, 1 CO (standard)
1 form C, 1 CO (standard)
1 form C, 1 CO (wiper)
1 form A, 1 NO (lamp)
Arrangement
Part number
8-1416000-7
0-1393280-6
2-1414987-3
6-1414920-0
7-1414967-8
6-1414918-8
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request.
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
5
