BYV34-500P1: DescriptionRectifier Diode, 1 Phase, 1 Element, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN; CategoryDiscrete semiconductor diode; File Size166KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BYV34-500P1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BYV34-500P1	-	-	View	Buy Now

BYV34-500P1 Overview

Rectifier Diode, 1 Phase, 1 Element, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN

BYV34-500P1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	O-MBFM-P2
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	50 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM

Preview

Download Datasheet

View All

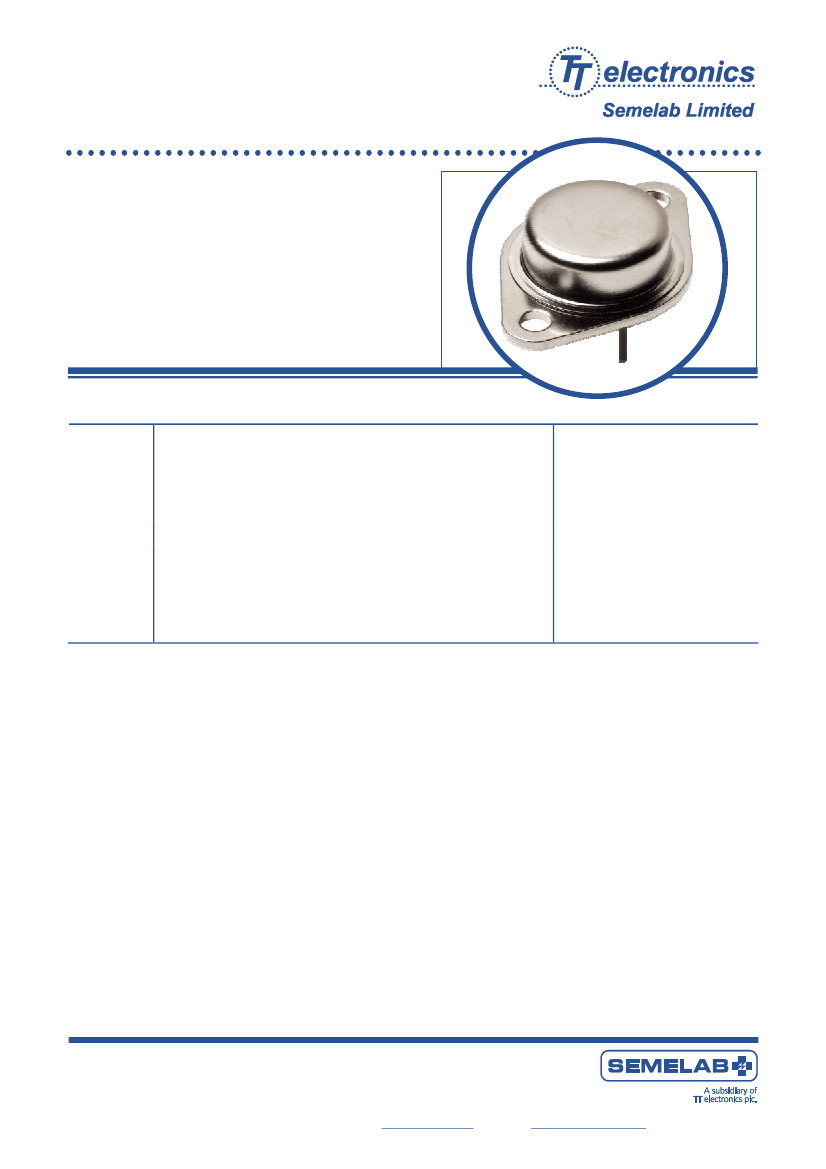

FAST RECOVERY RECTIFIER

DIODE

BYV34-500P1

•

Hermetic TO3 Metal package.

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

VRRM

VRWM

VR

IFRM

IF(AV)

IFSM

Tstg

Tj

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

Continuous Reverse Voltage

tp = 10µs

Repetitive Peak Forward Current

Tc = 70°C

Average Forward Current

(Switching operation

δ

= 0.5)

Surge Non Repetitive Forward Current tp = 10ms

Storage Temperature Range

Maximum Operating Junction Temperature

500V

400V

200A

20A

100A

-65 to +200°C

200°C

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 9375

Issue 1

Page 1 of 2

Website:

http://www.semelab-tt.com
