SAW Components
SAW Rx Filter
TETRA
Series/type:
Ordering code:
Date:
Version:
B5047
B39391B5047Z810
December 12, 2006
2.0
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW Rx Filter
Data Sheet
Application
s
s
s
s
s
B5047
390.0 MHz
Low-loss filter for TETRA
Usable passband 20 MHz
Unbalanced to balanced operation
No matching required
Filter impedance 50
Ω
Features
Package size 3.8 x 3.8 x 1.5 mm
3
Package code QCC8B
Approx. weight 0.07 g
Ceramic package for
Surface Mount Technology
(SMT)
s
RoHS compliant
s
Ni, gold-plated
s
Electrostatic Sensitive Device
(ESD)
s
s
s
s
Pin configuration
s
s
s
s
s
5
1
2
3,6,7
4,8
Input
Output balanced
Output balanced
To be grounded
Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 12, 2006
SAW Components
SAW Rx Filter
Data Sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = -30 to +70˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
(balanced)
min.
Center frequency
Maximum insertion attenuation
380.0 ... 400.0
Amplitude ripple
(p-p)
380.0 ...
Input VSWR
380.0
Output VSWR
380.0
Attenuation
0.0
150.0
346.0
410.0
440.0
460.0
542.0
563.0
1300.0
1526.0
2600.0
...
...
...
...
...
...
...
...
...
...
...
150.0
346.0
370.0
440.0
460.0
542.0
563.0
1300.0
1526.0
2600.0
4000.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
TC
f
...
400.0
MHz
α
35
30
13
14
20
28
35
30
25
16
5
—
54
34
17
17
31
32
40
34
30
20
28
-70
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
ppm/K
—
2.1
2.3
...
400.0
MHz
—
2.0
2.3
f
C
α
max
MHz
∆α
400.0
MHz
—
1.1
3.0
2)
dB
—
3.1
5.0
1)
dB
—
typ.
@ 25 ˚C
390.0
max.
—
MHz
B5047
390.0 MHz
Temperature coefficient of frequency
1)
2)
3.5 dB at 25 ˚C.
1.5 dB at 25 ˚C.
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 12, 2006
SAW Components
SAW Rx Filter
Data Sheet
B5047
390.0 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input Power at
380.0 ... 400.0 MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
-40 / +85
-40 / +85
5
100
1)
15
˚C
˚C
V
V
dBm
machine model, 10 pulses
continuous wave
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
4
December 12, 2006
SAW Components
SAW Rx Filter
Data Sheet

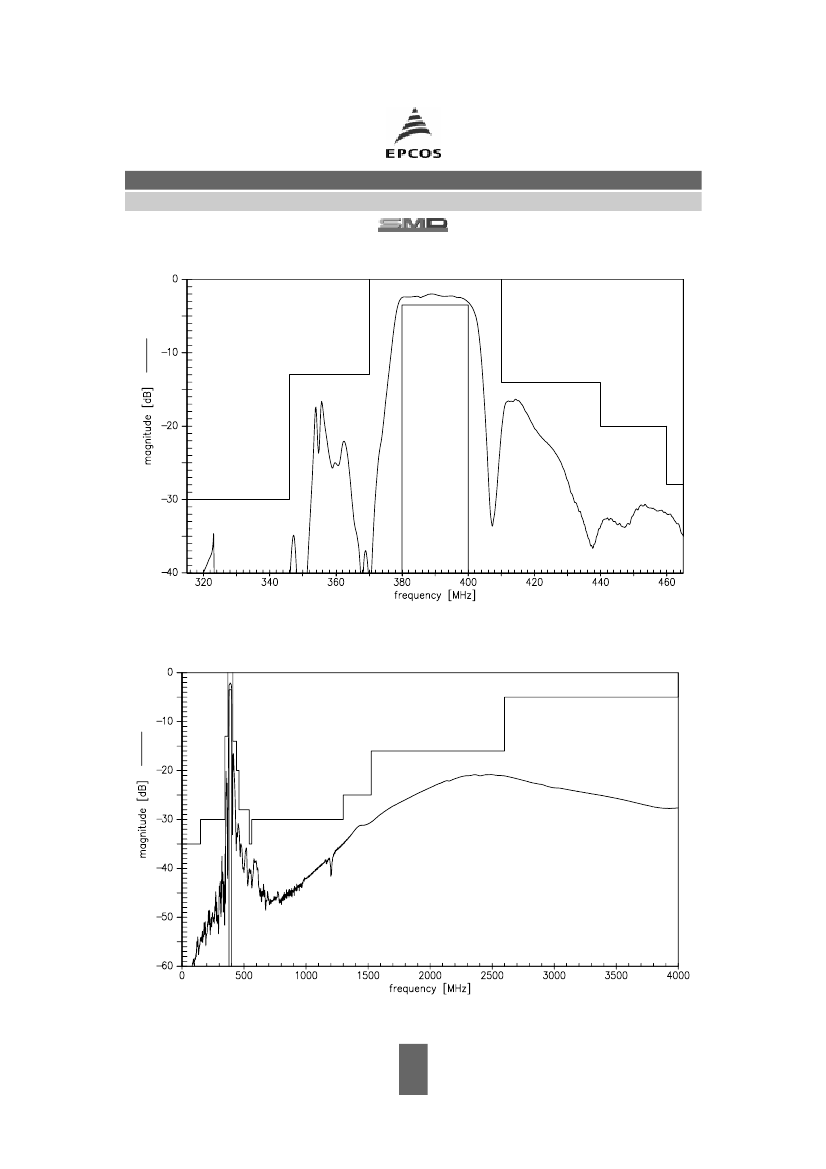

Transfer function
(narrowband)
B5047
390.0 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
December 12, 2006
