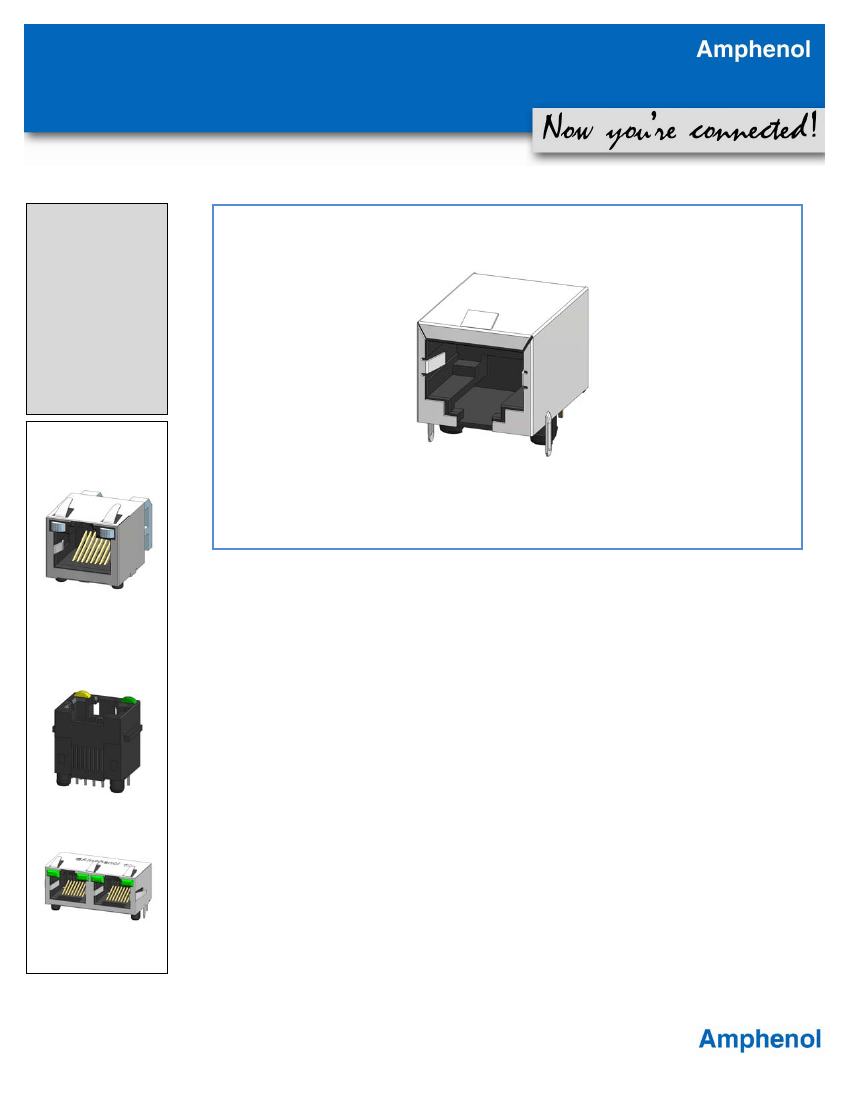

FRJAE
Product Specification S6039C Rev 1.2
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJSSE
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
Overview
P/N RJSSE‐5381 SHOWN
SINGLE PORT, 8 POSITION,
WITH SHIELD AND LIGHT PIPE
This product specification defines the general use and performance parameters for Amphenol’s
FRJAE series of shielded and filtered modular jacks.
Availability: Single and multiport versions available with filter and shielding options.
RJHSE
Usage
The FRJAE shielded and filtered modular jacks supports Ethernet Protocols. Shielding available as
well as filtering with the use of a high resistivity, high impedance Ferrite block for superior EMC
performance.
Applications
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
Consumer Goods
Security Systems
Set Top Boxes
Video Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
Revision date: June 09, 2011
Page 1 of 2

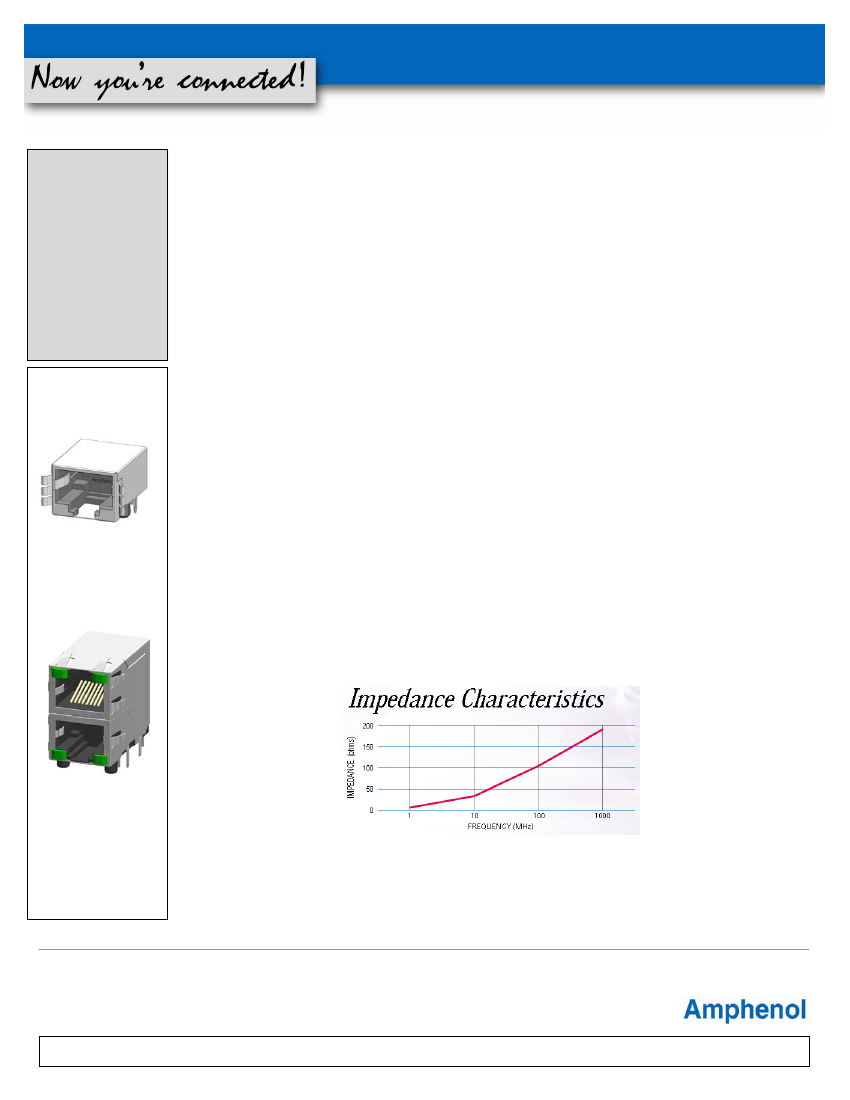

S6039C Rev 1.2
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Suitable for IR Reflow
Operating temperature: -55° C to +85° C
Related Products
RJULE
Material Requirements
FRJAE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Copper alloy; Nickel plated with pure tin dipped tail
Filter:
High Impedance, High Resistivity Ferrite block
P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
RJSAE
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Available Documents
Drawing Numbers:
P-FRJAE-XXX-0X
6 & 8 Position, with or without Ferrites, 2, 4 & 8 Ports, Shielded or Unshielded
P-FRJAE-XXX
6 & 8 Position, with or without Ferrites, Single Port, Shielded or Unshielded
Contact factory or Authorized Amphenol representative for additional configurations
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
